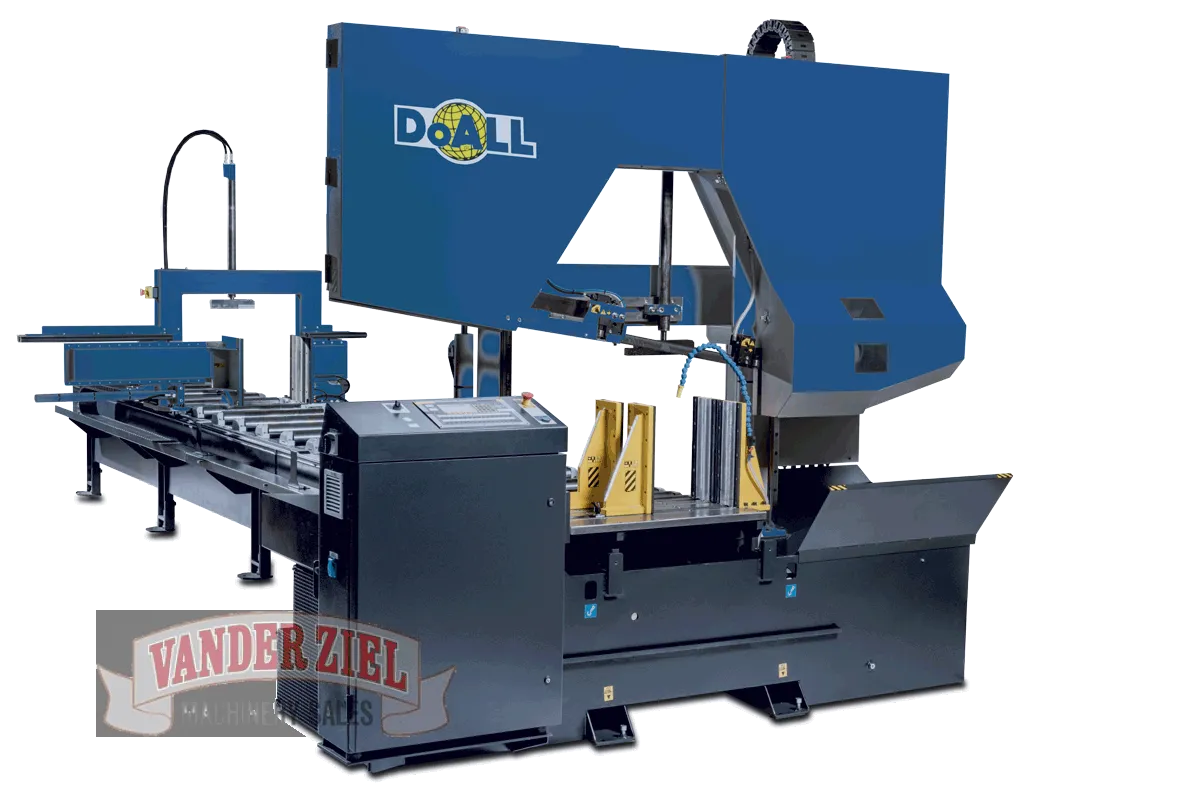

DoAll 20" x 24" Dual Column Tube CNC Bandsaw, Model TDC-600CNC - NEW
DoAll 20" x 24" Dual Column Tube CNC Bandsaw, Model TDC-600CNC - NEW
SKU #1120041
Machine Capacity: 20 x 24" (510x600mm) | Round Tube: 24" (600mm)
Production Level: Extreme
The DoALL Olympia™ TDC-600CNC is an automatic dual column, CNC metal-cutting band saw specially designed to cut large tube and pipe. The TDC-600CNC offers bundling to save time and money in high production environments like metal service centers. Also classified as a horizontal power specialty tube cut-off saw, the TDC-600CNC ships with a work light, work height sensor and discharge chute. A large variety of optional accessories are available to customize the machine for specific sawing requirements. The saw blade is 10° cant for high-efficiency cutting on a wide range of structural shapes and configurations of tubing.
- Cutting Capacity Round Tube: 24" (600mm)
- Cutting Capacity Rectangle: 20 x 24" (510x600mm)
- Maximum Bundle Capacity: 16.34 x 24" (415x610mm)
- Minimum Bundle Capacity: 1.2" (30mm)
- Auto Index Single Stroke: 0.12-78" or 236" (3-1981mm or 5994mm)
- Auto Index Multiple Stroke: 394" (9999mm)
- Band Saw Blade Width: 1-1/2 x 0.05" (41x1.3mm)
- Maximum Blade Length: 245-1/4" (6230mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Band Drive: 5 hp (4kW)
- Hydraulic Pump: 10 hp (7.4kW)
- Coolant Pump: 0.16 hp (0.12kW)
- Coolant Tank Capacity: 24 gal (90 lit)
- Material Pass Line Height: 31-1/2" (800mm)
- Machine Weight: 8664lbs (3930kg)
- Dimensions W x L x H: 169 x 141 x 97" (4300x3570x2460mm)
Standard Equipment:
- Siemens saw control with touch screen
- Work light
- Automatic feed control
- Variable vise pressure control - Set of 2
- Power-driven
- band brush
- Automatic retraction of material in cycle for protection of carbide blades
- Dual acting index vise jaws for crooked stock
- Hydraulic band tension
- Flood coolant
- Tool kit
- Complimentary DoALL cutting fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
