DoAll 20" Vertical Contour Saw, Model 2013-V2 - NEW
DoAll 20" Vertical Contour Saw, Model 2013-V2 - NEW
SKU # 1122001
Machine Capacity: 20" x 13" (508x330mm)
Production Level: Low
The DoALL 2013-V2 vertical contour band saw features variable pulley drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 2013-V2 metal cutting, upright band saw is among the most versatile sawing machines on the market today and replaces the DoALL 2013-V.
- Band Speed: 55-5200 fpm (17-1585mpm)
- AC Motor Drive: 2-hp (1.5kW)
- Machine Weight (net): 1,250 lbs (567kg)
- Throat, Band to Column: 20" (508mm)
- Maximum Work Height: 13" (330mm)
- Band Width Capacity: 1/8" - 1" (3.2-25.4mm)
- Band Length: 154" (3,910mm)

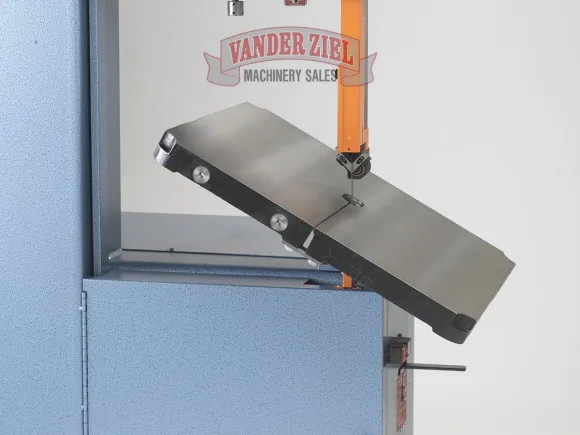

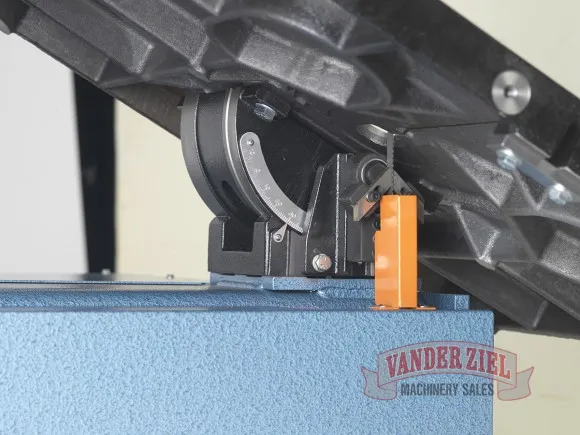

- Table: 26" x 26" (660 x 660mm) Tilts 45°R, 10°L
- Table to Floor Height: 39" (990mm)
- Table Capacity: 500 lbs (227kg)
- Upper Wheel Adjustment: 3" (75mm)
- Wheels: Aluminum with crowned rubber tires
- Height, Max: 81-1/4" (2,064mm)
- Floor Area Req.: 44.39" x 55.08" x 80.17" (1128x1399x2036mm)
Standard Equipment:
- Wrench for saw guides
- Dual range transmission
- Variable pulley drive
- Band speed indicator
- Band door interlocks
- Band tension indicator
- Job selector
- One set of high-speed, insert-type guide blocks for bands 1/8" - 1/2"
- Chip pan
- One set of steel guide inserts for bands 1/4", 3/8" and 1/2"
- Wrench for table trunnion
- Transmission oil
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000449
