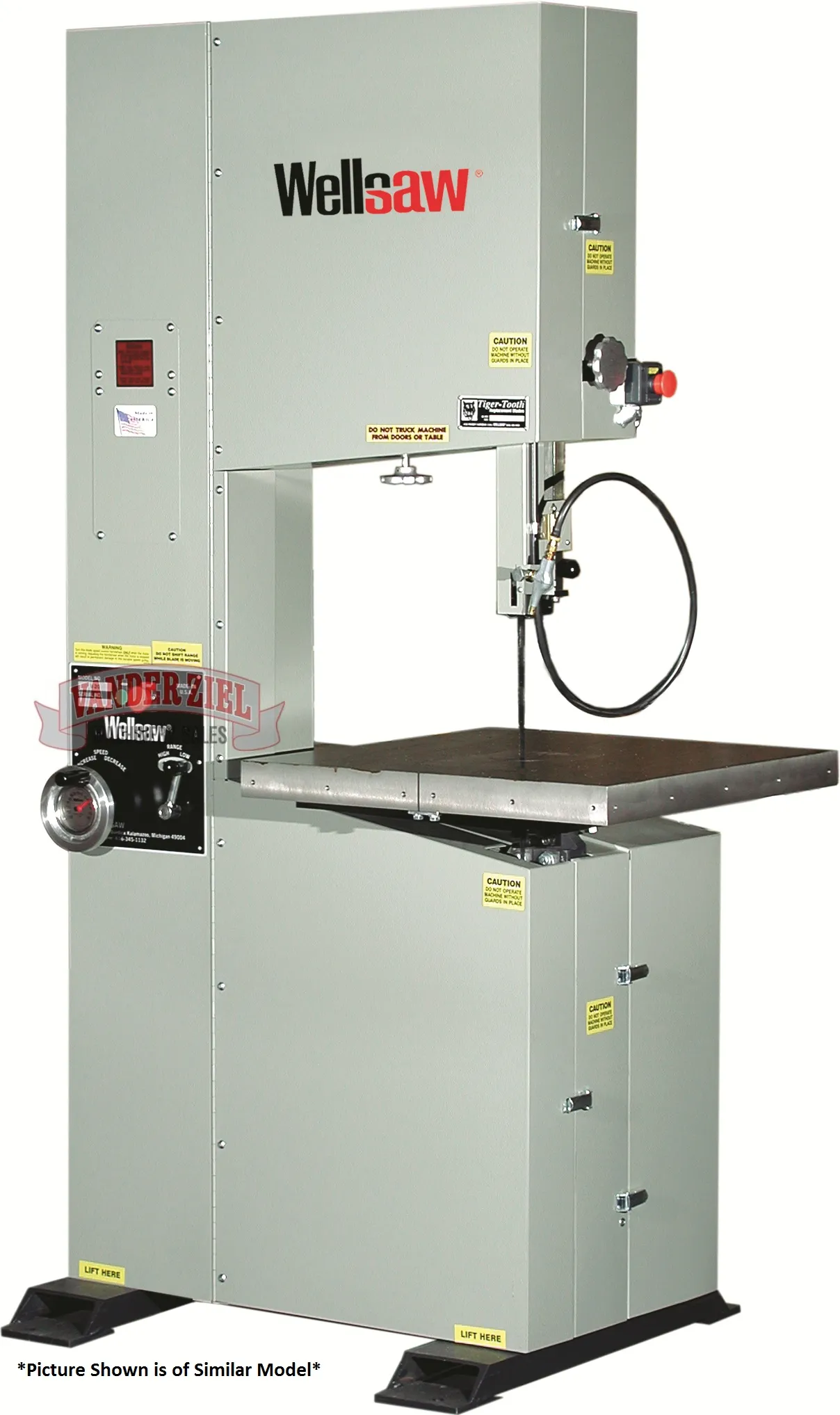

Wellsaw 20" Vertical Saw, Model V-20-24 - NEW

Wellsaw 20" Vertical Saw, Model V-20-24 - NEW

SKU#3922001

Wellsaw 20" Vertical Saw, Model V-20 - NEW

SKU#3922000

Capacity
Throat 20" Deep
Table to Guide 24" High
Blade Size
Standard 3/16" through 3/4"
Blade Length 16'1" (193")
Band Wheels 21" Cast Aluminum with Replaceable Rubber Tires
Blade Speeds
Low Range 45-400 SFPM
High Range 325-3000 SFPM
Blade Guides Sealed Ball Bearings with 90°
Rotation Feature
Table Size 26" x 26" Cast Iron
Tilt 5° Inside and 45° Outside
Height 37-1/2"
Drive Motor
Three Phase 3hp 208/230/460 Volt
Single Phase 2hp 115/208/230 Volt
Floor Area 32" Wide x 48" Deep
Height Standard  91-1/2"
Shipping Weight
Standard 1050 Lbs.

Standard Features
Heavy Tube Steel Frame
Precision Ground Cast Iron Table with Replaceable Throat Plate
Unique Heavy Duty Roller Guides
Rotate 90° to Accommodate Long Materials
Baldor® Motor
Magnetic Starter with Undervoltage and Overload Protection
115 Volts at Controls
Two Speed Cast Iron Gearbox with Helical Gears and Oil Bath
Lubrication for Quiet Operation
Blade Speed Indicator
Blade Tension Indicator
Flexible Arm Worklight
Chip Blower (Shop Air)
Removable Chip Tray
Tiger-Tooth® Bi-Metal Blade
OSHA Blade Guarding
Rotary Blade Brush
