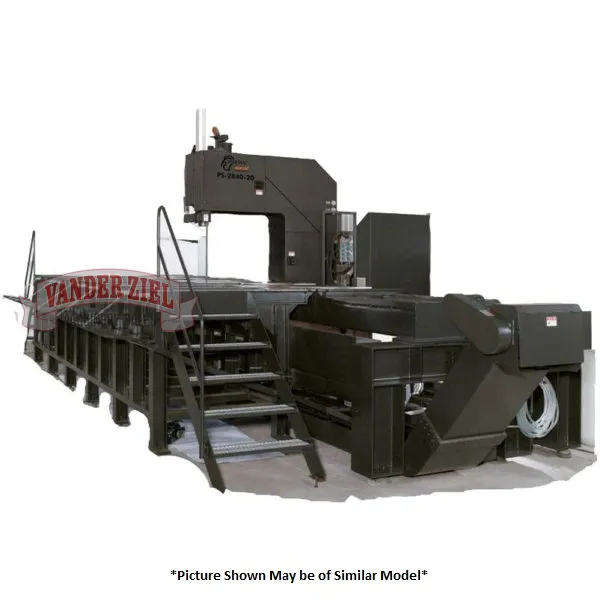

Marvel Spartan 27.5" x 40" Vertical Plate Saw, Model PS 2840/10/15/20 - NEW

Marvel Spartan 27.5" x 40" Vertical Plate Saw, Model PS 2840/10/15/20 - NEW

SKU # 2322005

SPARTAN MODEL PS-2840/10 VERTICAL MOVING HEAD PLATE SAW WITH 2 INCH BLADE

Capacity:  27.5" (700 mm) Height x 40" (1000 mm) Width x 118" (3 meters) Length

Blade:  23' 5" (7140 mm) x 2" (54 mm) x .063 (1.6 mm)

Support Table Width:  Inner Table        39.4" (1000 mm) (22 ton maximum capacity)
Outer Table       63" (1600 mm) (37 ton maximum capacity)

Speed Range:  50-250 fpm (15-75 m/min.) infinitely variable, driven by heavy-duty worm gear transmission and variable  speed pulley.

Feed Rate:  .080-20"/m (2-500 mm/min.)

Motors:            Blade Drive         7.5 HP
Feed Drive       1.25 HP
Hydraulic Pump           (2 Sets) 2 HP
Coolant Pump 1 HP
Auto chip Conveyor                                  .5 H.P.

Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.

Table Height:  55.125" (1400 mm)

Overall Dimensions:  33' 10" (10,300 mm) Long x 15' 5" (4700 mm) Wide, with 6 meter table.

Machine Height:  12' 0.625" (3700 mm)

Machine Weight:  Approximately 41,800 lbs. (19,000 kg) (20' model)

STANDARD FEATURES

• Space Saving Moveable Saw Head


• Precision Linear Ways


• Hydraulically Positioned Saw Guide Arm


• Hydraulic Blade Tension


• AC Servo Feed


• Programmable Feed and Blade Speed Settings


• Rapid Approach and Return of Saw Head


• Motion Detector


• Automatic Feed Adjustment


• On-Screen Self Diagnostics


• Out-of-Square Detector


• Powered Chip Brush

Priced with a 118" Table, Available with a 177" or 236" Table.
