DoAll 20" Vertical Contour Saw, Model 2012 - VH - NEW
DoAll 20" Vertical Contour Saw, Model 2012 - VH - NEW
SKU # 1122004
Machine Capacity: 20" x 12" (508x305mm)
Production Level: Medium

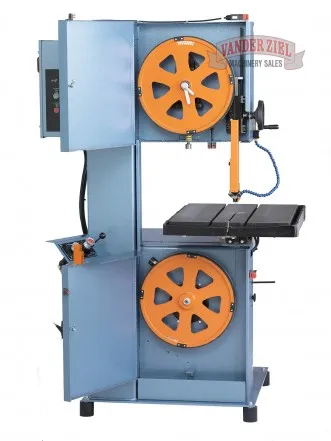

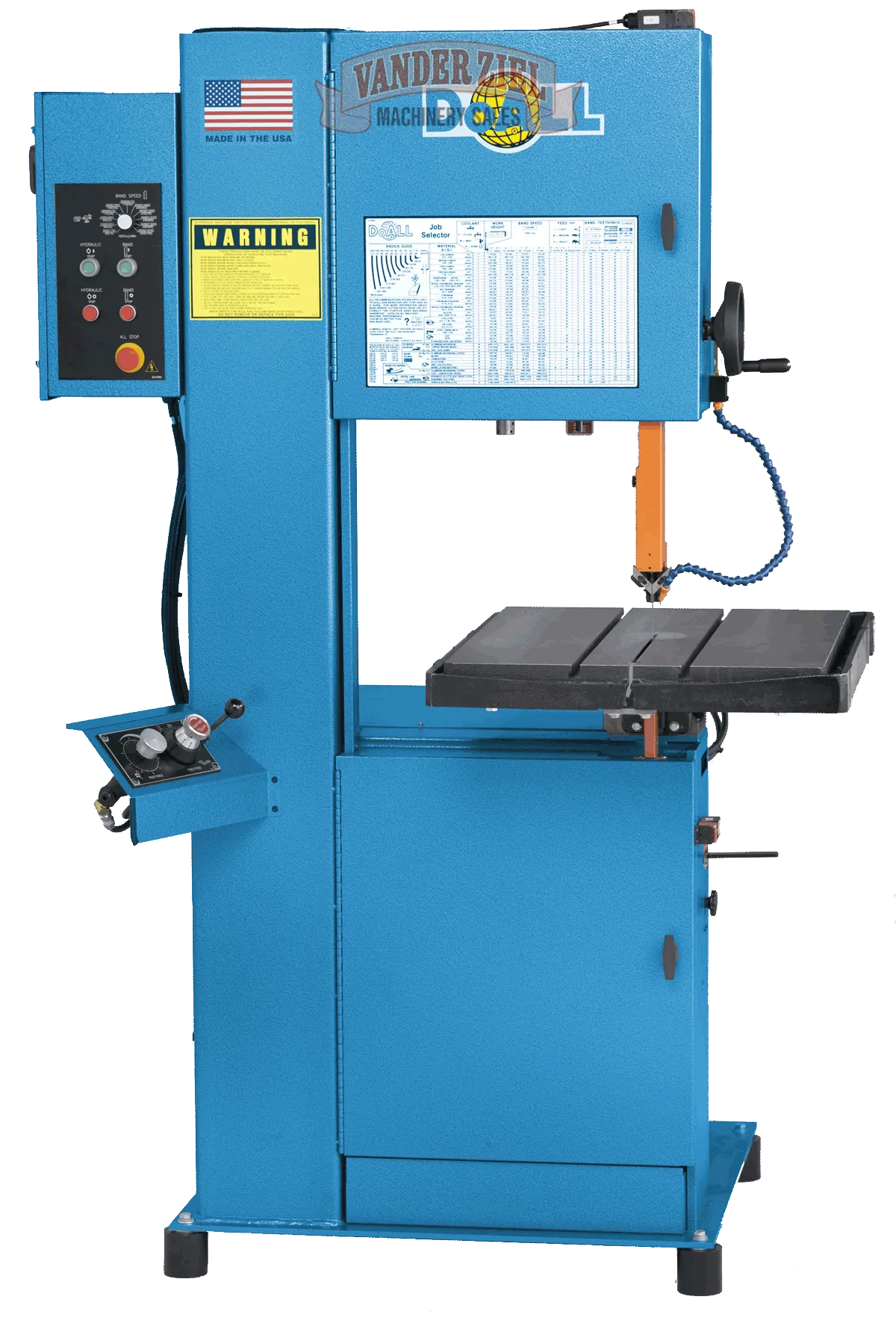

The DoALL 2012-VH vertical contour band saw features a hydraulically powered work table with 12" table stroke. These upright, variable hydraulic controlled, metal cutting band saws are among the most versatile sawing machines on the market today. The 2012-VH is widely used in machine shops, maintenance departments, schools and other areas where cutting a wide variety of materials is required.
- Band Speed: 30-5,500 fpm (10-1,680 mpm)
- AC Motor Drive: 3-hp (2.23kW)
- Machine Weight (net): 1,1650 lbs (748 kg)
- Throat, Band to Column: 20" (508mm)
- Maximum Work Height: 12" (305mm)
- Band Width Capacity: 1/8" - 1" (3.2 - 25mm)
- Band Length: 154" (3,910mm)
- Table: 26-1/2" x 33-1/2" (675 x 850mm) Tilts 45R, 10L
- Table to Floor Height: 40" (1,020mm)
- Table Stroke: 12" (305mm)

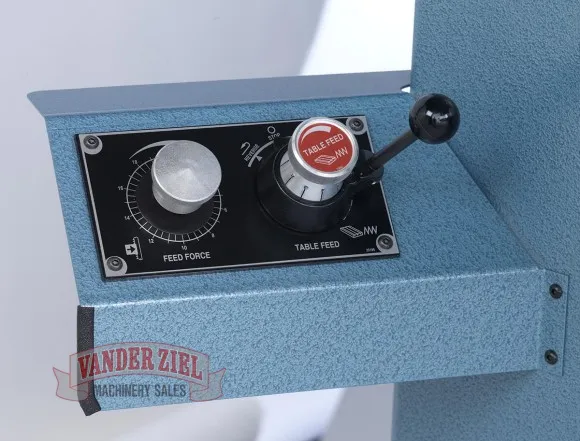

- Table Feed: 0-6 fpm (0-1.8 mpm)
- Table Feed Force: 0-175 lbs (0-79kg)
- Table Capacity: 500 lbs (227kg)
- Upper Wheel Adjustment: 3" (76mm)
- Wheels: Flanged with steel backed rubber tires
- Hydraulic reservoir: 4-1/2 gal. (15.6 liter)
- Height, Max: 81" (2,057mm)
- Floor Area Req.: 54-1/4" x 58" (1,380 x 1,475mm)
Standard Equipment:

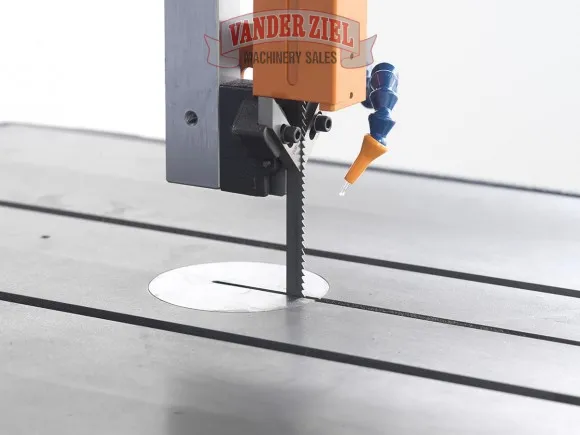

- One set of saw guide blocks w/carbide backup for bands 1/8" to 1" (3 to 25mm )
- One set of 3/4" (19mm) and 1" (25mm) carbide-faced inserts
- One set of metal saw guide inserts for bands 1/4" (6mm), 3/8" (10mm) and 1/2" (13mm)

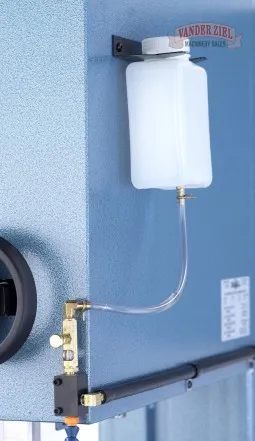

- Mist coolant-plant air
- Variable frequency AC drive
- Chip pan

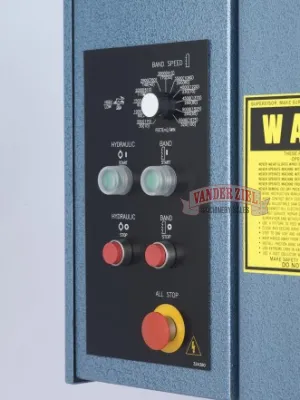

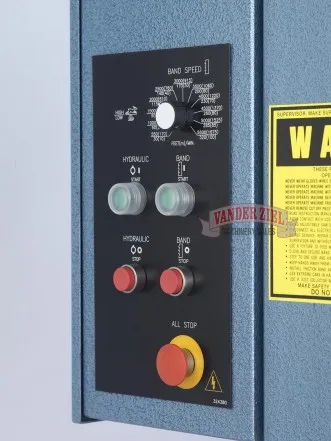

- Job selector
- Band speed indicator
- Wheel brush assembly
- Band tension indicator

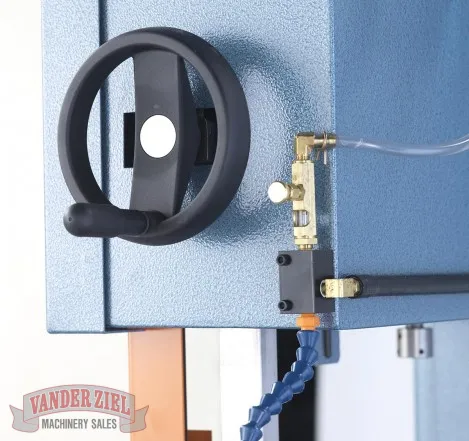

- Post elevating hand wheel
- Dual-range transmission
- Table trunnion wrench
- Complimentary coolant package
- Wrench for saw guides
- Transmission oil
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD
REF: 000452
