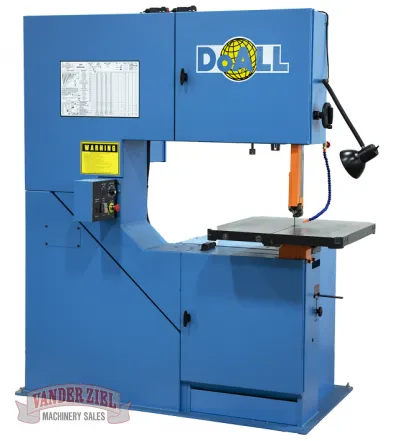

DoAll 36" Vertical Contour Saw, Model 3613-V3 - NEW

SKU # 1122007

Machine Capacity: 36" x 13" (915x330mm)
Production Level: Low

The DoALL 3613-V3 vertical contour band saw features variable frequency 3 hp (2.23kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 3613-V3 upright metal cutting band saw, with a 36" (915mm) cutting capacity, is widely used in machine shops, maintenance departments, schools and other areas where cutting a wide variety of materials is required.

Band Speed: 30-5,500 fpm (9-1,680mpm)

AC Motor Drive: 3-hp (2.25kW)

Machine Weight (net): 1,5500 lbs (703kg)

Throat, Band to Column: 36" (915mm)

Maximum Work Height: 13" (330mm)

Band Width Capacity: 1/8"-1" (3.2-25.4mm)

Band Length: 199" (5,055mm)

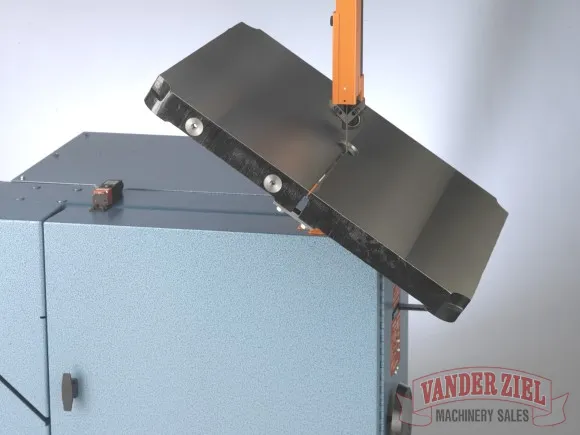

Table: 26" x 26" (660 x 660mm) Tilts 45R, 10L

Table to Floor Height: 39" (990mm)

Table Capacity: 500 lbs (227kg)

Upper Wheel Adjustment: 3" (76mm)

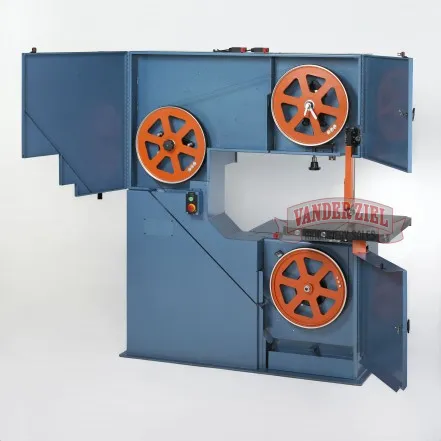

Wheels: Aluminum with crowned rubber tires

Floor area required: 74" x 45" x 81-1/2" (1,880x1,145x2,070 mm)

Standard Equipment:

Set of high-speed, insert-type guide blocks for bands 1/8"-1" (3.2-25.4mm)

Set of steel guide inserts for bands 1/4", 3/8" and 1/2"

Band door interlocks

Job selector

Wrench for saw guides

Chip pan

Band tension indicator

Transmission oil

Wrench for table trunnion

Band speed indicator reading in fpm/mpm

Variable frequency AC drive dual-range transmission

One DoALL bi-metal saw blade

Instruction and parts manuals on CD
