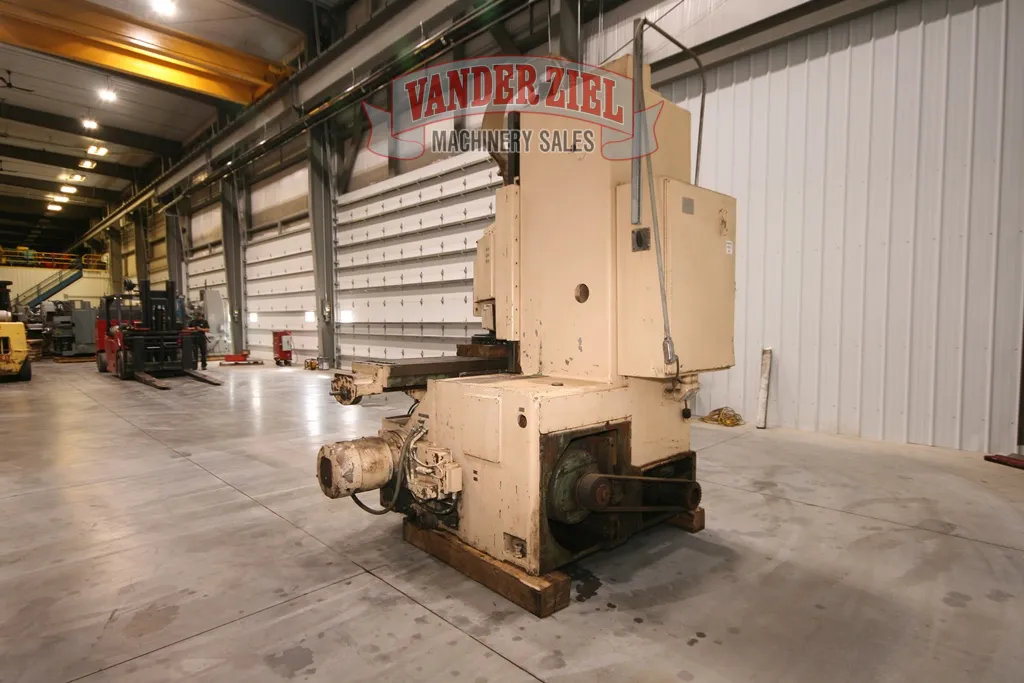

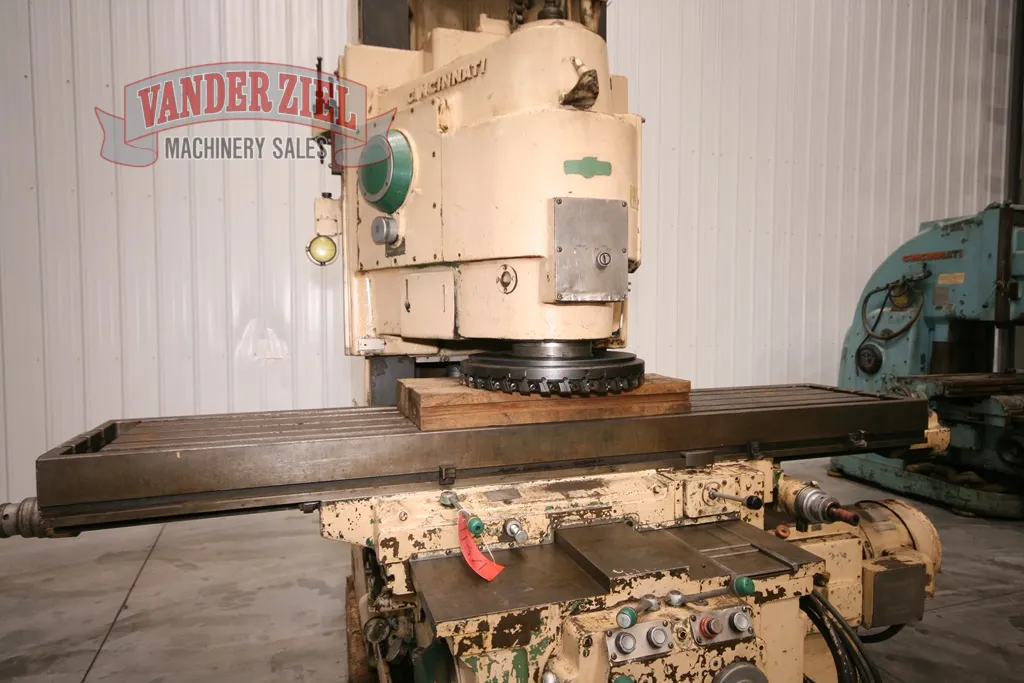

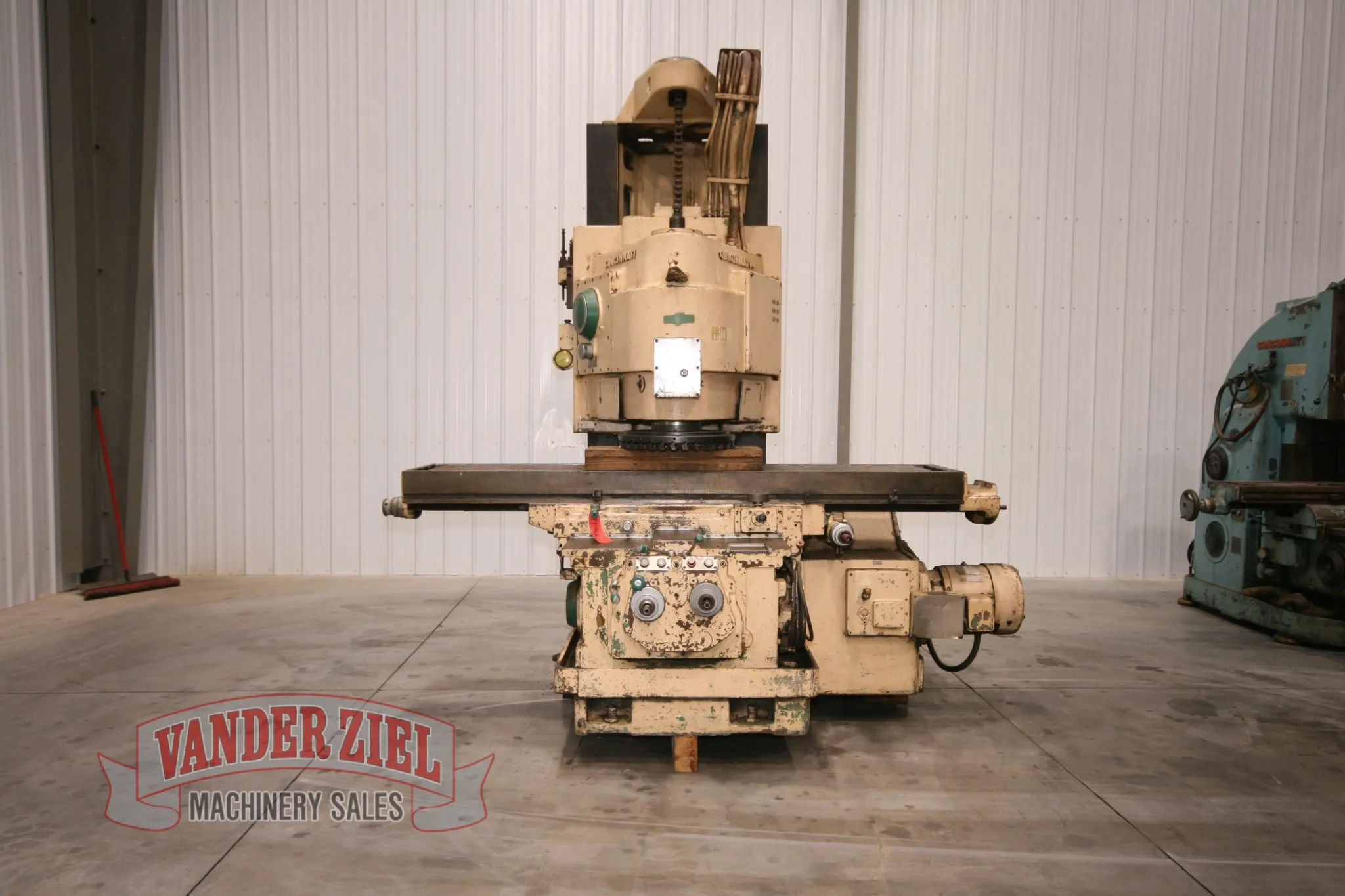

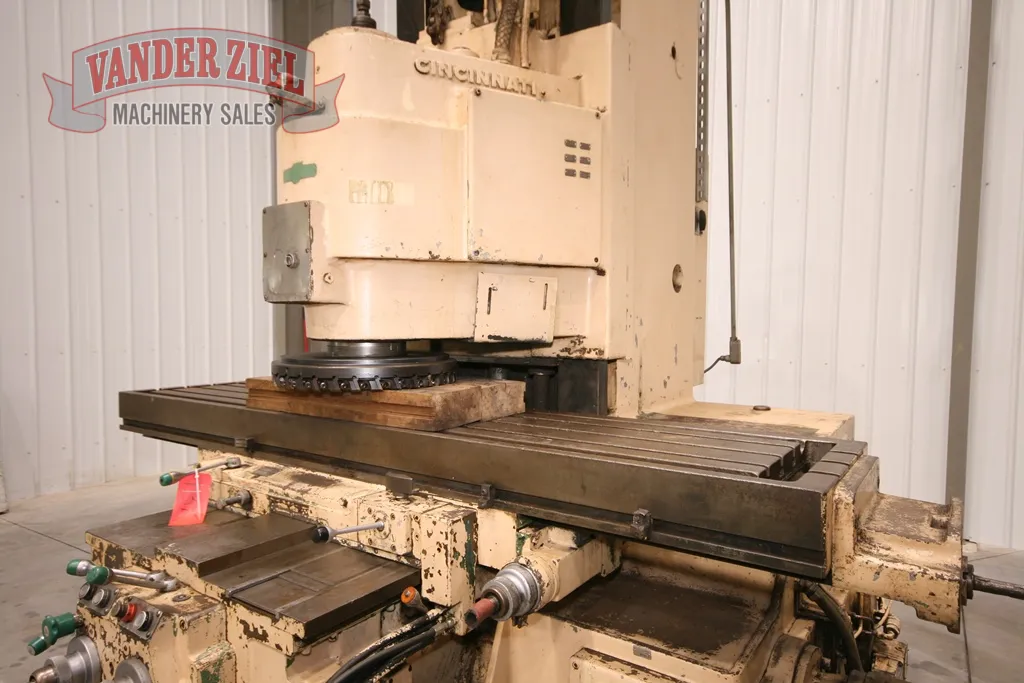

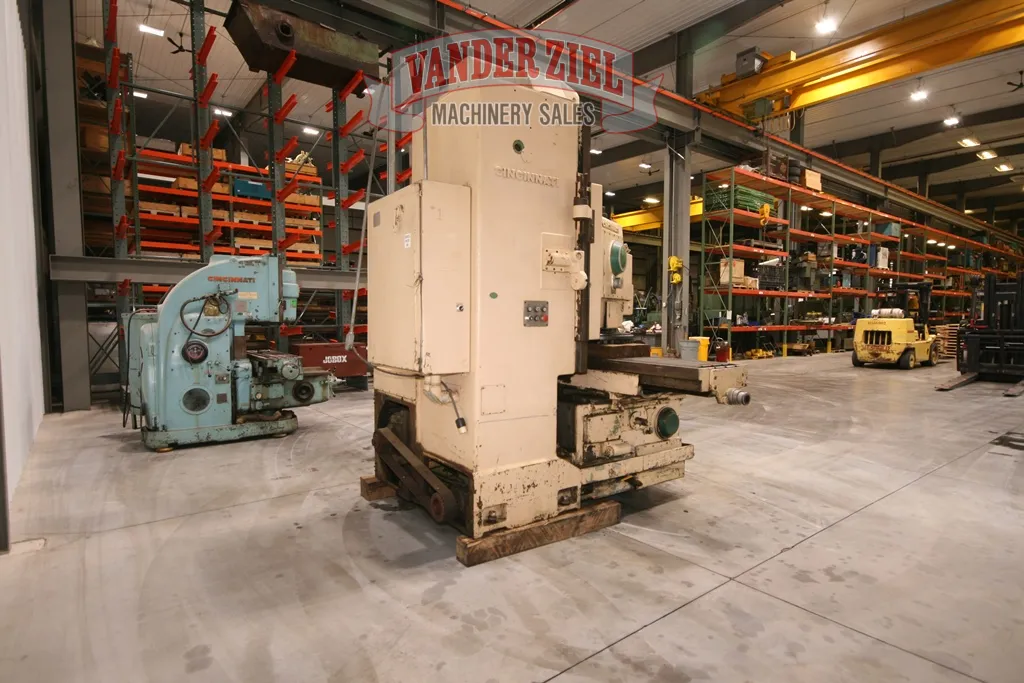

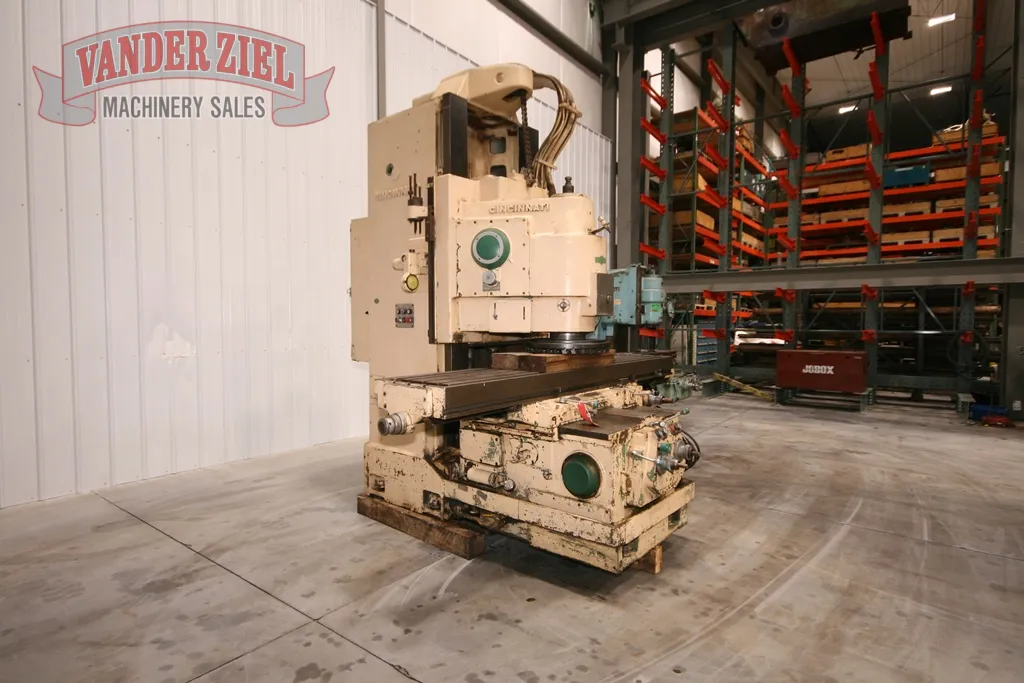

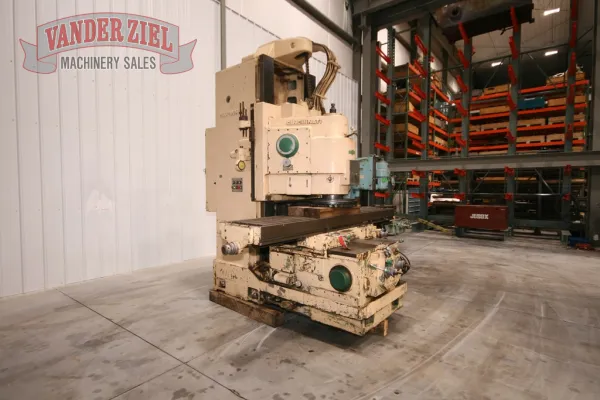

Cincinnati Model 550-20 Vercipower Vertical Mill, 94 1/2” x 20”

Cincinnati Model 550-20 Vercipower Vertical Mill, 94 1/2" x 20"

Asset #11371
Serial # 9J52V5S-2

Specifications:
Working Surface    94 1/2" x 20"
T-Slots (3)    3 13/16"
Distance between Slots    4.25"
Longitudinal Range    50"
Cross Range    18"
Vertical Range    24"
Spindle Taper    50 Taper
Diameter of Nose    5 1/6 & 8 23/32"
Speeds (24)    14-1400
Feeds - Number    32
Feeds - Long. & Cross    3/8 - 90ipm
Feeds - Vertical    1/2 Longitudinal
Motor    50 HP
Feed Drive    7.5 HP
Dimensions    167" x 147"
Weight    24,900 lbs.

Preliminary Specifications - Subject to Verification
