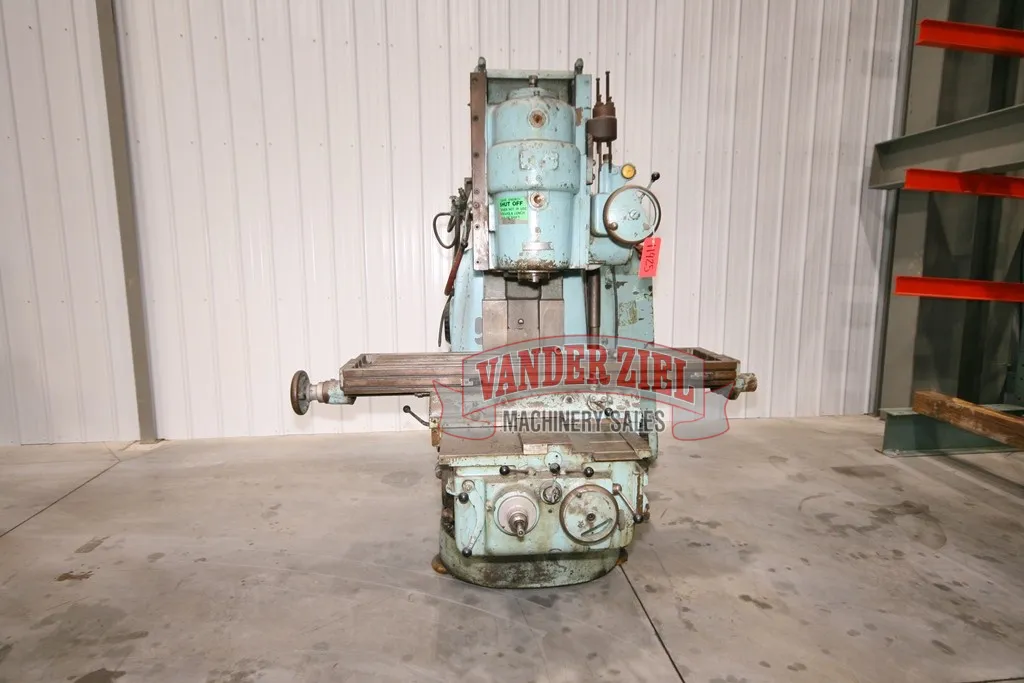

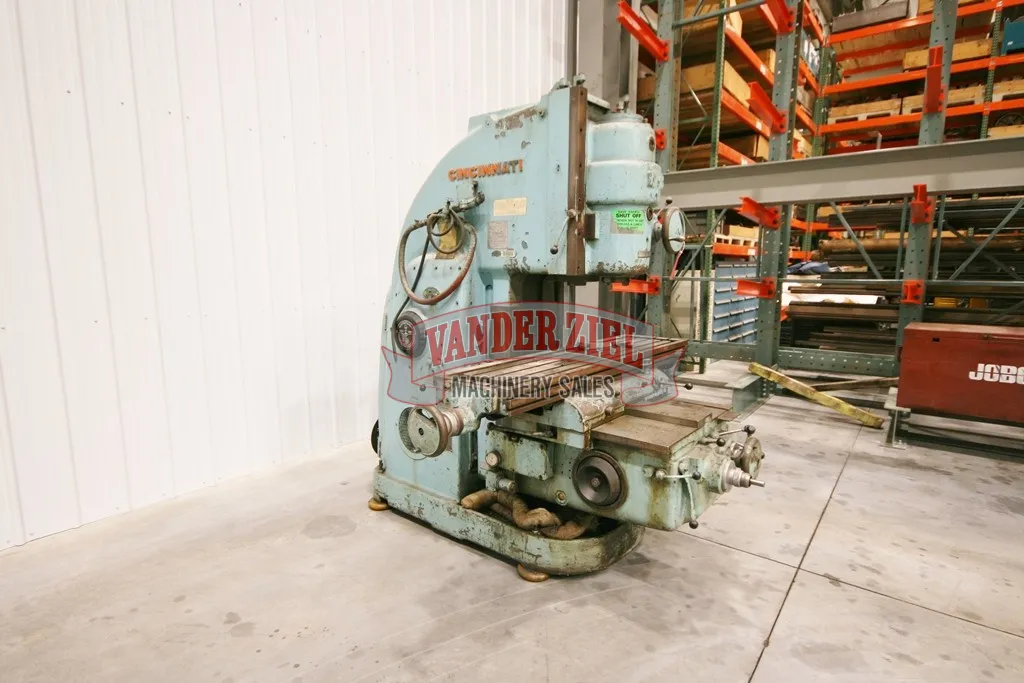

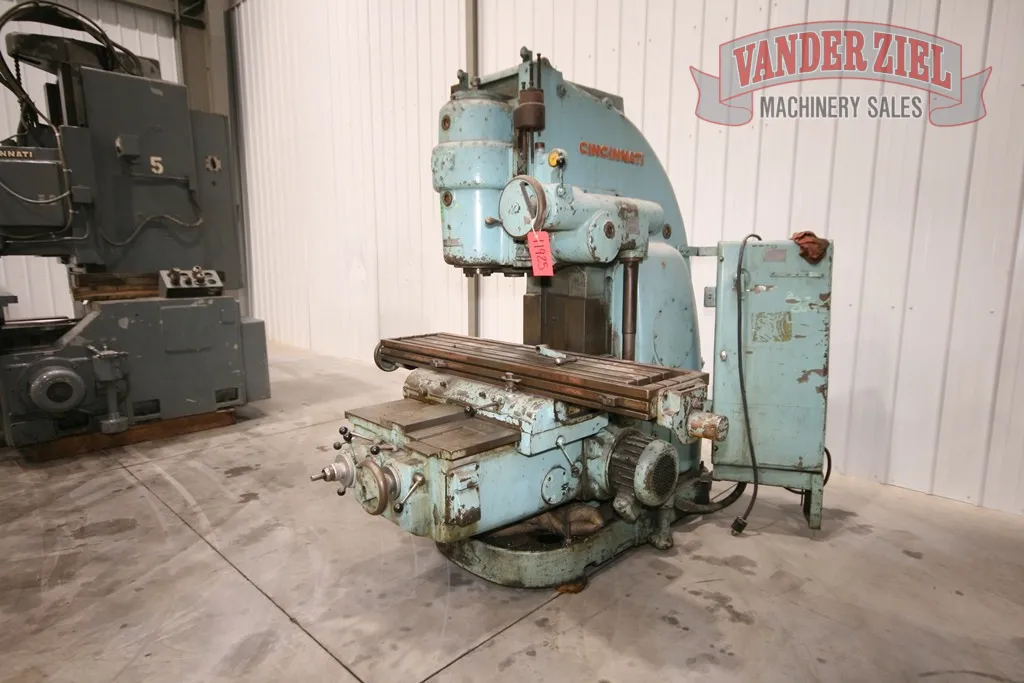

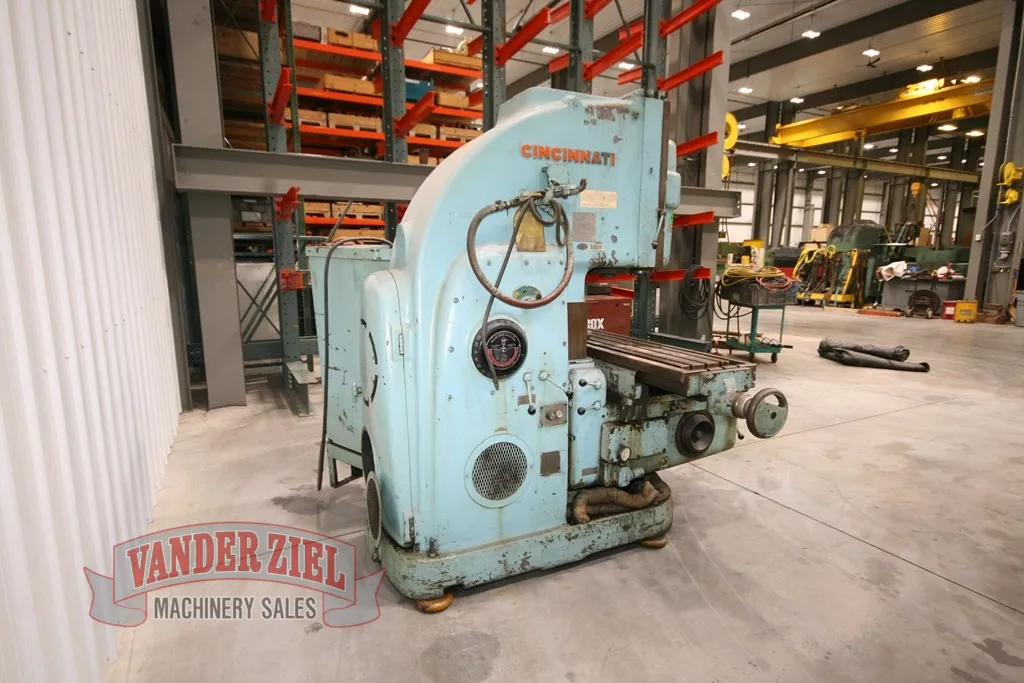

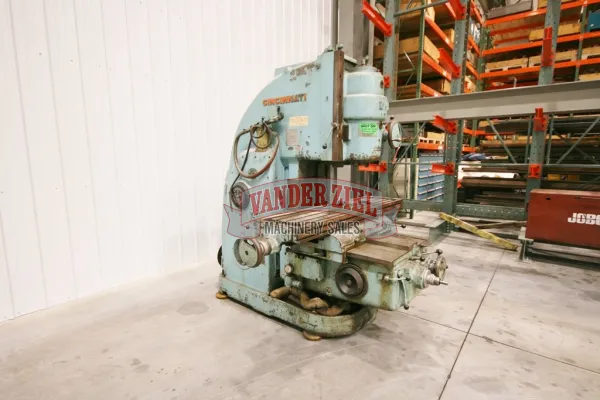

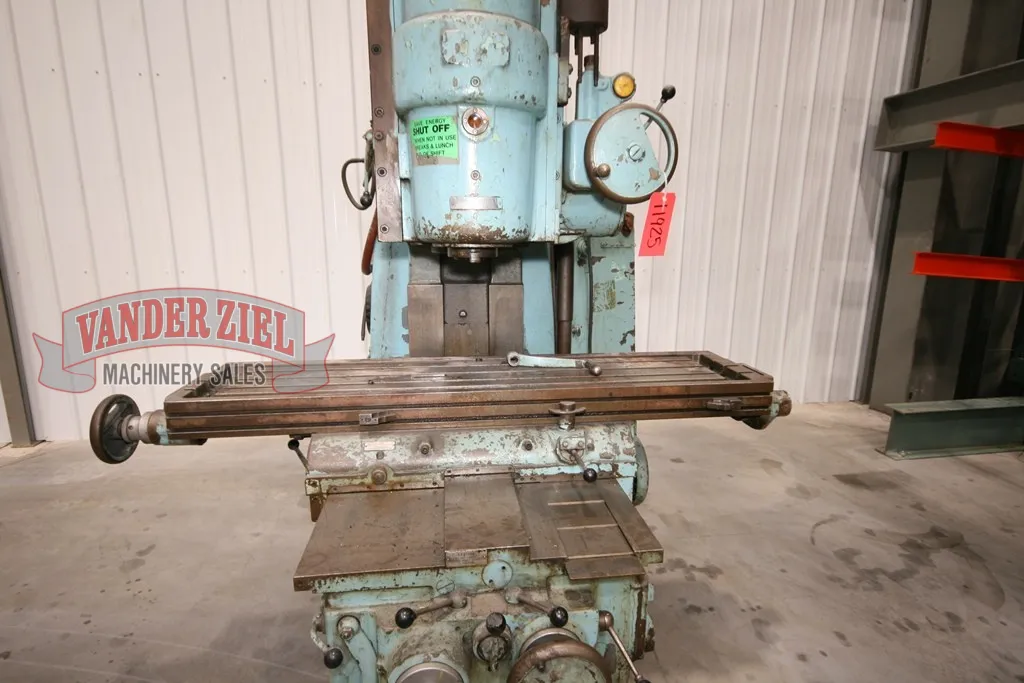

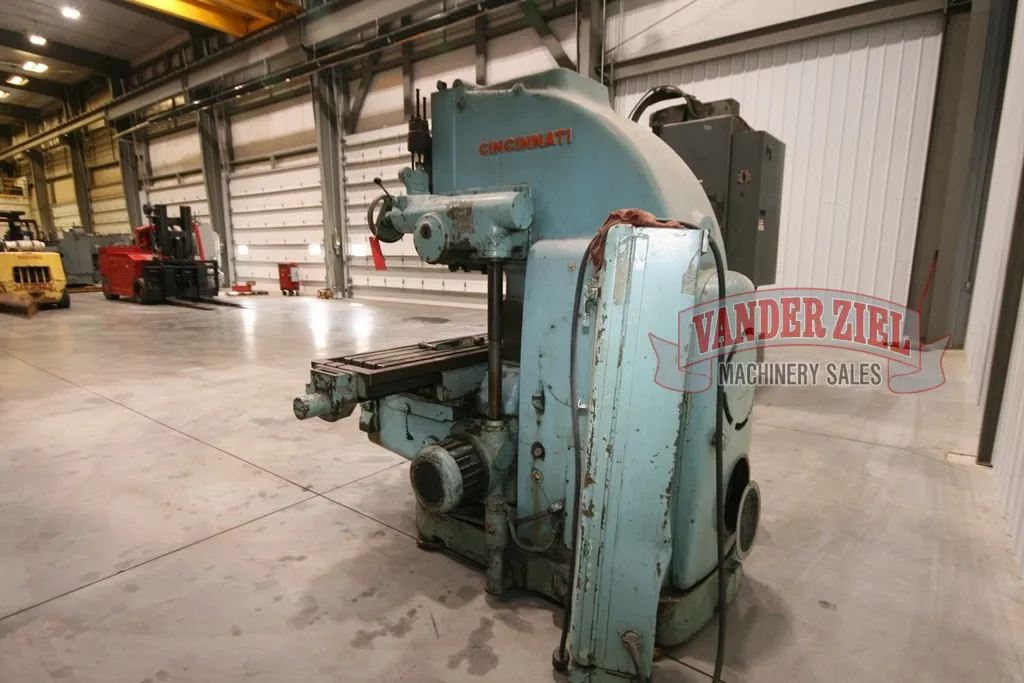

Cincinnati No. 2 Vertical Mill, 65” x 16”

Cincinnati No. 2 Vertical Mill, 65" x 16"

Serial # 4J2V5D-2
Asset # 11925

Specifications:
Table Working Surface 65" x 116"
T-Slots 3
Distance between T-Slots 2 3/16"
Longitudinal Range 26"
Cross Range 12"
Vertical Range 13"
Distance from Spindle Nose to Top of Table 18"
Throat Distance 14"
Spindle No. 50
Diameter of Nose 5 1/16"
Power Rapid Traverse - Longitudinal 100"
Power Rapid Traverse - Cross 100"
Power Rapid Traverse - Vertical 80"
Spindle Speeds 16-1600 RPM
Number of Feeds 33
Range of Feeds 1-60
Dimensions 98" x 79"
Weight 8000 lbs.

Preliminary Specifications - Subject to Verification
