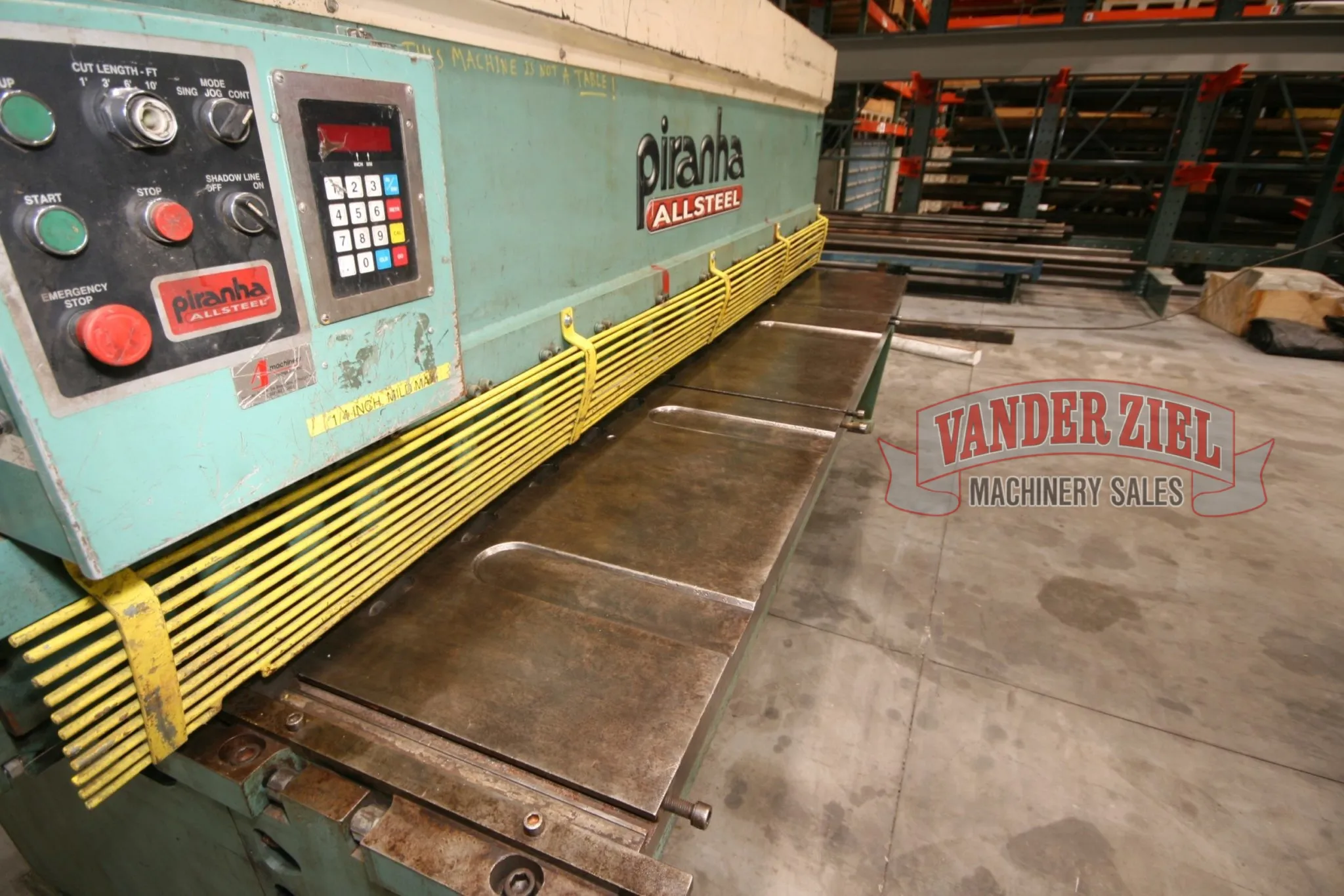

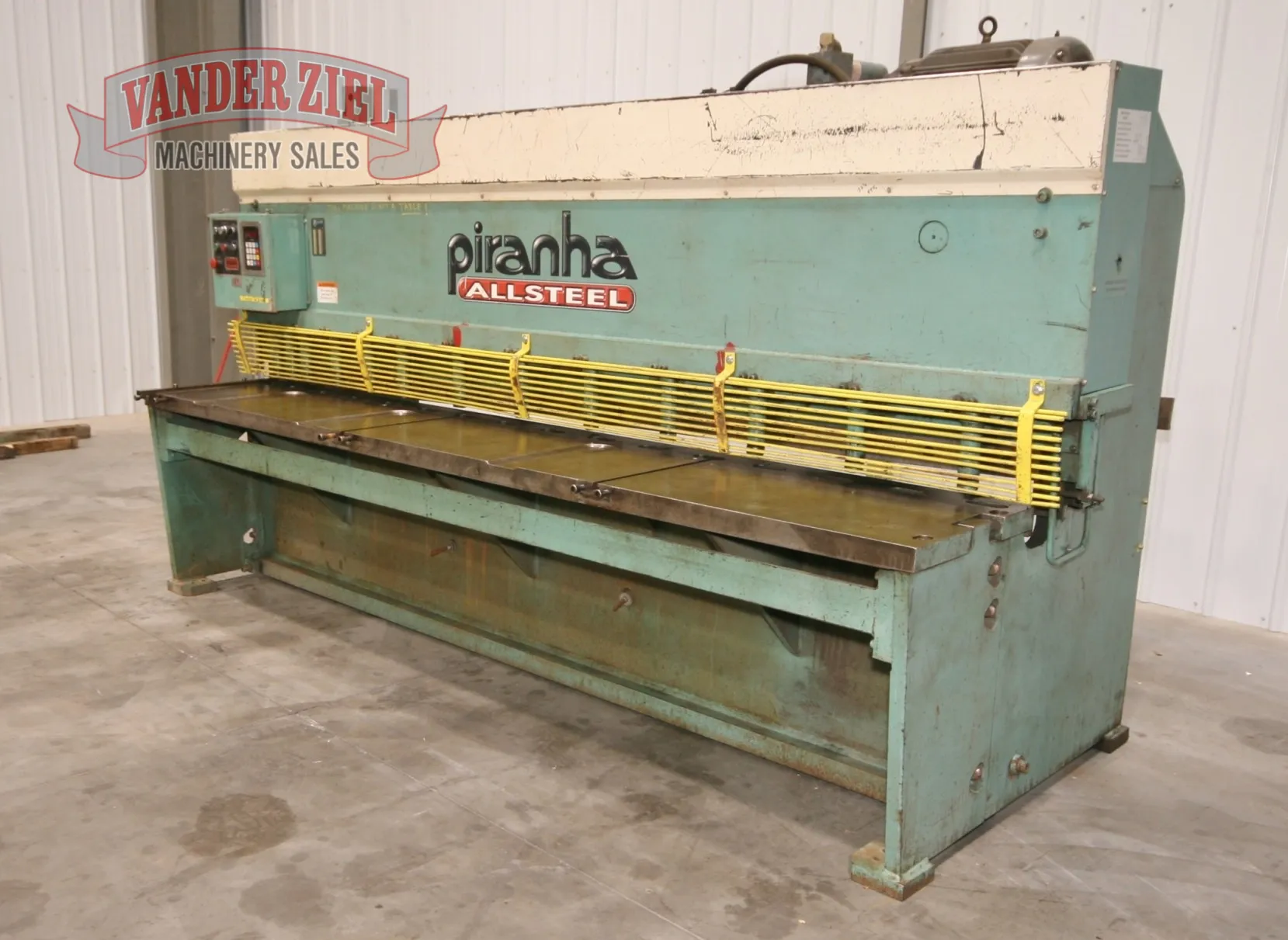

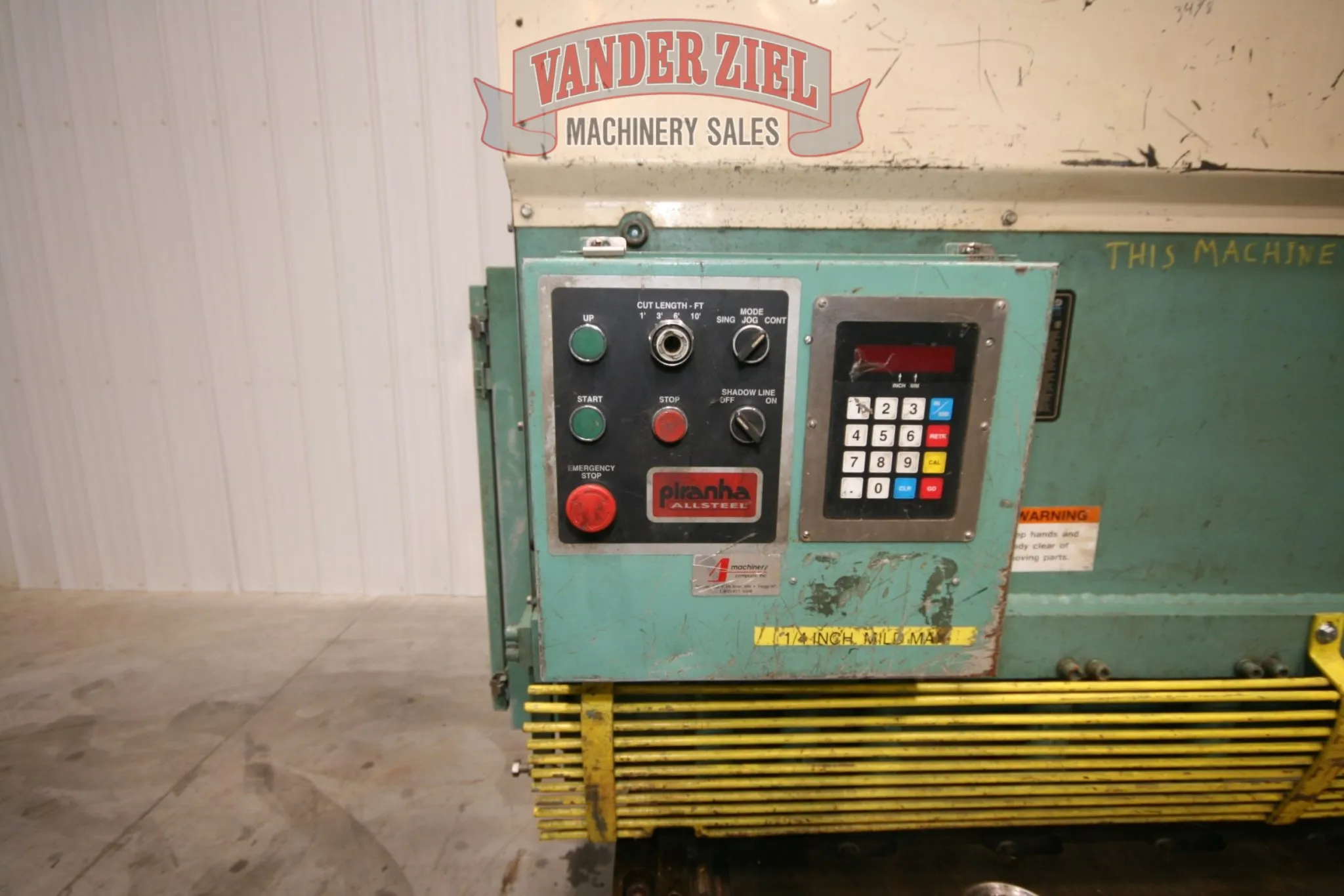

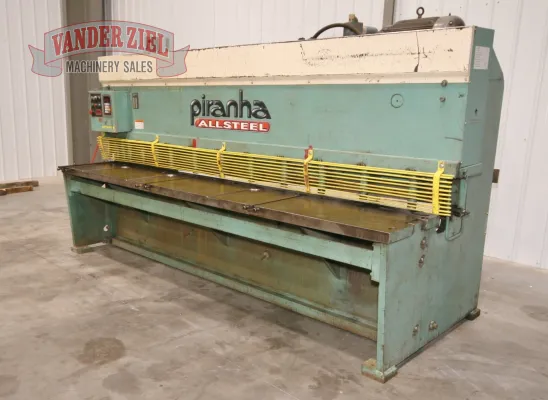

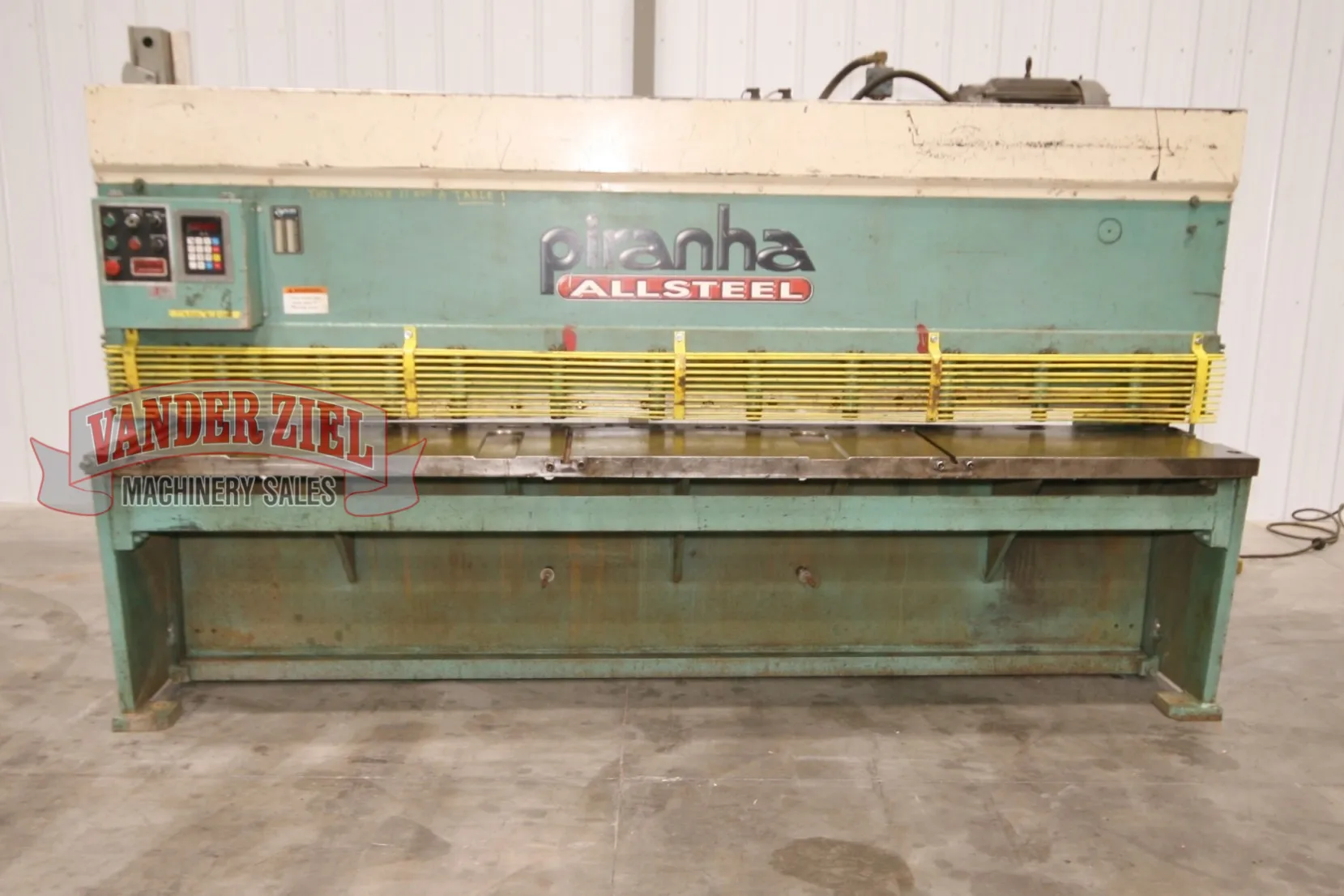

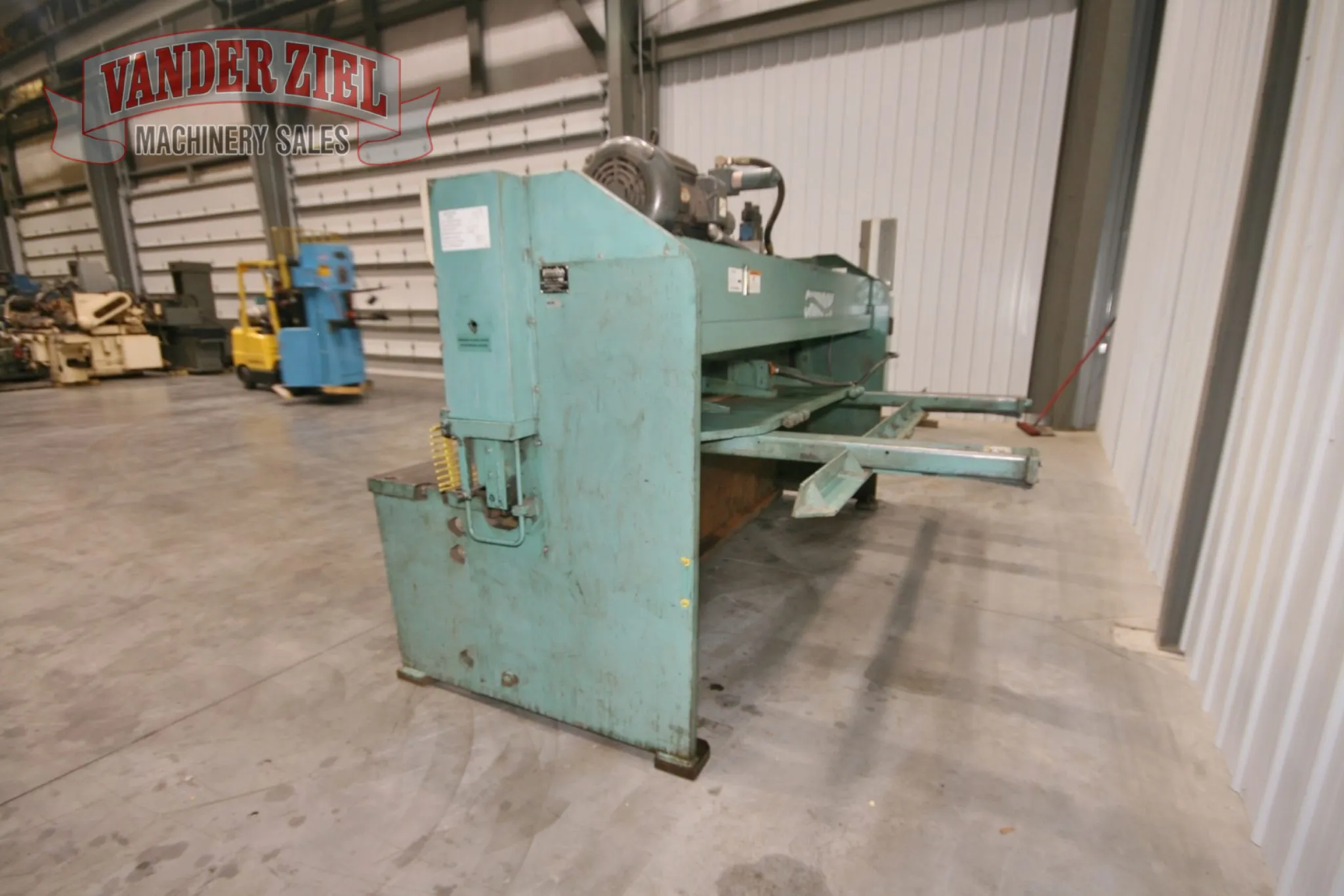

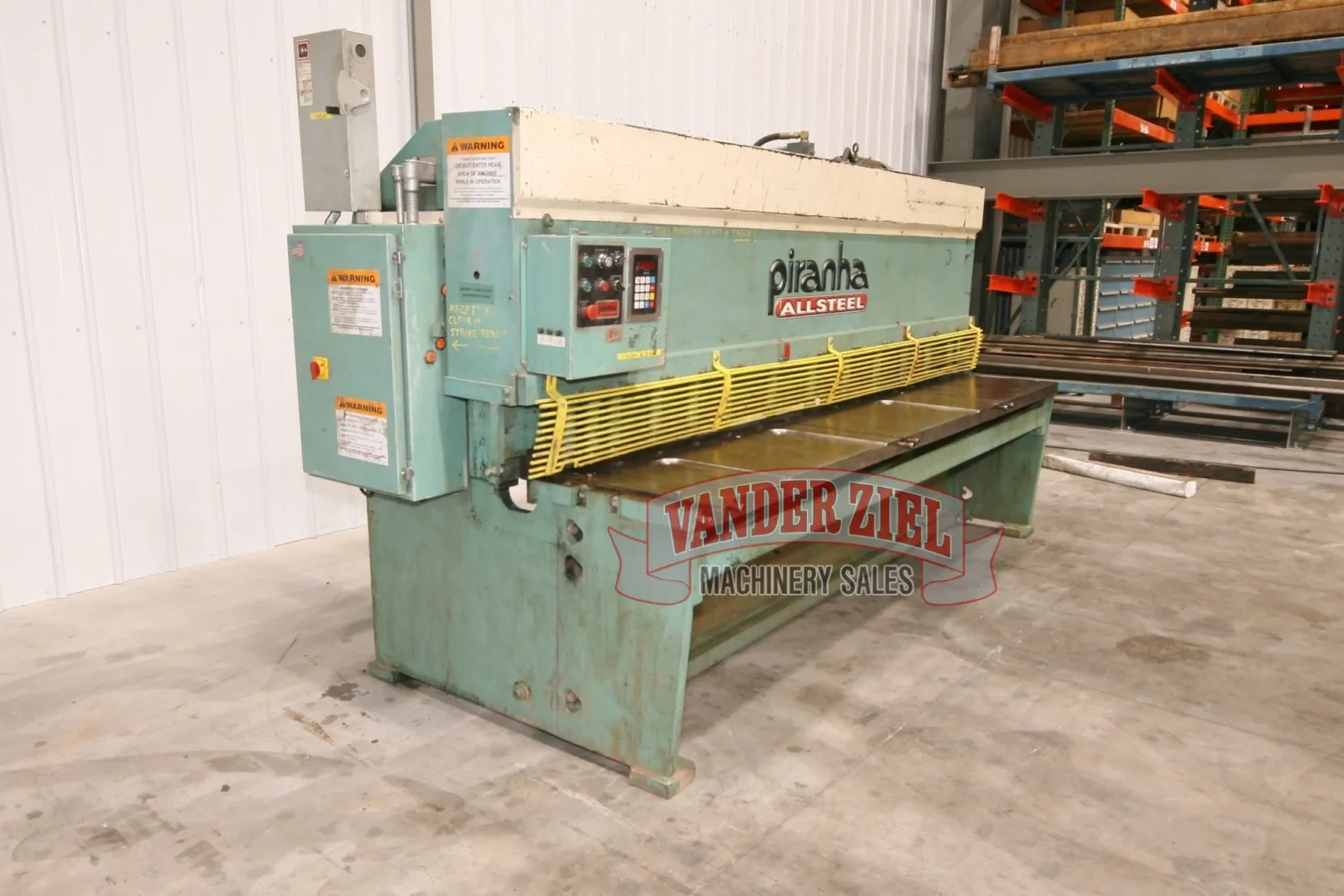

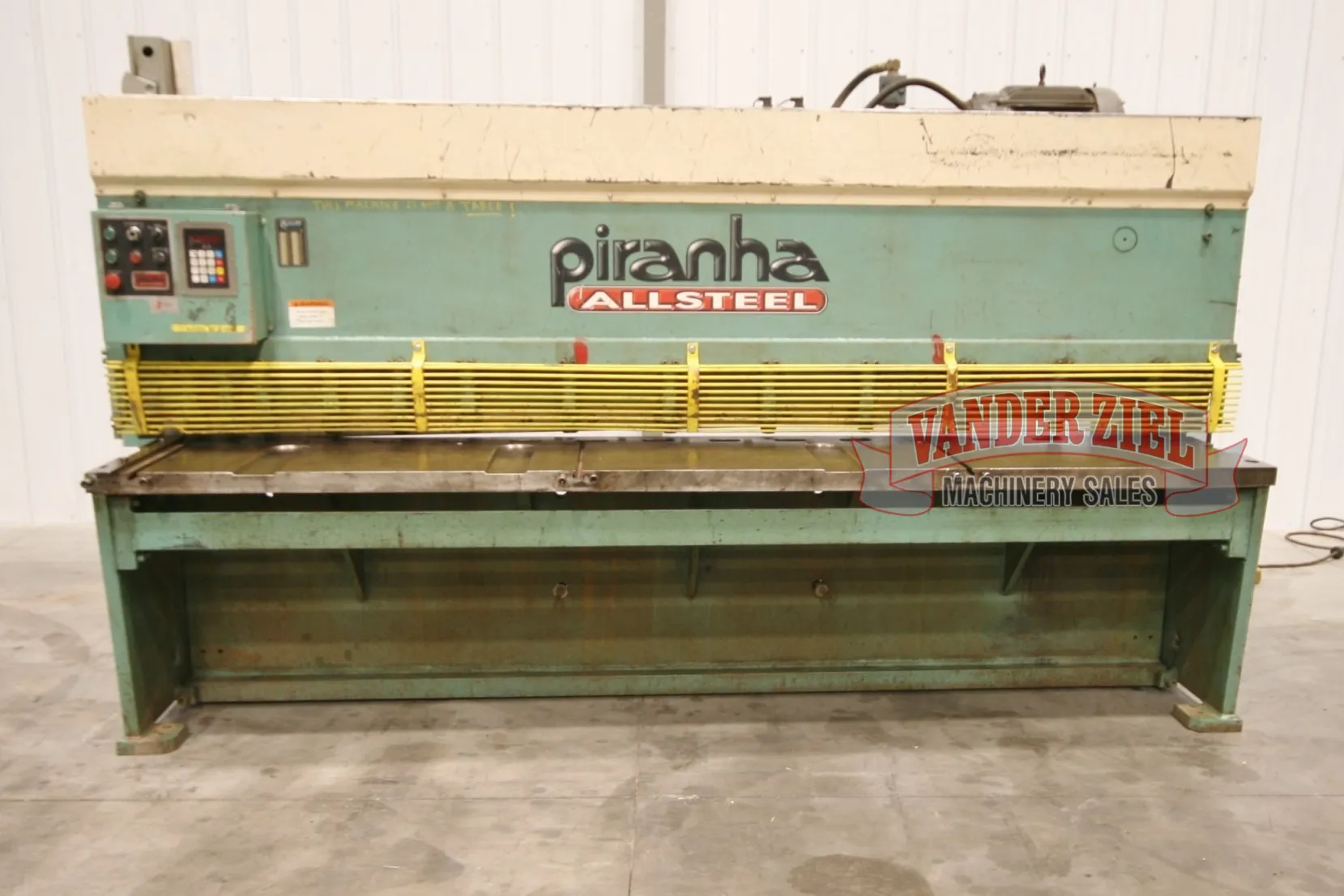

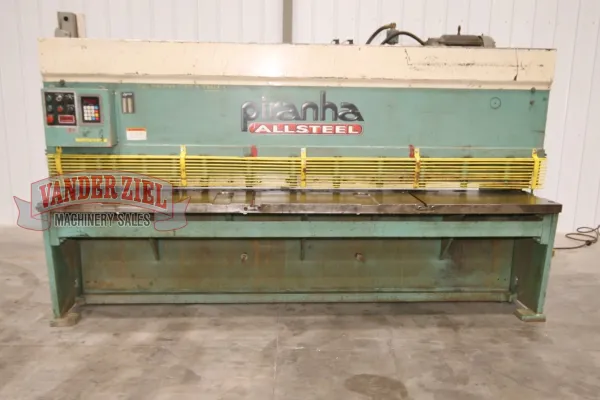

Piranha 10’ x ¼” Hydraulic Shear, Model M1/4-10

Piranha 10' x 1/4" Hydraulic Shear, Model M1/4-10

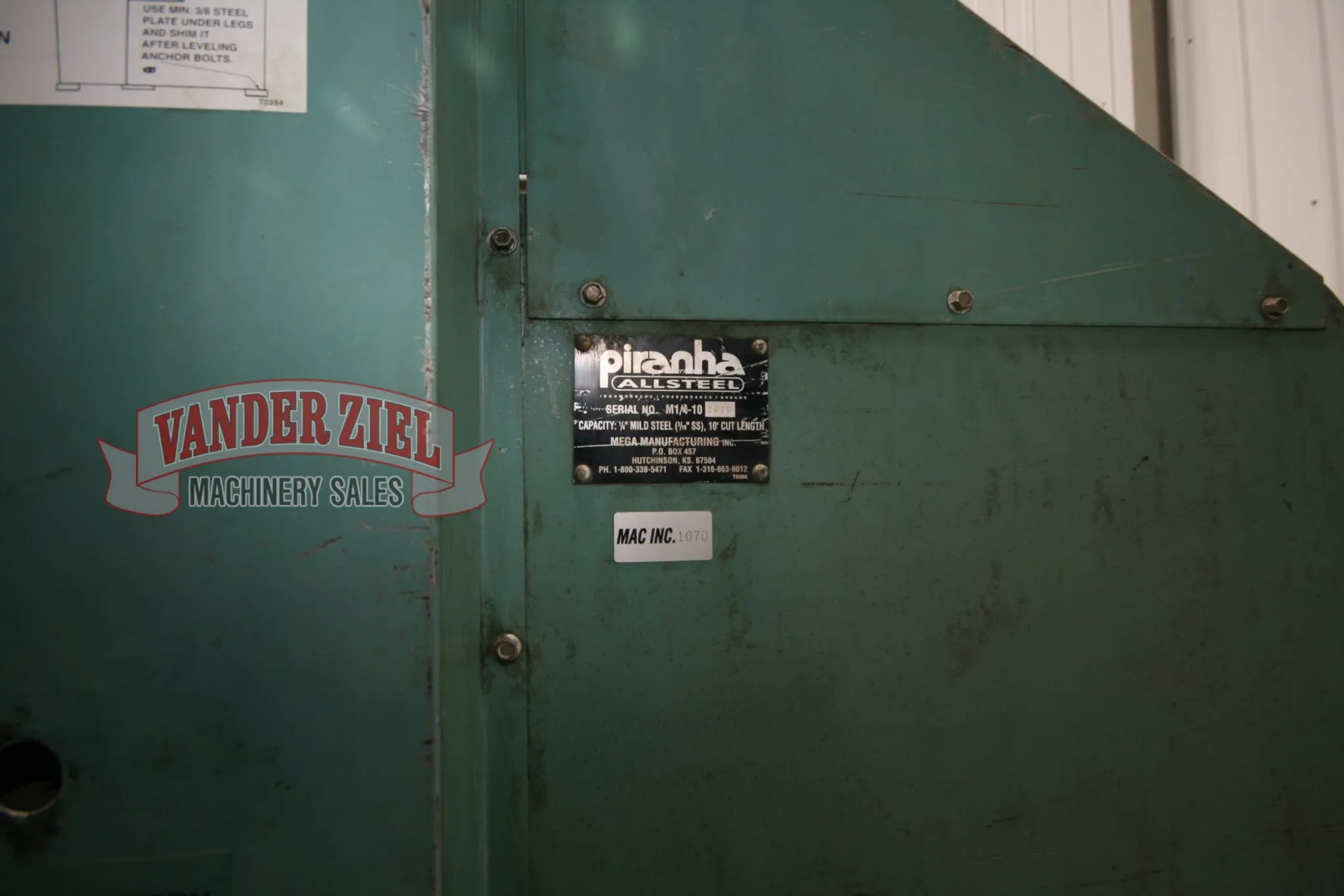

Serial # M1/4-10 1039
Asset # 12291

Specifications:
Capacity, Mild Steel      1/4"
Capacity, Stainless Steel     3/16"
Cutting Length     10'
Rake Angle (inches/foot)    1/4"
Strokes @ 2/3 Capacity, Full Cut Length     24 SPM
Strokes @ 2/3 Capacity, Min. Cut Length     48 SPM
Knife Size     1" x 3"
Number of Hold Downs    13
Max. Hold Down Force    17 Tons
Motor     20 H.P.
Approx. Overall Dimensions    134" x 67"
Height    84"
Approx. Weight    17,000 lbs.

Preliminary Specifications - Subject to Verification
