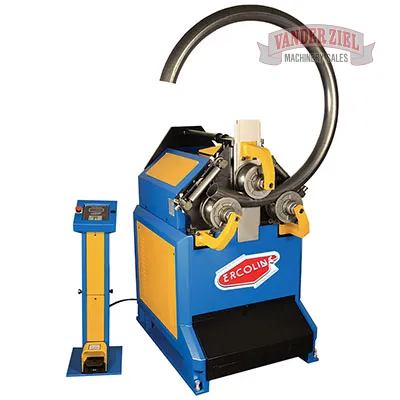

Ercolina 3-1/2" Tube Capacity Angle Roll, Hydraulic Programmable Down Feed, Model CE60H3 - NEW

Ercolina 3-1/2" Tube Capacity Angle Roll, Hydraulic Programmable Down Feed, Model CE60H3 - NEW

SKU #1416004

Ercolina's CE60H3 angle roll offers hydraulic center roll positioning.

Key Features:

• 50mm roll shaft diameter


• Maximum pipe capacity 3" Sch. 10


• Maximum angle capacity 2-1/2" x 2-1/2" x 3/8"


• Bending speeds 20% faster than competitive machines


• Universal tooling set included with each machine - 7" OD


• Use same tooling as CE50


• Forged roll shafts precision ground and fitted for maximum performance and minimal deflection


• Heavy duty structure and rigid components for high section modulus ratings


• Reinforced engineered mainframe design proven to outperform competitive models


• Patented by Ercolina simultaneous down feed and roll movement to minimize deformation


• Touchpad controls with digital center roll positioning display


• Tie bar supports for each shaft


• Memory storage with eight (8) individual programs and unlimited passes


• Remote pendent with low voltage controls and foot pedal switch


• Threaded roll shafts with micro metric flange adjustment helps eliminate spacer usage


• In-line direct drive roll shaft system


• Optional Anti-twist correction system for angle iron "Leg In" applications


• All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity
