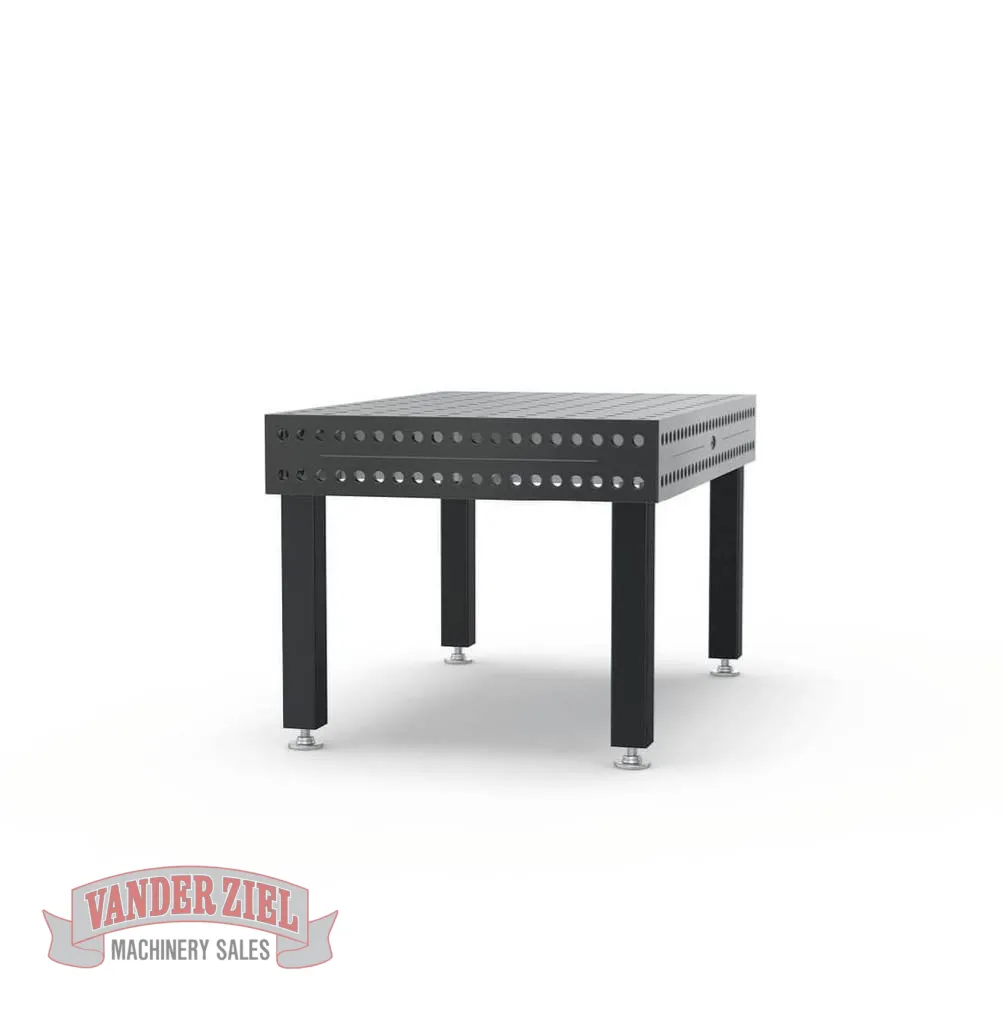

Siegmund 59″ x 59″ (1500x1500x150mm) Welding Table with Plasma Nitration, 3/4″ Series (System 22), Model 4-220050.PD– NEW

Siegmund 59" x 59" (1500x1500x150mm) Welding Table with Plasma Nitration, 3/4" Series (System 22), Model 4-220050.PD- NEW

Asset #15698

The ALL-NEW System 22 Welding Table Series: More Stable than the System 16 Series, More Cost-Effective than the System 28 Series.

(Item No. 4-220050.PD, also known as S4-220050.PD)

Welding Table Specs and Features:

• Overall Tabletop Size: 59" x 59" x 5.9" (1500x1500x150mm)


• Welding Table Series: Professional 750


• Welding Table Material Thickness: Approx. 0.66" - 0.75" (17 - 19mm)


• Welding Table Material Type and Finish: This Welding Table is manufactured of high quality S355J2+N Tool Steel, Plasma Nitrided and BAR-Coated.


• Official Welding Table Part No.: 4-220050.PD


• Approximate Table Weight: 1,290 lbs. / 585 kg.


• Borehole: Ø 0.86" (22mm)

1. Boreholes on the surface are in a Diagonal Grid Configuration.


2. Boreholes have a 0.098" Radius (2.5mm).


3. Radius 0.118" (3mm) / 0.236" (6mm) on table edges and corners.


4. Height of table side 5.90" (150mm) - Borehole spacing of table side 1.96" (50mm)


5. Metric Scaling on the surface.


6. Construction reinforced with ribbing.

Standard Siegmund Leg(s)

• Item No.: 2-220858


• Leg Height: 27.5"


• Table Height: 33.4"


• Fine Adjustment: 1.96" / 50mm


• Capacity Per Table Leg: 2,200 lbs.


• Cost Per Leg: $0 (Included with Welding Table as a Standard)


• Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
