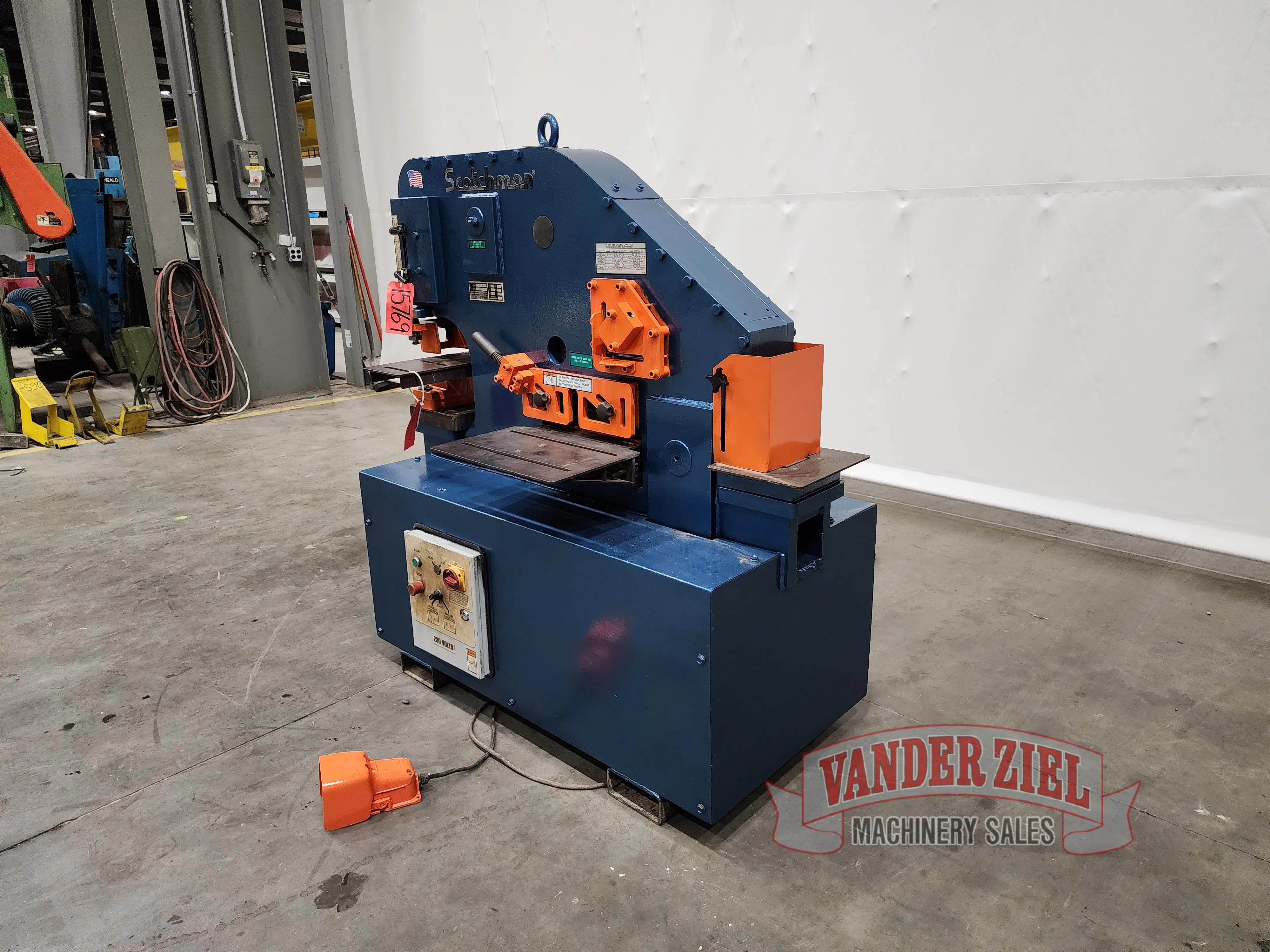

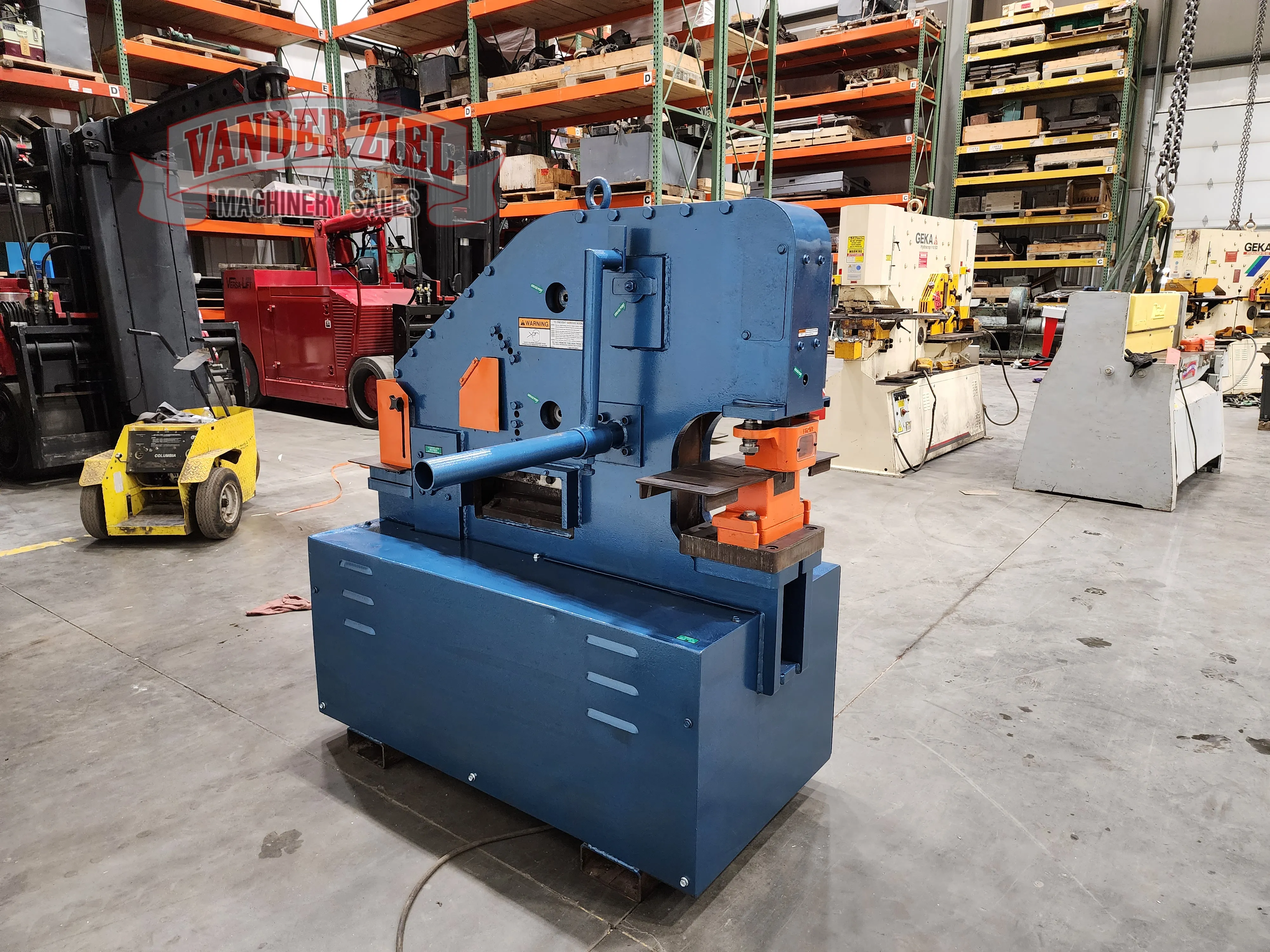

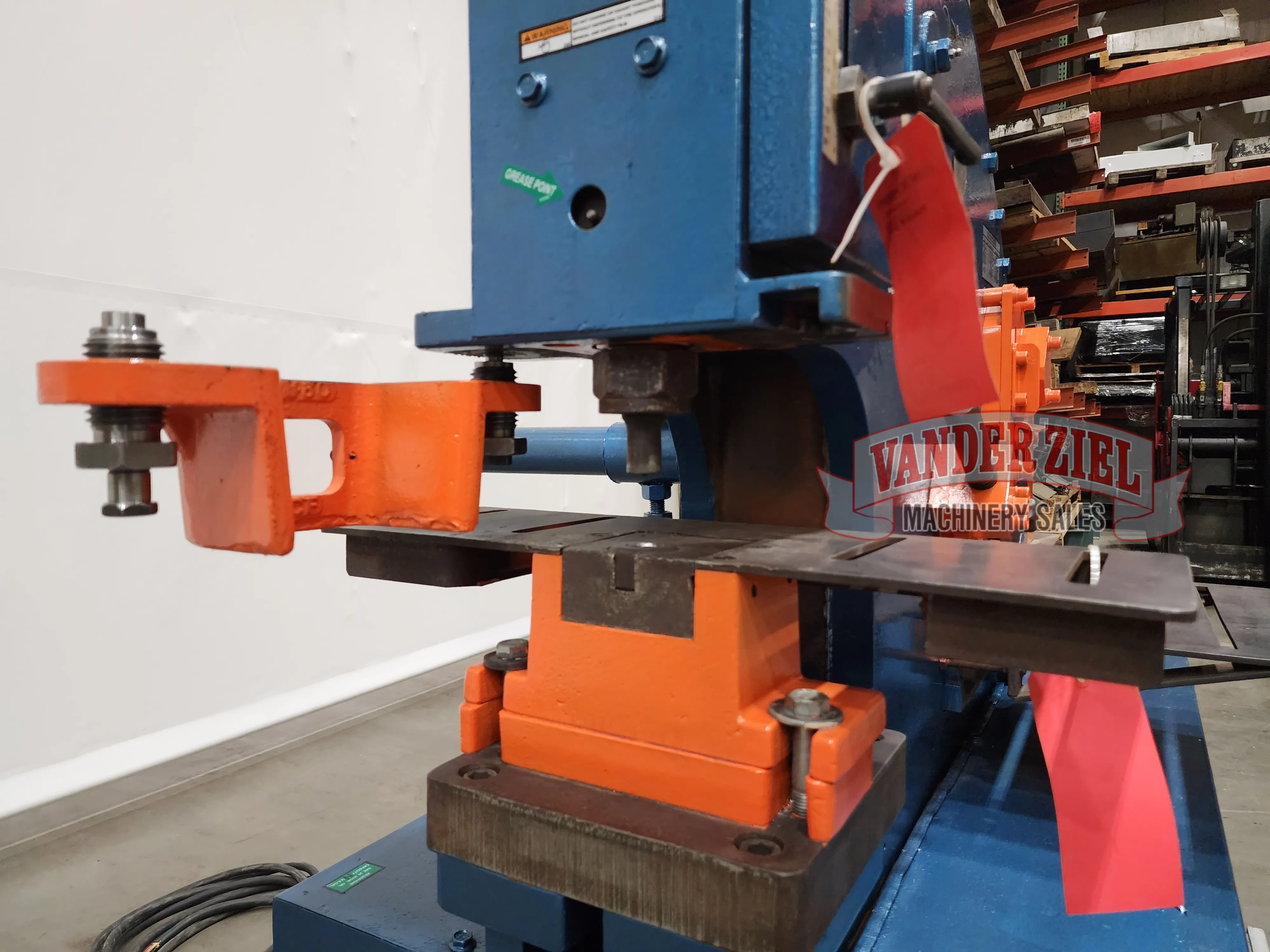

Scotchman 51 Ton Ironworker, Model FI 5109-14M

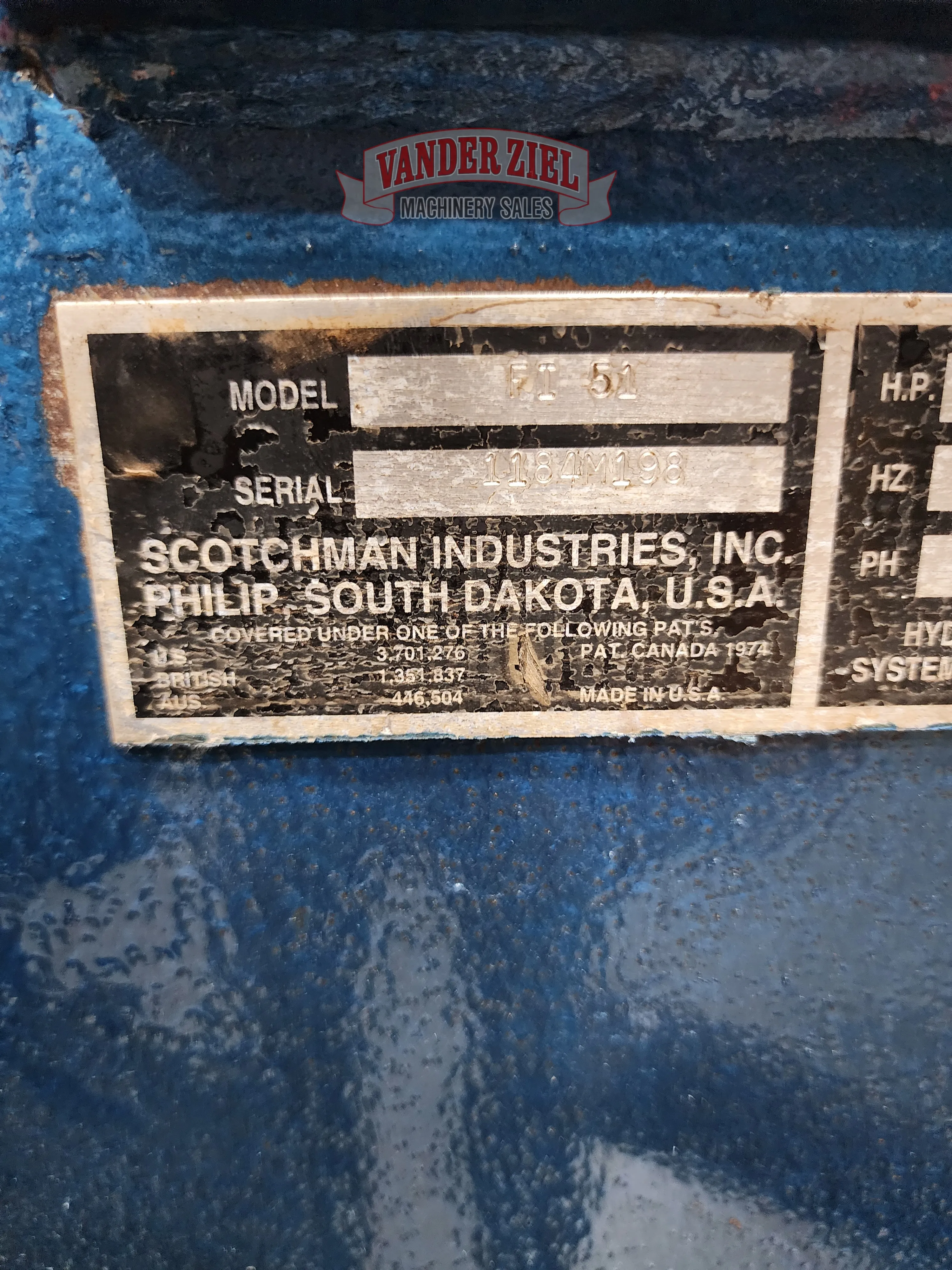

Serial # 1184M198
Asset # 15769

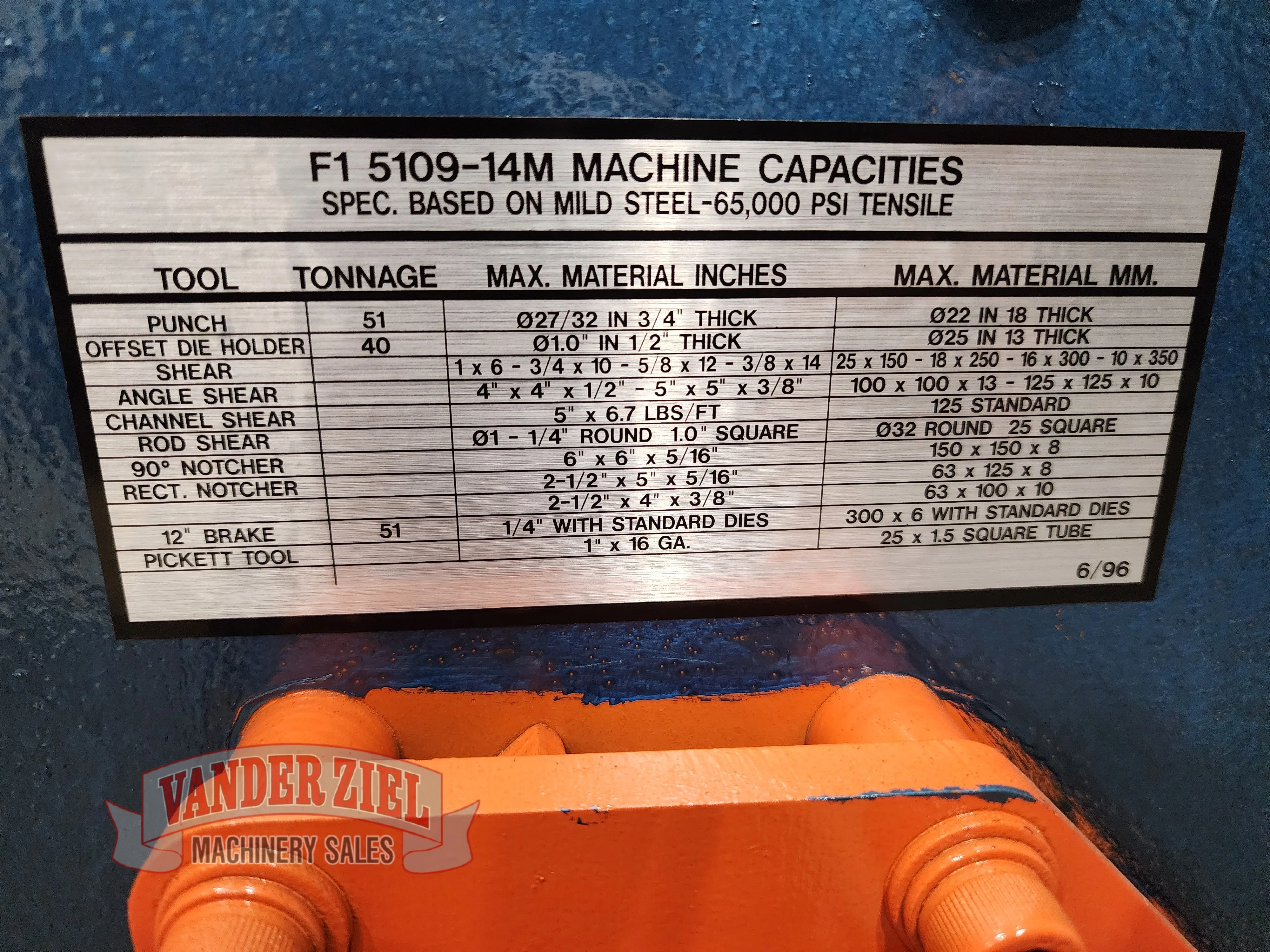

Specifications:
Throat Depth 9"
Punching Capacity 51 Tons, 1 1/32" in 5/8"
Punching Capacity with Special Tooling 4" Max. Diameter

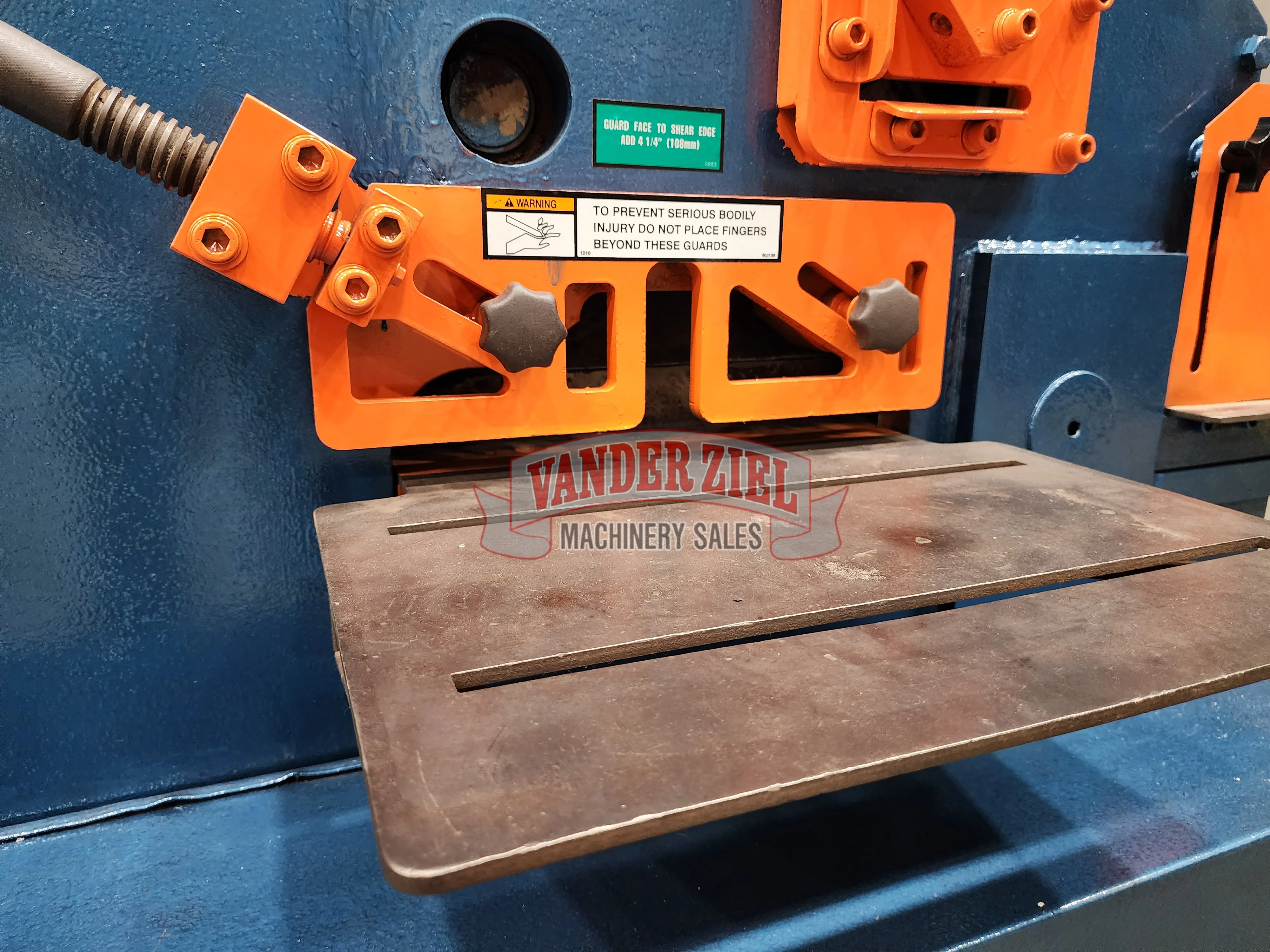

Flat Bar Shear 14", 1" x 6, 3/4" x 10, 5/8" x 12, 3/8" x 14"
Angle Shear at 90 5" x 5" x 3/8"
Angle Shear at 45 Degrees 4" x 4" x 3/8"
Strokes per Minute, Light Material 37
Max. Capacity 14
Channel Shear 2" - 5"
Pickett Tool 1/2", 3/4", 1"
Rod Shear 10 Cavities
Rod Shear Round 1/4 - 1 1/4"
Rod Shear Square 1/4" - 1"
90 V. Notcher 6" x 6" x 5/16"
Rectangular Notcher 2.5" x 4" x 3/8"
V. Notch 2.5" x 2.5" x 3/8"
Pipe Notching 3/4", 1" 1-1/4"
Schedule 40 ID 1 1/2", 2"
Brake, 12, 18, 24" 51 Ton

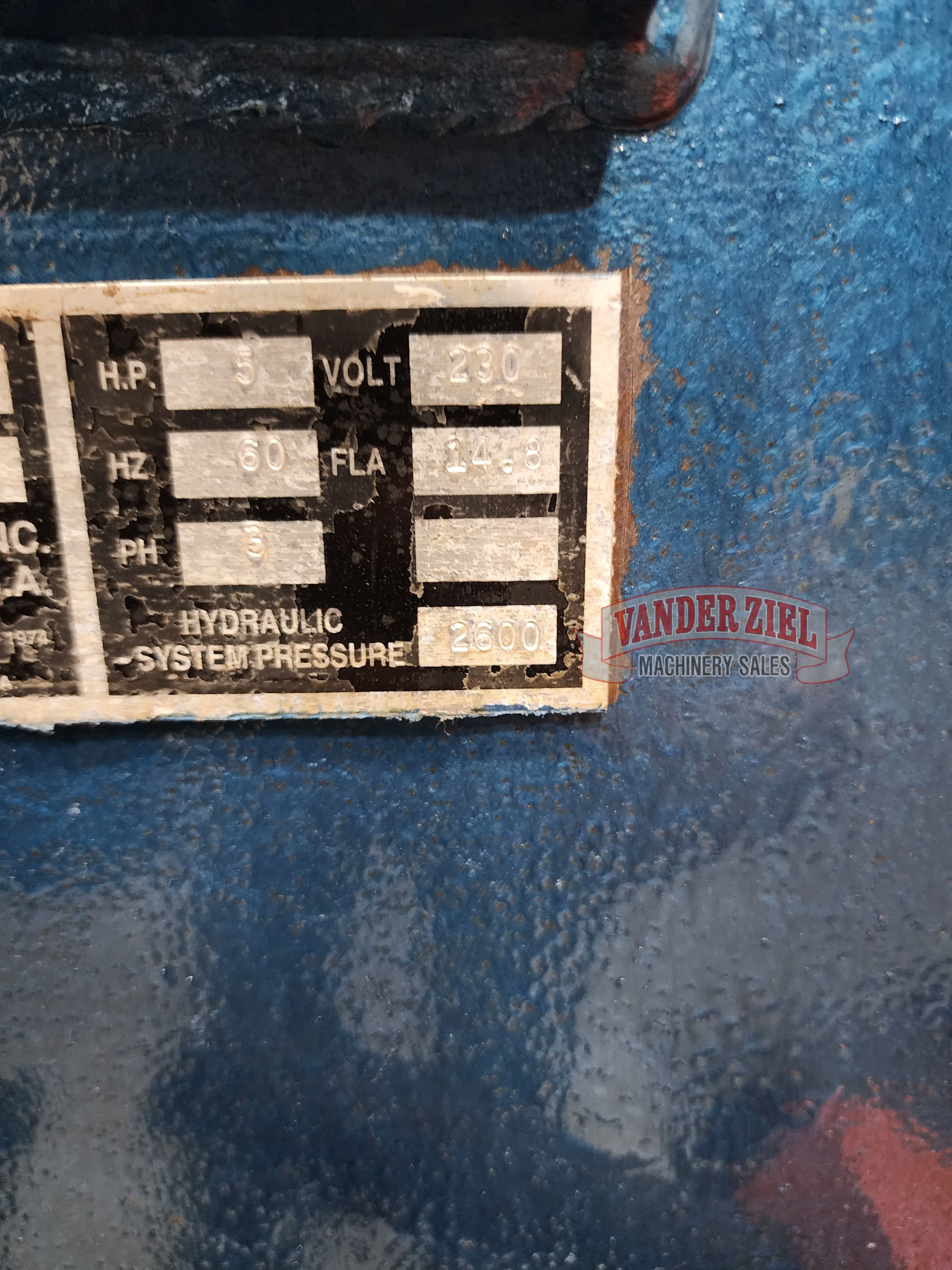

Hydraulics 2500 PSI
Motors 5HP, 3 PH
Dimensions 28" x 59"
Height 61"
Weight 3,150 lbs.
