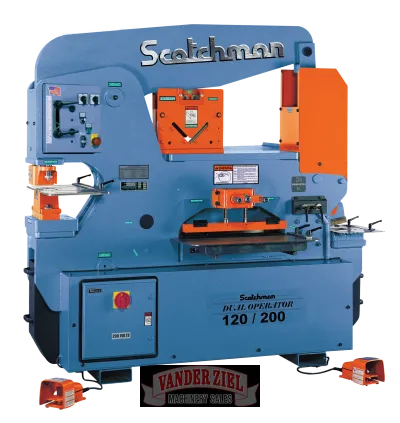

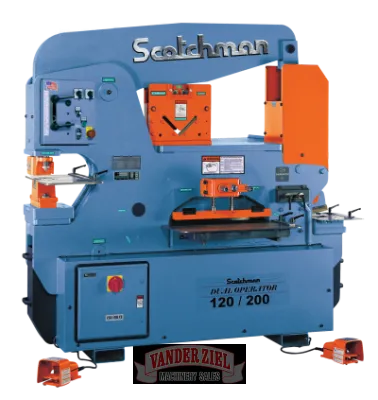

Scotchman 120 Ton Dual Operator Ironworker, Model DO 120/200-24M - NEW

Scotchman 120 Ton Dual Operator Ironworker, Model DO 120/200-24M - NEW
SKU # 3010011
Specifications:
| Rated on: | 65,000 PSI Tensile |
| Punching Capacity | 120 ton1-1/2" in 1" |
| Special Tooling | 4" Max. Dia. |
| Throat Depth | 12" |
| Flat Bar Shear(Sabre Blade - Std) | 200 ton, 24" Length1" x 12"3/4" x 20"1/2" x 24" |
| Angle Shear 90° | 6" x 6" x 1/2" |
| Angle Shear 45°(with Bar Shear) | 3" x 3" x 3/8"4" x 4" x 1/2" |
| Brake 12" | 75 ton |
| Brake 24" | 55 ton |
| Open End Brake | Max. 1/4" x 5"Flat or Angle Iron |
| Pipe Notcher Schedule 40 I.D. | 3/4"1"1-1/4"1-1/2"2" |
| 90° V. Notcher | 6" x 6" x 5/16" |
| Rectangle NotcherV-NotchNotching in Leg ofChannel | 3" x 5-3/4" x 1/2"3" x 3" x 1/2"6" to 10" |
| Channel Shear | 2" to 6" Adj. |
| Strut Shear | Samples Required |
| Rod ShearRound Rod (Max.)Square Rod (Max.) | 1/4" to 1-1/4", 9 Cav.1/4" to 1", 1 Cav. |
| Square Tube Shear | 1/2" to 2",12 ga. |
| Picket Tool | 1/2"3/4"1"16 ga. |
| Offset Die Holder | Max. 40 ton |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] |
| Hydraulics | 3,500/3,500 psi |
| Motors Standard | 10 hp 3 ph230/460208/380/575 |
| Motors Optional | 10 hp 1 ph230v |
| Dimensions | W-34"L-77.25"H-74.25" |
| Shipping Weight | 6,204 lbs. |
REF: 000027
