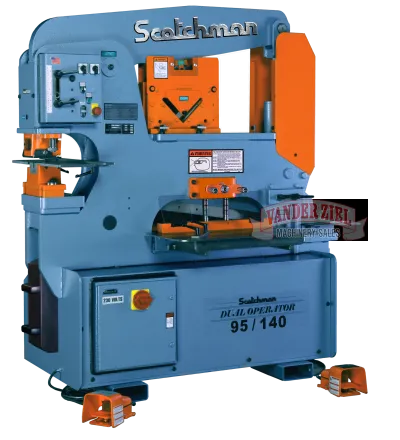

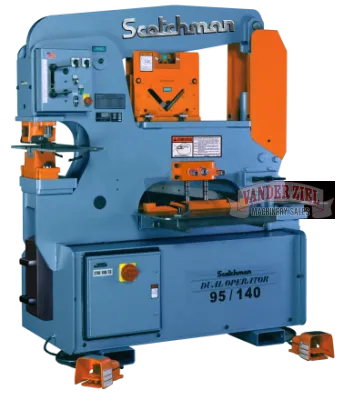

Scotchman 95 Ton Dual Operator Ironworker, Model DO 95/140-24M - NEW
Scotchman 95 Ton Dual Operator Ironworker, Model DO 95/140-24M - NEW
SKU # 3010010
Specifications:
| Rated on: | 65,000 PSI Tensile |
| Punching Capacity | 95 ton1-3/16" in 1" |
| Special Tooling | 4" Max. Dia. |
| Throat Depth | 9" |
| Flat Bar Shear(sabre blade-std.) | 140 ton24" Length1" x 8"3/4" x 12"1/2" x 16"3/8" x 24" |
| Angle Shear 90°Angle Shear 45°(with Bar Shear) | 6" x 6" x 1/2"3" x 3" x 3/8"4" x 4" x 1/2" |
| Brake 12"Brake 24" | 80 ton55 ton |
| Open End Brake | Max. 1/4" x 5"Flat or Angle Iron |
| Pipe NotcherSchedule 40 | 3/4"1"1-1/4"1-1/22" |
| 90° V-Notcher | 6" x 6" x 5/16" |
| Rectangle Notcher | 3" x 5" x 3/8"3" x 4" x 1/2" |
| V-Notch | 3" x 3" x 3/8" |
| Notching in Leg of Channel | 6" to 10" |
| Channel Shear | 2" to 6" adj. |
| Rod ShearRound Rod (Max.)Square Rod (Max.) | 1/4" to 1-1/4", 9 Cavity1/4" to 1", 1 Cavity |
| Strut Shear | Samples Required |
| Square Tube Shear | 1/2" to 2"12 gauge |
| Picket Tool | 1/2"3/4"1"16 gauge |
| Offset Die Holder | Max. 40 ton |
| Strokes per minute in light material | 1/4" stroke [Punch Station] |
| Strokes per minute in heavy material | 3/4" stroke [Punch Station] |
| Hydraulics | 3,500/3,500 psi |
| Motor Standard | 10 hp 3 ph230/460208/380/575 |
| Motor Optional | 10 hp 1 ph220v |
| Dimensions | W-30"L-65"H-72 1/8" |
| Shipping Weight | 3,800 lbs. |
REF: 000026
