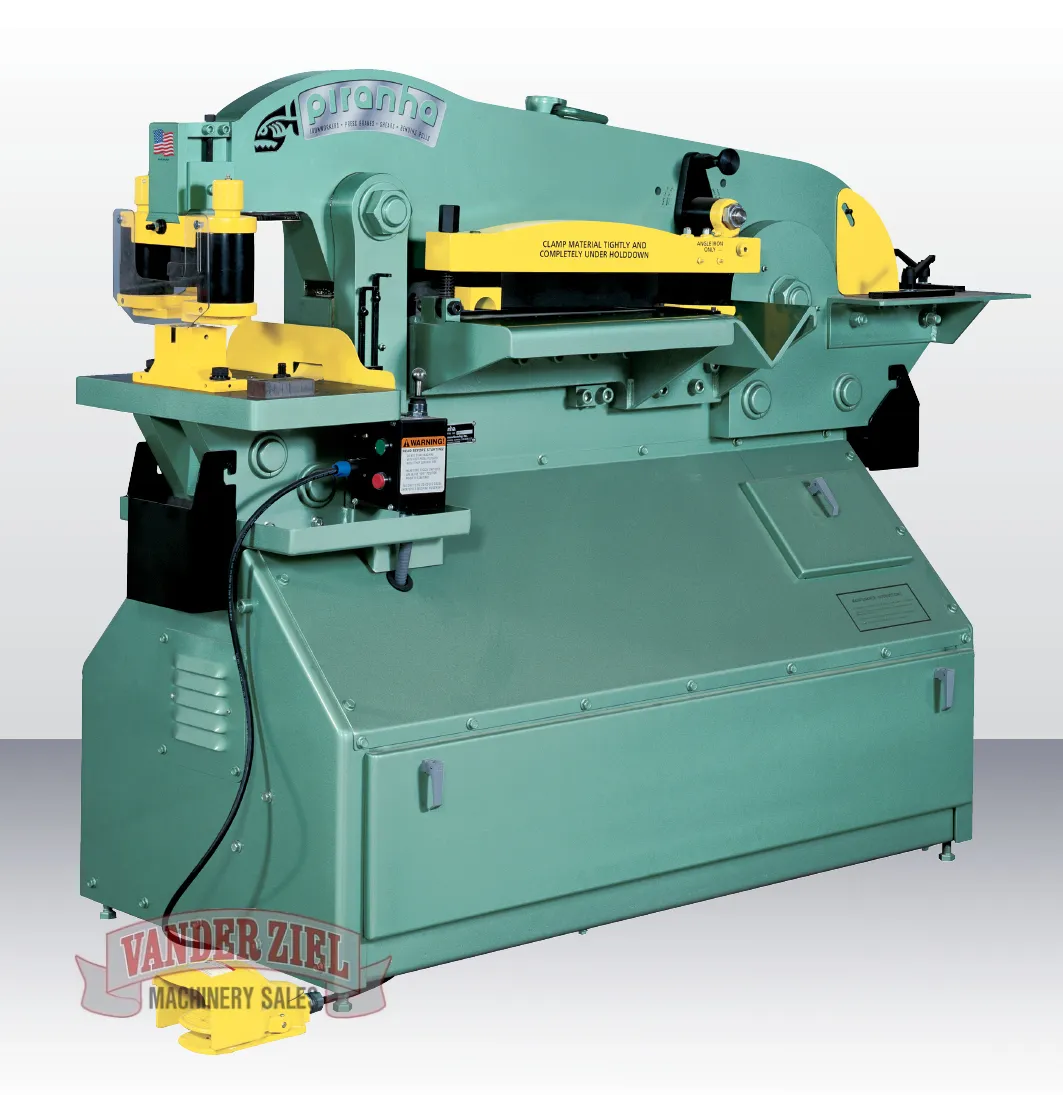

Piranha 90 Ton Ironworker, Model P-90 - NEW
Piranha 90 Ton Ironworker, Model P-90 - NEW
SKU # 2710003
Specifications:
| Throat Depth | 8" | Coper-Notcher (Tons)(Max.) | 562-3/4" x 4" x 1/4" |
| Open Height | 13-1/2" | Bending Attachment(Optional) | 8", 12", 14", 24" |
| Closed Heightw/o Die Block | 9-1/4" | Punch End - Strokes Per MinuteOptional Speed-Up Kit | 30 @ 3/4"45 @ 3/4" |
| Stroke Length | 4-1/4" | Work Station HeightApprox. | 42" |
| Platen Table Size (D-W) | 10" x 17" | HydraulicsPump GPMSystem R/V PSI | 7.53000 |
| PunchHole Size (Max. Material)Max. Hole Size (Material) | 65 Tons1-1/16" (3/4")5" (1/8") | Fluid Capacity (gal.) | 20 |
| Plate Shear*with fixed hold down | 15-1/2" Long*1" x 4"3/4" x 10"5/8" x 15" | Motor Std. 230/460 3 Ph.1800 RPMOpt Phase & Voltage Available | 7.5 HP 3 Ph. |
| Angle Shear** with special blade | 5" x 5" x 3/8"**4" x 4" x 1/2" | Dimensions (Net)W-L-H Approx. | 24" x 66" x 60" |
| Bar ShearRound (min. to max.)Square (min. to max.) | 1/4" to 1-1/2"1/2" to 1" | Weight (Net)Lbs. Approx. | 2600 |
REF: 000011
