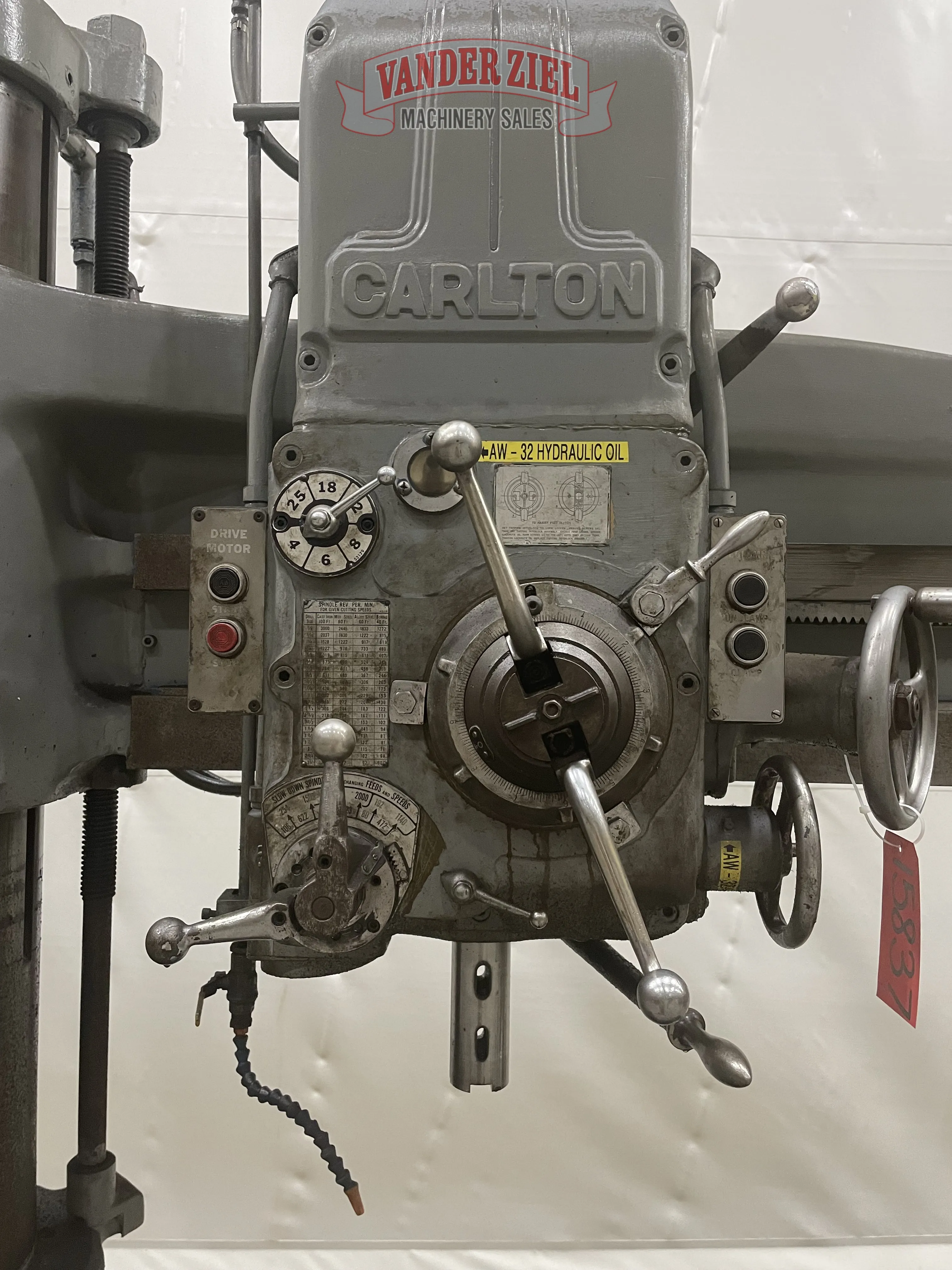

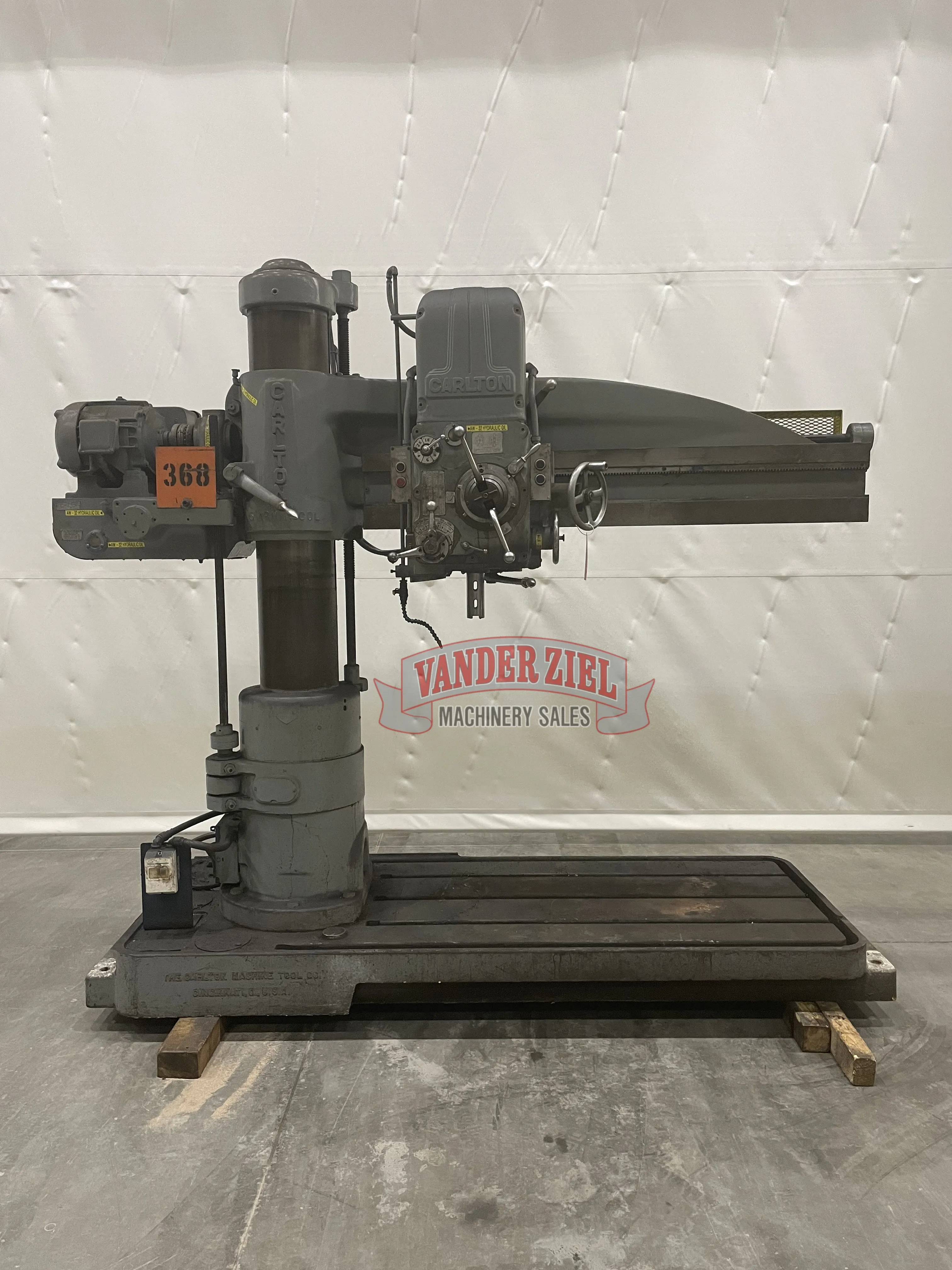

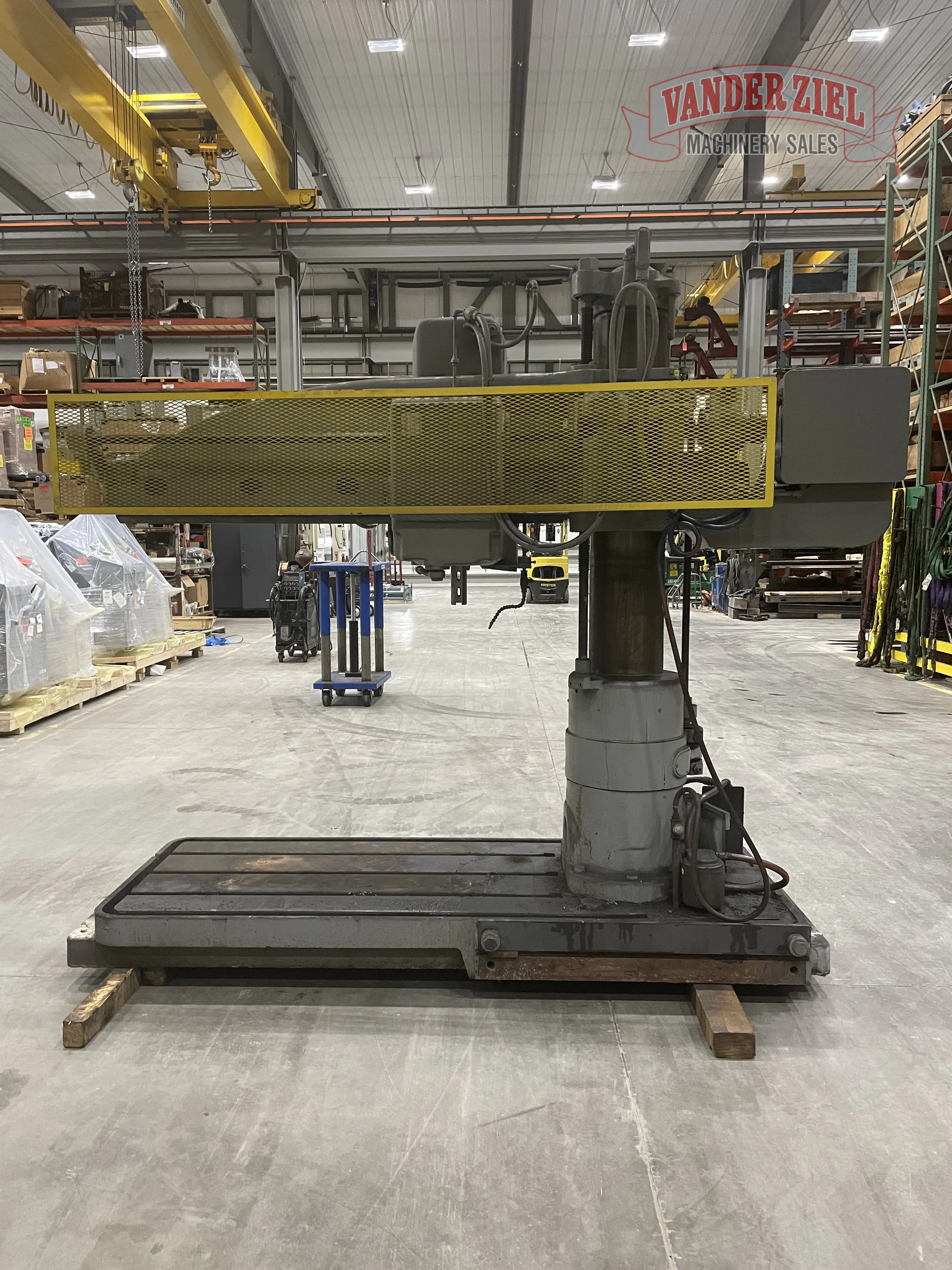

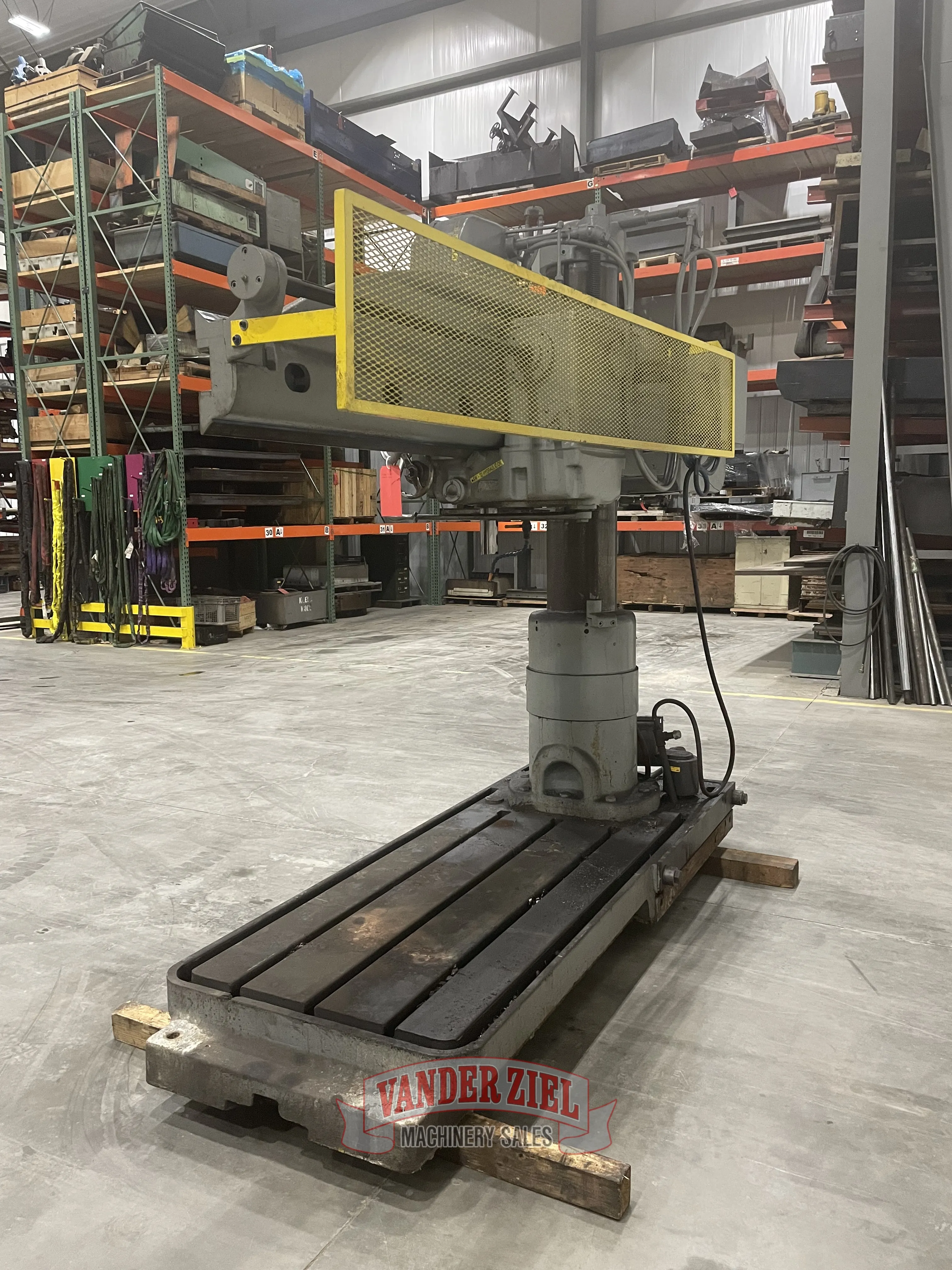

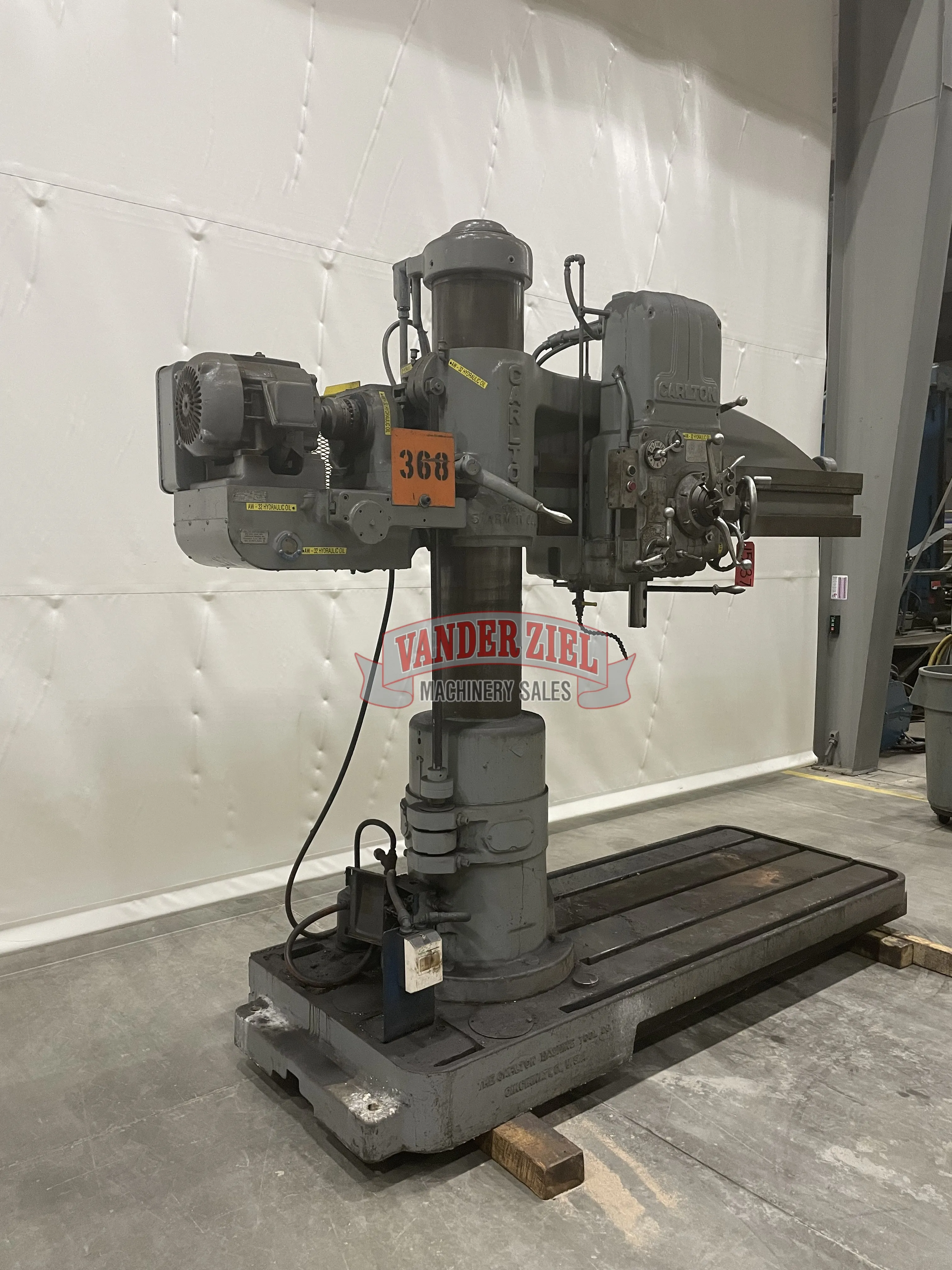

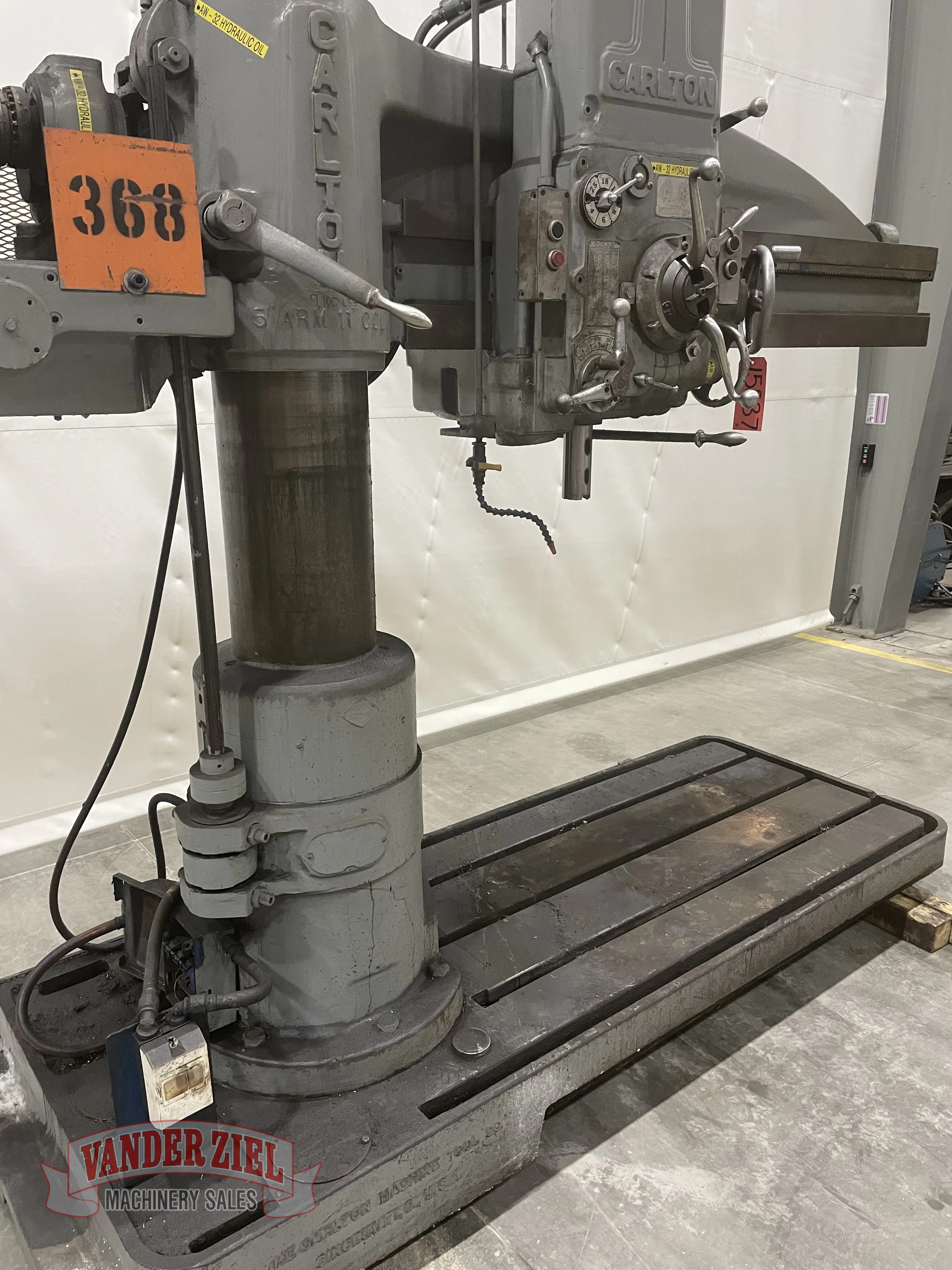

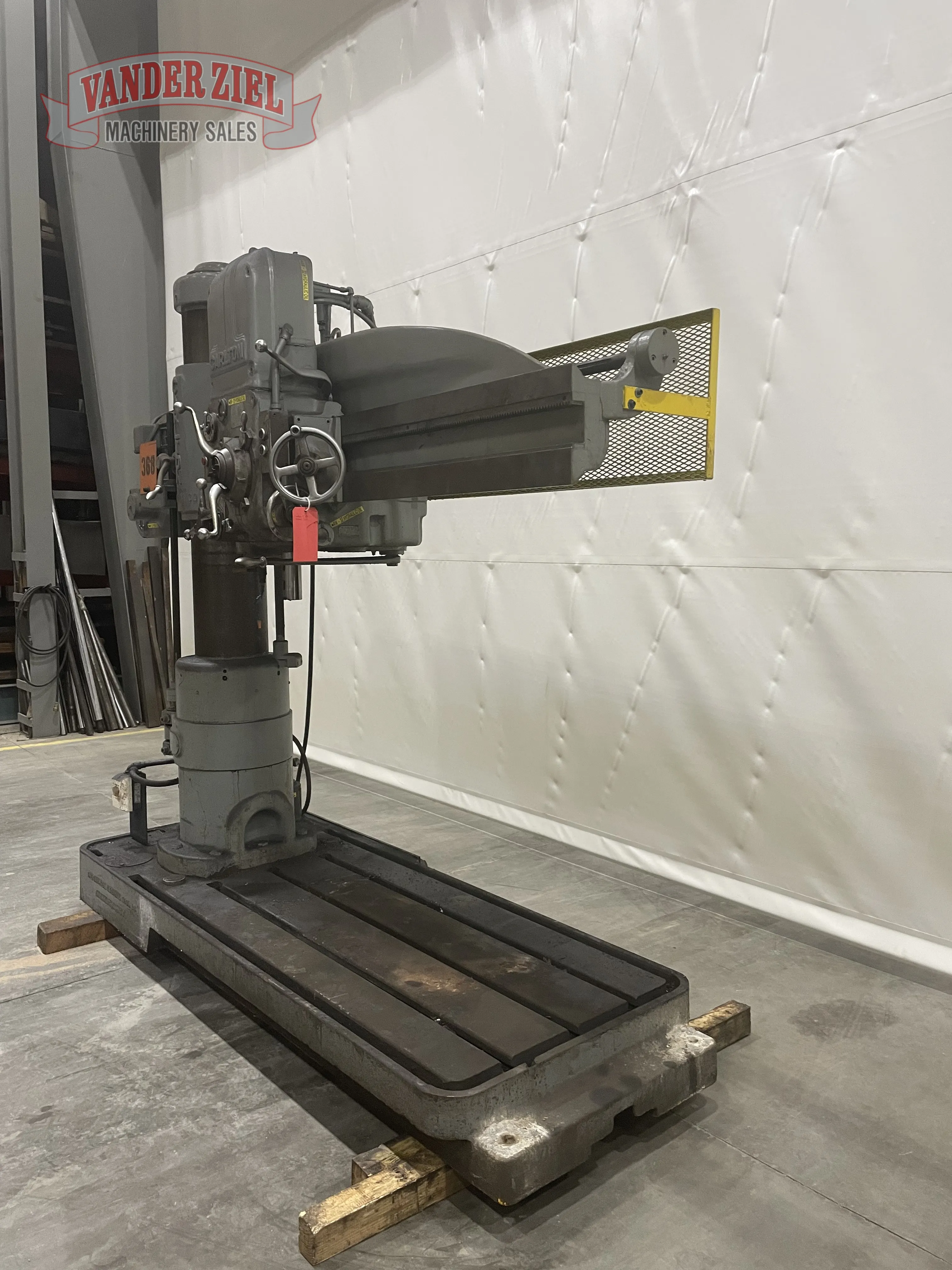

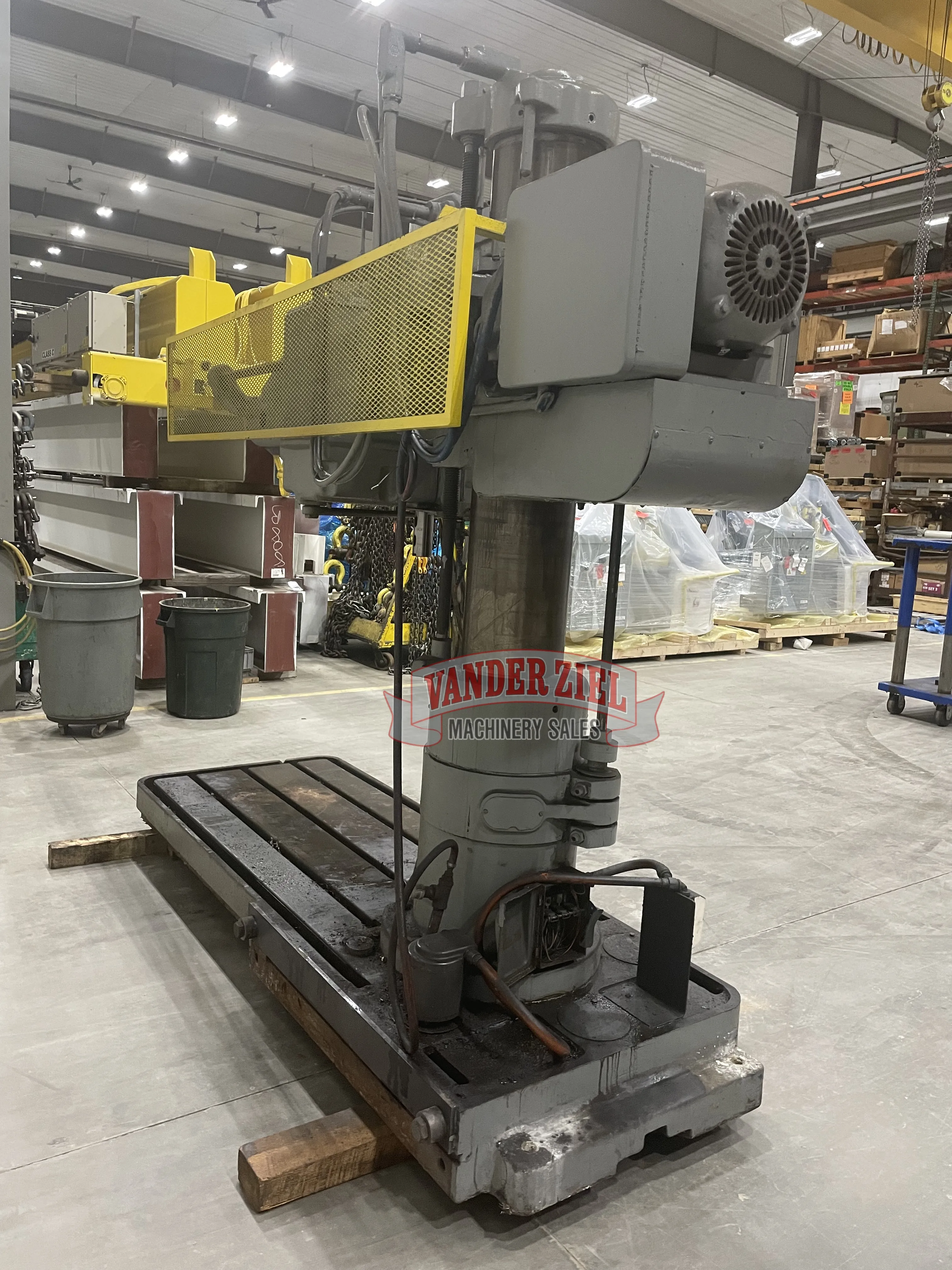

Carlton 5’ x 11” Radial Drill, Model 1A

Carlton 5' x 11" Radial Drill, Model 1A

Serial # 1A-3879
Asset # 15837

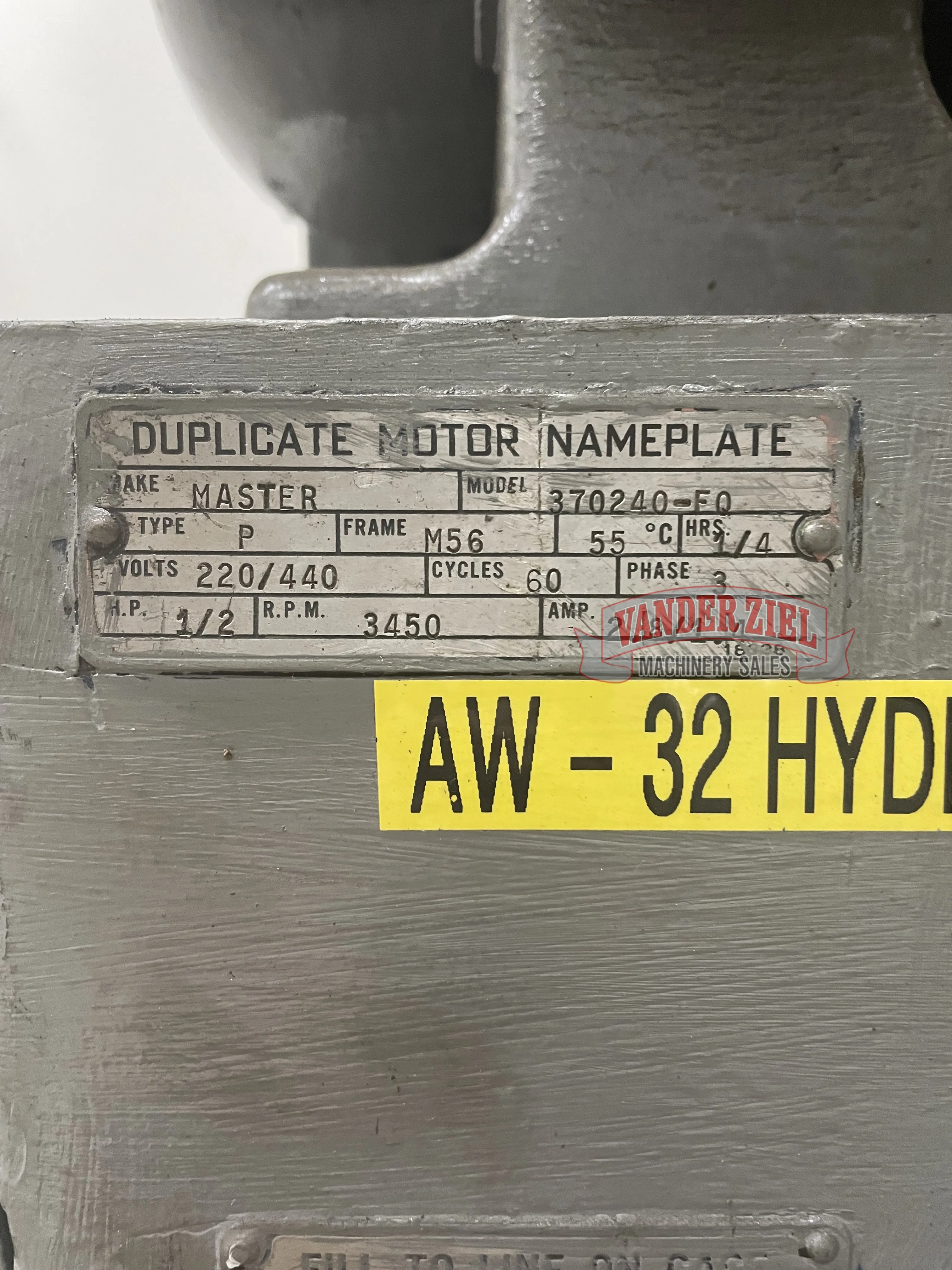

Specifications:
Column Diameter 11"
Arm Length 5'
Face of Column Center of Spindle Min, Max 9" - 60"
Spindle Radius 17 1/2" - 68 1/2"
Spindle to Base 14 3/4" - 55 1/4"
Working Surface of Base 36" x 66"
Height of Base 8"
Vertical Travel of Spindle in Head 12"
Bearing of Head on Arm 15"
Bearing of Arm on Column 22"
Maximum Height over Head 101"
Height over Column Capacity 98"
Spindle Diameter 2 1/2"
Morse Taper in Spindle No. 4
Traverse of Arm on Column 28 1/2"
Travers of Head on Arm 53"
Drills to Center of Circle 120"
Swing of Arm 81"
Feeds and Tap Leads (6) .004" to .025"
Spindle Speeds (12) 80-2000
RPM of Motor 1800
Horsepower of Driving Motor 5
Weight 9,100 lbs.
