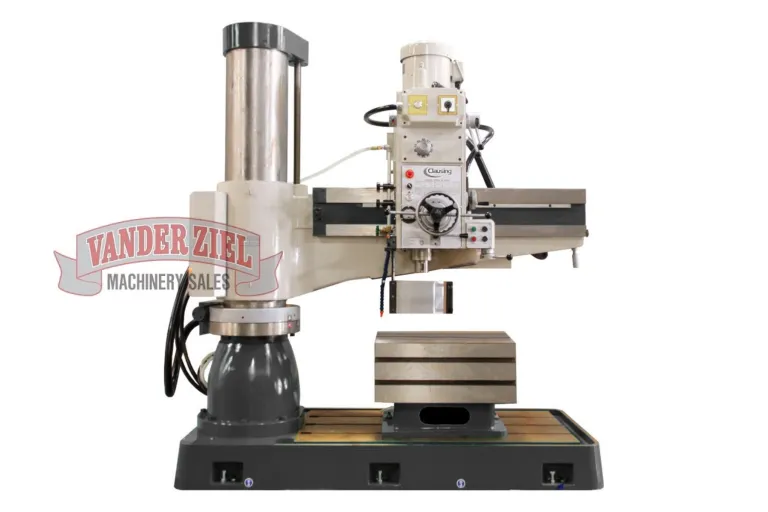

Clausing 12" x 49" Radial Drill, Model CLC1250H - NEW
Clausing 12" x 49" Radial Drill, Model CLC1250H - NEW
SKU #0706005
Standard Features...
- Equipped with hydraulic separate clamping unit. Vertical movement of arm is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting
- Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear
- Powerful 5 Hp, 2-speed, heavy-duty spindle drive motor
- Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation
- Special automatic tool eject device is supplied to allow you to change tools quickly. (No drifter is required) Special arm elevating device is provided to prevent arm from falling down abruptly after years of usage
- Coolant system
- CSA Electrics Standard
- Tool kit and manuals
| Working Area | Drill Head | ||
| Column Sleeve Dia. (E) | 11.81" (300mm) | Spindle Taper | 5MT |
| Column Face to Spindle Center | Spindle Stroke | 10.63" (270mm) | |
| Maximum (D+C) | 49.21" (1250mm) | Quill Diameter | 3.15" (80mm) |
| Minimum (D) | 14.17" (360mm) | Number of Spindle Speeds | 12 |
| Spindle Head Travel (C) | 35.04" (890mm) | Spindle Speeds (rpm) | 56-1450 |
| Base Surface to Spindle End | Number of Steps | 3 | |
| Maximum (A) | 52.95" (1345mm) | Spindle Feed Rate (in(mm)/rev.) | 0.0023"(.06mm), 0.004"(.10mm), 0.008"(.20mm) |
| Minimum (B) | 17.36" (441mm) | Spindle Drive Motor (2-speed) | 5 hp (3.8 Kw) |
| Arm Vertical Travel (A-B) | 24.8" (630mm) | Elevating Motor | 1 hp (.75 Kw) |
| Arm Rotation (Right & Left) | 180° | Clamping Motor | 1 hp (.75 Kw) |
| Coolant Pump Motor | 1/8 hp (.10 Kw) | ||
| Baseplate Working Surface | 48" x 29.1"(1219 x 739mm) | ||
| Box Table Area | Capacities | ||
| Length (L) | 25.0" (635mm) | Drilling In Steel | 1.97" (50mm) |
| Width (K) | 24.5" (520mm) | Drilling In Cast Iron | 2.36" (60mm) |
| Height (H) | 16.5" (420mm) | Tapping In Steel | 1.57" (40mm) |
| Base Dimensions | Tapping In Cast Iron | 1.97" (50mm) | |
| Floor Area (R x S) | 70.3" x 30.9"(1785 x 785mm) | Boring In Steel | 4.33" (110mm) |
| Height (Q) | 7.8" (190mm) | Boring In Cast Iron | 6.55" (165mm) |
| Dimensions/Weights | |||
| Max. Machine Height (F) | 104.1" (2645mm) | ||
| Base and Column Height (G) | 81.9" (2080mm) | ||
| Shipping Dimensions(L x W x H) | 81.1" (2060mm) x 39.2" (995mm) x 88.2" (2240mm) | ||
| Net Weight | 5,071 lbs. (2300kg) | ||
| Shipping Weight | 5,512 lbs. (2500kg) | ||
REF: 000266
