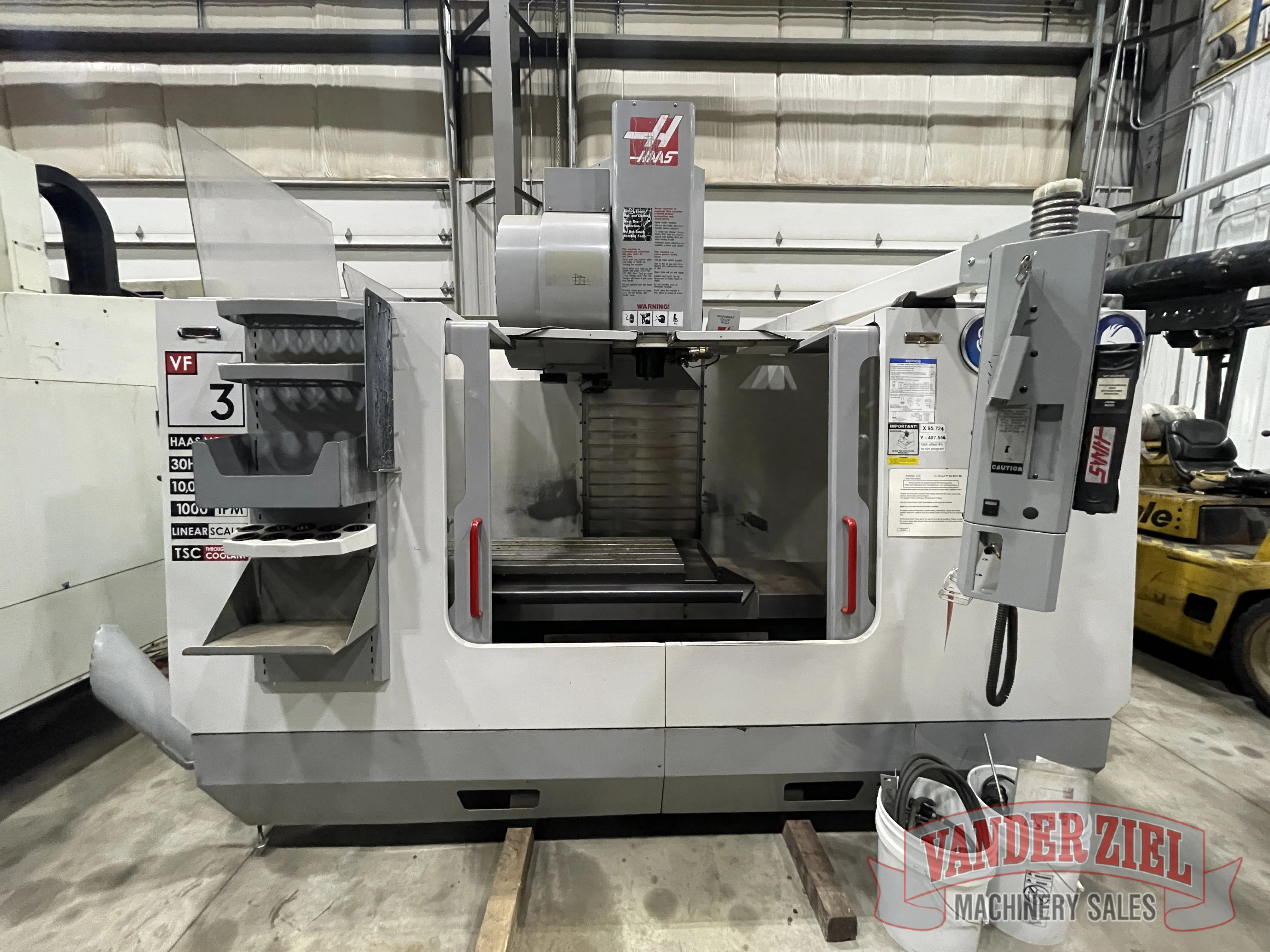

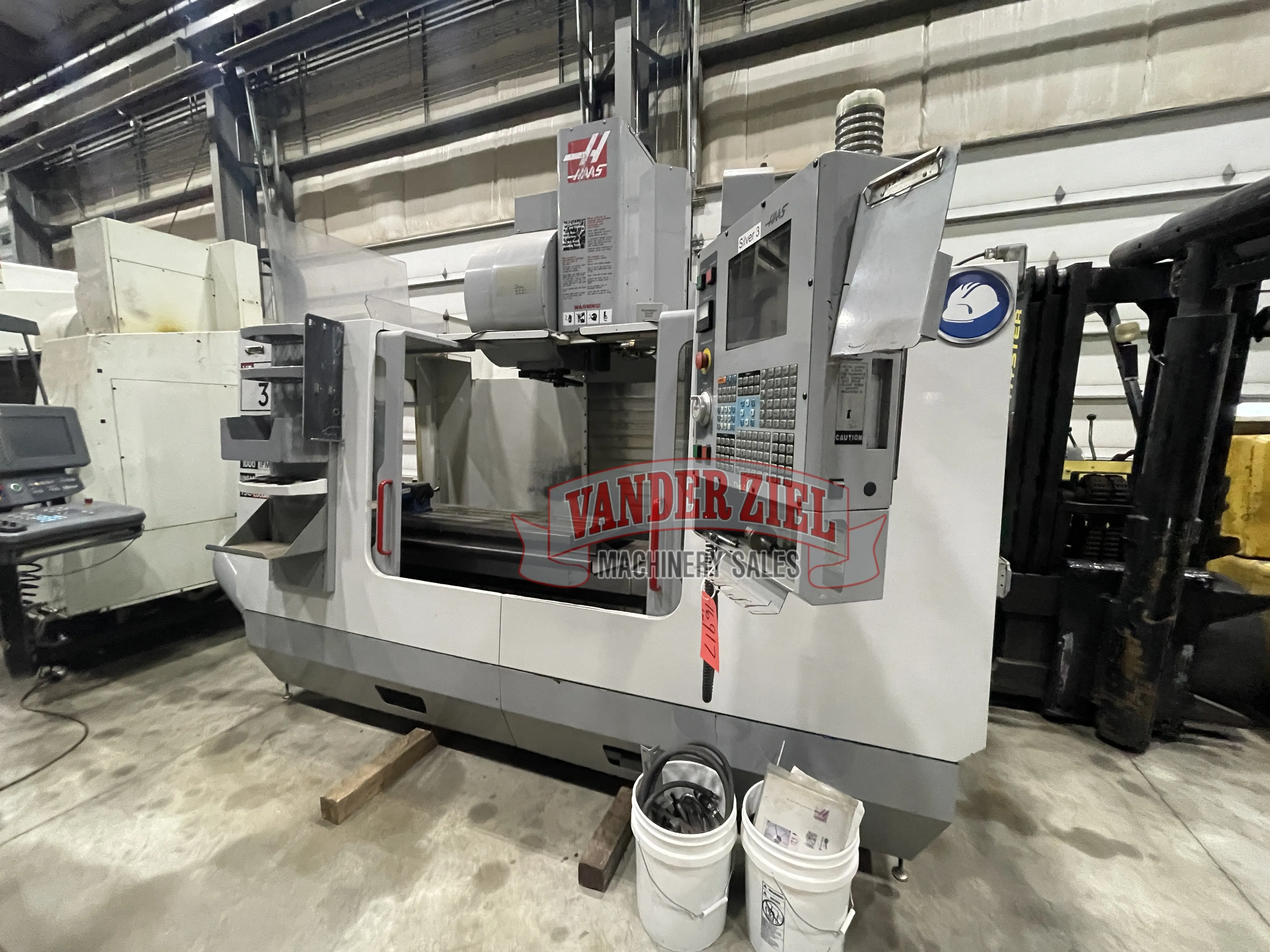

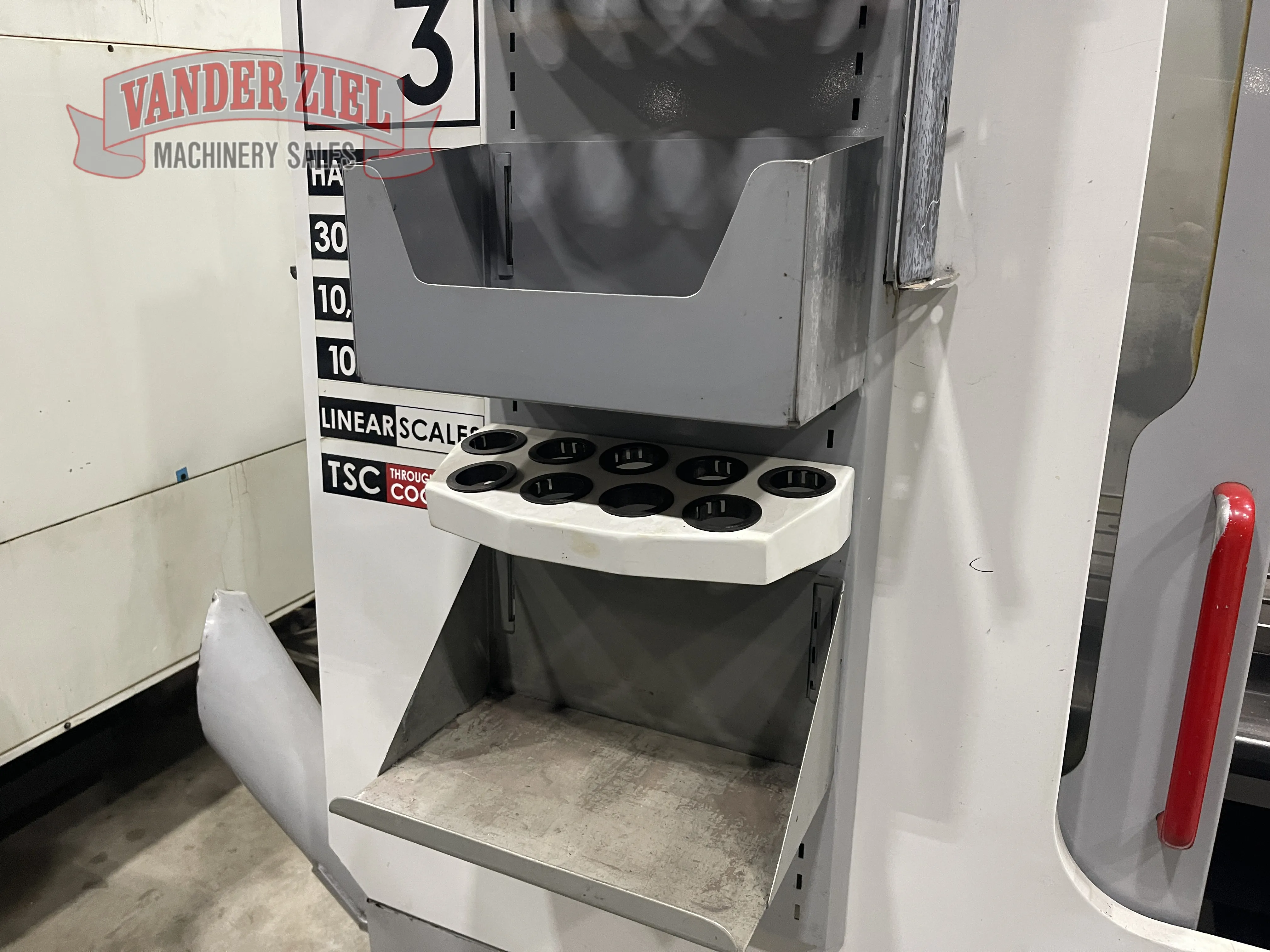

Haas VF-3 Machining Center - 2003

Haas VF-3 Machining Center - 2003

Asset# 16917
S/N: 32286

Machine Specifications

Travel:

•


  X-Axis Travel: 40 inches (1016 mm)





•


  Y-Axis Travel: 20 inches (508 mm)





•


  Z-Axis Travel: 25 inches (635 mm)

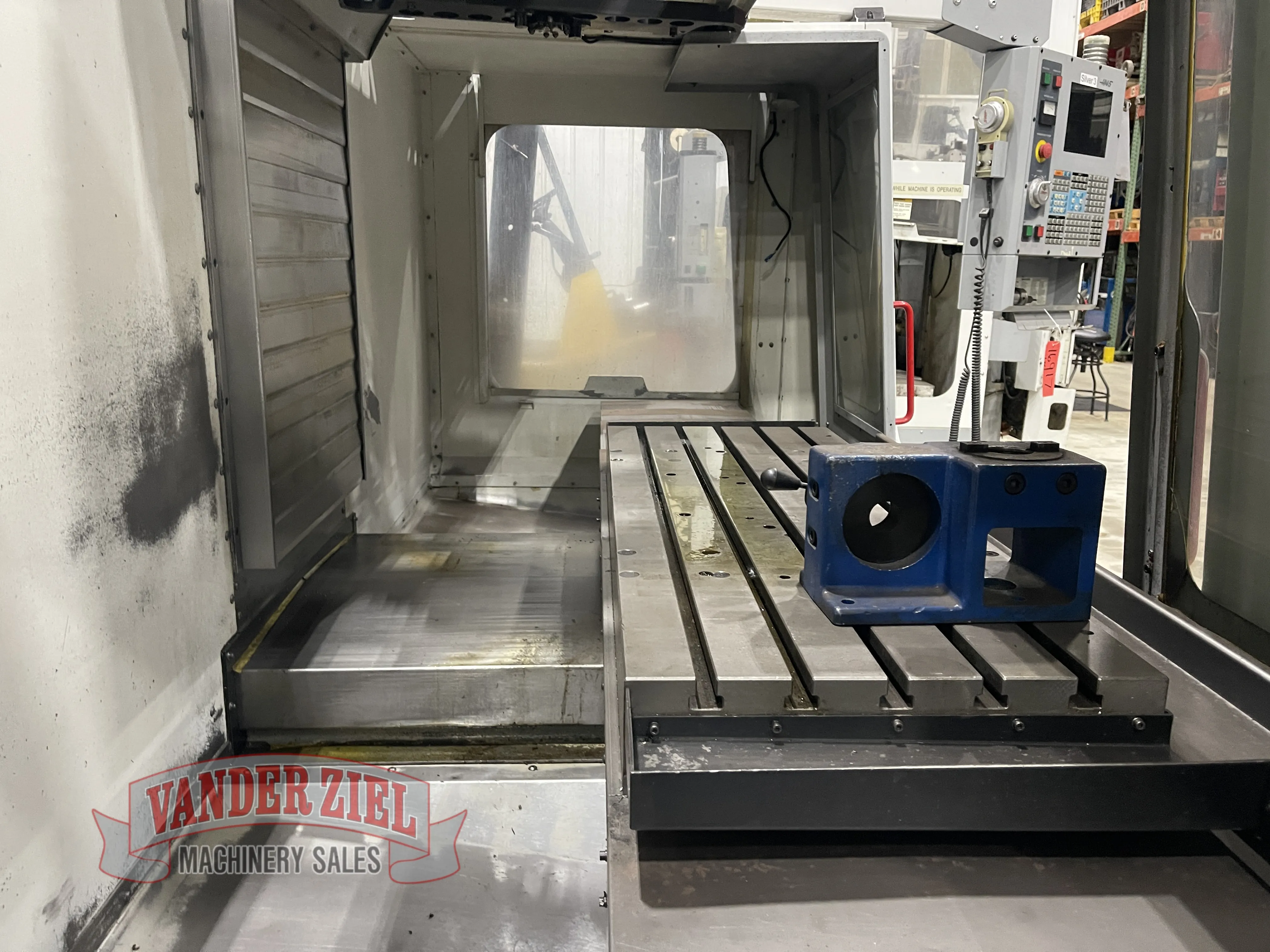

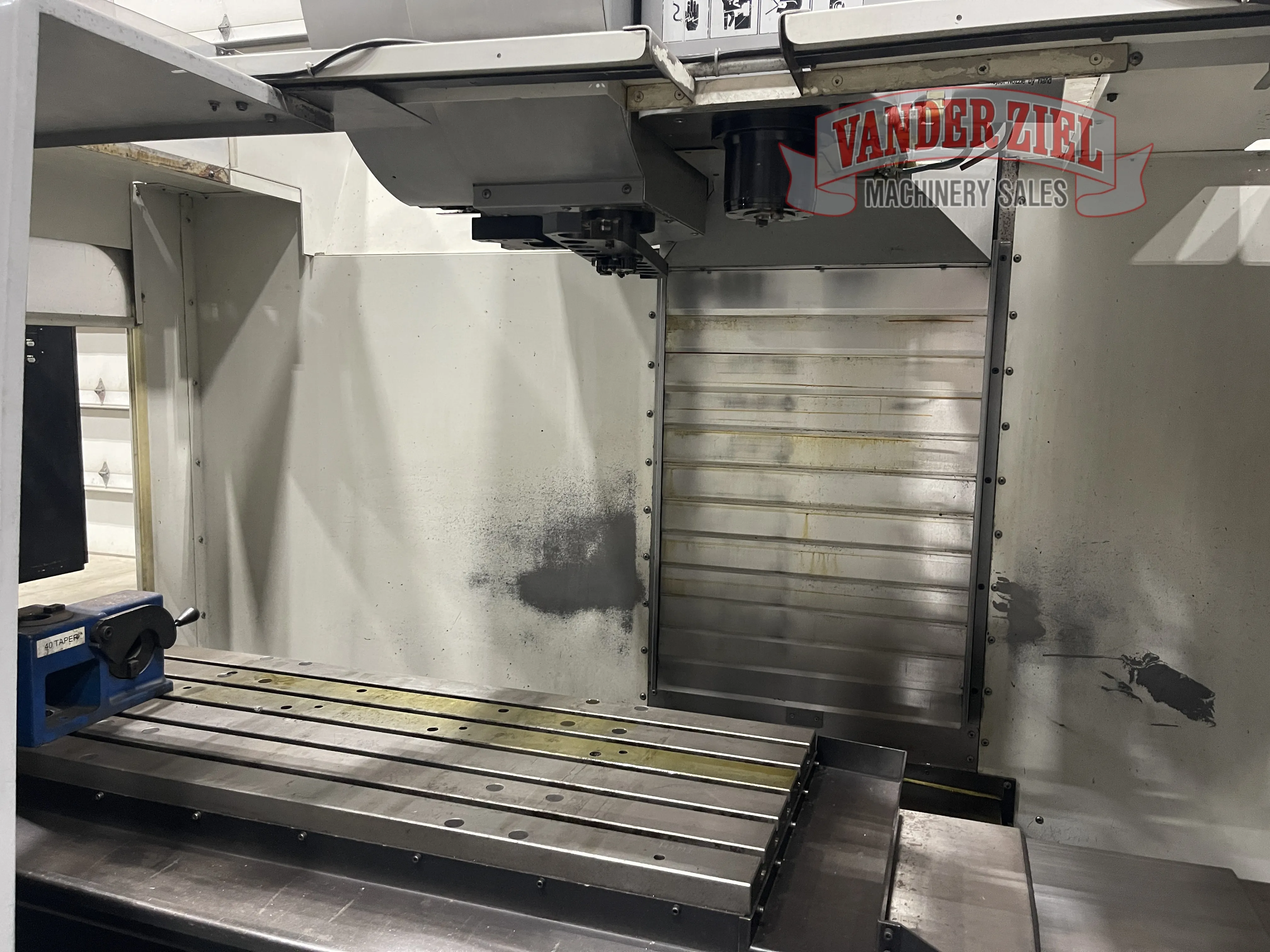

Table:

•


  Table Size: 48 inches x 18 inches (1219 mm x 457 mm)





•


  Max Table Load: 3,500 lbs (1588 kg)




Spindle:

•


  Spindle Speed: 10,000 RPM





•


  Spindle Taper: CAT 40





•


  Spindle Power: 30 hp vector drive (peak)




Feedrates:

•


  Max Cutting Feedrate: 500 ipm (12.7 m/min)





•


  Rapid Traverse (X, Y, Z): 1,000 ipm (25.4 m/min)




Tool Changer:

•


  Tool Capacity: 20-tool carousel (standard)





•


  Tool-to-Tool Time: ~2.8 seconds





•


  Max Tool Diameter: 3.5 in (5 in with adjacent tool pocket empty)





•


  Max Tool Length: 11 in





•


  Max Tool Weight: 12 lbs




Dimensions/Weight:

•


  Machine Weight: ~12,500 lbs (5,670 kg)





•


  Footprint (approx.): 102" x 102" (2.6m x 2.6m) without chip auger or enclosure extensions

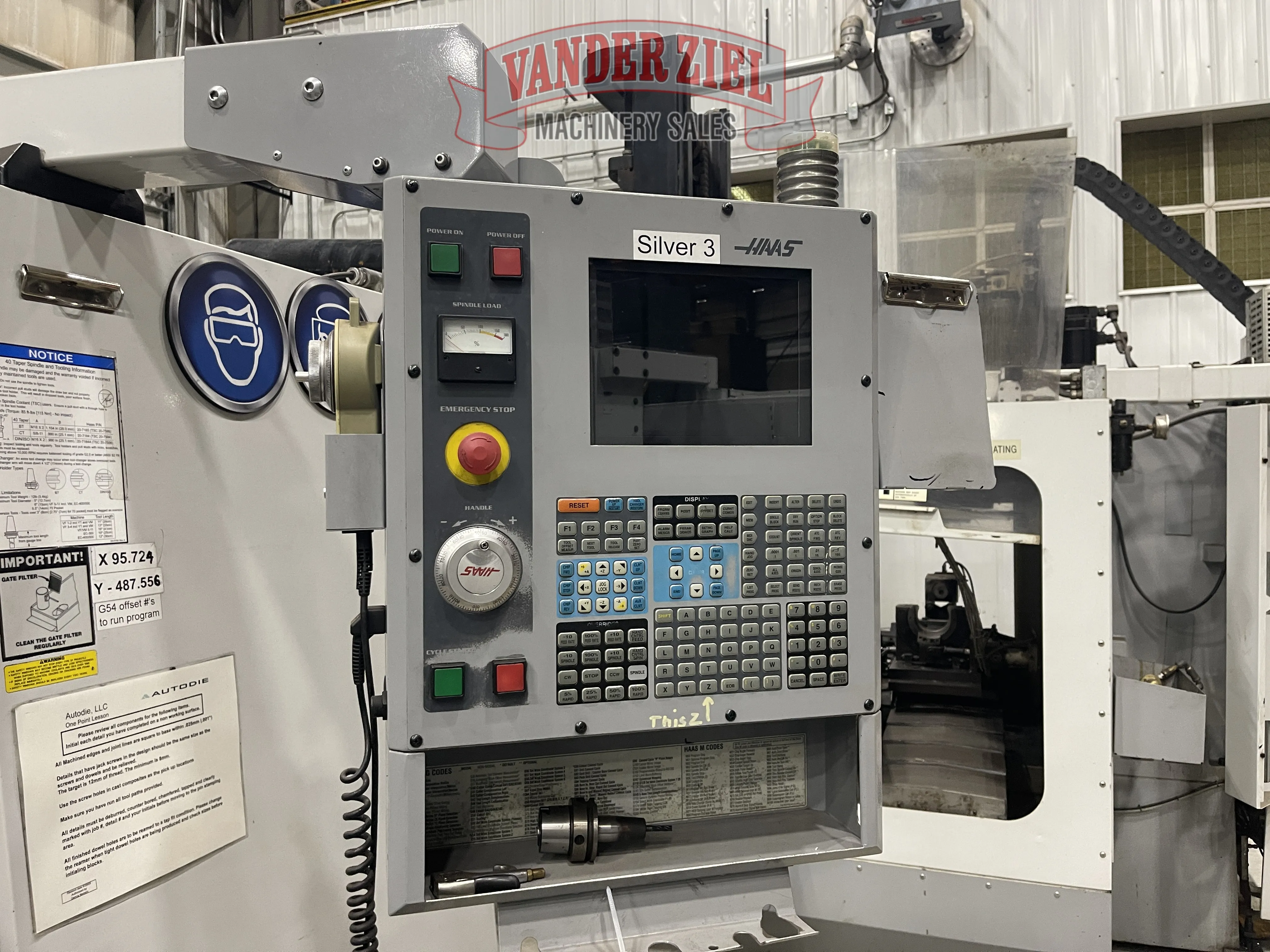

Control:

•


  Controller: Haas CNC Control (classic Haas control)

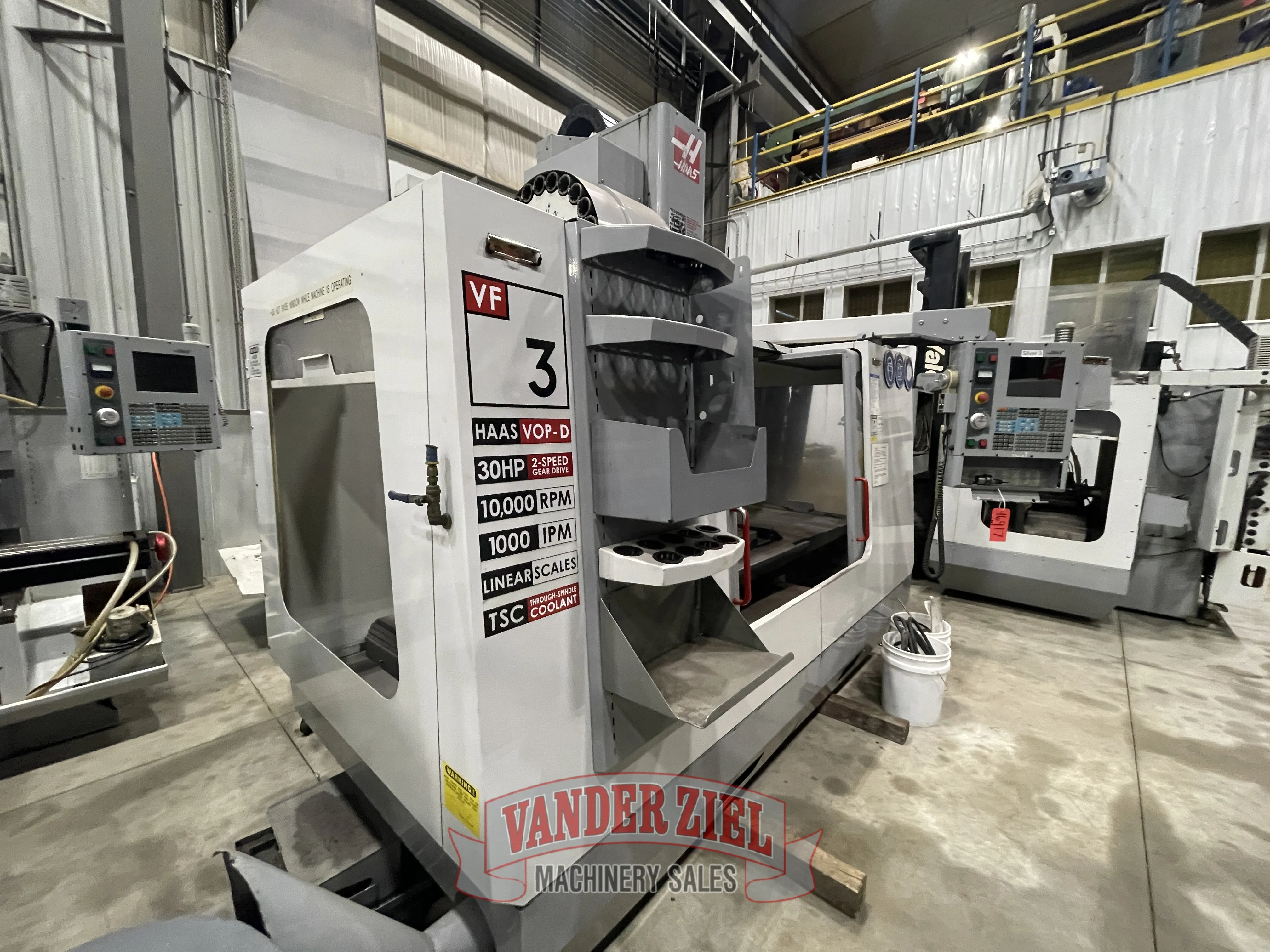

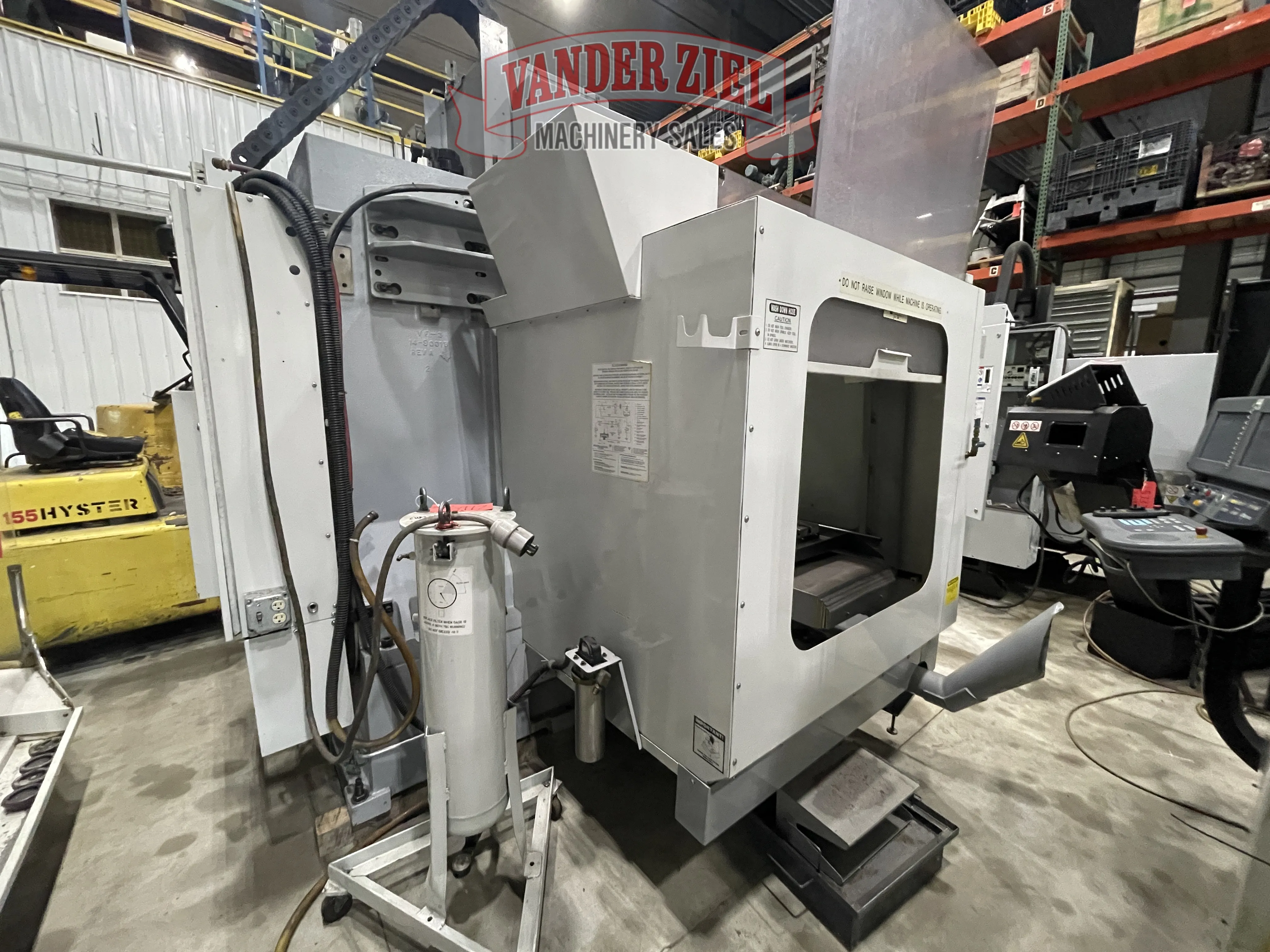

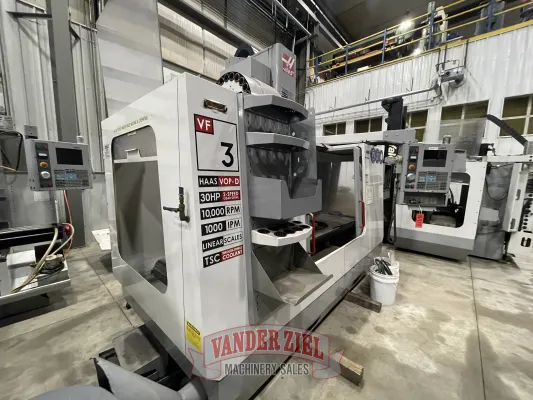

  Machine is equipped with a 30 HP motor, 10,000 RPM Spindle, Thru the Spindle Coolant, and Linear Scales.
