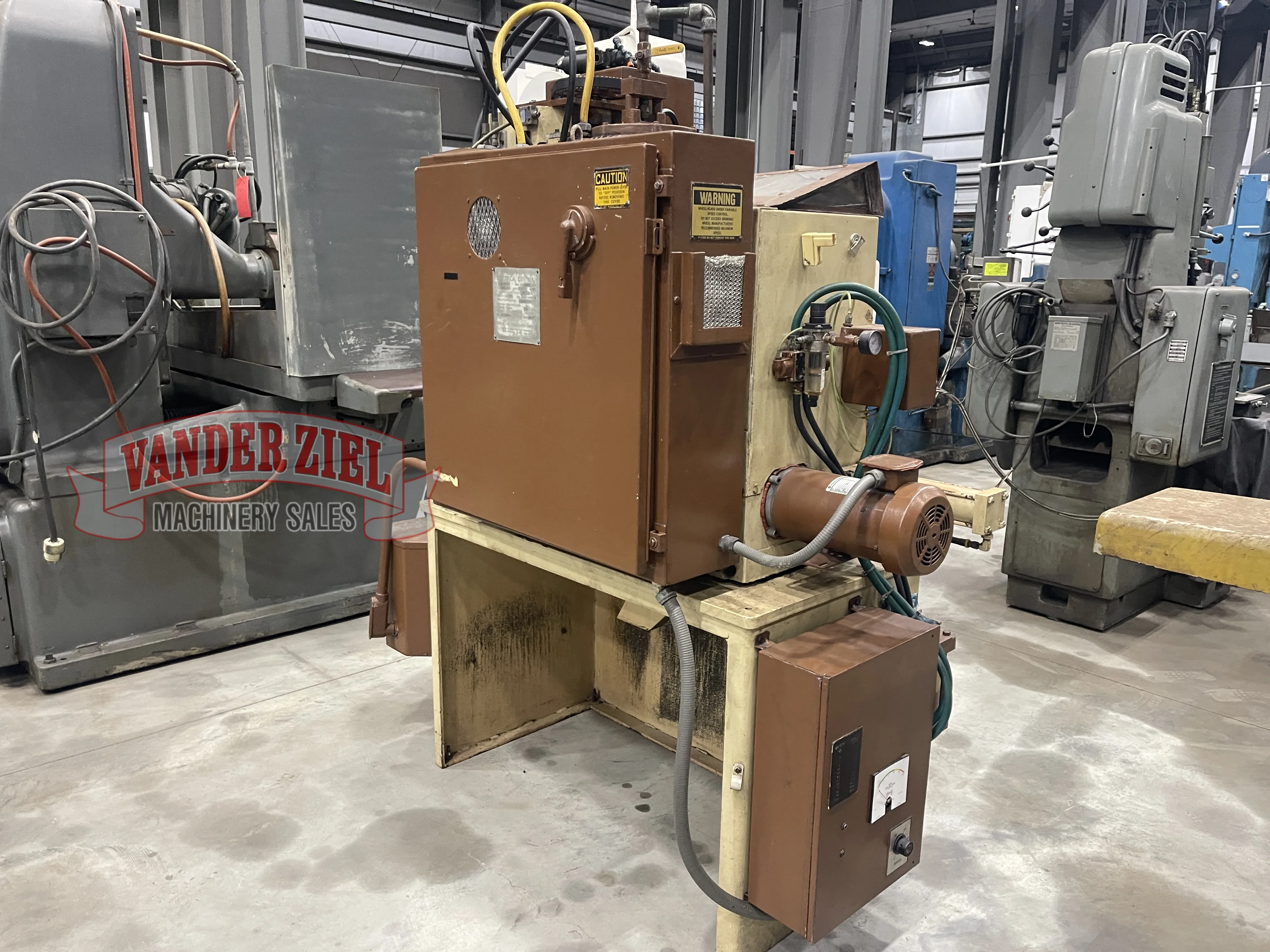

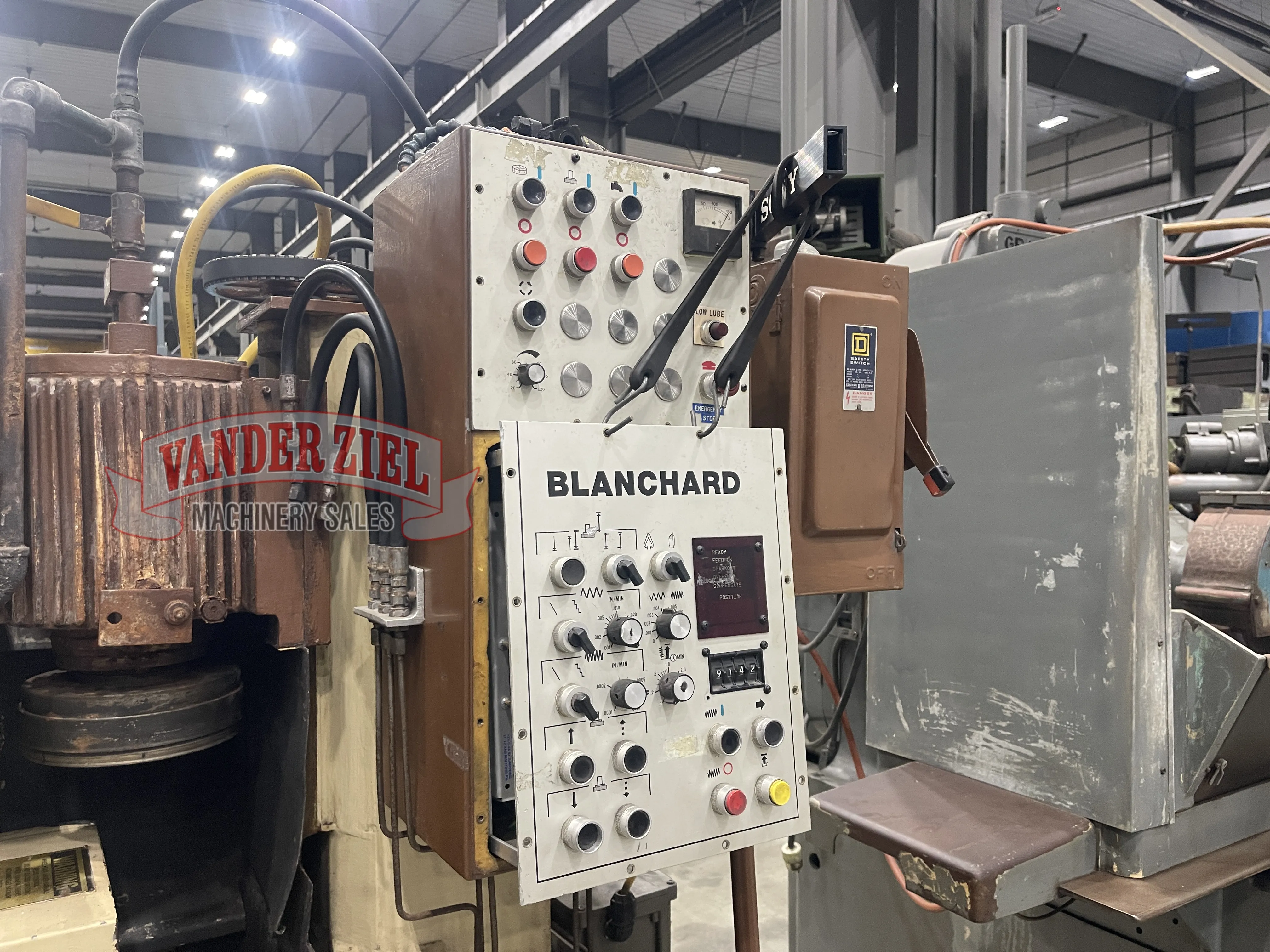

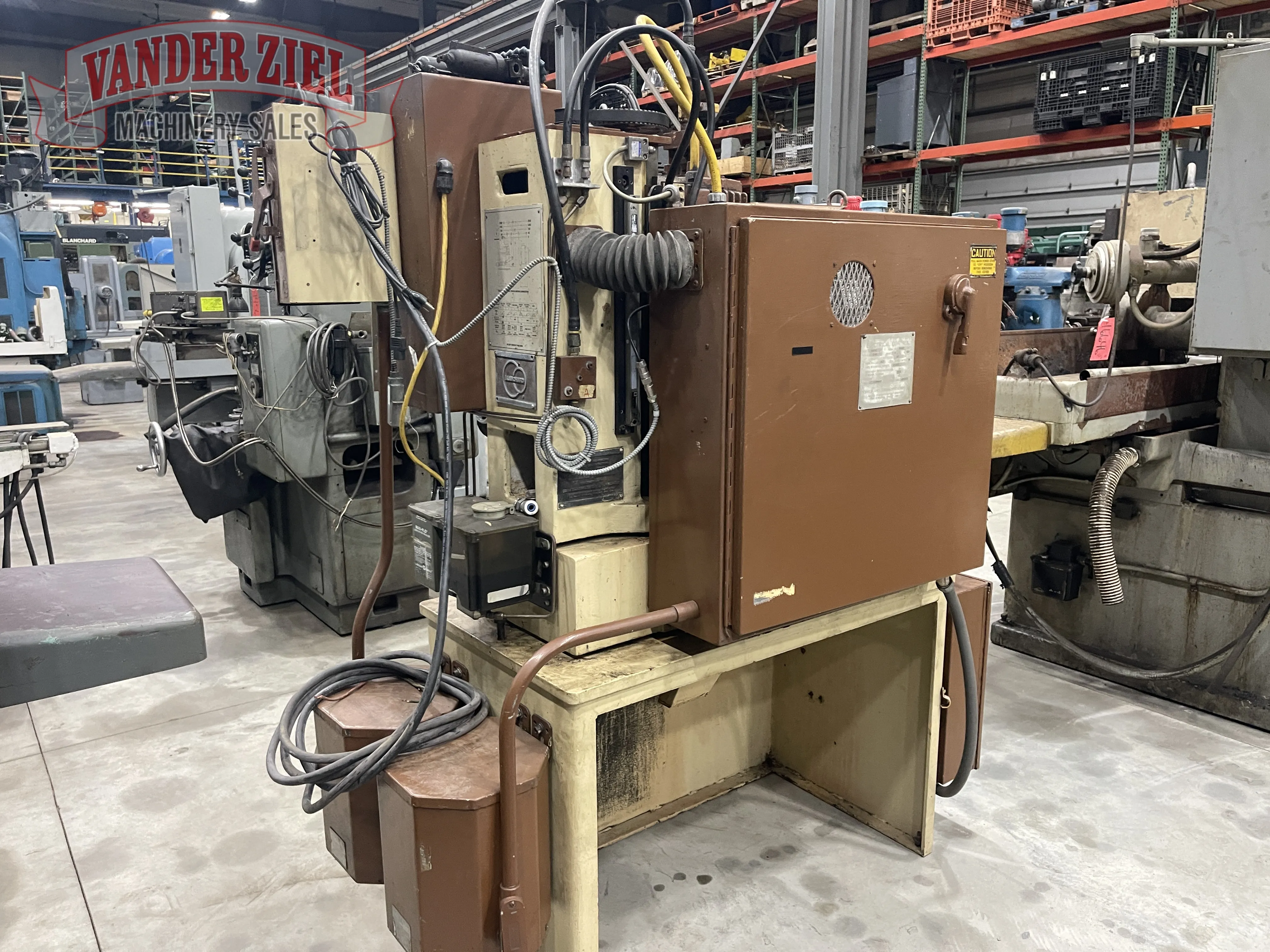

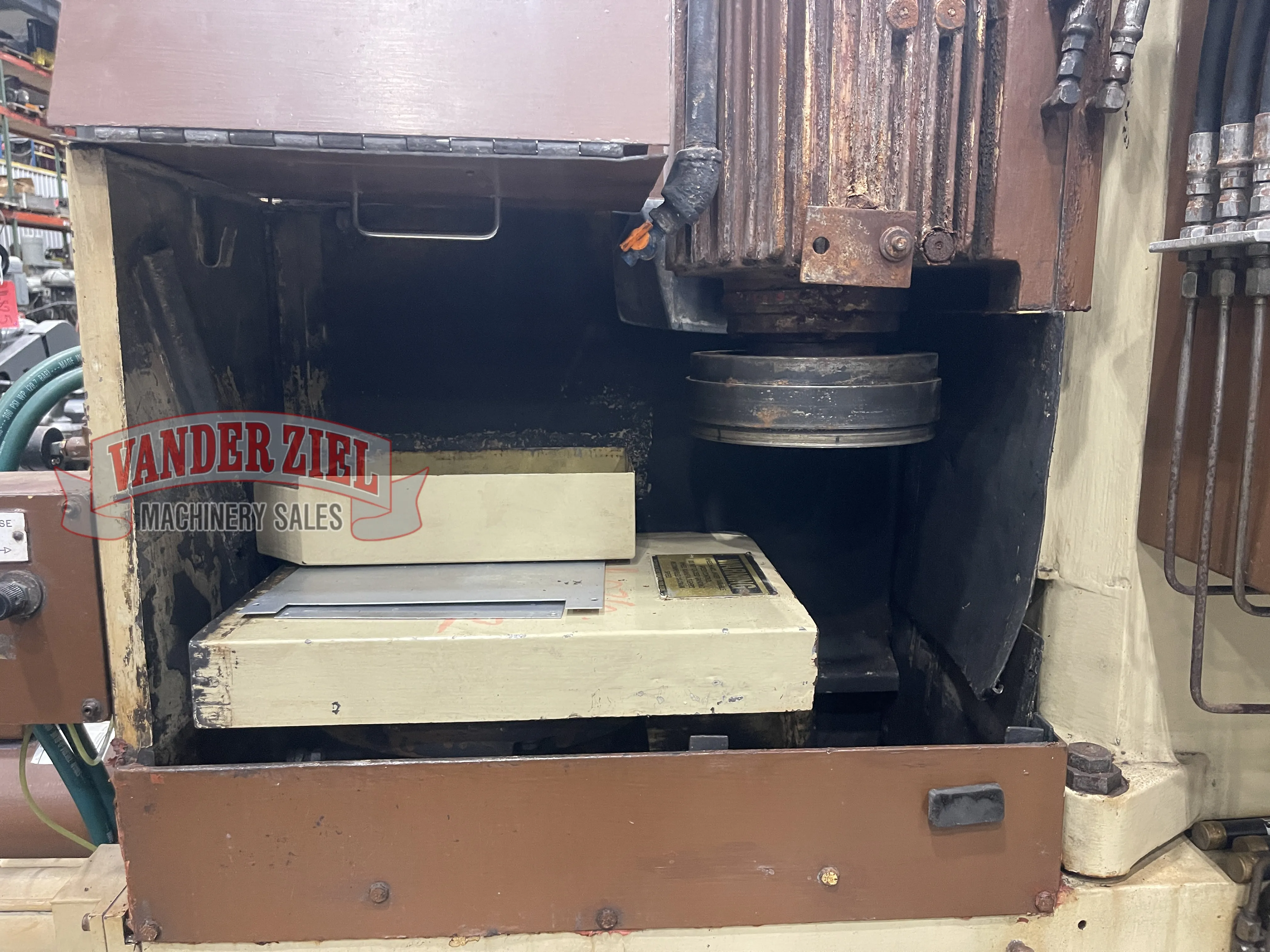

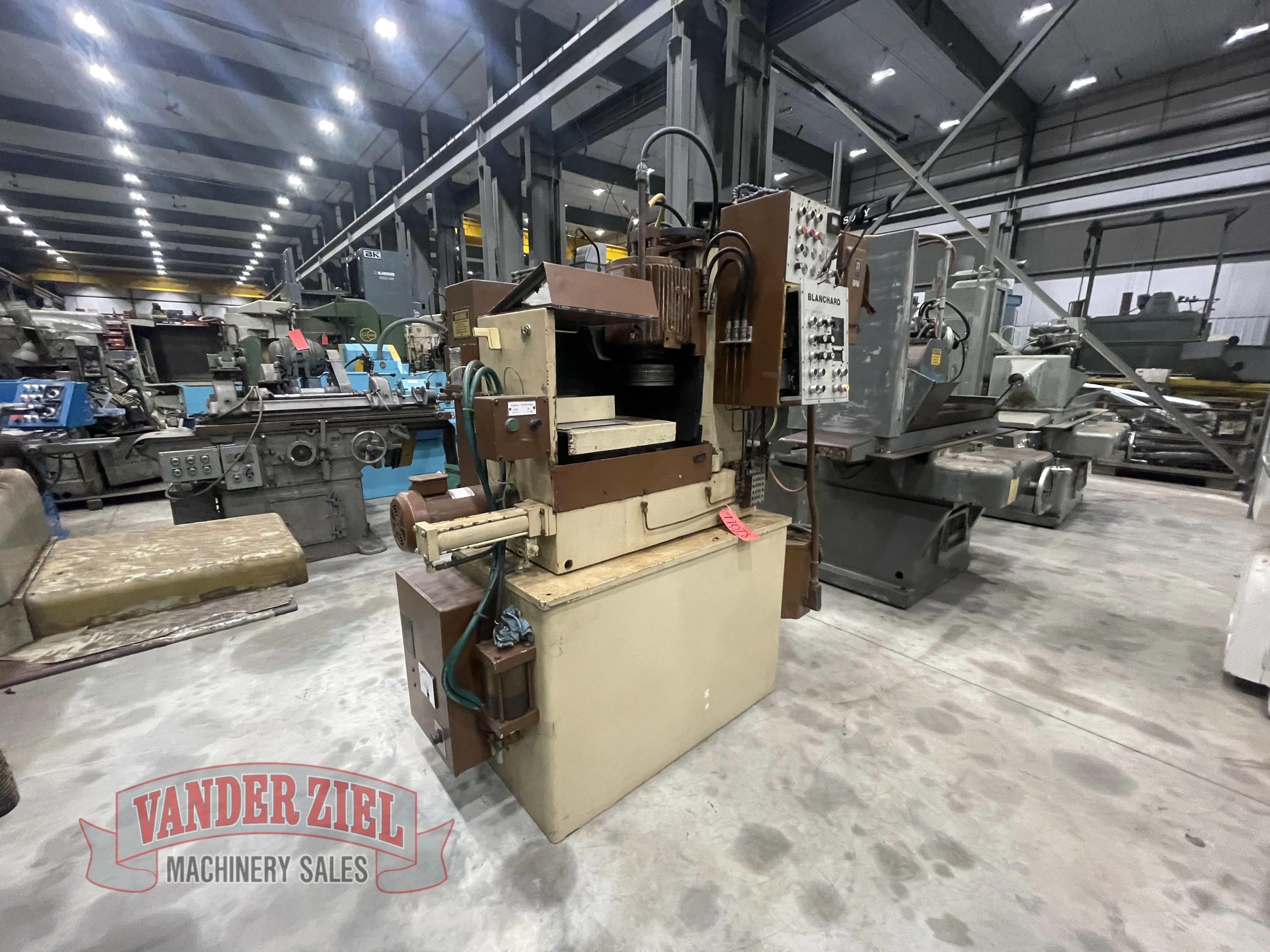

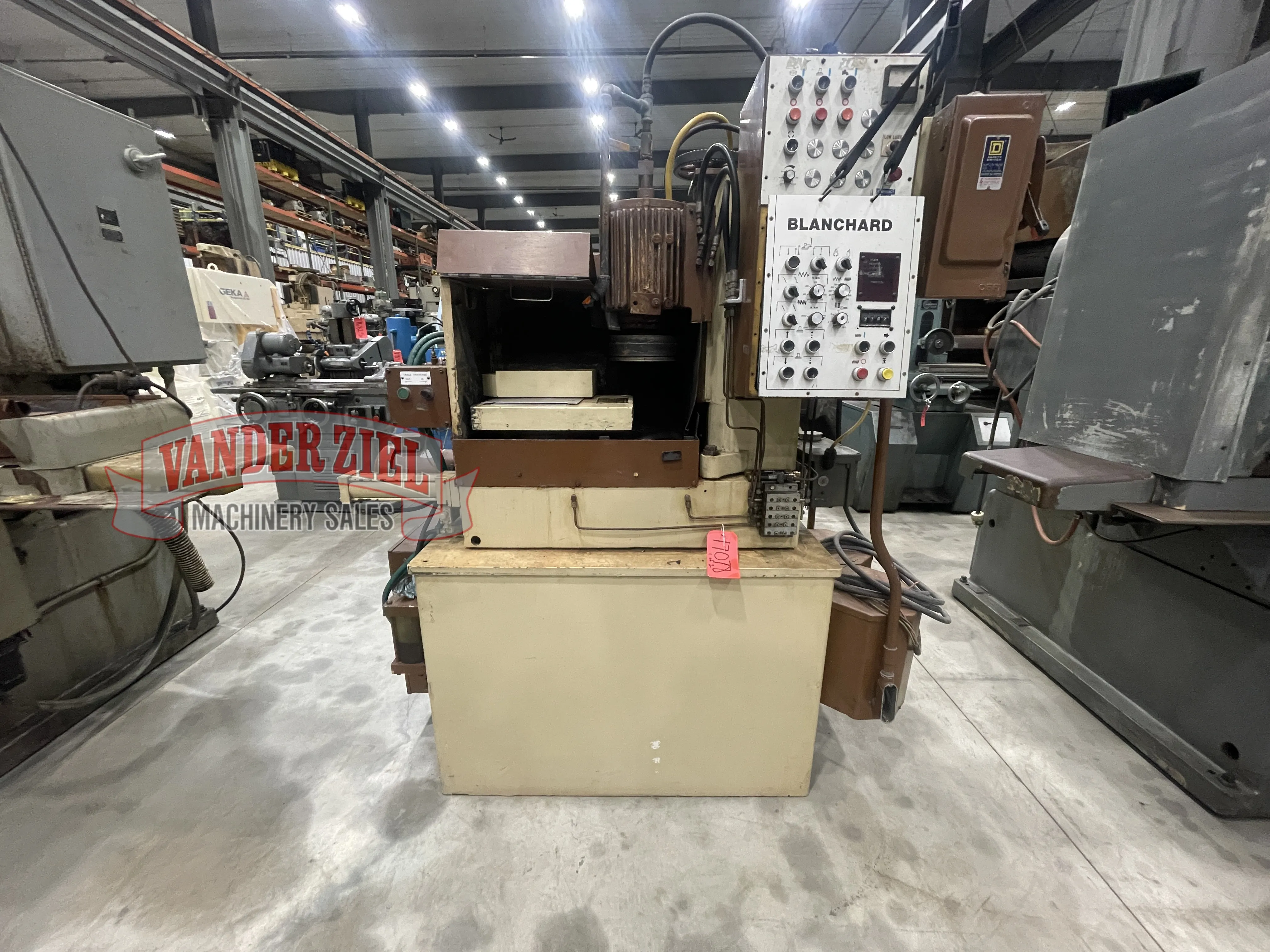

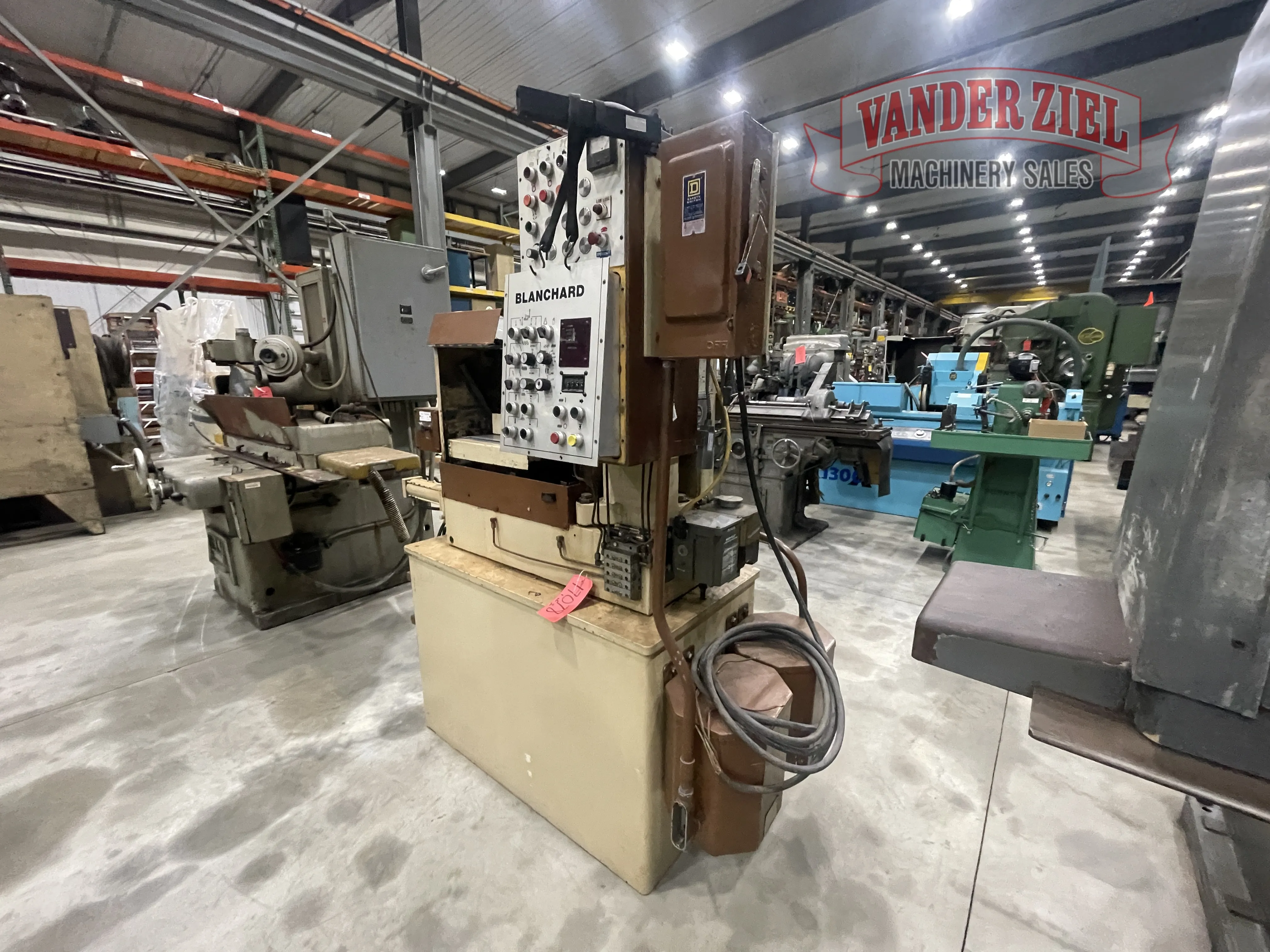

Blanchard 12” Rotary Grinder, Model 8AD-12

Blanchard 12" Rotary Grinder, Model 8AD-12

Asset # 17078
Serial # 15683

Specifications:
Table Diameter 12"
Swing Capacity 14"
Vertical Range over Table 5 1/2"
Max. Swing Diameter 14"
Table Rotation Speed 20 - 120 RPM
Grinding Wheel Speed 8" x 3" x 6 1/2"
Grinding Wheel Speed 1800 RPM
Rapid Traverse Rate 20 ipm
Feed Rate .001-.050 ipm
Head Position Readout .000-.999"
Grinding Wheel Motor 3 HP
Table Rotation 1/2 HP
Wheelhead Feed DC Servomotor
Dimensions 49" x 30"
Height 70"

Preliminary Specifications - Subject to Verification
