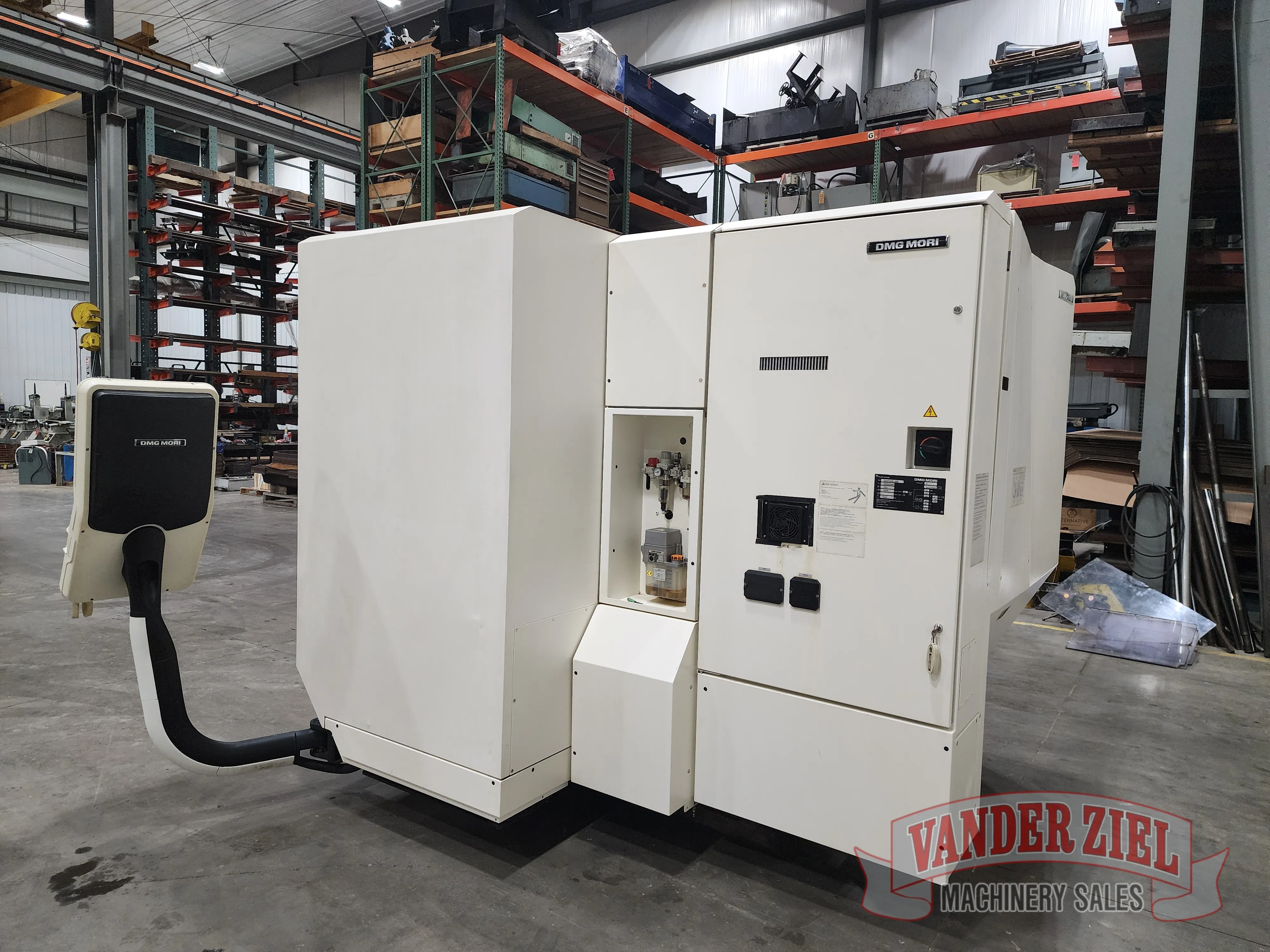

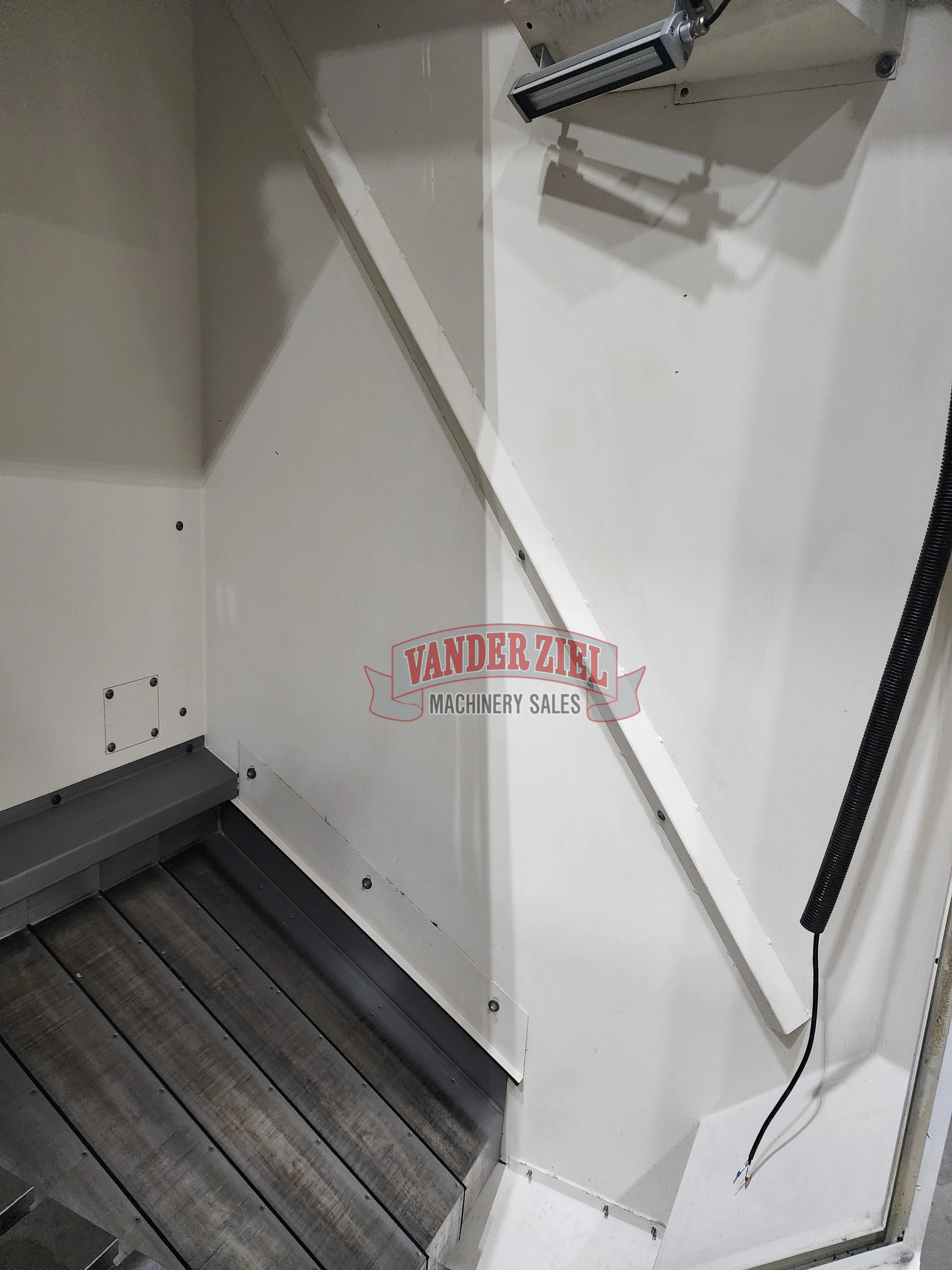

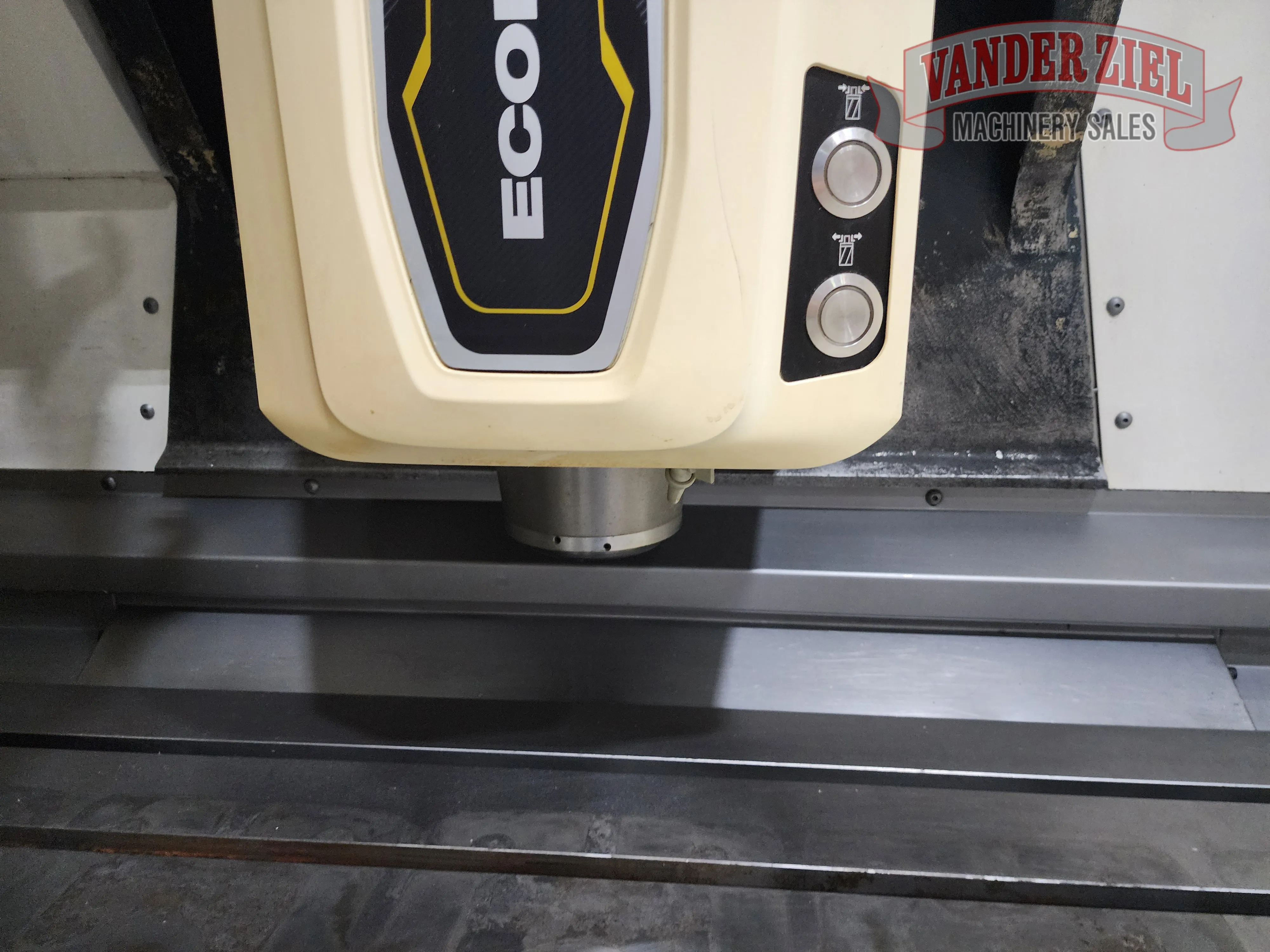

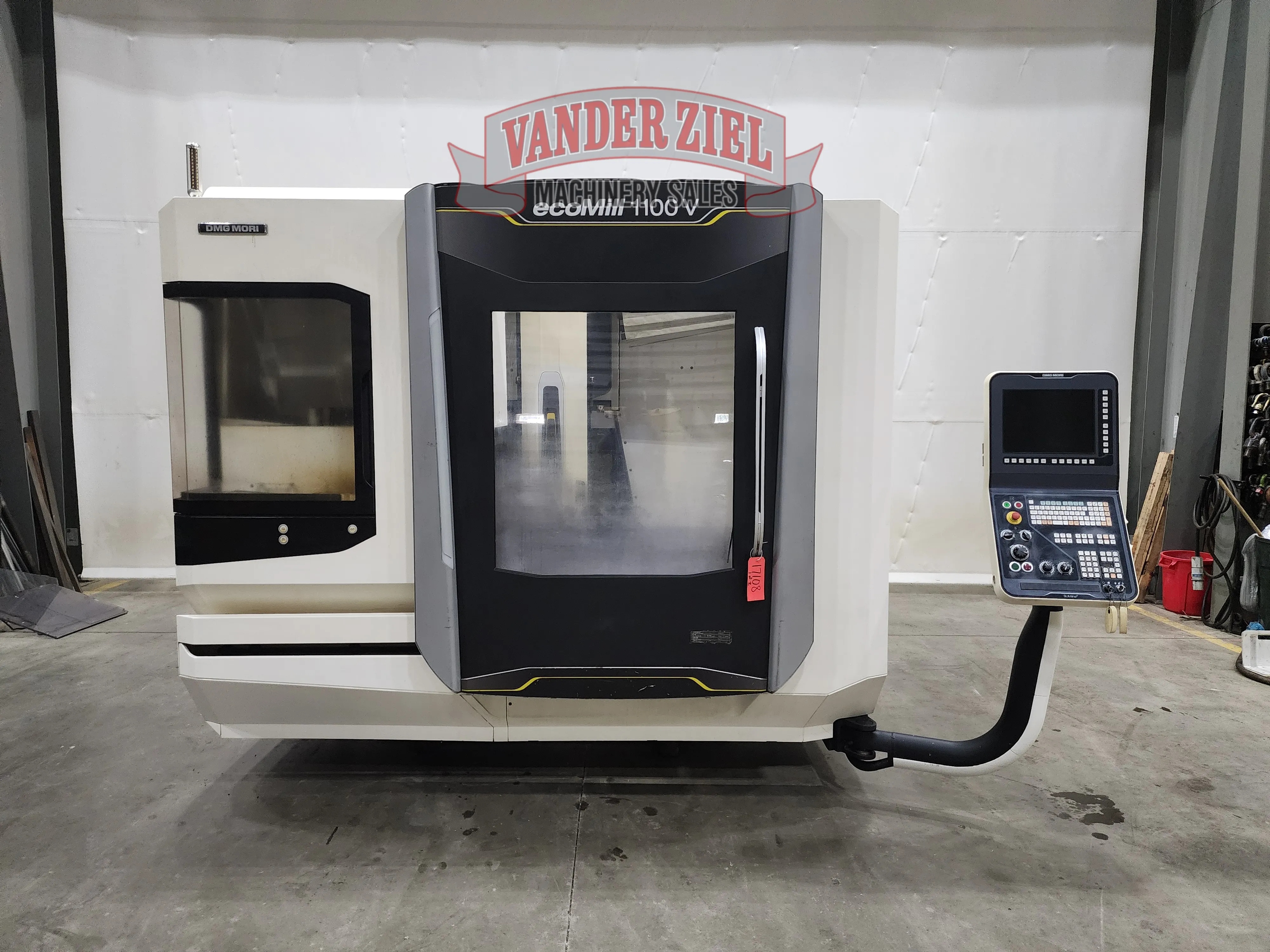

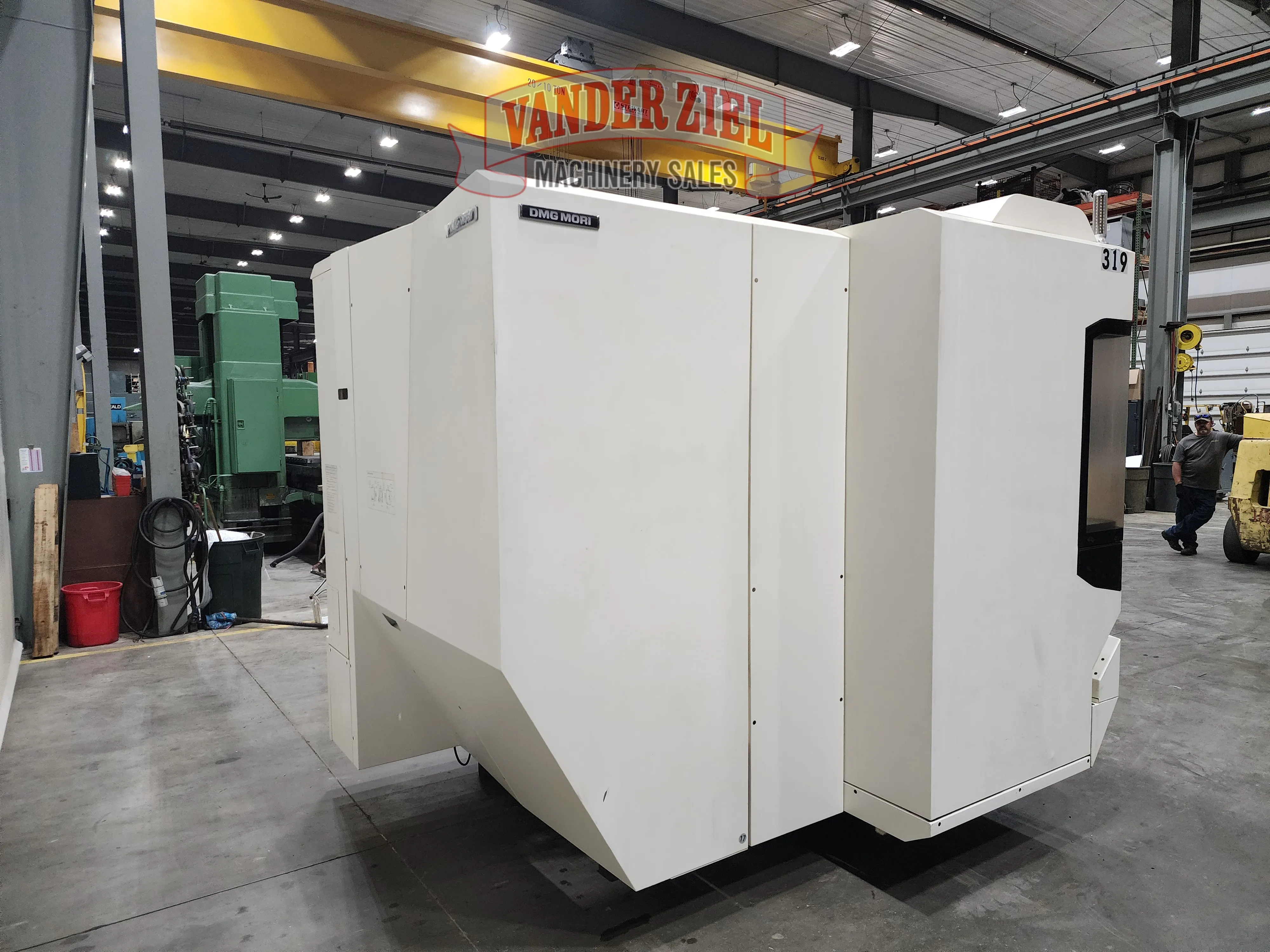

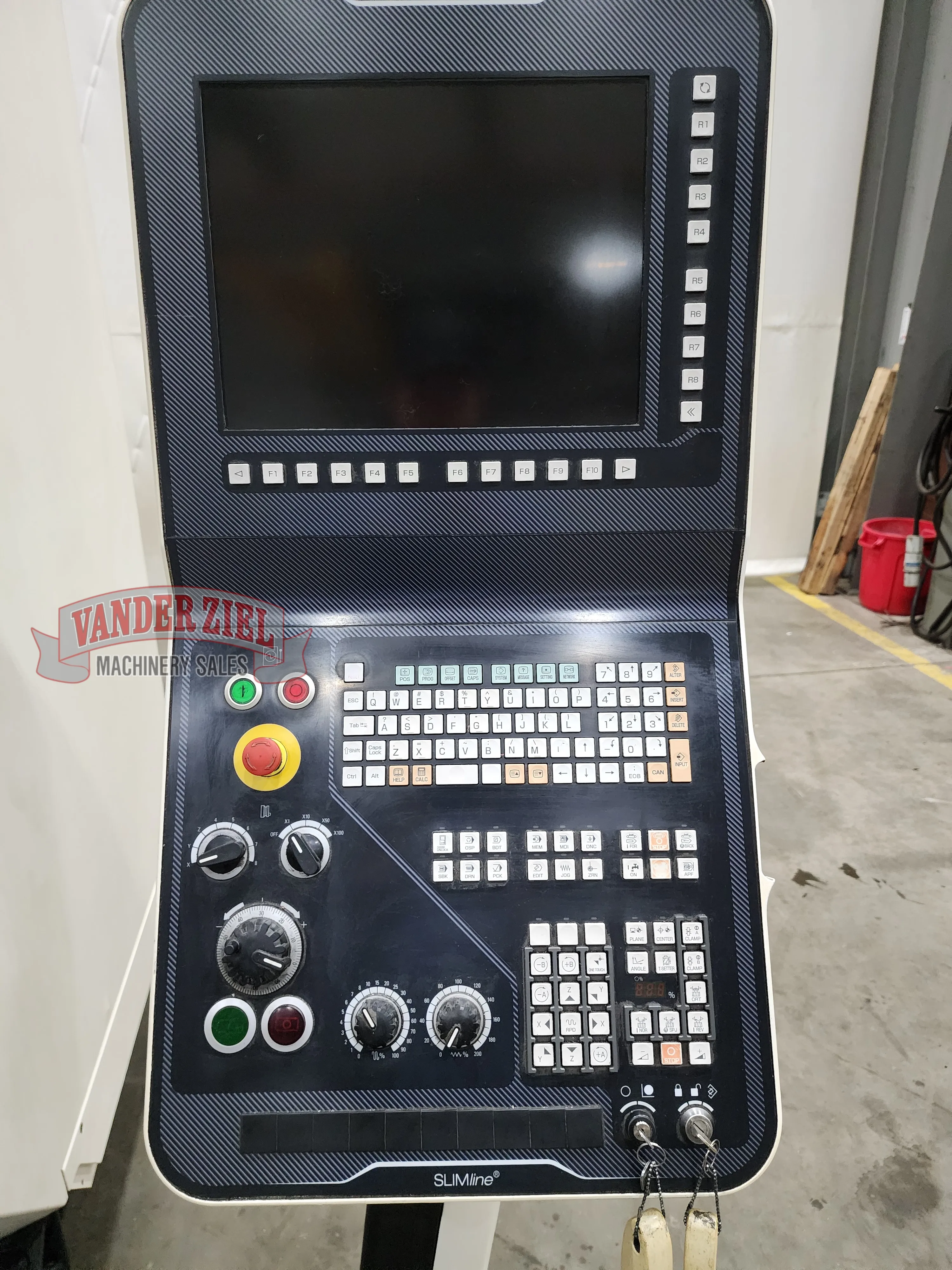

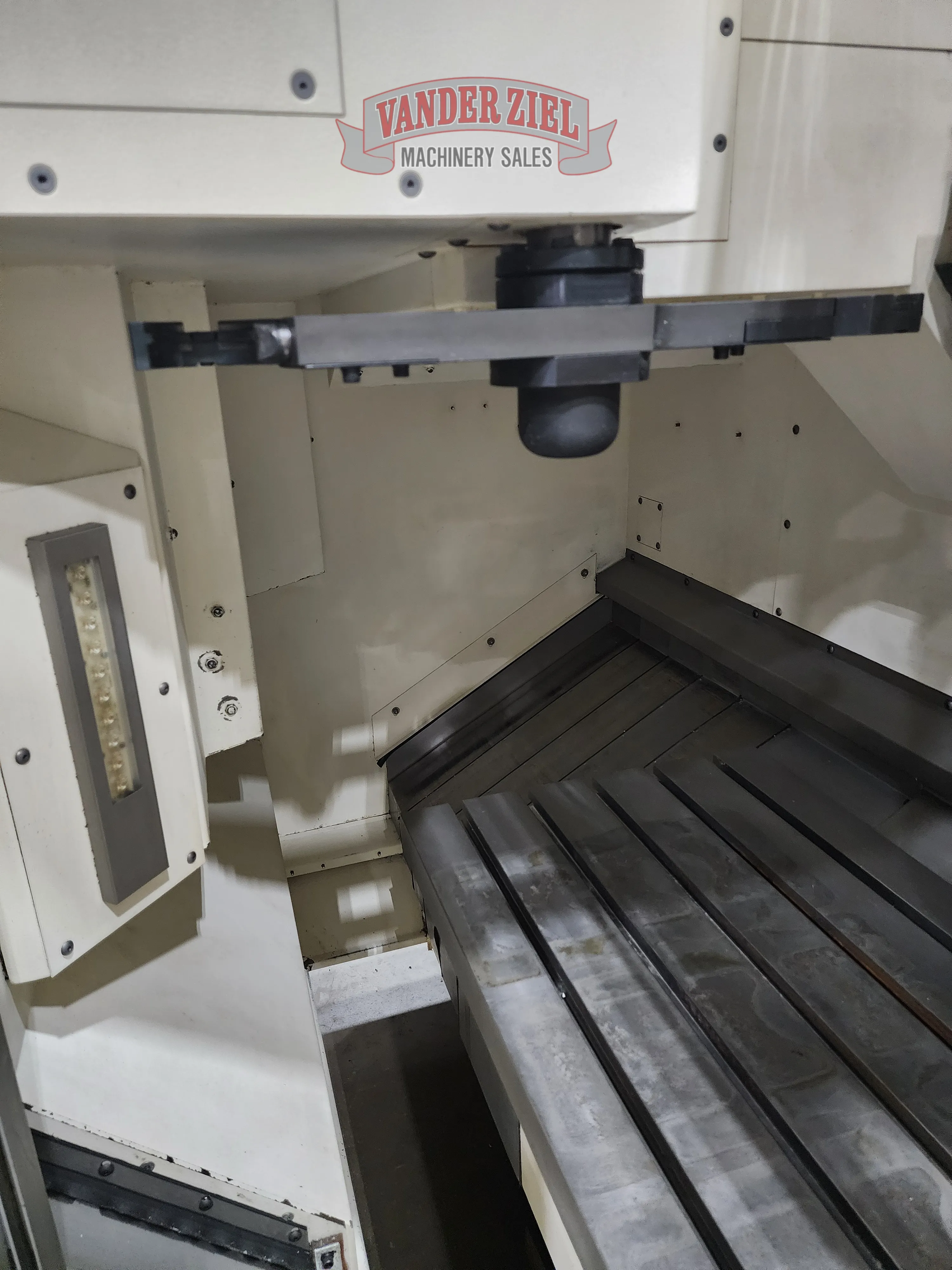

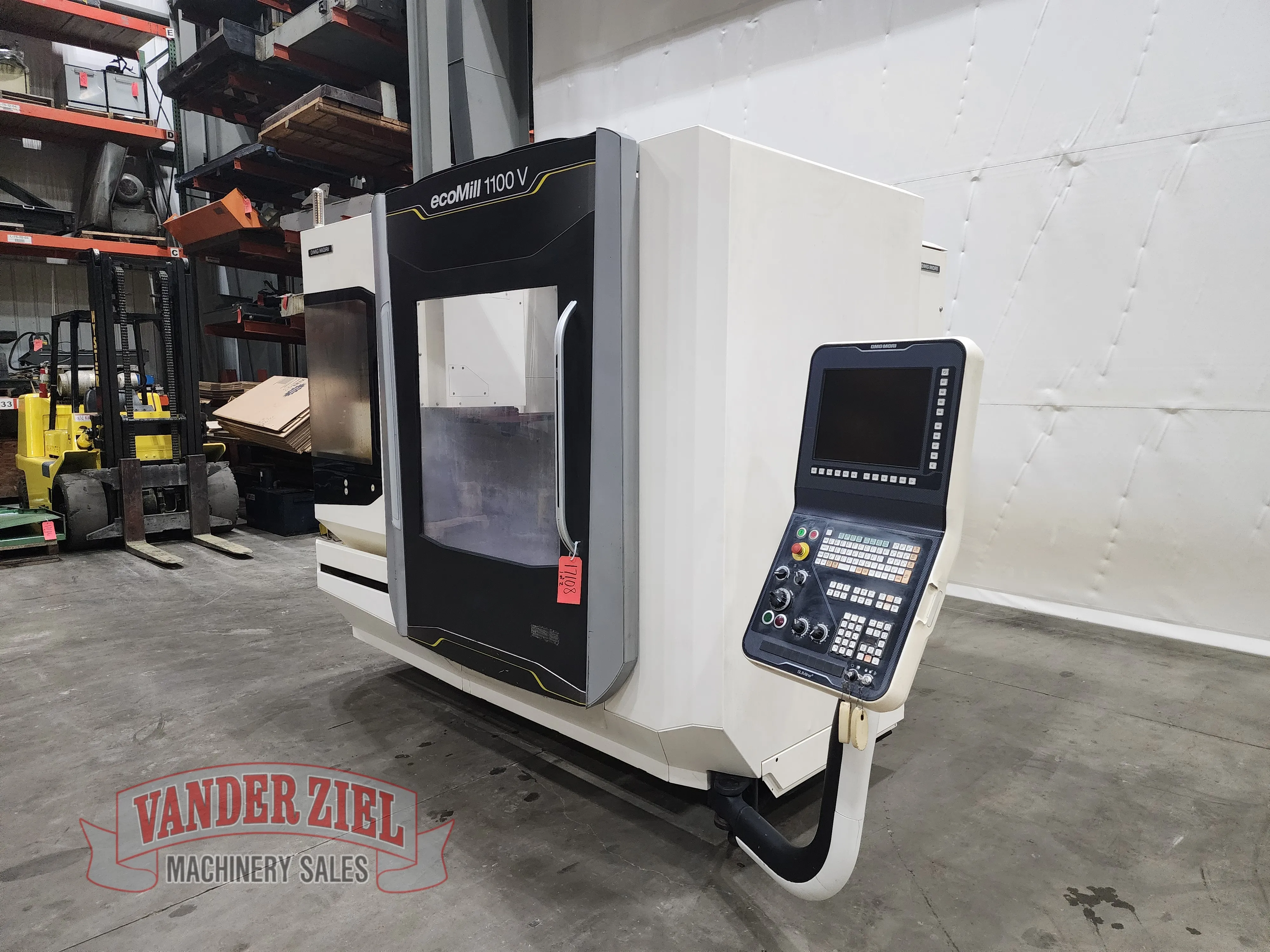

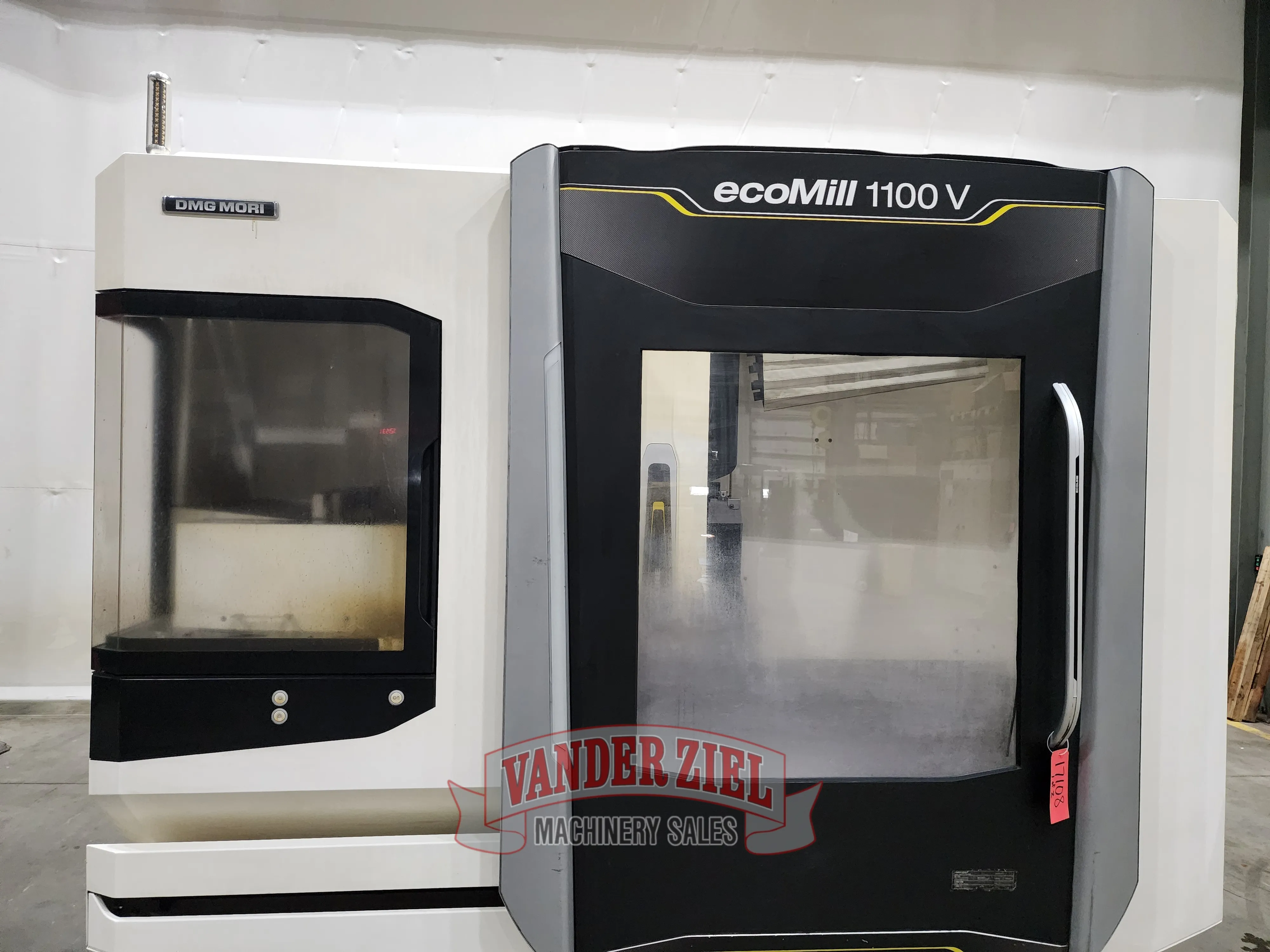

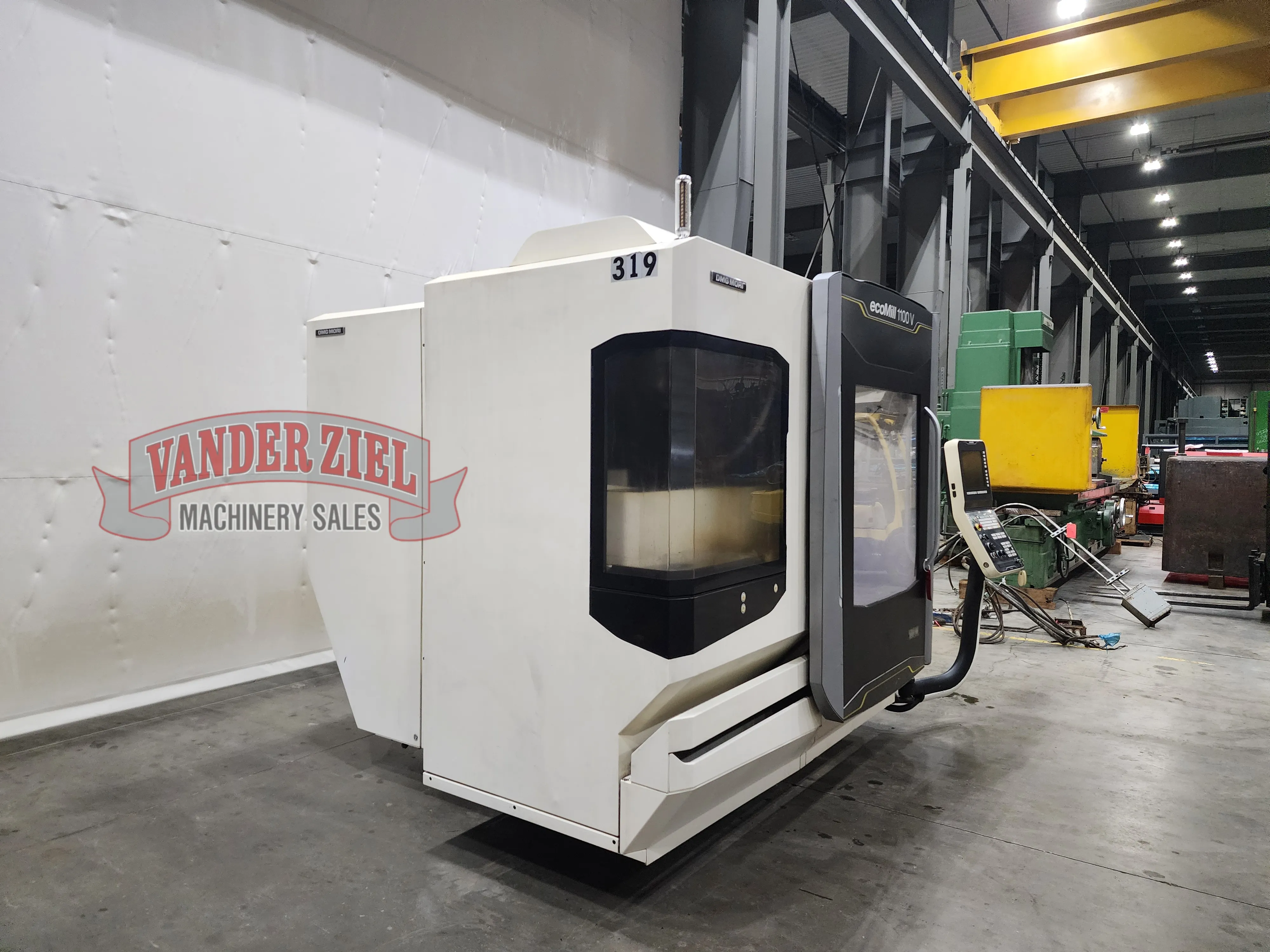

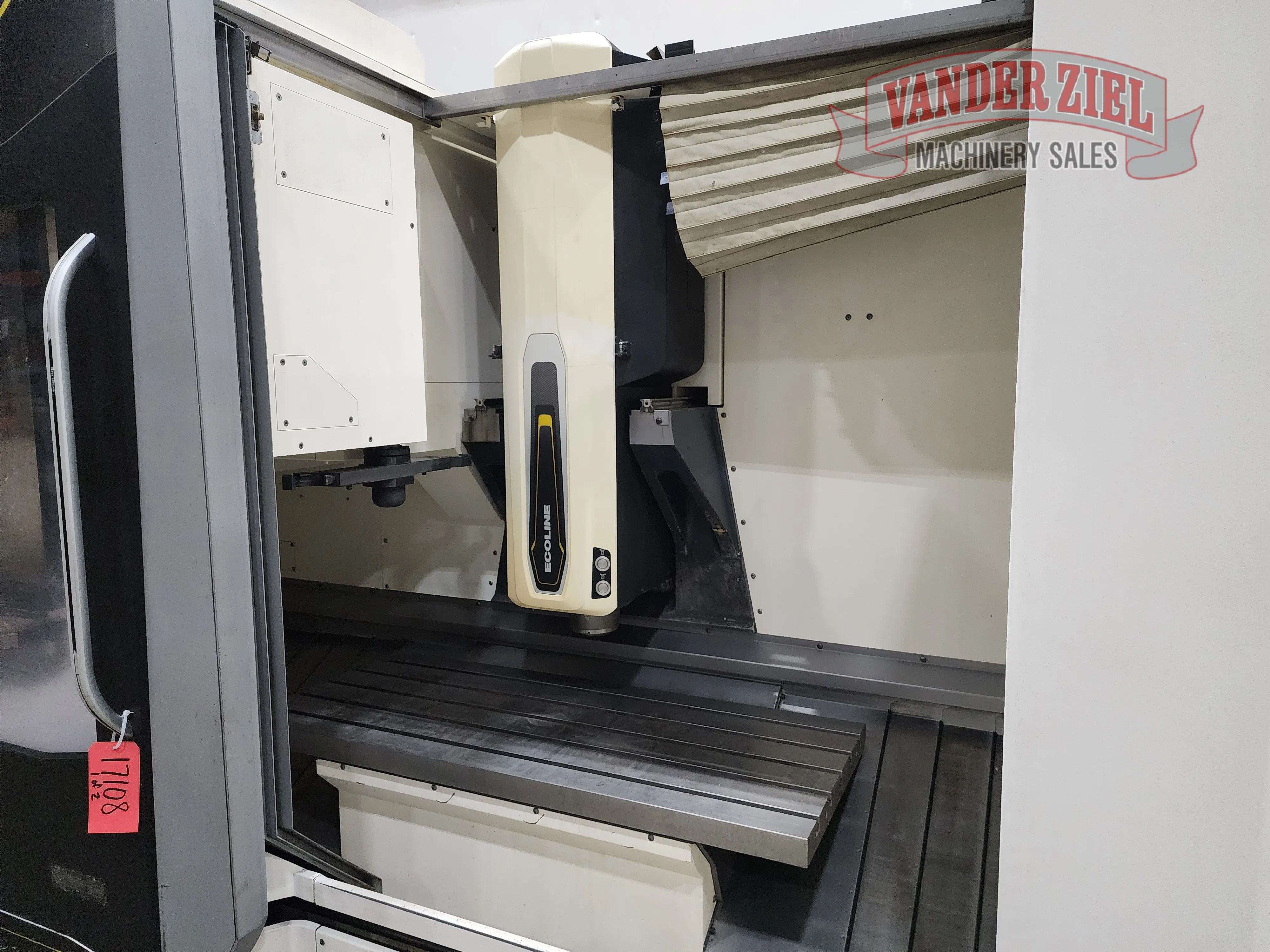

DMG Mori Vertical Milling Machine, 2016, Model ecoMill 1100V

DMG Mori Vertical Milling Machine, 2016, Model ecoMill 1100V

Asset # 17108

Specifications:
X Axis Travel 43.31"
Y Axis Travel 22.05"
Z Axis Travel 20.08"
Distance from Table Surface to Spindle Gage Plane 4.72" - 24.80"
Table Working Surface 55.12"
Table Loading Capacity 2200"
Table Surface Configuration 18mm T-slot 5 pieces
Max Spindle Speed 1200
Number of Spindle Speed Ranges 1
Type of Spindle Taper Hole No. 40
Spindle Bearing Inner Diameter 2.55"
Rapid Traverse Rate X, Y: 36000 mm/min Z: 30000
Feedrate 1-6000 Without look ahead control
1-20000 With look ahead control
Jog Feedrate 0-5000
ATC UNIT
Type of Tool Shank MAS BT-40
Type of retention knob 90 degrees for Mori Seiki
Tool Storage Capacity 30
Maximum Tool Diameter with out adjacent tools 4.92 inches
Maximum Tool Diameter with adjacent tools 3.14 inch
Maximum Tool Length 11.81 inches
Maximum Tool Mass 17.6 lb
Motors
Spindle Drive Motor
low: 15/11/9 kw
High: 15/11/9 kw
Feed Motors X 1.8kw Y: 1.2KW Z: 1.8KW

Preliminary Specifications - Subject to Verification
