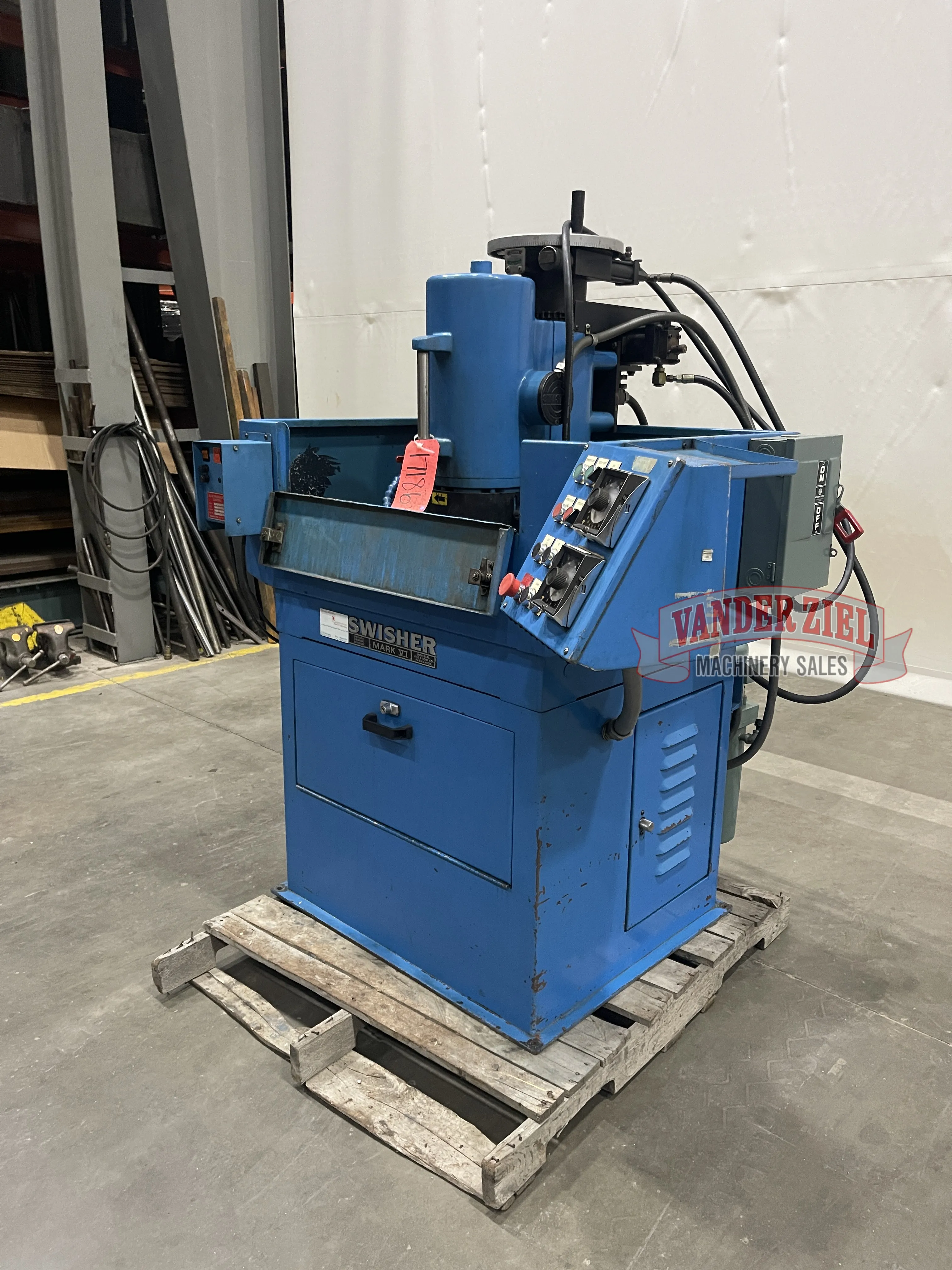

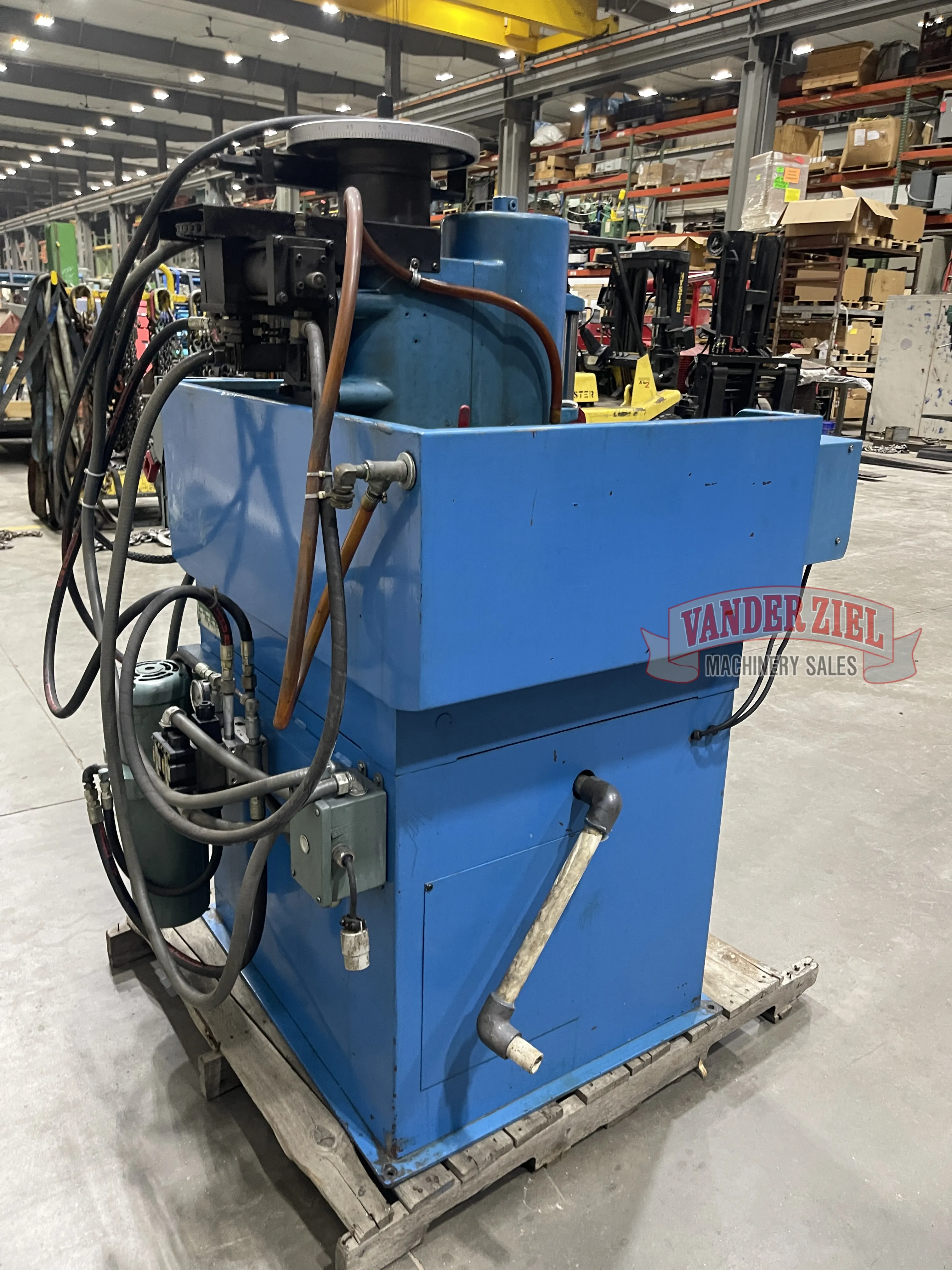

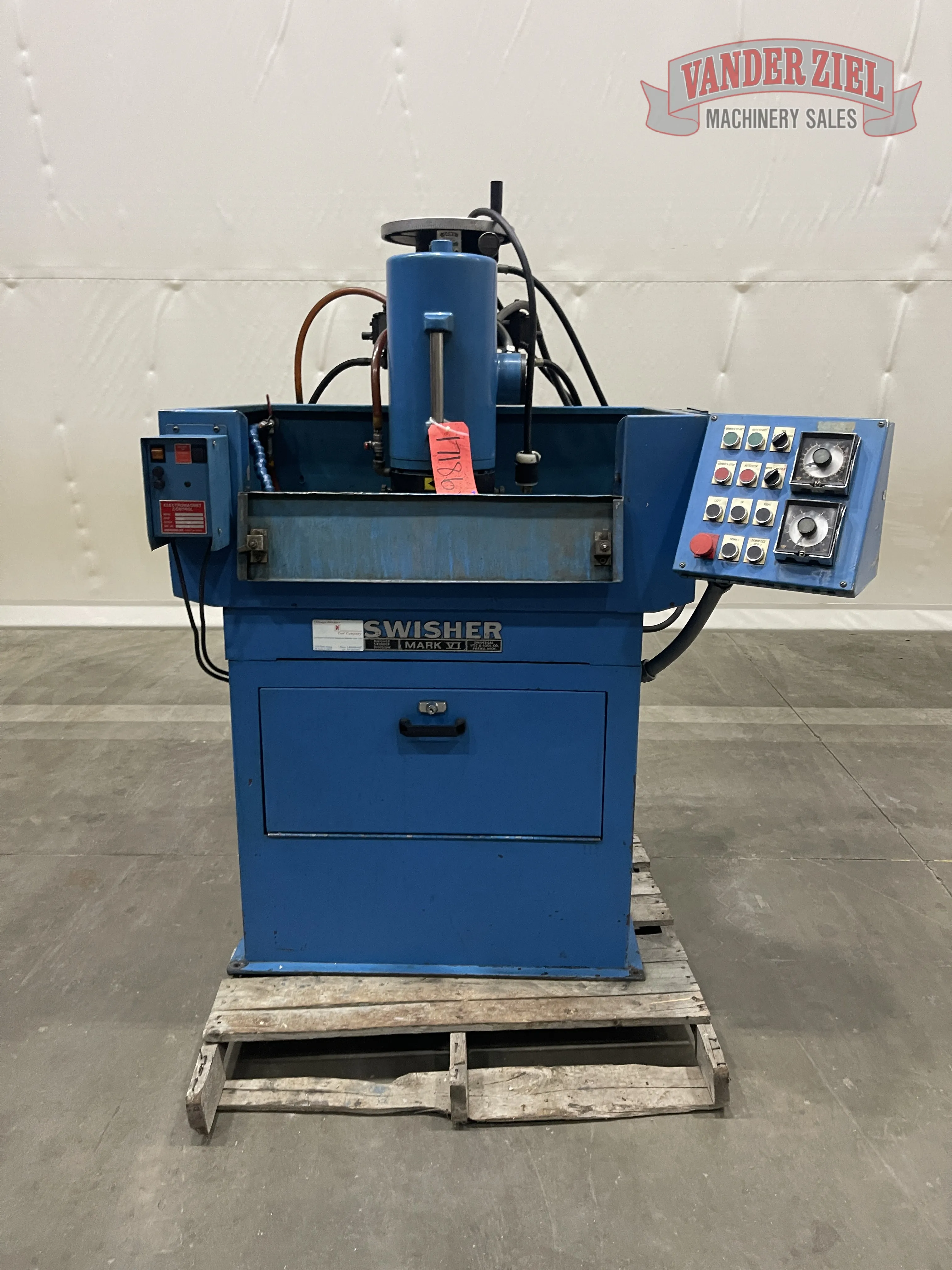

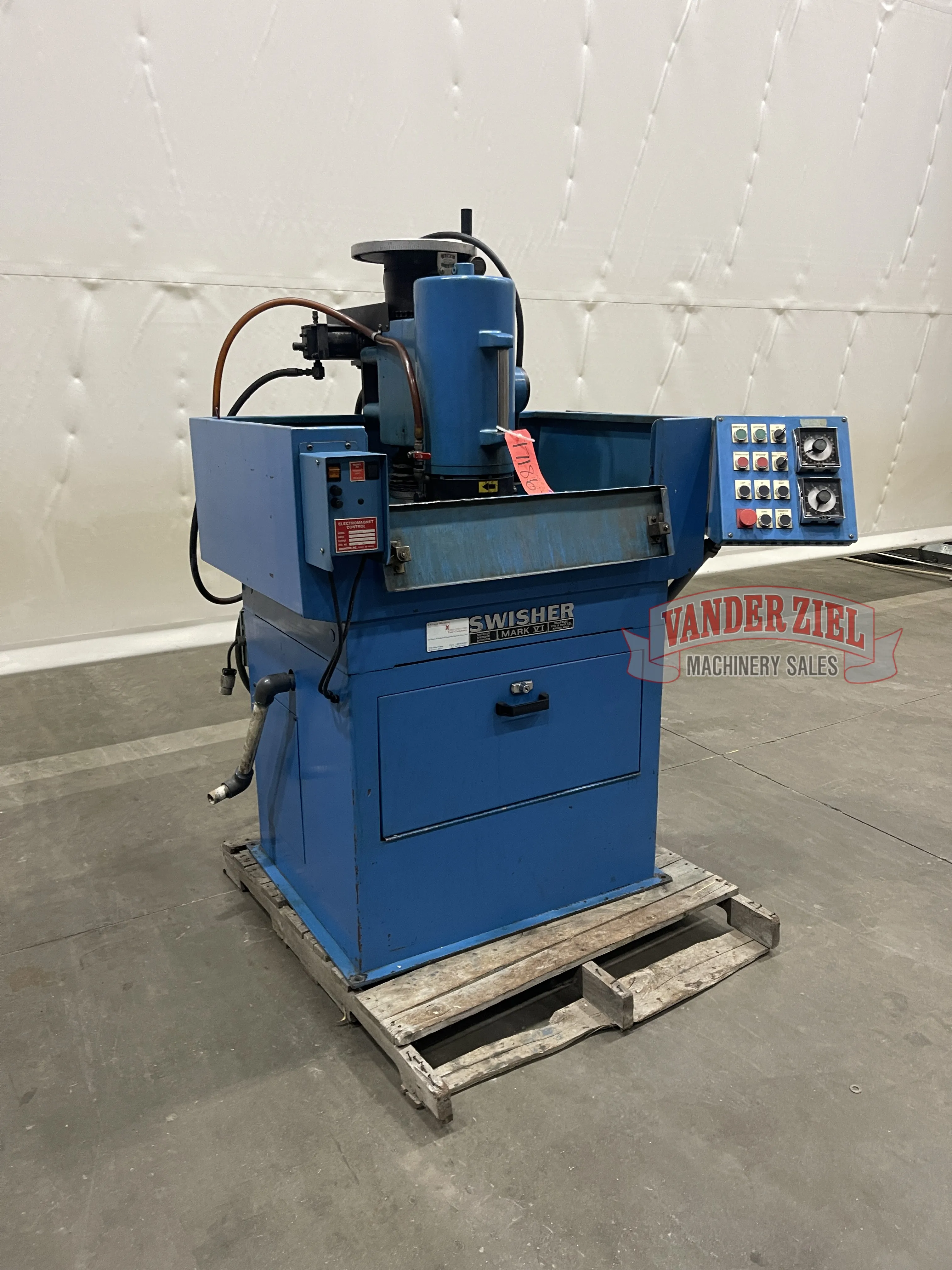

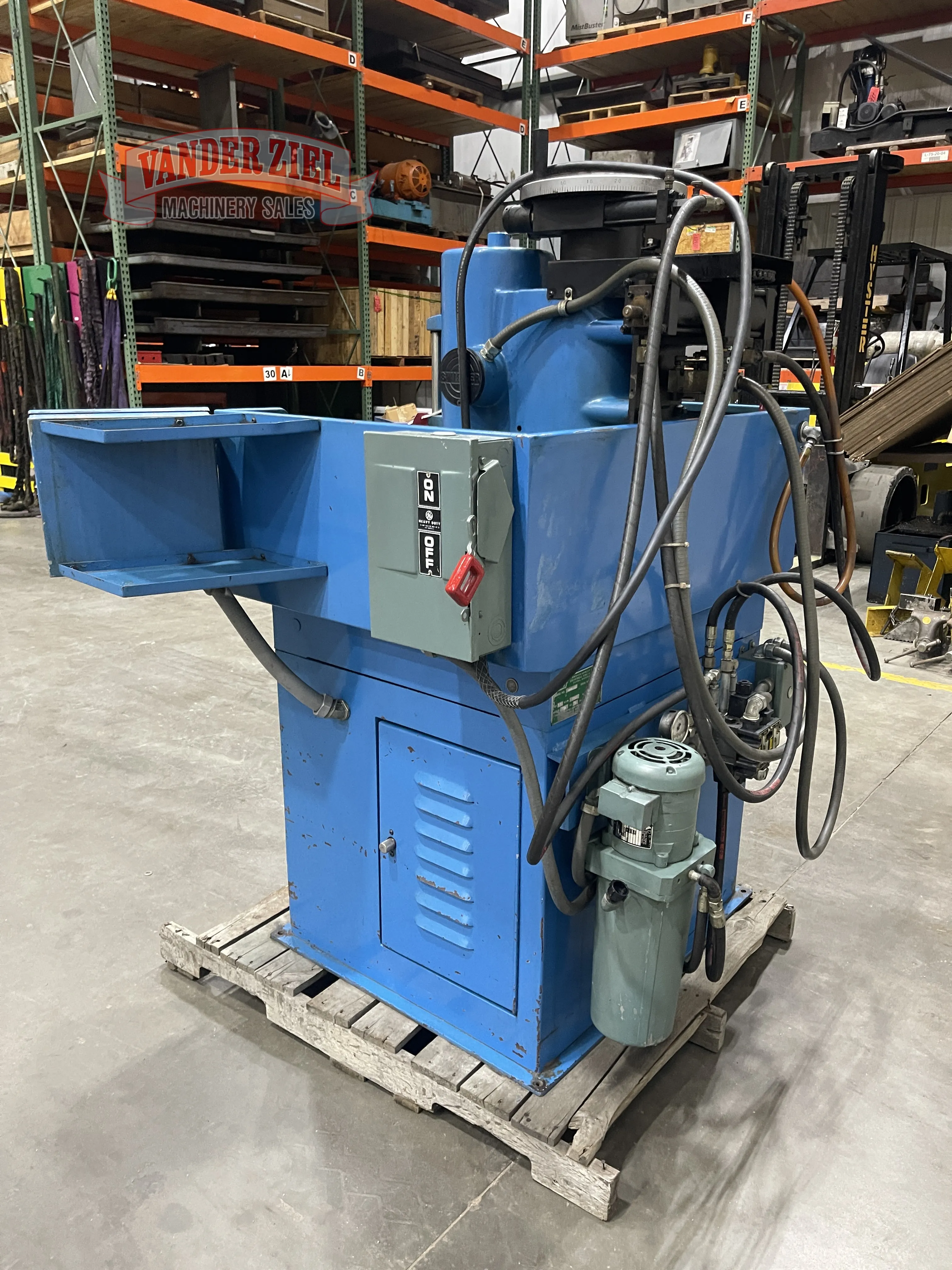

Swisher MSRK VI 6" x 12" Automatic Rotary Grinder

Swisher MSRK VI 6" x 12" Rotary Grinder

Asset # 17186
Serial # 01866-0455

Grinder Base to New Wheel 11"

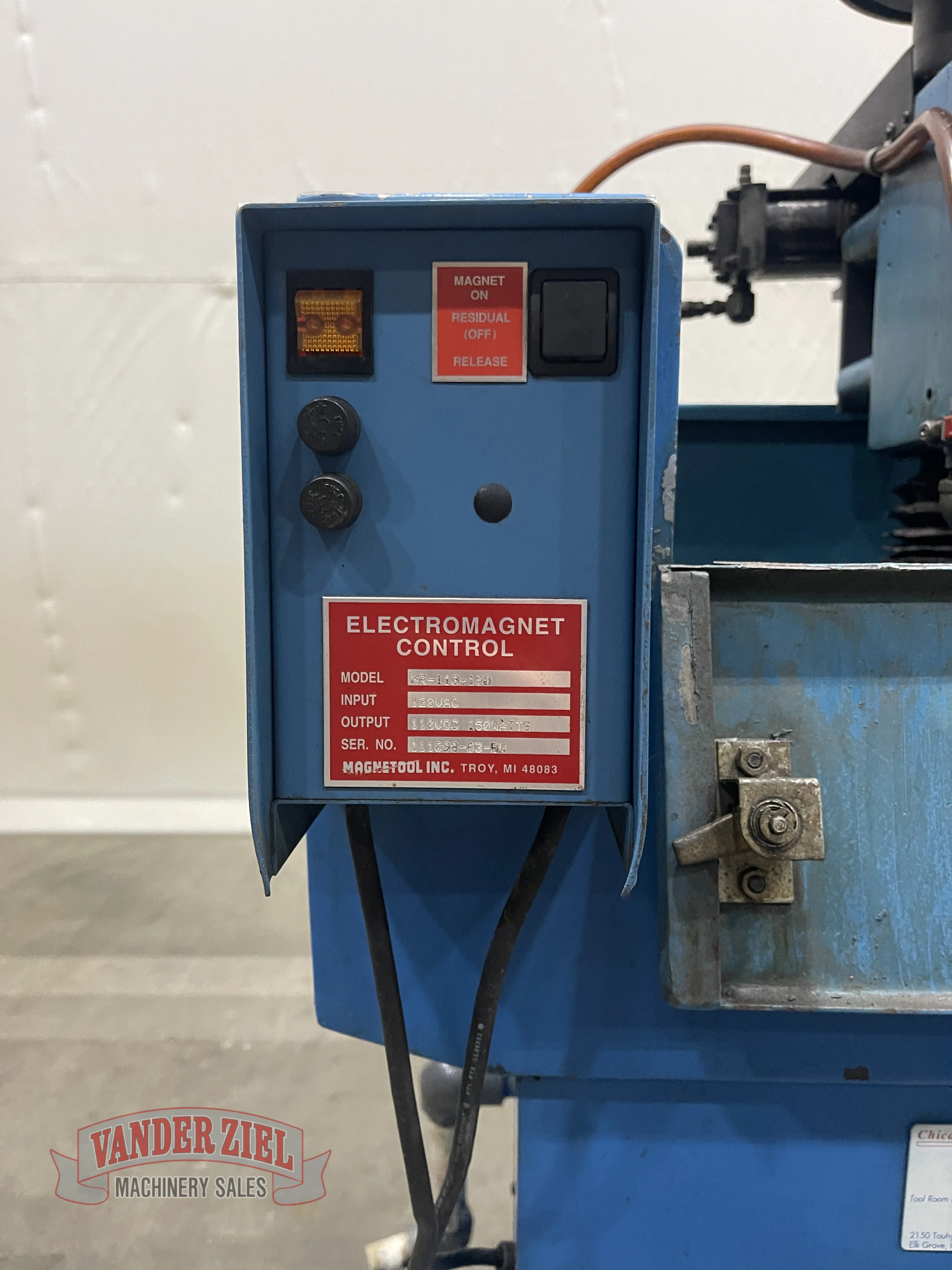

Magnetic Chuck Surface 6" x 12"
Magnetic Chuck to New Wheel 7 1/4"
Magnetic Chuck to Worn Wheel 9.5"
HP 7.5
Speed 1800 RPM
Maximum Sweep 180 Degrees
Maximum Tilt 3.5 Degrees
Grinding Wheel 8" diam x 3" high, 3.3" Bore,
Handwheel Diameter 12"
Graduations .187" apart
One Graduation Indicates .0005" feed
One Complete Revolution .100" feed
Coolant Tank 32 Gallons
Spindle Sweep Rate 0-250 IPM
Downfeed .0005" - .0059 per impluse
Hydraulic Motor 1/2 HP
Approximate Weight 1,800 lbs.
