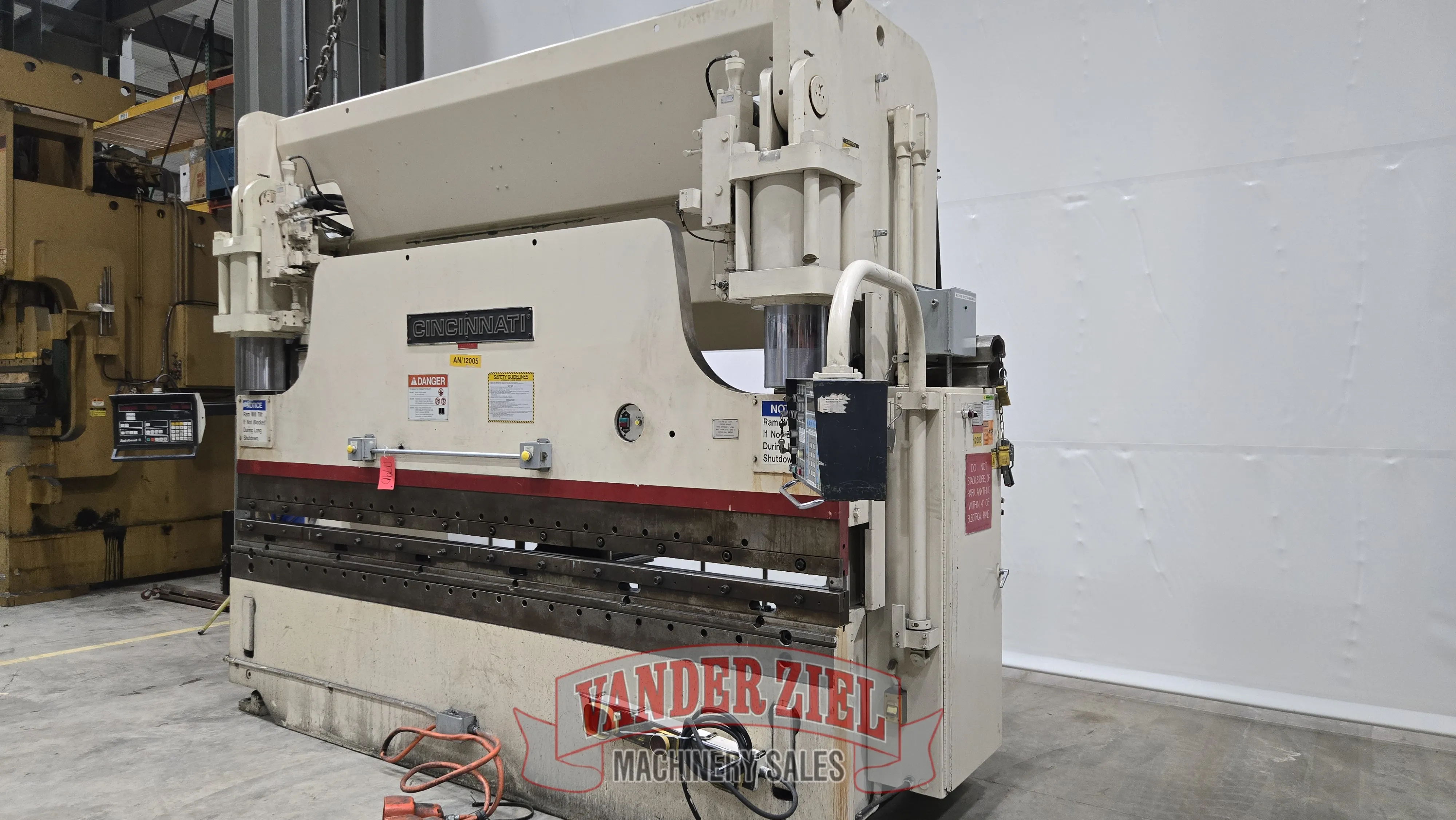

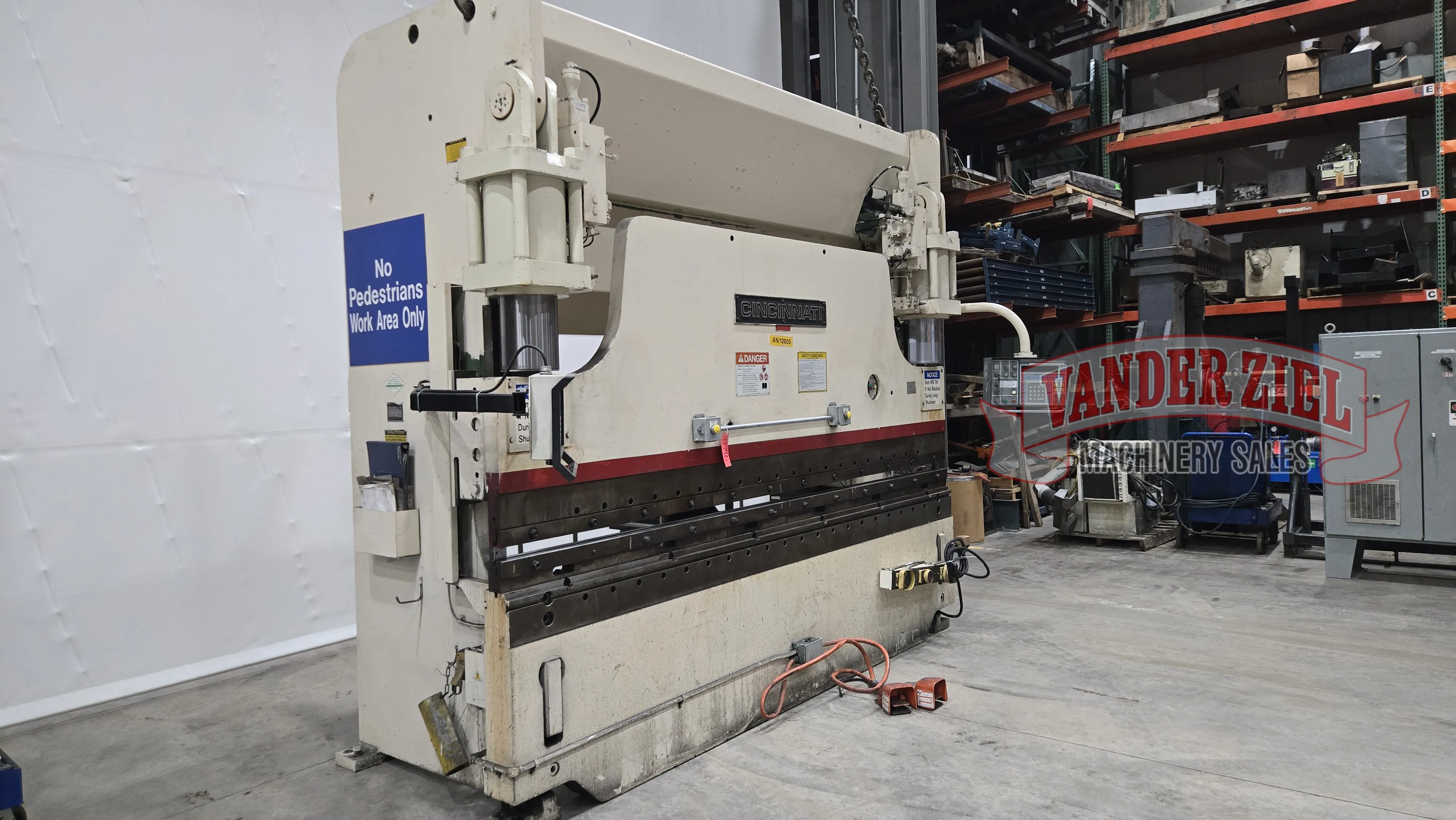

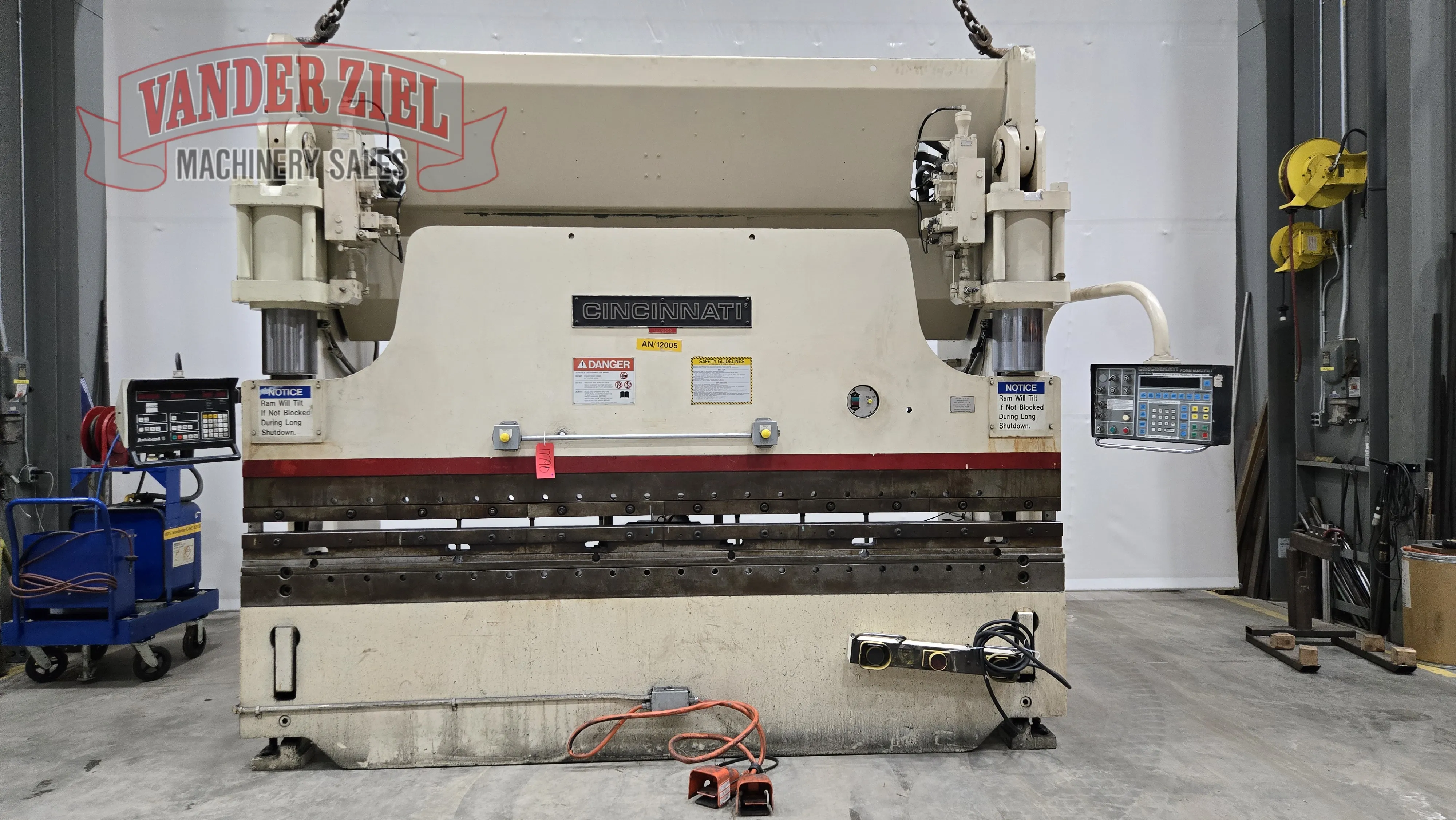

Cincinnati 12’ x 230 Ton Hydraulic Press Brake, Model 230 FMII x 10

Cincinnati 12' x 230 Ton Hydraulic Press Brake, Model 230 FMII x 10
Asset # 17790

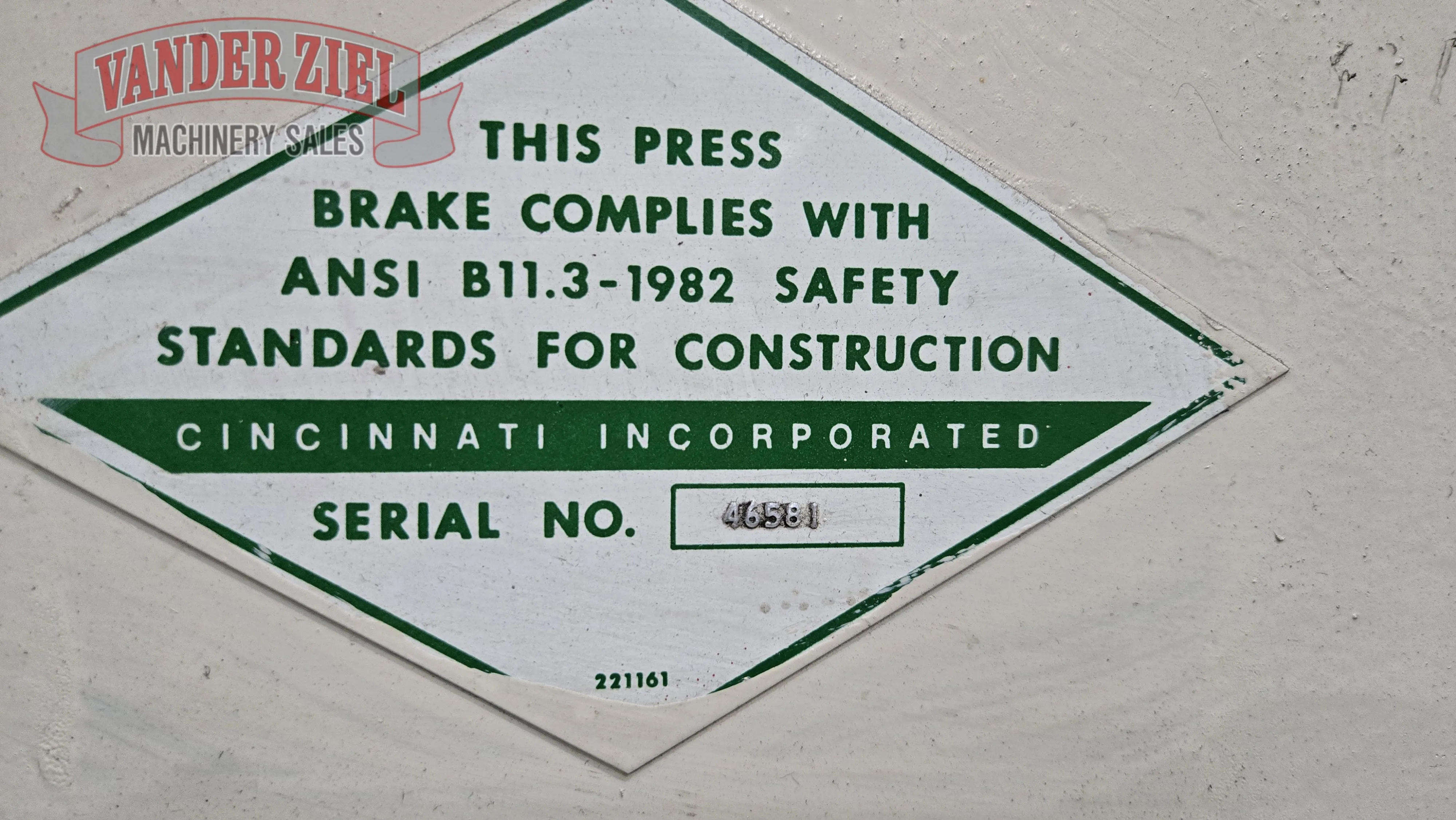

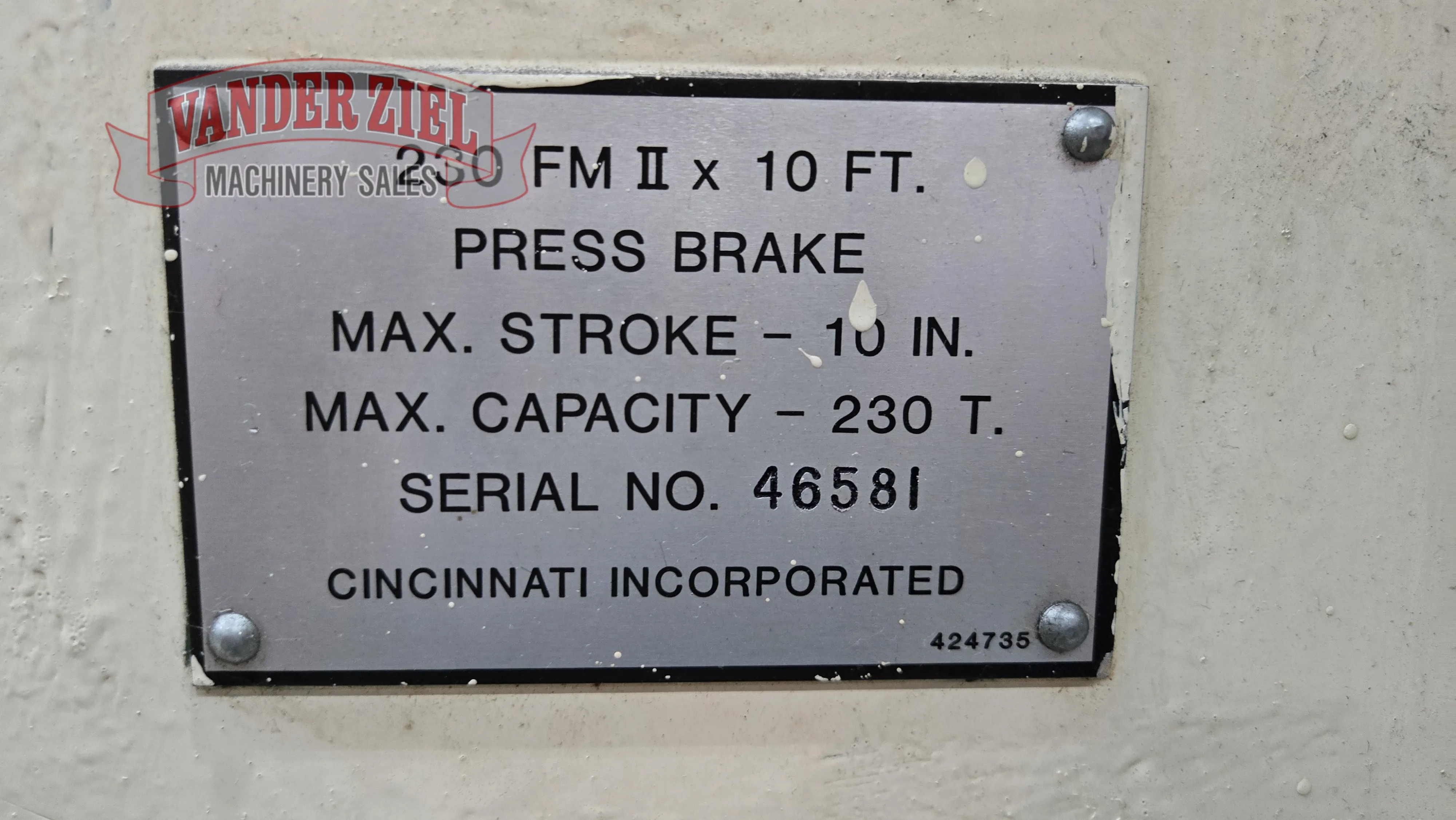

Serial # 46581
Specifications:
Total Die Surface 12'
Tonnage 230 Tons
Clear Distance Between Housings 10'6 3/4"
Distance from Floor to Bed 36"
Bed Width 5 1/2"
Capacity for Mild Steel 1/2" x 8' (Air Bending)
Over Vee Die Opening 5"
Maximum Speed at Full Tonnage 37 IPM
Maximum Tonnage at Full Forming Speed 190 Tons
Standard Stroke Length 10"
Throat Clearance from Die Centerline 8"
Open Height 17"
Closed Height 7"
High Approach 260 IPM
Variable Forming 1 to 45 IPM
Variable Return 1 to 250 IPM
Standard Motor 25 HP
Overall Height 126 1/4"
Overall Dimensions 66" x 12'
Standard Weight 28,900 lbs.

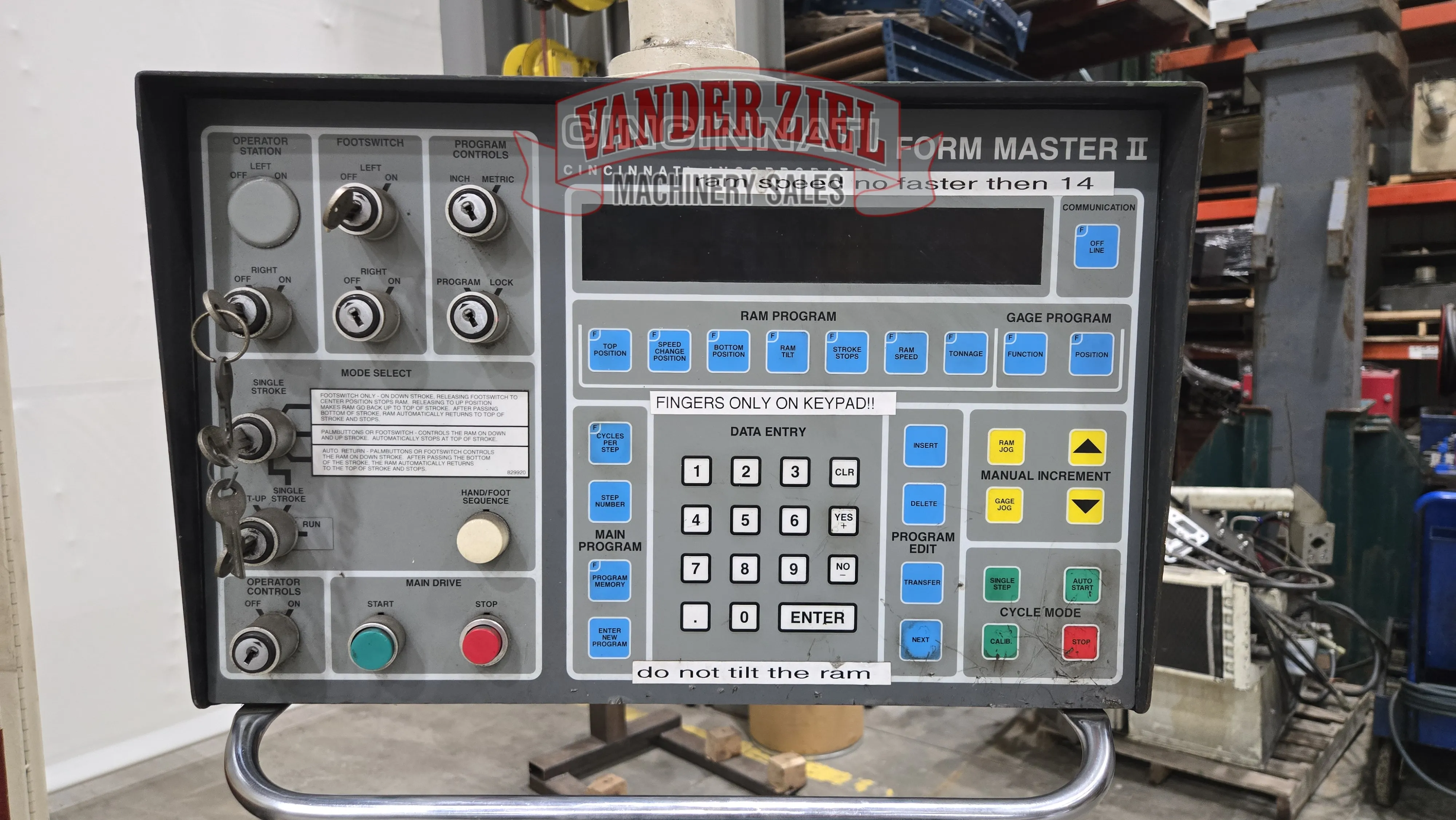

Cincinnati FormasterII control.
Preliminary Specifications - Subject to Verification
REF: 015429
