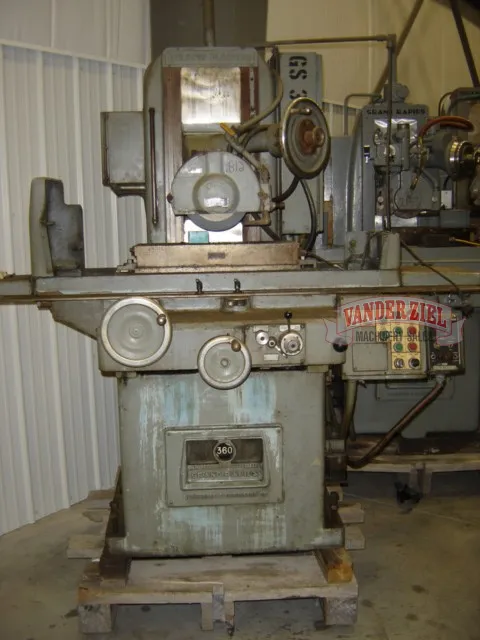

Gallmeyer & Liv 8" x 24" Surface Grinder, Model 360

Serial #360-226
Asset #1812

Catalog Specifications:
Capacity 10" x 24"
Maximum grinding width 12"
Maximum grinding length 24"
Work height, full wheel 15"
Wheel size 12" x 1" x 3"
Throat depth 12-7/8"
Housing radius 2-1/2"
Spindle drive motor (1985 rpm) 3 hp
Maximum longitudinal travel 29-1/2"
Maximum longitudinal speed 125 fpm
Handwheel, travel per revolution 4.20
Maximum cross travel 11-1/4"
Continuous cross speed, maximum per minute 120 Step cross travel 1/2
Hydraulic pump motor 1-1/2 hp
Height floor to work surface 39"
Approximate height 93"
Approximate floor space 87" x 110"
Approximate weight 5,400 lbs
