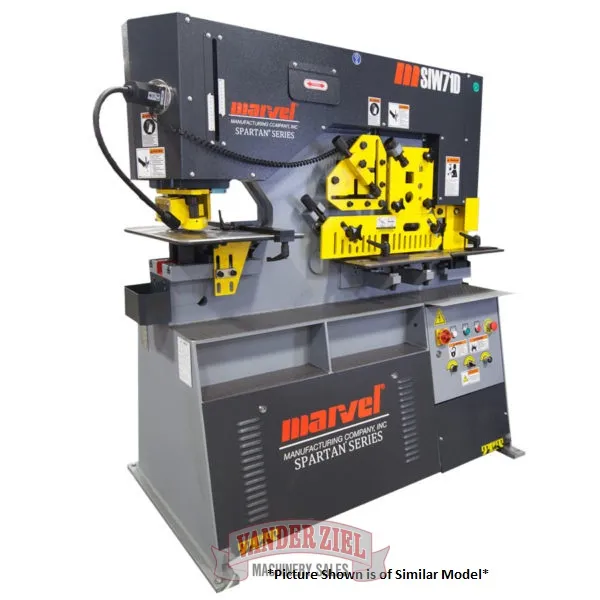

Marvel Spartan 60 Ton Ironworker, Model MSI60D - NEW

SKU # 2310000

STANDARD SPARTAN MSIW60D HEAVY-DUTY, DUAL CYLINDER, COMPLETELY INTEGRATED IRONWORKER WITH 60 TON CAPACITY, 7-1/2 H.P., 10" THROAT, 5 WORK STATIONS, AND SIMULTANEOUS DUAL OPERATION

Capacities & Specifications Rated on 65,000 PSI Tensile

PUNCHING Punch Pressure: 60 tons.Punch Holder and Jog ModePunch Work Table: Includes back gauge and adjustable stops.Adjustable See-Through Punch Stripper: For fast and easy setup.Die Holder: Adjustable in machined T-slots for quick punch and die alignment.Standard Tooling: 1-1/2" in 1/2".CPD Series: 26 punch, 62 die.Large Tooling: 2" in 3/8"CPD Series: SP51P punch, SP80D die.Optional Oversize Tooling: 4" in 3/16" material.Throat Depth: 10"Stroke Length: 2-5/16".Cycles per Minute in 3/4": 25.Punching Station Work Height: 40-9/16"

FLAT BAR SHEARING

Flat Bar Shear Capacity: 12" in 1/2".Maximum Width x Thickness: 8" in 3/4".Lower Blade: Four (4) usable edges.Support Table: Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.Adjustable Hold-Down: Holds work piece securely in position when shearing.Upper Shear Blade: Provides for minimum distortion. Two (2) usable edges.Blade Length: 12-1/2".Angle Flange Trim: 3".Flat Bar Shear Work Height: 35-3/4"

ANGLE SHEARING

Maximum Capacity - 90 degrees: 4" x 4 x 1/2".Maximum Capacity - 45 degrees: 2-1/2" x 2-1/2 " x 3/8".Shearing with no material loss and minimum deformity.Shear Blades: Four (4) usable edges.Angle Shear Work Height: 44-1/2".

BAR SHEARINGRound Bar Max. Capacity: 1-1/2".Square Bar Max. Capacity: 1-1/2" x 1-1/2".Six Cavity Round and Square Bar Shear Sizes:Round: , 1/2", 1", 1-1/2"Square: 3/4", 1-1/2"Channel Shear Max. (optional): 4".I-Beam Shear Max. (optional): 4".Bar Shear Work Height: 44-1/2"

NOTCHING

Rectangular Notcher: 1-3/4" x 3-1/2" x 3/8".Electrical Interlock Safety GuardGauge Table with Stops: For precise positioning.Notcher Work Height: 35-1/2".

OTHER STANDARD EQUIPMENT

Five (5) Sets of Punches and Dies:Punches: 9/16", 11/16", 13/16", 15/16", 1-1/16"Dies: 19/32", 23/32", 27/32", 31/32", 1-3/32"CPD Series: 26 punch, 62 die.

Magnetic Base Work LightAdjustable Electric Back Gauge (36")24 Volt DC Control VoltageScrap Boxes at Punching and Notching StationsAdjustable Stroke Depth at PunchTwo (2) Full-Control Foot PedalsTwo (2) Hole Die HoldersTwo (2) Piece Gauging Table at PunchStationKeyed Punch Holder for Shaped ToolingStandard Voltage 230 or 460 Volt, 3Phase, 60HzMachine Net Weight: 3350 lbsMachine Dimensions: 60" L x 39" W x 74" H3' Electric Back Gauge
