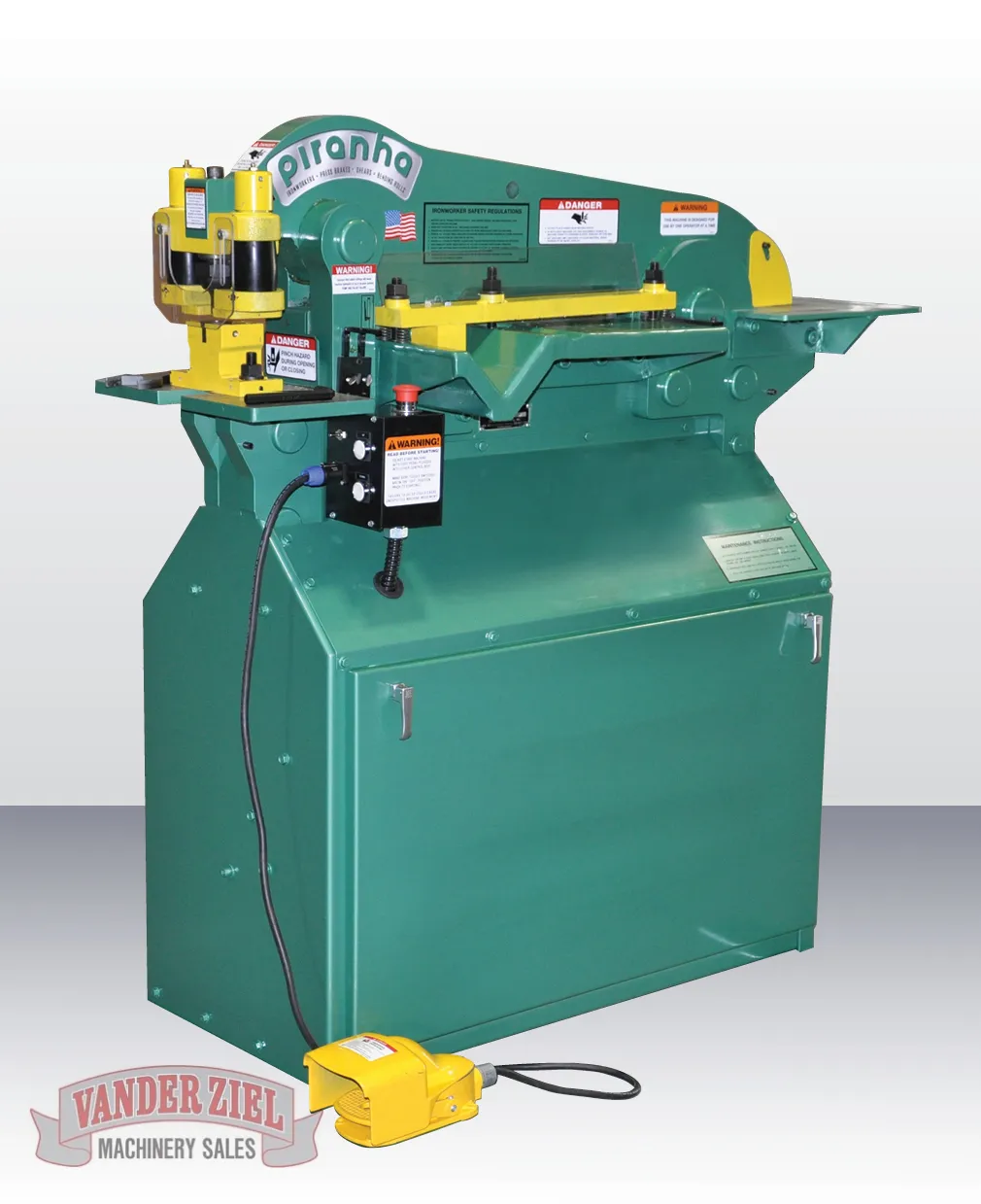

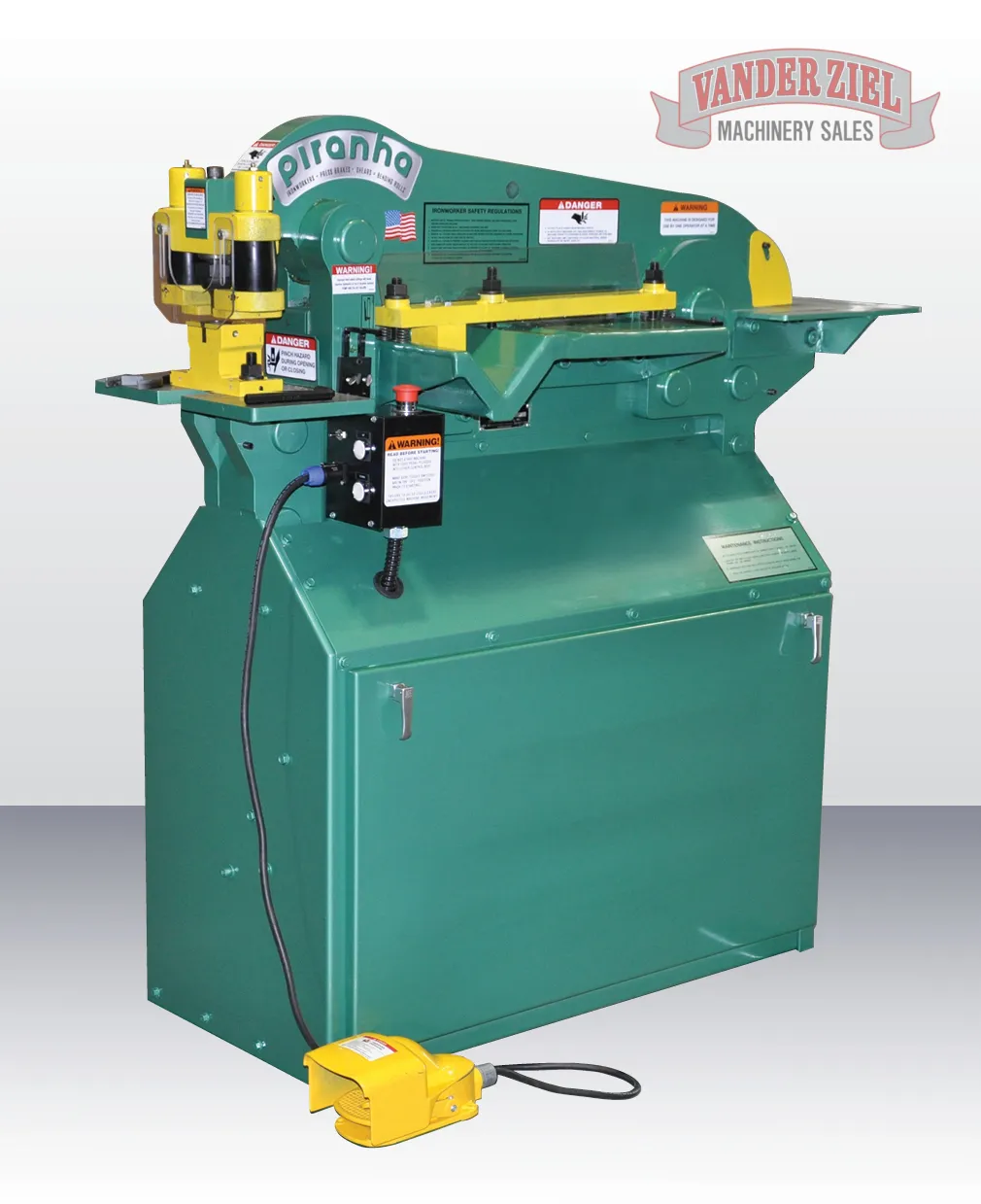

Piranha 50 Ton Ironworker, Model P-50 - NEW
Piranha 50 Ton Ironworker, Model P-50 - NEW
SKU #2710001
Specifications:
| Throat Depth | 5" | Coper-Notcher (Tons)(Max. Material) | 402-1/4" x 3" x 1/4" |
| Open Height | 11-1/2" | Optional Bending Attach. | 6"12" |
| Closed Heightw/o Die Block | 7-3/4" | Punch EndStrokes Per Minute | 30 @ 1/2" |
| Stroke Length | 3-3/4" | Work Station HeightApprox. | 42" |
| Platen Table Size (D-W) | 8" x 16" | HydraulicsPump GPMSystem R/V PSI | 3.62800 |
| PunchHole Size (Max. Material)Max. Hole Size (Material) | 50 Tons13/16" (3/4")3 " (3/16") | Fluid Capacity (gal.) | 12 |
| Plate Shear | 13" Long3/4" x 6"1/2" x 10"3/8" x 12"1/4" x 13" | Motor Std. 230/460 3 Ph.1800 RPMOpt Phase & Voltage Available | 3 HP 3 Ph. |
| Angle Shear | 3" x 3" x 3/8"3-1/2" x 3-1/2" x 5/16" | Dimensions (Net)W-L-H Approx. | 24" x 55" x 58" |
| Bar ShearRound (min. to max.)Square (min. to max.) | Optional1/4" to 1-3/8"1/2" to 1" | Weight (Net)Lbs. Approx. | 1700 |
REF: 000009
