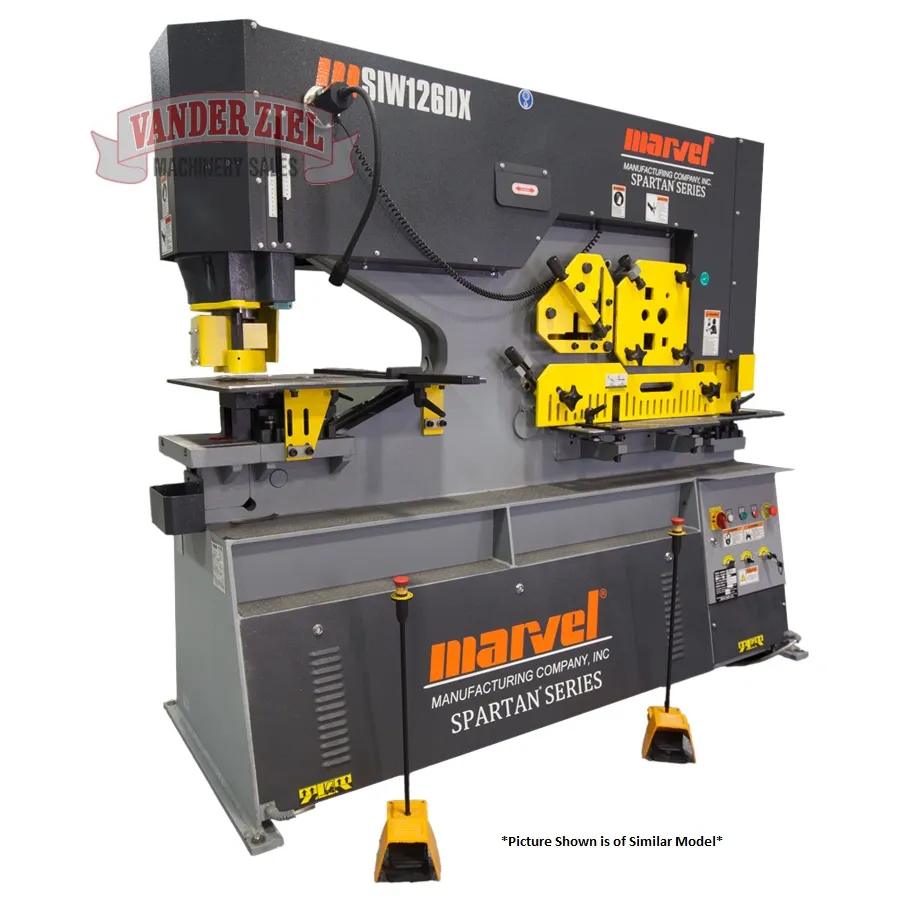

Marvel Spartan 126 Ton Ironworker, Model MSIW126D - NEW

Marvel Spartan 126 Ton Ironworker, Model MSIW126D - NEW

SKU # 2310004

STANDARD SPARTAN MSIW126D/DX HEAVY-DUTY, DUAL CYLINDER, COMPLETELY INTEGRATED IRONWORKER WITH 126 TON CAPACITY, 15 H.P., D 14" THROAT, DX 24" THROAT 5 WORK STATIONS AND SIMULTANEOUS DUAL OPERATION

Capacities & Specifications Rated on 65,000 PSI Tensile

PUNCHINGPunch Pressure:  126 tons.Quick Change Punch Holder and Jog ModePunch Work Table: Includes back gauge and adjustable stops.Adjustable See-Through Punch Stripper:  For fast and easy setup.Die Holder:  Adjustable in machined T-slots for quick punch            and die alignment.Standard Tooling:  1-1/2" in 1" material.CPD Series: 26 punch, 62 die.Large Tooling:  2" in 3/4"CPD Series: SP51P punch, SP80D die.Optional Oversize Tooling:  4-5/16" in 5/16" material.Throat Depth:  14" (D); 24" (DX).Stroke Length:  3-1/8"Cycles per Minute in 3/4":  25.Punching Station Work Height:  43-3/4". FLAT BAR SHEARING Flat Bar Shear Capacity:  14" in 1".Maximum Width x Thickness:  24" in 9/16".Lower Blade:  Four (4) usable edges.Support Table:  Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.Adjustable Hold-Down:  Holds work piece securely in position when shearing.Upper Shear Blade:  Provides for minimum distortion.  Two (2) usable edges.Blade Length:  24".Angle Flange Trim:  5" in 5/8".Flat Bar Shear Work Height:  37". ANGLE SHEARING Maximum Capacity - 90 degrees:  6" x  6" x 5/8".Maximum Capacity - 45 degrees:  3  x 3" x 3/8".Shearing with no material loss and minimum deformity.Shear Blades:  Four (4) usable edges.Angle Shear Work Height:  48".

BAR SHEARING Round Bar Capacity:  2".Square Bar Capacity:  2" x 2".Six Cavity Round and Square Bar Shear Sizes:    Round   3/4,1-1/2",2Square   1-1/4" to 2"Channel Shear Max. (optional):  7".I-Beam Shear Max. (optional):   7".Bar Shear Work Height:  48". NOTCHING Rectangular Notcher:  2-3/8" x 4" x 1/2".Electrical Interlock Safety GuardGauge Table with Stops:  For precise positioning.Notcher Work Height:  37". OTHER STANDARD EQUIPMENT Five (5) Sets of Punches and Dies:Punches:  9/16", 11/16", 13/16", 15/16", 1-1/16"Dies:  19/32", 23/32", 27/32", 31/32", 1-3/32"CPD Series:  26 punch, 62 dieMagnetic Base Work LightAdjustable Electrical Back Gauge (39")24 Volt DC Control VoltageScrap Boxes at Punching and NotchingStationsAdjustable Stroke Depth at PunchTwo (2) Full-Control Foot PedalsTwo (2) Hole Die HolderTwo (2) Piece Gauging Table at Punch Station Table comes with 39" X axis gaugeKeyed Punch Holder for Shaped ToolingStandard Voltage 230/460 Volt, 3 Phase, 60HzSingle Phase Machines:  Not Available.Machine Net Weight:  6,550 lbs. (D); 7,650 lbs. (DX).Machine Dimensions:  81" L x 38" W x 86" H (D);93"L x 38"W x 86"H (DX).
