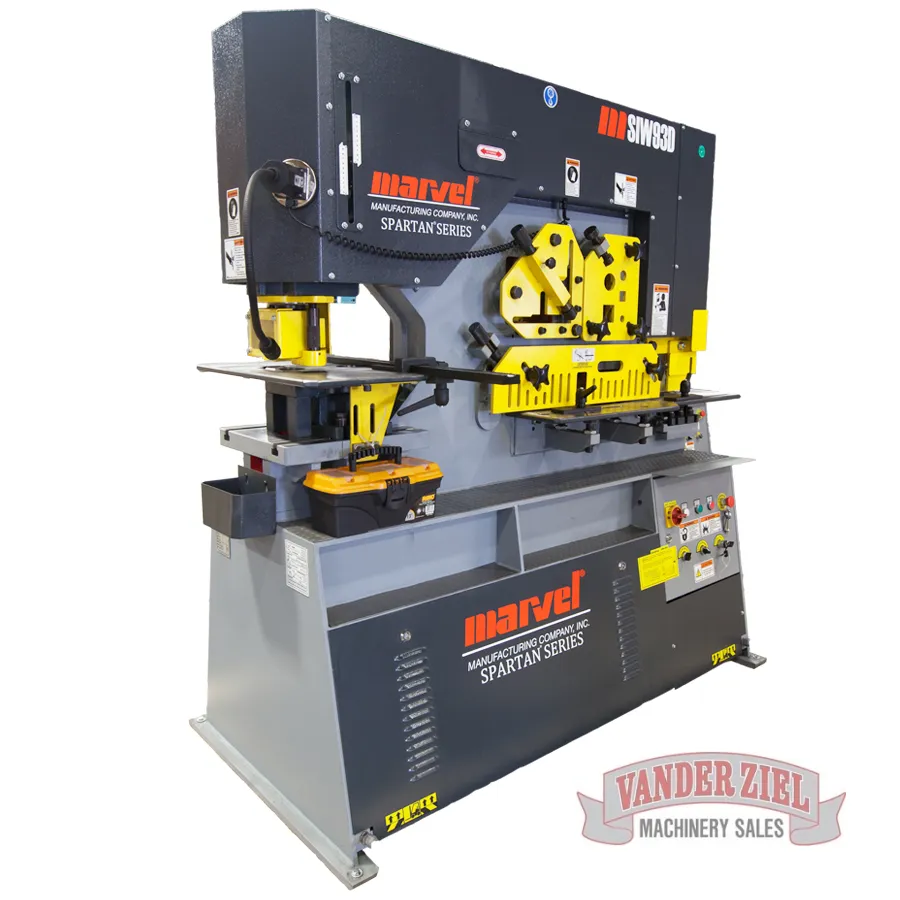

Marvel Spartan 93 Ton Ironworker, Model MSIW93D - NEW

Marvel Spartan 93 Ton Ironworker, Model MSIW93D - NEW

SKU # 2310003

STANDARD SPARTAN MSIW93D HEAVY-DUTY, DUAL CYLINDER, COMPLETELY INTEGRATED IRONWORKER WITH 93 TON CAPACITY, 10 H.P., 14" THROAT, 5 WORK STATIONS, AND SIMULTANEOUS DUAL OPERATION

Capacities & Specifications Rated on 65,000 PSI Tensile

PUNCHINGPunch Pressure:  93 tons.Punch Holder and Jog ModePunch Work Table: Includes back gauge and adjustable stops.Adjustable See-Through Punch Stripper: For fast and easy setup.Die Holder:  Adjustable in machined T-slots for quick punch and die alignment.Standard Tooling:  1-1/2" in 3/4".CPD Series: 26 punch, 62 die.Large  Tooling:  2" in 9/16".CPD Series: SP51P punch, SP80D die.Optional Oversize Tooling:  4-5/16" in 1/4" material.Throat Depth:  14"Stroke Length:  3-5/32".Cycles per Minute in 3/4":  25.Punching Station Work Height:  42-1/2". FLAT BAR SHEARING Flat Bar Shear Capacity:  18" in 9/16".Maximum Width x Thickness:  14" in 3/4".Lower Blade:  Four (4) usable edges.Support Table:  Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.Adjustable Hold-Down:  Holds work piece securely in position when shearing.Upper Shear Blade:  Provides for minimum distortion.  Two (2) usable edges.Blade Length:  19".Angle Flange Trim:  4-3/4".Flat Bar Shear Work Height:  37" ANGLE SHEARING Maximum Capacity - 90 degrees:  6" x 6" x 9/16".Maximum Capacity - 45 degrees:  3" x 3" x 5/16".Shearing with no material loss and minimum deformity.Shear Blades:  Four (4) usable edges.Angle Shear Work Height:  47-1/4".

BAR SHEARING Round Bar Max. Capacity:  2".Square Bar Max. Capacity:  2" x 2".Six Cavity Round and Square Bar Shear Sizes:Round:   , 3/4", 1-1/8", 2"Square:   1-1/4", 1, 2"Channel Shear Max. (optional):  6".I-Beam Shear Max. (optional):   6".Bar Shear Work Height:  47-1/4" NOTCHING Rectangular Notcher:  2" x 4" x 1/2".Electrical Interlock Safety GuardGauge Table with Stops:  For precise positioning.Notcher Work Height:  37". OTHER STANDARD EQUIPMENT Five (5) Sets of Punches and Dies:Punches:  9/16", 11/16", 13/16", 15/16", 1-1/16"|Dies:  19/32", 23/32", 27/32", 31/32", 1-3/32"CPD Series:  26 punch, 62 die.Magnetic Base Work LightAdjustable Electric Back Gauge (36")24 Volt DC Control VoltageScrap Boxes at Punching and Notching StationsAdjustable Stroke Depth at PunchTwo (2) Full-Control Foot PedalsTwo (2) Hole Die HoldersTwo (2) Piece Gauging Table at Punch StationKeyed Punch Holder for Shaped ToolingStandard Voltage 230/460 Volt, 3 Phase, 60HzSingle Phase Machines:  Not Available.Machine Net Weight:  5200 lbsMachine Dimensions:  75" L x 39" W x 74" H
