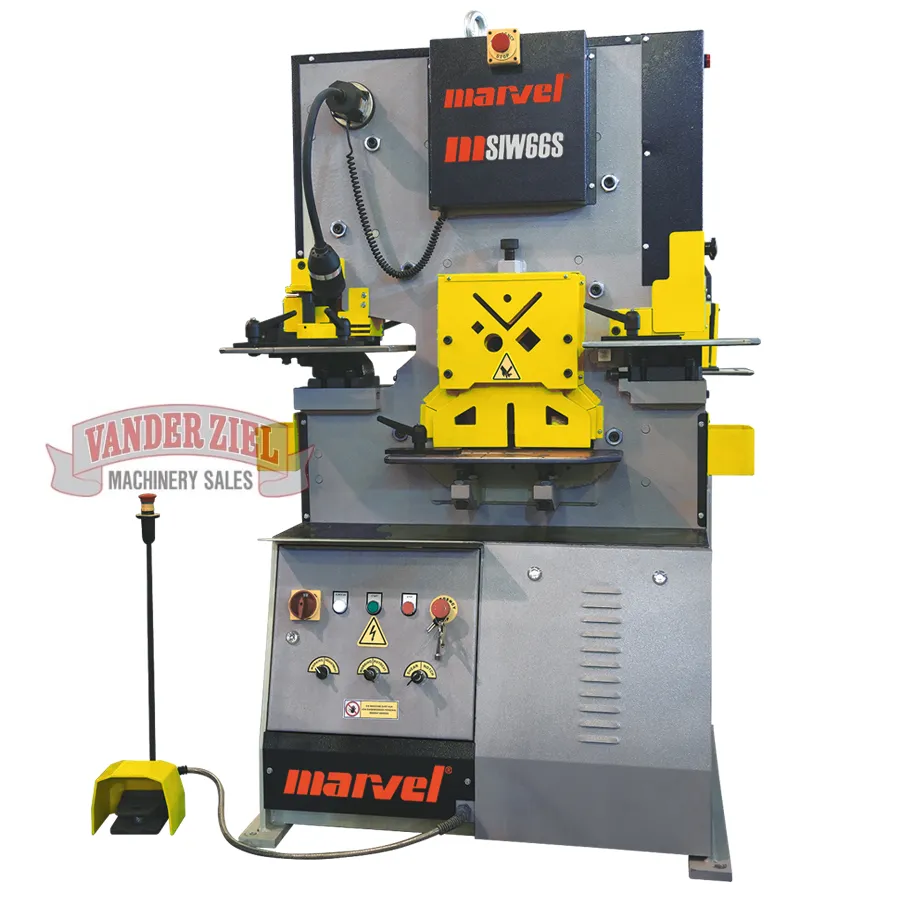

STANDARD MARVEL MSIW 66S, HEAVY-DUTY, COMPLETELY INTEGRATED IRONWORKER WITH 66 TON CAPACITY, 7.5-H.P., 9-7/16" THROAT, 5 WORK STATIONS AND FULL CONTROL FOOT PEDAL

Capacities & Specifications Rated on 65,000 PSI Tensile

PUNCHING

Punch Pressure:  66 tons.
Punch Holder and Jog Mode.
Punch Work Table:  Includes back gauge and adjustable stops.
Adjustable See-Through Punch Stripper:  For fast and easy setup. With electronic safety interlock.
Die Holder:  Adjustable for quick punch and die alignment.
Standard Tooling:  1-1/4" in 5/8" material.
Throat Depth:  9-7/16".
Stroke Length:  1-9/16".
Cycles per Minute in 9/16":  22.
Punching Station Work Height:  41-5/16".

FLAT BAR SHEARING

Flat Bar Shear Capacity:  12" in 9/16".
Lower Blade:  Four (4) usable edges.
Support Table:  Includes guides for accurate positioning and indicator lines at 30, 45 and 90 degrees left and right.
Upper Shear Blade:  Provides for minimum distortion.
Blade Length:  13-3/4".
Flat Bar Shear Work Height:  32-9/16".

ANGLE SHEARING

Maximum Capacity - 90 degrees:  4" x 4" in 7/16".
Shearing with no material loss and minimum deformity.
Shear Blades:  Four (4) usable edges.
Angle Shear Work Height:  45-1/2".

BAR SHEARING

Max. Round Bar Capacity:  1-1/2".
Max. Square Bar Capacity:  1-3/8" x 1-3/8".
Four Cavity Round and Square Bar Shear Sizes:  Round - 1/8", 1 1/2"; Square - 5/8", 1 3/8".
Channel Shear Max. (optional):  3".
H-Beam Shear Max. (optional):  3".
Bar Shear Work Height:  45-1/2".

NOTCHING

Rectangular Notcher:  2" x 3-1/2" in 5/16"
Cover equipped with electronic safety lock.
Gauge table with stops.
Notcher Work Height: 41-9/16"

OTHER STANDARD EQUIPMENT

Five (5) Sets of Punches and Dies:
Punches:  9/16", 11/16", 13/16", 15/16", 1-1/16"
Dies:  19/32", 23/32", 27/32", 31/32", 1-3/32"

CPD Series: 20 punch, 55 die
Magnetic Base Work Light
Scrap Boxes at Punching and Notching Stations
Adjustable Back Gauge- Electric (3')
Adjustable Stroke Depth at Punch Station
Full-Control Foot Pedals
Two (2) Piece Gauging Table at Punch Station
Keyed Punch Holder for Shaped Tooling
Standard Voltage 230/460 Volt, 3 Phase, 60Hz.
Machine Shipping Weight:  2,900 lbs.
Machine Dimensions:  47" L x 39" W 69" H
