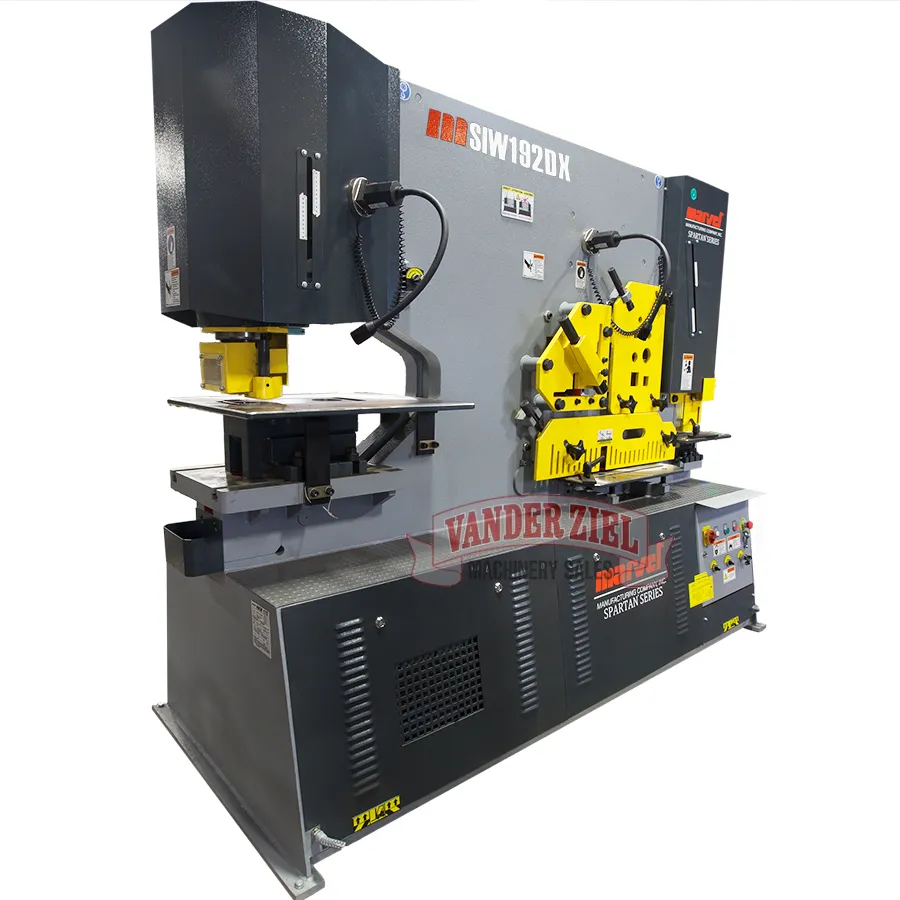

STANDARD SPARTAN MIW192DX HEAVY-DUTY, DUAL CYLINDER, COMPLETELY INTEGRATED IRONWORKER WITH 192 TON CAPACITY, 15 H.P., 24-9/16" THROAT, 5 WORK STATIONS AND SIMULTANEOUS DUAL OPERATION

Capacities & Specifications Rated on 65,000 PSI Tensile

PUNCHINGPunch Pressure: 192 tons.Quick Change Punch Holder and Jog ModePunch Work Table: Includes back gauge and adjustable stops.Adjustable See-Through Punch Stripper:  For fast and easy setup.Die Holder:  Adjustable in machined T-slots for quick punch and die alignment.Standard Tooling:  1-1/2" in 1-1/2" material.CPD Series: 26 punch, 62 die.Large Tooling:  2" in 1-3/16"CPD Series: SP51P punch, SP80D dieOptional Oversize Tooling:  4-5/16" in 1/2" material.Throat Depth:  24-9/16"Stroke Length:  3-1/8"Cycles per Minute in 3/4":  22Punching Station Work Height:  44-1/2". FLAT BAR SHEARING Flat Bar Shear Capacity:  16" in 1".Maximum Width x Thickness:  24" in 3/4".Lower Blade:  Four (4) usable edges.Support Table:  Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.Adjustable Hold-Down:  Holds work piece securely in position when shearing.Upper Shear Blade:  Provides for minimum distortion.  Two (2) usable edges.Blade Length:  24".Angle Flange Trim:  5" in 5/8".Flat Bar Shear Work Height:  37". ANGLE SHEARING Maximum Capacity - 90 degrees:  8" x  8" x 3/4".Maximum Capacity - 45 degrees:  3" x 3" x 3/8".Shearing with no material loss and minimum deformity.Shear Blades:  Four (4) usable edges.Angle Shear Work Height:  44-1/2".

BAR SHEARING  Round Bar Capacity:  2-1/4".Square Bar Capacity:  2" x 2".Six Cavity Round and Square Bar Shear Sizes:   Round   3/4,1",1-1/8",1-1/2",2"Square  1", 1-1/2" to 2-1/8"Channel Shear Max. (optional):  10".I-Beam Shear Max. (optional):   10".Bar Shear Work Height:  44-1/2". NOTCHING Rectangular Notcher:  2-3/8" x 4" x 5/8".Electrical Interlock Safety GuardGauge Table with Stops:  For precise positioning.Notcher Work Height:  36-1/2". OTHER STANDARD EQUIPMENT Five (5) Sets of Punches and Dies:Punches:  9/16", 11/16", 13/16", 15/16", 1-1/16"Dies:  19/32", 23/32", 27/32", 31/32", 1-3/32"CPD Series:  26 punch, 62 dieMagnetic Base Work LightAdjustable Electrical Back Gauge (39")24 Volt DC Control VoltageScrap Boxes at Punching and NotchingStationsAdjustable Stroke Depth at PunchTwo (2) Full-Control Foot PedalsTwo (2) Hole Die Holder|Two (2) Piece Gauging Table at Punch Station Table comes with 39" X axis gaugeKeyed Punch Holder for Shaped ToolingStandard Voltage 230/460 Volt, 3 Phase, 60HzSingle Phase Machines:  Not Available.Machine Net Weight:  13,200 lbs.Machine Dimensions:  93" L x 38" W x 90" H
