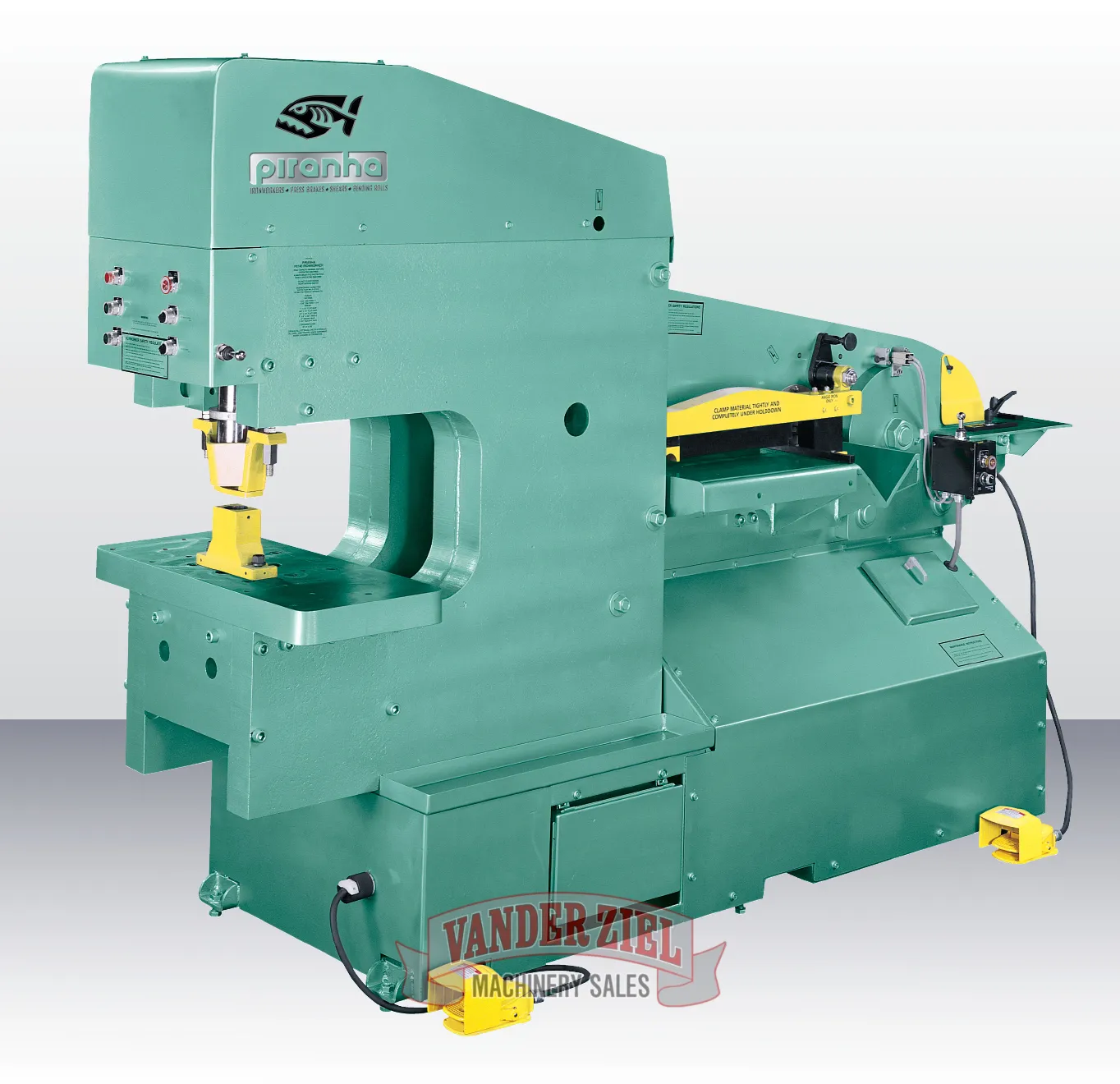

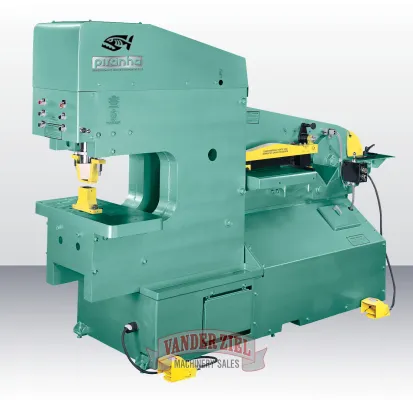

Piranha 140 Ton Dual Operator Ironworker, Model PII-140- NEW
Piranha 140 Ton Dual Operator Ironworker, Model PII-140- NEW
SKU# 2710007
Specifications:
| Throat Depth | 9" | Coper-Notcher (Tons)(Max.) | 562-3/4" x 4" x 1/4" |
| Open Height | 14" | Bending Attach. (Optional) | 24", 36", 48" |
| Closed Heightw/o Die Block | 7-3/4" | Punch EndStrokes Per Minute | 19 @ 1" |
| Stroke Length | 7" | Work Station HeightApprox. | 41" |
| Platen Table Size (D-W) | 11" x 38" | HydraulicsPump GPMSystem R/V PSI | 7.53500 |
| PunchHole Size (Max. Material)Max. Hole Size (Material) | 88 Tons1-1/16" (1")5" (3/16") | Fluid Capacity (gal.) | 20 |
| Plate Shear | 24" Long3/4" x 8"5/8" x 12"1/4" x 24" | Motor Std. 230/460 3 Ph.1800 RPMOpt Phase & Voltage Available | 10 HP 3 Ph. |
| Angle Shear | 5" x 5" x 3/8**4" x 4" x 1/2" | Dimensions (Net)W-L-H Approx. | 38" x 90" x 72" |
| Bar ShearRound (min. to max.)Square (min. to max.) | 1/4" to 1-1/2"1/2" to 1" | Weight (Net)Lbs. Approx. | 4700 |
REF: 000015
