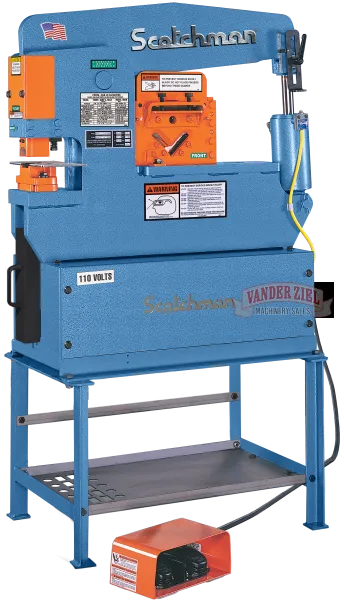

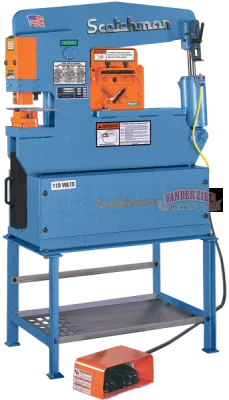

Scotchman 45 Ton Component Tool Ironworker, Model Porta Fab 45 - NEW
Scotchman 45 Ton Component Tool Ironworker, Model Porta Fab 45 - NEW
SKU # 3010001
Specifications:
| Rated on: | 65,000 PSI Tensile |
| Punching Capacity | 45 Ton1-1/8" in 1/2" |
| Special Tooling | 2-1/4" Max. Dia. |
| Throat Depth | 4-1/4" |
| Flat Bar Shear | 6" Length1/2" x 4"3/8" x 6" |
| Angle Shear 90° | 3" x 3" x 5/16" |
| Angle Shear 45° | 2" x 2" x 1/4" |
| Round Rod | 3/4" |
| Brake 8" | 25 Ton |
| Brake 12" | 20 Ton |
| Open End Brake | Max. 1/4" x 3"Flat or Angle Iron |
| Pipe NotcherSchedule 40 | 3/4", 1"1-1/4"1-1/2", 2" |
| Rectangle Notcher | 2" x 1-3/4" x 1/4" |
| 90° V. Notcher | 6" x 6" x 1/8" |
| Strut Shear | Samples Required |
| Rod ShearRound Rod (Max.)Square Rod (Max.) | 1/4" to 1"5 Cavity7/16", 9/16"5/8", 3/4", 1"1/4" to 3/4"1 Cavity3/4" |
| Square Tube Shear | 1/2" to 1"12 ga. |
| Picket Tool | 1/2", 3/4", 1"16 ga. |
| Strokes per minute in light material | 1/4" Stroke [Punch Station] |
| Strokes per minute in heavy material | 3/4" Stroke [Punch Station] |
| Hydraulics | 2500 psi |
| Motor Standard | 2 hp 1 ph110v |
| Motor Optional | 2 hp 1 ph220v |
| Dimensions | W-17.63"L-35.75"H-38.75" |
| Shipping Weight | 724 lbs. |
REF: 000017
