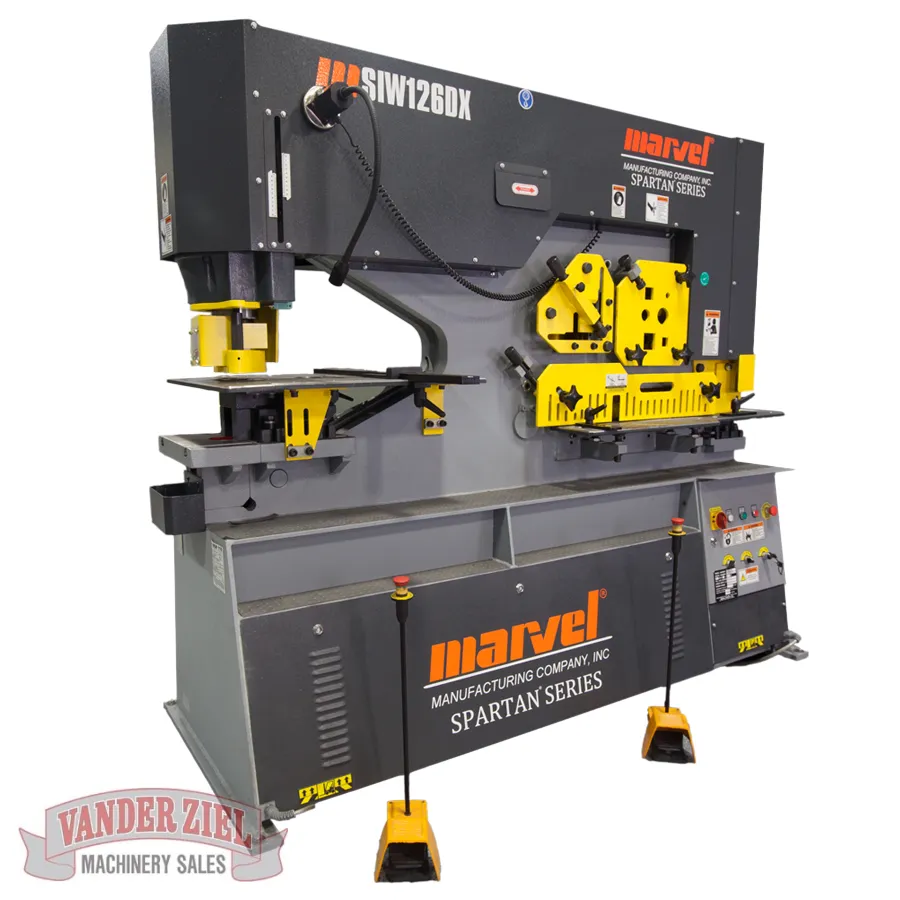

Marvel Spartan 126 Ton Ironworker, Model MSIW126DX - NEW

Marvel Spartan 126 Ton Ironworker, Model MSIW126DX - NEW
SKU # 2310005
STANDARD SPARTAN MSIW126D/DX HEAVY-DUTY, DUAL CYLINDER, COMPLETELY INTEGRATED IRONWORKER WITH 126 TON CAPACITY, 15 H.P., D 14" THROAT, DX 24" THROAT 5 WORK STATIONS AND SIMULTANEOUS DUAL OPERATION
Capacities & Specifications Rated on 65,000 PSI Tensile
PUNCHINGPunch Pressure: 126 tons.Quick Change Punch Holder and Jog ModePunch Work Table: Includes back gauge and adjustable stops.Adjustable See-Through Punch Stripper: For fast and easy setup.Die Holder: Adjustable in machined T-slots for quick punch and die alignment.Standard Tooling: 1-1/2" in 1" material.CPD Series: 26 punch, 62 die.Large Tooling: 2" in 3/4"CPD Series: SP51P punch, SP80D die.Optional Oversize Tooling: 4-5/16" in 5/16" material.Throat Depth: 14" (D); 24" (DX).Stroke Length: 3-1/8"Cycles per Minute in 3/4": 25.Punching Station Work Height: 43-3/4".FLAT BAR SHEARINGFlat Bar Shear Capacity: 14" in 1".Maximum Width x Thickness: 24" in 9/16".Lower Blade: Four (4) usable edges.Support Table: Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.Adjustable Hold-Down: Holds work piece securely in position when shearing.Upper Shear Blade: Provides for minimum distortion. Two (2) usable edges.Blade Length: 24".Angle Flange Trim: 5" in 5/8".Flat Bar Shear Work Height: 37".ANGLE SHEARINGMaximum Capacity - 90 degrees: 6" x 6" x 5/8".Maximum Capacity - 45 degrees: 3 x 3" x 3/8".Shearing with no material loss and minimum deformity.Shear Blades: Four (4) usable edges.Angle Shear Work Height: 48". | BAR SHEARINGRound Bar Capacity: 2".Square Bar Capacity: 2" x 2".Six Cavity Round and Square Bar Shear Sizes: Round 3/4,1-1/2",2Square 1-1/4" to 2"Channel Shear Max. (optional): 7".I-Beam Shear Max. (optional): 7".Bar Shear Work Height: 48".NOTCHINGRectangular Notcher: 2-3/8" x 4" x 1/2".Electrical Interlock Safety GuardGauge Table with Stops: For precise positioning.Notcher Work Height: 37".OTHER STANDARD EQUIPMENTFive (5) Sets of Punches and Dies:Punches: 9/16", 11/16", 13/16", 15/16", 1-1/16"Dies: 19/32", 23/32", 27/32", 31/32", 1-3/32"CPD Series: 26 punch, 62 dieMagnetic Base Work LightAdjustable Electrical Back Gauge (39")24 Volt DC Control VoltageScrap Boxes at Punching and NotchingStationsAdjustable Stroke Depth at PunchTwo (2) Full-Control Foot PedalsTwo (2) Hole Die HolderTwo (2) Piece Gauging Table at Punch Station Table comes with 39" X axis gaugeKeyed Punch Holder for Shaped ToolingStandard Voltage 230/460 Volt, 3 Phase, 60HzSingle Phase Machines: Not Available.Machine Net Weight: 6,550 lbs. (D); 7,650 lbs. (DX).Machine Dimensions: 81" L x 38" W x 86" H (D);93"L x 38"W x 86"H (DX). |
REF: 000146
