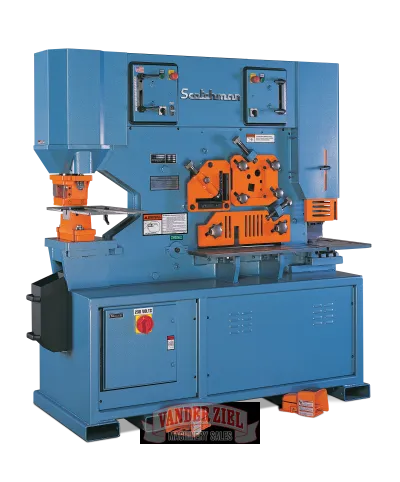

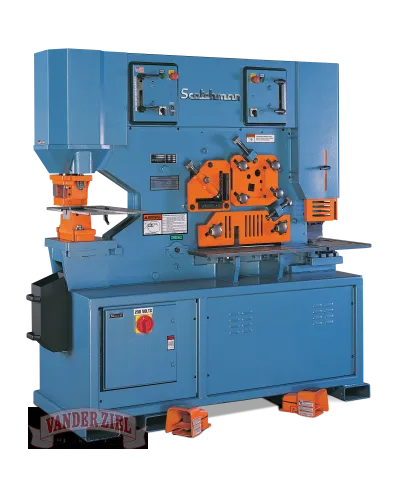

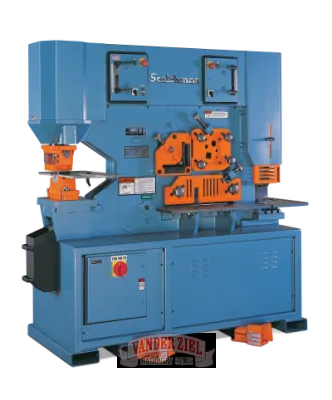

Scotchman 85 Ton Fully Integrated/Dual Operator Ironworker, Model DO-8514-20M - NEW
Scotchman 85 Ton Fully Integrated/Dual Operator Ironworker, Model DO-8514-20M - NEW
SKU# 3010008
Specifications:
| Rated on: | 65,000 PSI Tensile |
| Punching Capacity | 85 ton1-1/16" in 1" |
| Special Tooling | 4" Max. Dia. |
| Throat Depth | 14" |
| Flat Bar Shear | 20" Length1" x 16"3/4" x 20" |
| Angle Shear 90° | 6" x 6" x 1/2" |
| (45° with Bar Shear) | 4" x 4" x 1/2" |
| Brake 12" | 85 ton |
| Brake 24" | 85 ton |
| Open End Brake | 5" x 5/8" |
| Pipe NotcherSchedule 40 I.D. | 3/4"1"1-1/4"1-1/2"2" |
| 90° V. Notcher(Punch Station) | 6" x 6" x 5/16" |
| Rectangle Notcher | 2" x 4" x 1/2" |
| 90° V. Notcher (Notcher Station) | 3" x 3" x 1/2" |
| Punch Attachment(Notcher Station)Throat Depth w/Punch Attachment | 50 ton1-1/4" in 1/2"4-7/16" |
| Channel Shear | 2" to 6" |
| Strut Shear | Samples Required |
| Rod ShearRound Rod (Max.)Square Rod (Max.) | 1/2"3/4"1"1-1/2"1-1/2" |
| Square Tube Shear | 1/2" to 2"12 gauge |
| Offset Die Holder | Max. 40 ton |
| Strokes per Minute in Light Material | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] |
| Hydraulics | 3,350/3,800 psi |
| Motors Standard | 10 hp 3 ph230/460208/380/575 |
| Motor Optional | 10 hp 1 ph230v |
| Dimensions | W-30"L-70"H-77" |
| Shipping Weight | 5,504 lbs |
REF: 000024
