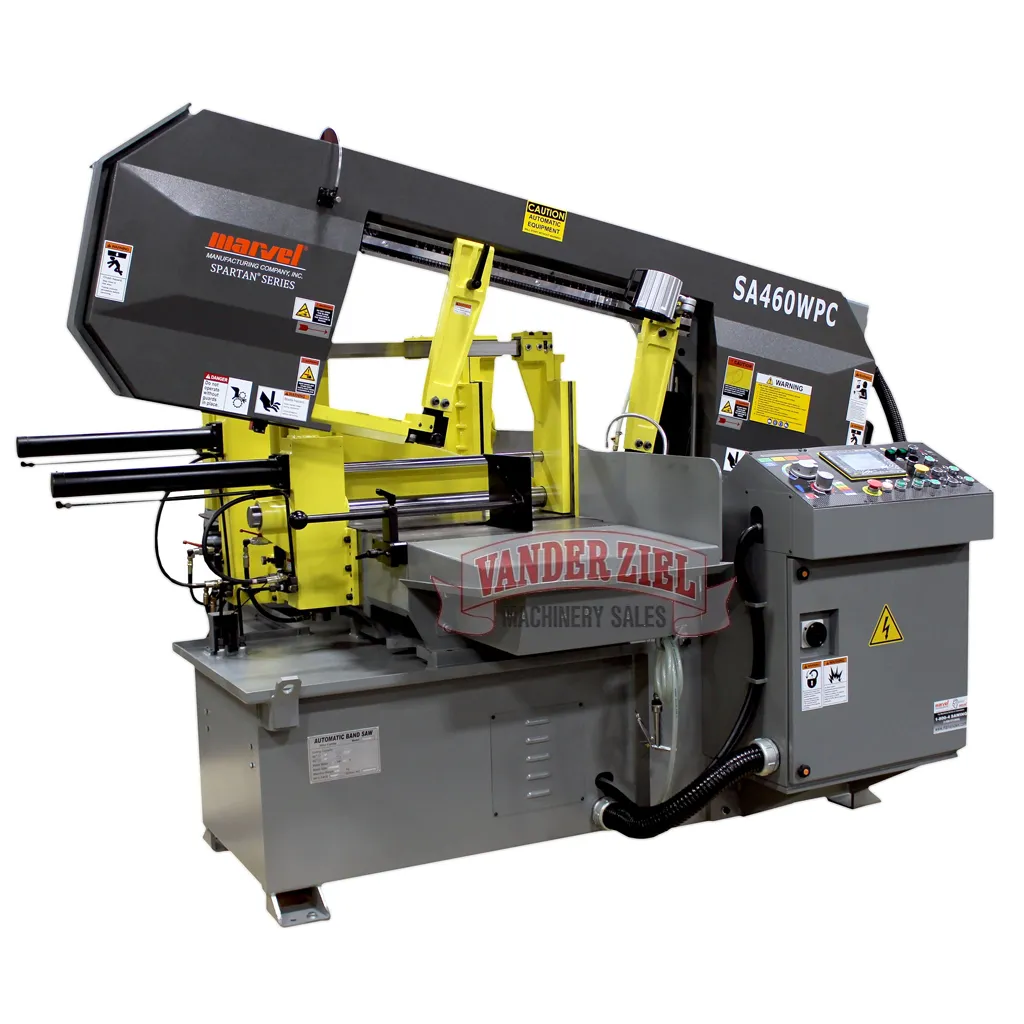

Marvel 15" x 24" Heavy Duty Miter Horizontal Saw, Model SA460WPC - NEW

Marvel 15" x 24" Heavy Duty Miter Horizontal Saw, Model SA460WPC - NEW

SKU # 2320016

STANDARD SPARTAN MODEL SA460WPC HEAVY-DUTY, HYDRAULIC, MITER CUTTING, HORIZONTAL, METAL CUTTING BANDSAW WITH 5 H.P. AND 1-1/2" BLADE

At 45^o - Rectangle 15" x 15" (380 x 380 mm), Round 15" (380 mm)

Mitering: Manually positioned to 45^o right, equipped with degree scale.

Pass Line Height: 36.5" (925 mm)

Blade:  1-1/2" x .050" x 17-6" (41 x 1.3 x 5330 mm)

Blade Tension:  35,000 PSI. Hydraulically controlled tension provides consistent square cutting accuracy. The motion detector will shut the machine off should the blade break or stall.

Speed Range: 65 - 330 SFPM (20 - 101 m/min) infinitely variable through an inverter drive and a heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. An electric tachometer assures accurate speed setting.

Hydraulic Down Feed:  Feed rate and down pressure can be controlled independently for fast, accurate cutting.  Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut.  Both settings are made at the operator's station.

Hydraulic Shuttle Feed:  Length settings of 0 - 27.6" (700mm) are accomplished with simple programming at the operator's touch screen.  The shuttle comes to positive stops at both ends of the index, assuring cutoff length accuracy, reducing material loss.  Repeatability is + .005 per index. (Maximum pull weight fully supported on rollers 5,940 LBS).

PC Programmable Control: Conveniently located on the operator's control panel, this touch screen control allows the operator to program and store up to ten jobs. Inputs include Part Length from 0 to 393.66" (in inches up to 3 decimal places) and Number of Pieces to be cut.  The Blade Speed is displayed on and set using the touch screen, but is not stored in memory.  The Automatic Piece Counter stops each job when the pre-set number of cuts has been made.  The control provides the option of running up to 10 jobs consecutively.

 Motors:  Blade Drive:  5 H.P. (3.75 kW).  Hydraulic Pump Motor:  1 H.P. (.75 kW).  Coolant Pump Motor:  1/6 H.P.

(.12kW).  All motors are dual voltage, 230/460 volt, 3 ph. 60 Hz.  (208 volt conversion is available for an added charge of $1,645.00 boost transformer part number V10SSP2095).

Out-of-Stock Switch:  The machine will shut off automatically when material is no longer present in the rear vise jaws, allowing for truly automatic operation.

Blade Guides:  The combination roller bearing and carbide blade guides reduce heat and blade stress providing longer blade life and accuracies of + .002 per inch of cut material.

Fast Approach:  Work height is manually set allowing the head to rise just enough to clear the work piece, reducing cycle time and allowing for faster cutting performance.

Chip Brush:  Powered from the main drive shaft of the saw, the brush changes speed along with the blade to assure that chips are being removed from each gullet of the blade, improving cutting performance and blade life.

Full Stroking Hydraulic Vise Jaws:  Holding the work piece on both sides of the blade reduces blade vibration, providing more accurate cuts and longer blade life. Rear Vise:  The rear vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts.

Operator's Control Panel is conveniently mounted on the Right hand side of the machine and offers full control of all machine functions such as; Vises, Blade Speed, Saw Frame, Bundle Clamping, Parts Counter, Shuttle Advance & Retract, Coolant and Work Light.

Work Light:  Positioned directly over the work area to provide better illumination of the cutting area, the work light can be turned on and off independently from the operator's control panel.

Packing Size: (108" x 90" x 77") W x L x H -  (2750 x 2270 x 1950mm)

Machine Weight: 3344 lbs.net / 3894 lbs. gross (on a skid)
