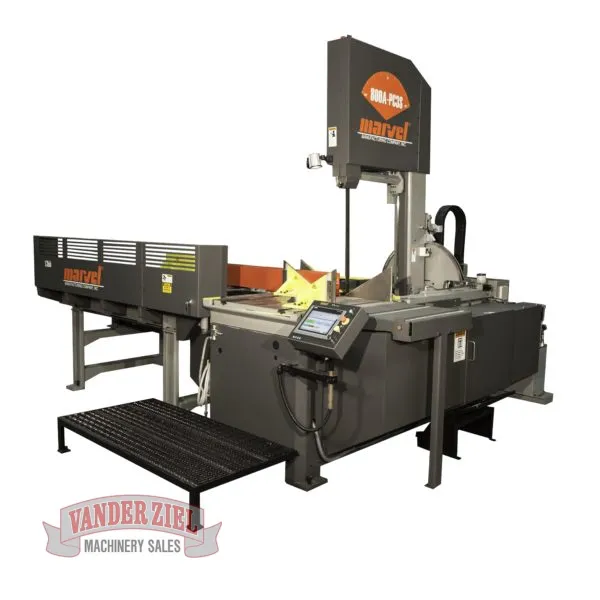

Marvel Series 800A-PC3S-60 Automatic Vertical Tilt-Frame Saw, 31.25" x 37.5" Capacity - NEW

Marvel Series 800A-PC3S-60 Automatic Vertical Tilt-Frame Saw, 31.25" x 37.5" Capacity - NEW

SKU#2321009

Capacity                                                               Rectangles                                                                          Rounds

Nominal                                                   31.25" x 37.5" (794 mm x 952 mm)                        31.25" (794 mm)
Blade at 45 ^o  - Right                              31.25" x 25.5" (794 mm x 648 mm)                        25.5" (648 mm)
Blade at 45 ^o  - Left                                31.25" x 24" (794 mm x 609 mm)                           24" (609 mm)
Blade at 60 ^o - Right                               31.25" x 17.5." (794 mm x 444 mm)                      17.5" (444 mm)
Blade at 60 ^o - Left                                31.25" x 15.75" (794 mm x 400 mm)                      15.75" (400 mm)

Blade Drive: Electric with sensorless vector control for smooth acceleration and full torque.

Speed Range:  Infinitely variable:60 to 400 FPM (18.3 to 122 m/min), 15 HP Standard. Blade speed can be automatically set when material is selected.

Tilting Column:  For miter cutting up to 60^o left and right of vertical. Variable speed, inverter driven, electronic tilt- Includes encoder feedback and touch screen display & control, for precision miter positioning. Electrically powered, chain driven, with encoder feedback and MARVEL PC3 controller.

3° Canted Column or Non-Canted column: Standard 3-degree forward approach angle for increased efficiency in cutting of structural materials (Specify 3 degree or non-canted when ordering).

Feed Force: Direct Force Sensing Electric Ball Screw Feed 0 - 350 lbs. (1560 N); column travels on recirculating linear ball ways. Feed pressure can be automatically set when material is selected.

Blade: 25' (7620 mm) long x 2" (51 mm) wide, .063" (1.6 mm).  One Welded-Edge Band is furnished with each machine as part of standard start-up supplies.

Blade Guides: Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self tensioning design.

Blade Tension: Hydraulically controlled, 32,000 psi. max. (310 MPa).  Machine equipped with automatic blade break/blade stall shut-off switch.

Upper Blade Guide Arm: Hydraulically positioned and locking, controlled by selector switch at operator's station.

 Vises: Hydraulic, full stroking with 12" high x 20" wide 60^o faceplates.  Optional variable vise pressure available (Option Code M9A).  An optional second machine vise is available (must specify right or left hand machine configuration at the time of order - Option Code F4).

Coolant System: Built-in with Flood system, available with Drop Lubrication system (requires compressed air connection) (Option codes ML1 & ML2), including chip pan with manual hand crank type chip conveyor. A Flushing hose is included to wash away chips from hard to reach places reducing clean-up time.

Work-Rest Rollers: Two turned ball bearing rollers, one on the entry side and one on the discharge side of the machine bed.

Automatic Bar Feed: The Automatic Bar Feed design features a 72" stroke length with indexing speeds of up to 32 ft./min. The bar feed vise is servo driven with encoder feedback, and combines precision double ball screws with preloaded recirculating linear guides, resulting in positioning accuracy of +/- .005" per index.  The vise itself is hydraulically clamped to prevent material slippage.

MARVEL PC3 PROGRAMMABLE CONTROL®: Provides a Programmable Logic Control Unit with a 12" color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library.  Both blade speed and feed force are automatically set according to material type for optimal cutting performance. Job programming consists of setting the cut-off length, angle and number of pieces to be cut. Additional features include Inch/Metric capability, out-of-stock shut down device, a fast cut job option and expanded memory storage using removable media.  Also includes Jammed Blade Protection that senses resistance as the column returns and stops to prevent blade damage.

Material can also be fed through the machine manually in both directions using the hydraulic shuttle vise.  Blade can be stopped with all other power functions operative.

Standard Left-to-Right Work Entry: Opposite Hand or Right-to-Left work entry available (Modification M4A).

Table Height: 52"

Motors:  Main Drive: 15 H.P., 1800 RPM, totally enclosed, fan cooled, ball bearing.
Coolant Pump: 1/2 H.P. (.37 kW), I.P. 54 Rating, totally enclosed motor built-in integrally.
Hydraulic Pump: 5 H.P. (3.7 kW), 1800 RPM, totally enclosed fan cooled, ball bearing, system pressure 900 psi (6.2 MPa).

Controls:  IEC fused disconnect switch and magnetic motor starters with overload and low-voltage protection.  Power supply provides low voltage (24 volts DC) control to all push buttons at operator's control panel and machine lighting circuits.  PLC control and drives mounted in moisture tight compartment with vibration isolation mountings.  Electrical Equipment conforms to National Electrical Code NFPA 79.  The Electrical Control Panel is U.L. Labeled.

Notice: This quotation is based on the assumption that the end user's electrical power supply conforms to National Electrical Code NFPA No. 79-2012, section 4.3 at the machine terminals.  A copy of this section is available upon request.

Warning: Failure of the end user's electrical supply to conform to the above standard can hinder machine performance and may require the addition of extra cost components not included with the standard machine.  Repair and replacement of components damaged as a result of an inadequate power supply are not covered by the manufacturer's warranty.

Standard Machine Color:  Machine Tool Gray

Start-up Supplies included with each machine:
            Hydraulic Oil: 10 gallons (38 liters) in machine.
Cutting Fluid: 2 gallons (8 liters) soluble oil.
Bandsaw Blades: One (1)  Welded-Edge Blade.

Manufacturer's Technical Data: Two (2) sets consisting of parts list, operating and maintenance instructions, installation plan, wiring, elementary electric and hydraulic diagrams, and electrical and hydraulic component list.

Shipping weight: 15,000 lbs. (approximate).

Voltage Requirements:  Indicate the required voltage.
208 volt, 3 phase, 60 cycle (EK 1)
230 volt, 3 phase, 60 cycle (EK 2)
460 volt, 3 phase, 60 cycle (EK 3)
575 volt, 3 phase, 60 cycle (EK 4)

**Two Paint options are available, extra charges are possible**
