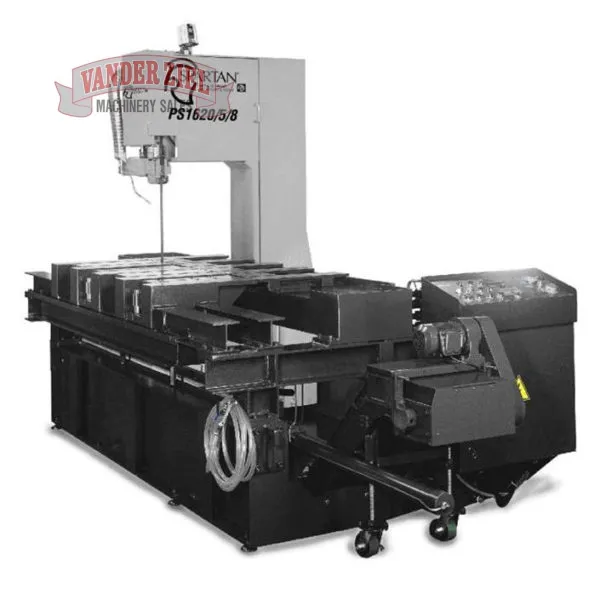

Marvel Spartan 16" x 20" Vertical Plate Saw, Model PS 1620/5/8 - NEW

Marvel Spartan 16" x 20" Vertical Plate Saw, Model PS 1620/5/8 - NEW

SKU # 2322000

SPARTAN MODEL PS-1620 VERTICAL MOVING HEAD PLATE SAW WITH 1.5 INCH BLADE WITH 5'/8' CUTTING LENGTH

Capacity:  16" (400 mm) Height x 20" (500 mm) Width x 59" (1.5 meters) Length

Blade:  1.5" (41mm) x .050" (1.3 mm) x 15'3.875 (4670 mm)

Support Table Width:  Inner Table - 20" (500 mm)            Outer Table - 22" (550 mm)

Hydraulic Table:   material movement via optional hydraulically lifted table with roller and ball transfer unit and built in scale on inner table

Speed Range:  65-325 fpm (20-100 m/min.) Inverter controlled infinitely variable blade speeds, with a  heavy-duty worm gear transmission

Feed Rate:  .080-20"/m (2-500 mm/min.) pressure compensated

Motors:            Blade Drive                   7.5    H.P.
Feed Drive                      1      H.P.
Hydraulic Pump             2      H.P.
Coolant Pump                .25    H.P.

Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.

Table Height:  41.75" (1060 mm)

Overall Dimensions:  18.75" (5700 mm) Long x 6'11" (2100 mm) Wide, with 5 foot table.

Machine Height:  8' 2" (2500 mm)

Machine Weight:  Approximately 13,200 lbs. (6,000 kg, 5') or 17,600 lbs (8,000 kg, 8')

STANDARD FEATURES

• Space Saving Moveable Saw Head


• Saw Head Travels on Ground Square Ways


• Built In 2 Piece Positioning Scales on Inner Table


• 4 "F" Clamps for holding parts


• Hydraulically Positioned Guide Arm


• Hydraulic Blade Tension


• Hydraulic Movement of Saw Head


• Rapid Approach and Return of Saw Head


• Motion Detector for Blade Breakage or Stalling


• Hydraulic Blade Feed with Compensation Valve


• Work Light


• Hydraulically Clamped Tungsten Carbide Blade Guides


• Powered Chip Brush


• Independent Control Panel


• Inverter Controlled Blade Speeds


• Flushing Hose

Priced with 59" Long Table, 98" Table Available
