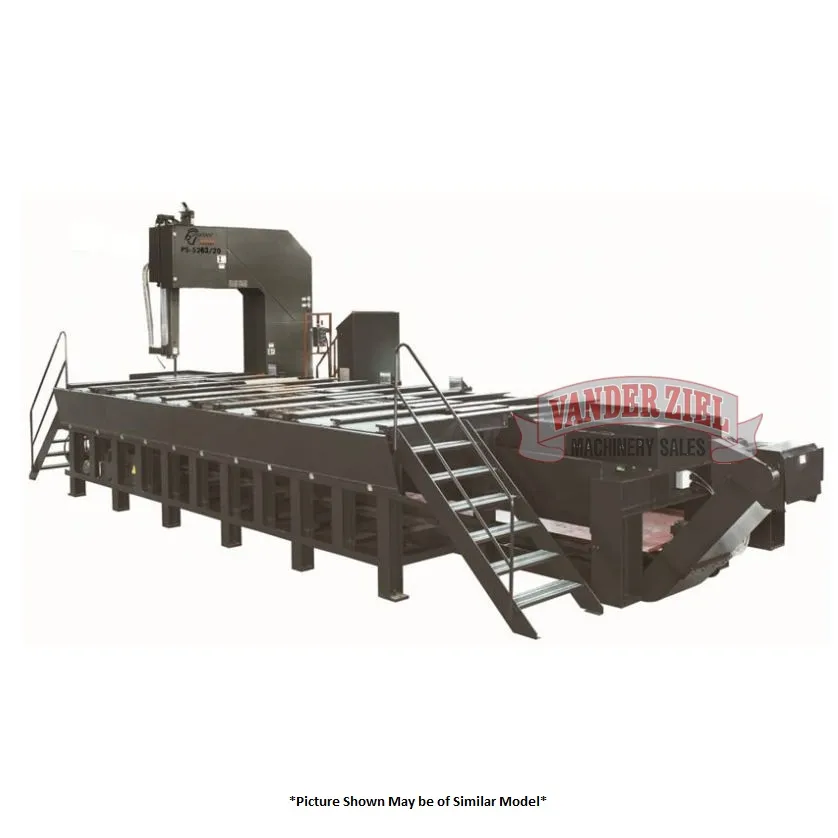

Marvel Spartan 51.125" x 61" Vertical Plate Saw, Model PS-5263/10/15/20 - NEW

Marvel Spartan 51.125" x 61" Vertical Plate Saw, Model PS-5263/10/15/20 - NEW

SKU # 2322007

SPARTAN MODEL PS-5263/10 VERTICAL MOVING HEAD PLATE SAW WITH 3 INCH BLADE

Capacity:  51.125" (1300 mm) Height x 61" (1550 mm) Width x 118" (3 meters) Length

Blade:  32' 9.5" (10,000 mm) x 3" (67 mm) x .063 (1.6 mm)

Support Table Width:  Inner Table        61" (1550 mm)
Outer Table       78.75" (2000 mm)

Speed Range:  50-250 fpm (15-75 m/min.) infinitely variable, driven by heavy-duty worm gear transmission and variable  speed pulley.

Feed Rate:  .040-12"/m (1-300 mm/min.)

Motors:            Blade Drive                   15 H.P.
Feed Drive                     2.5 H.P.
Hydraulic Pump                3 H.P.
Coolant Pump                   1 H.P.

Automatic Chip Removal:  The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.

Table Height:  67" (1700 mm)

Overall Dimensions:  33' 5.5" (10,200 mm) Long x 16' 4.75" (4500 mm) Wide, with 20' table.

Machine Height:  17' 9" (5400 mm)

Machine Weight:  Approximately 45,100 lbs. (20,500 kg) (20' model)

STANDARD FEATURES

• Space Saving Moveable Saw Head


• Precision Linear Ways


• Hydraulically Positioned Saw Guide Arm


• Hydraulic Blade Tension


• AC Servo Feed


• Programmable Feed and Blade Speed Settings


• Rapid Approach and Return of Saw Head


• Motion Detector


• Automatic Feed Adjustment


• On-Screen Self Diagnostics


• Out-of-Square Detector


• Powered Chip Brush

Priced with a 118" Table, also available with a 177" or 236" Table
