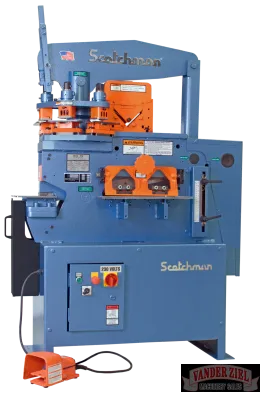

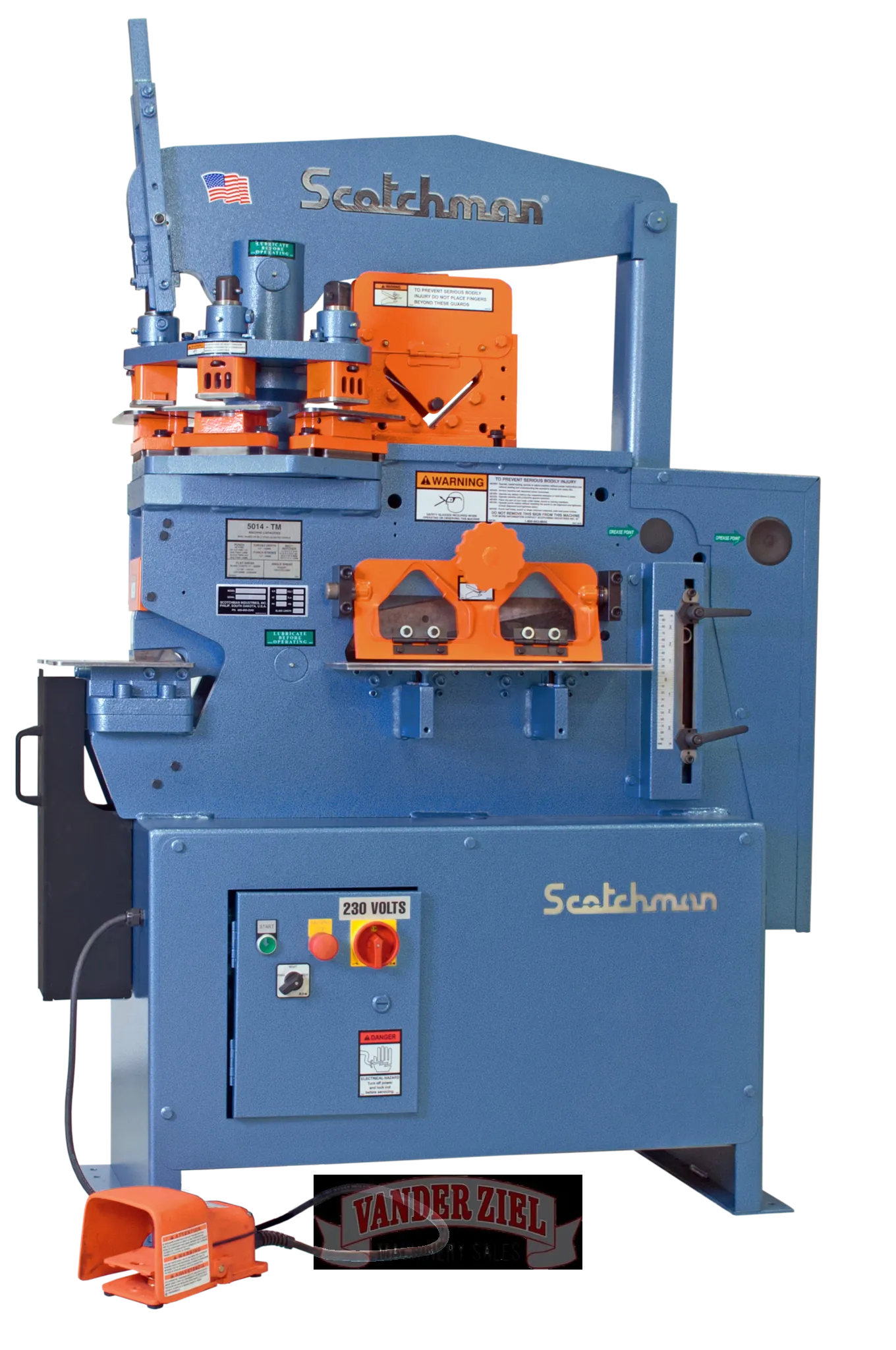

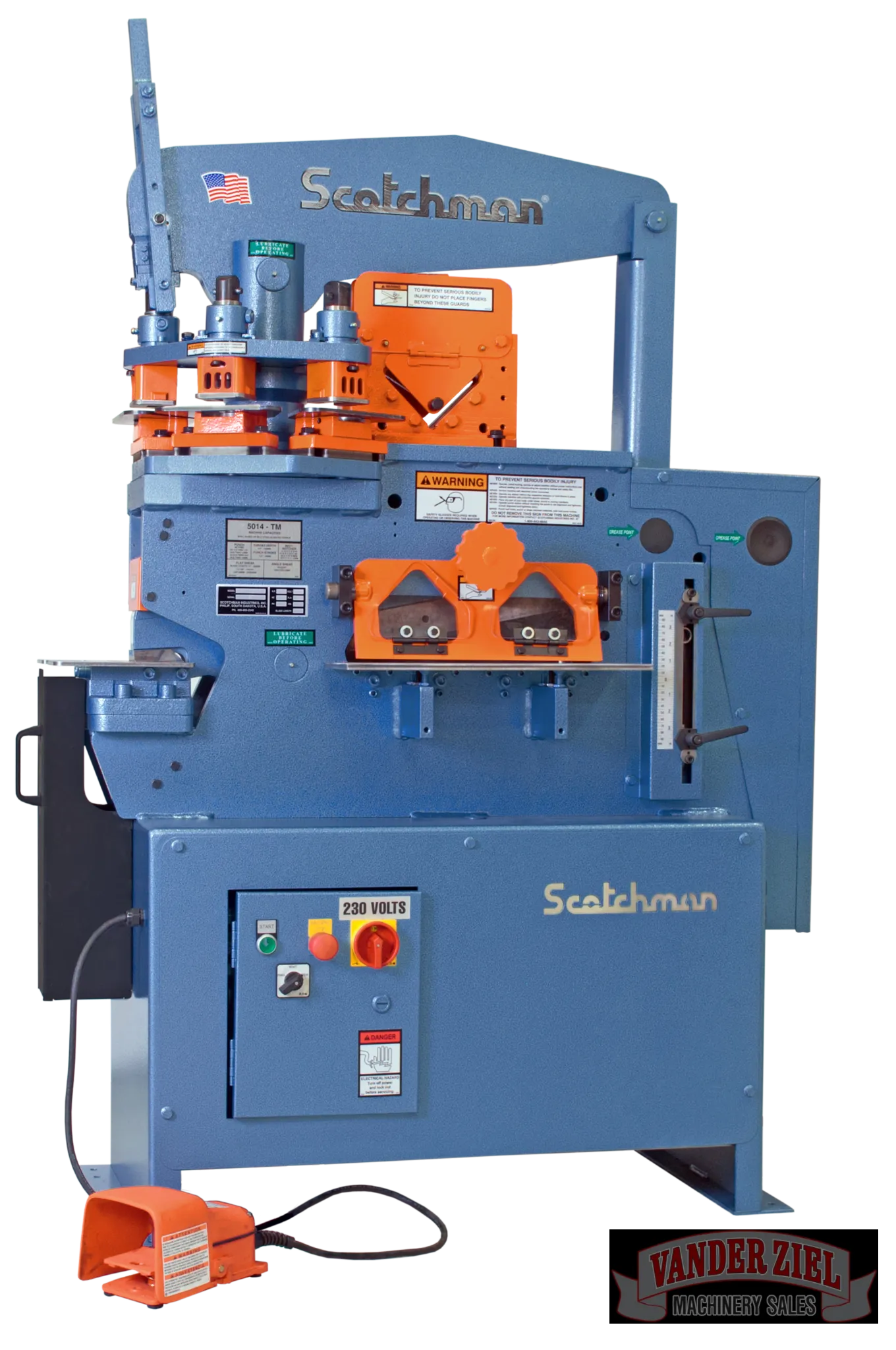

Scotchman 50 Ton Turret Ironworker, Model 5014-ET - NEW
Scotchman 50 Ton Turret Ironworker, Model 5014-ET - NEW
SKU # 3010003
Specifications:
| Rated on: | 65,000 PSI Tensile |
| Punching Capacity | 50 ton1-1/4" in 1/2"13/16" in 3/4" |
| Special Tooling | 2-1/4" Max. Dia. |
| Throat Depth | 4" |
| Flat Bar Shear | 14" Length3/4" x 4"1/2" x 8"3/8" x 10"1/4" x 14" |
| Opt. Saber Blade | 1/2" x 10"3/8" x 12" |
| Angle Shear 90° | 4" x 4" x 3/8" |
| Angle Shear 45° | 2" x 2" x 3/8" |
| Brake 8" | 25 ton |
| Brake 12" | 25 ton |
| Open End Brake | Max. 1/4" x 3"Flat or Angle Iron |
| Pipe NotcherSchedule 40 I.D. | 3/4"1"1-1/4"1-1/2"2" |
| Rectangle Notcher | 2-1/2" x 3" x 5/16"2-1/2" x 2-3/4" x 3/8" |
| 90° V. Notcher | 6" x 6" x 1/8"3" x 3" x 1/4" |
| Strut Shear | Samples Required |
| Rod ShearRound Rod (Max.)Square Rod (Max.) | 1/4" to 1"5 Cavity7/16", 9/16"5/8", 3/4", 1"1/4" to 3/4"1 Cavity3/4" |
| Square Tube Shear | 1/2" to 1"12 ga. |
| Picket Tool | 1/2"3/4"1"16 gauge |
| Strokes Per Minute in Light Material [Punch Station] | 1/4" stroke |
| Strokes Per Minute in Heavy Material [Punch Station] | 3/4" stroke |
| Hydraulics | 2350 psi |
| Motors Standard | 3 hp 3 ph230/460208/380/575 |
| Motors Optional | 5 hp 1 ph220v |
| Dimensions | W-23"L-48"H-70" |
| Shipping Weight | 1,580 lbs |
REF: 000019
