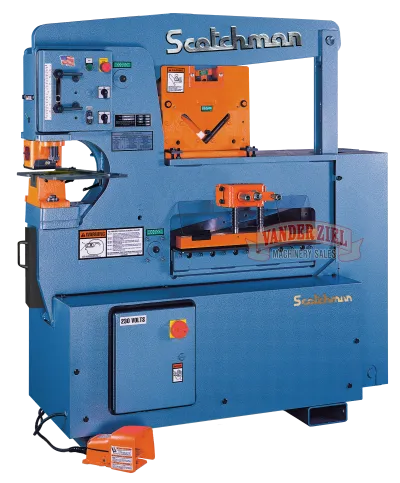

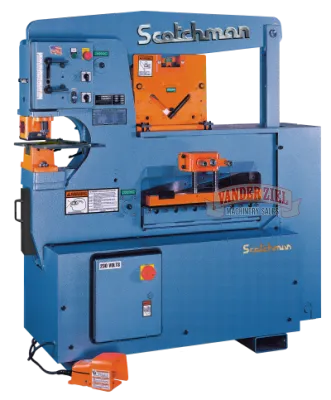

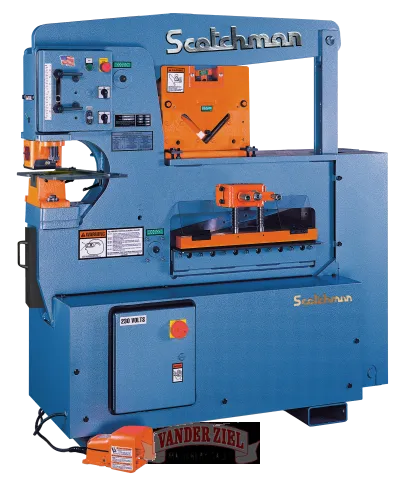

Scotchman 65 Ton Component Tool Ironworker, Model 6509-24M - NEW
Scotchman 65 Ton Component Tool Ironworker, Model 6509-24M - NEW
SKU # 3010004
Specifications:
| Rated on: | 65,000 PSI Tensile |
| Punching Capacity | 65 ton1-1/16" in 3/4" |
| Special Tooling | 4" Max. Dia. |
| Throat Depth | 9" |
| Flat Bar Shear | 24" Length1" x 6"3/4" x 10"1/2" x 12"3/8" x 16"1/4" x 24" |
| Opt. Saber Blade | 1" x 6"1/2" x 16" |
| Angle Shear 90° | 6" x 6" x 3/8"5" x 5" x 1/2" |
| Angle Shear 45°(with Bar Shear) | 3" x 3" x 3/8"4" x 4" x 1/2" |
| Brake 12" | 40 ton |
| Brake 24" | 30 ton |
| Open End Brake | Max. 1/4" x 5"Flat or Angle Iron |
| Pipe NotcherSchedule 40 I.D. | 3/4"1"1-1/4"1-1/2"2" |
| Rectangle Notcher | 2" x 2-1/2" x 3/8" |
| 90° V. Notcher | 6" x 6" x 5/16" |
| Channel Shear | 2" to 5" Adj. |
| Strut Shear | Samples Required |
| Rod ShearRound Rod (Max.)Square Rod (Max.) | 1/4" to 1-1/4", 9 Cav.1/4" to 1", 1 Cav. |
| Square Tube Shear | 1/2" to 2",12 ga. |
| Picket Tool | 1/2"3/4"1"16 gauge |
| Offset Die Holder | Max. 40 ton |
| Strokes Per Minute in Light Material | 1/4" Stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" Stroke [Punch Station] |
| Hydraulics | 2,600 psi |
| Motors Standard | 5 hp 3 ph230/460208/380/575 |
| Motors Optional | 5 hp 1ph230v |
| Dimensions | W-24"L-60"H-66" |
| Shipping Weight | 2,984 lbs. |
REF: 000020
