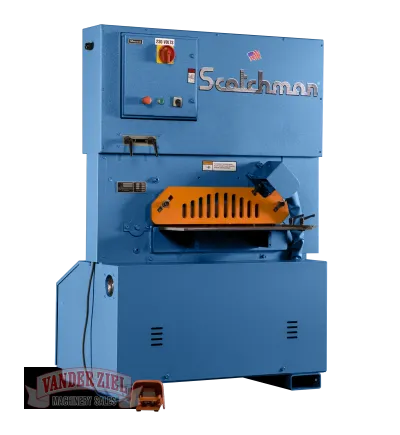

Scotchman Shear Master 610 Production Flat Bar Shear - NEW
SKU # 3010014
Specifications:
The ShearMaster 610 is Scotchman's Production Flat Bar Shear. Designed with the high production end-user in mind, this machine combines large capacity with many standard features turning it into a high production shear. The ShearMaster 610 has a 10 horse power motor for fast cycle times and the capability of shearing 1" x 12" base plate and up to 1/2" x 24" flat stock. This shear is capable of 12 full strokes or 30 half strokes per minute.
The Scotchman Advanced Feed System, with programmable stop feature, works as a great addition to the ShearMaster 610. The AFS turns these shearing machines into fully automatic production machines.
If you need more than just a metal shear, see Scotchman's Hydraulic Ironworker line.
| 24" Flat Bar Shear with 4-way Reversible Blades |
| Shear Table with Miter Fence |
| Shearing Capacity: 1" x 12", 3/4" x 16", or 1/2" x 24" |
| Strokes Per Minute: Full Stroke: 12, Half Stroke: 30 |
| Hydraulic Hold-Down |
| Electric Back Gauge |
| Electric Stroke Control |
| Electric Foot Pedal |
| Two-Stage Hydraulic Pump |
| 10 hp Motor |
| Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations |
| 230/460 Volt / 3-ph Electrics (must specify voltage) |
| All Guards Necessary to Comply with ANSI B 11-5 Standards |
| Forklift Accommodations |
| Warranty: Three Years on Parts |
| Made in the USA |
| Dimensions: W-32", L-48", H-70" |
| Weight: 3,100 lbs. |
