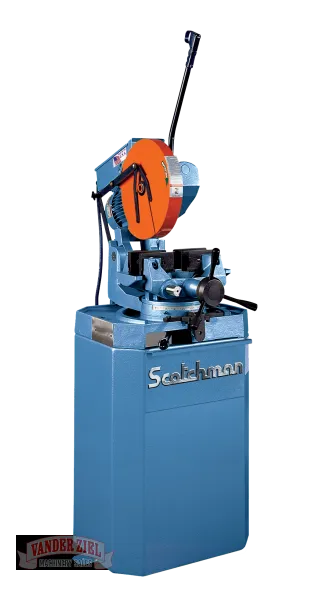

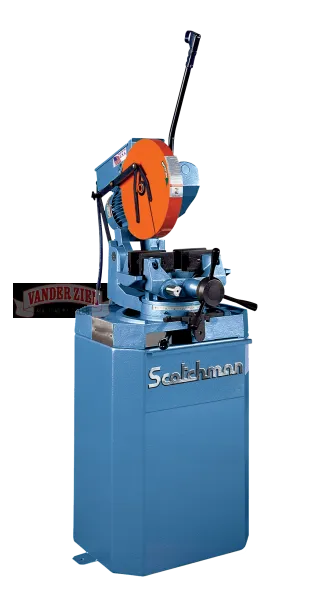

Scotchman 14" Cold Saw, Model CPO 350 - NEW
Scotchman 14" Cold Saw, Model CPO 350 - NEW
SKU # 3019004
Specifications:
| Cutting Speeds | Must Specify when Ordering |
| LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe | LT (Low Turn)22 rpm / 44 rpm |
| HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material | HT (High Turn) 44 rpm / 88 rpm |
| VS (Variable Speed) ~ wired 230/460, 3-ph | VS (Variable Speed) 11 / 177 rpm |
| VS (Variable Speed) ~wired 220, 1-ph | VS (Variable Speed) ~11 / 177 rpm |
| SS (Single Speed) designed for 220v 1 ph applications | SS (Single Speed) 44 rpm |
| TUBINGRoundSquareRectangleSOLIDRoundSquare | 90 Degree4-1/2" (114 mm)4-1/4" x 4-1/4" (108 x 108 mm)5-1/2" x 4" (140 x 102 mm)90 Degree2" (51 mm)2" x 2" (51 x 51 mm) |
| Factory Wired | Specify208 3 ph230 3 ph460 3 ph575 volt, 3 ph 60 hz220 1-ph 60 Hz (SS Model only) |
| Maximum Diameter Blade | 14" |
| Arbor Bore | 1-9/16" |
| Pin Spacing | 4/12/64 |
| Width | 21-7/8" |
| Depth | 43-1/2" |
| Height not including handle | 56-1/4" |
| Height from floor to vise | 37-7/16" |
| Shipping Weight | 660 lbs. |
REF: 000033
