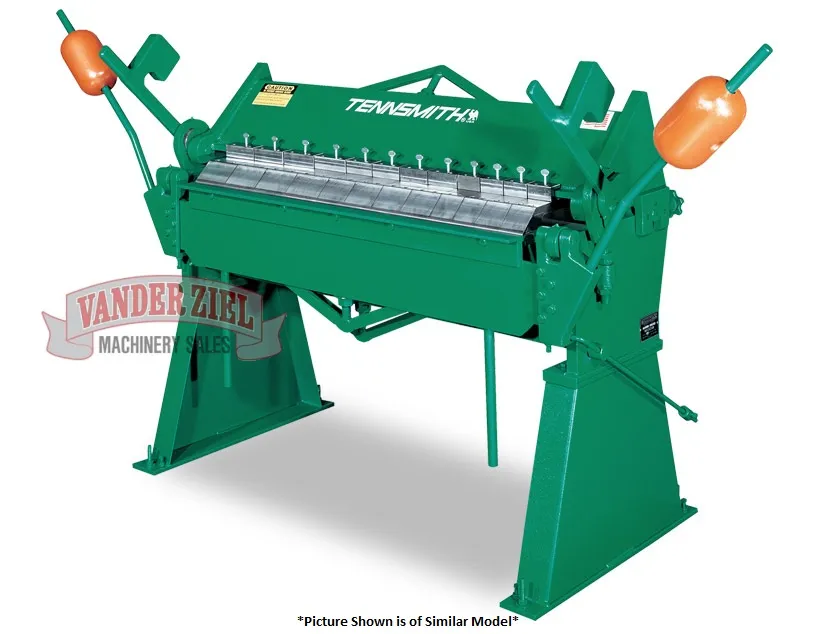

Tennsmith 6' x 12 GA Box & Pan Brake, Model F6-72-12 - NEW

SKU # 3602016

Specifications:

TENNSMITH's F6 Series box and pan brakes were designed to provide heavy-duty forming capability, along with the flexibility of removable 6-inch box depth fingers. Ample clamping and easy-to-use nose bar adjustments allow for a quick-setting bend radius. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.

Other adjustment features include:

Leveling screws and lock nuts on the pedestals

Jack screws and tensioner bolts on the apron

Truss rods on the apron, base and upper beam

Fully adjustable counter balances to facilitate the
bending process

Removable apron angle and insert permit 1/4-inch
reverse bends in lighter material

Box & Pan Hand Brakes	F6-72-12
Capacity, mild steel	12 gauge/2.7 mm
Capacity, stainless steel	16 gauge/1.6 mm
Bending length	72 in./1829 mm
Maximum Iift of beam	2-1/4 in./57 mm
Front to rear beam adjustment	1/2 in./12.7 mm
Maximum depth of box	6 in./152.4 mm
Minimum reverse bend	1/4 in./6 mm
Minimum flange in capacity material	1 in./25 mm
Finger widths	3, 4 and 5 in.76.3, 101.6 and 127 mm
Dimensions, counterweights in place, LxWxH	110 x 53 x 60 in.2794 x 1347 x 1524 mm
Shipping weight	2825 Ibs./1282 kg

Available options: Radius fingers; extension fingers (right and left extension fingers form inside corners with a return flange across the top on boxes, cabinets, etc.); open end fingers (provide triangular, square and rectangular tube forming abilities). Ask dealer for more details.
