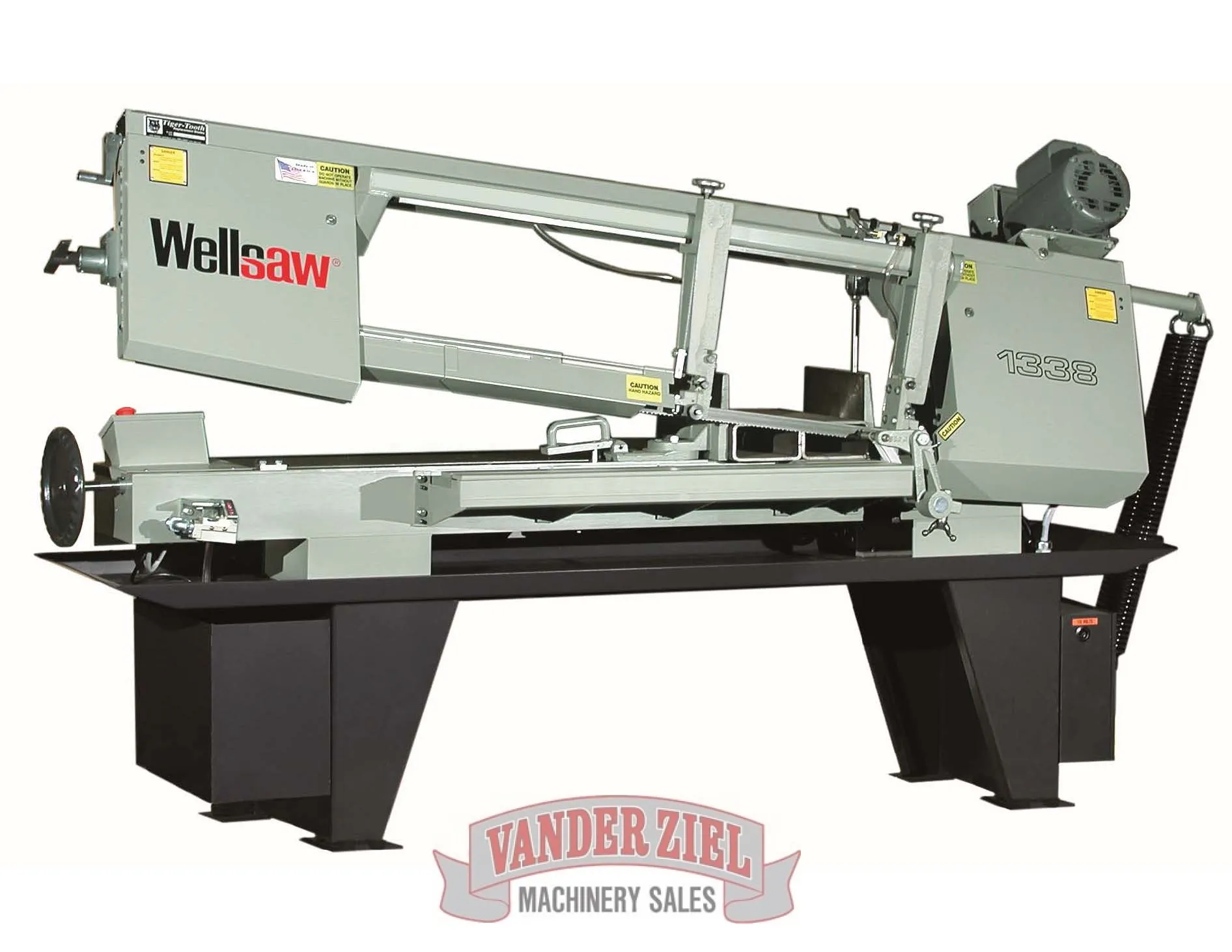

Wellsaw 13" x 38" Horizontal Saw, Model 1338 - NEW

Wellsaw 13" x 38" Horizontal Saw, Model 1338 - NEW

SKU#3920007

Specifications
Capacity Round 13"
Rectangular 13" x 38"
45° Angle 12" x 21"
Blade Size 1" x .035" x 15'6" (186")
Blade Speeds Infi nitely Variable
70-375 SFPM
Blade Guides Carbide Guides with Rollers
Blade Tension Manual Rite-Tension®
Electrical Options 115-208-230/60/1
208-230-460/60/3
Coolant System Tank Capacity 8 Gallons
Submersible Pump/3 GPM
Vise Control Quick Acting/Manual Screw
Swivel Vise To 45°
Feed Control Variable Hydraulic with
Counterbalance Spring
Band Wheels 15" Diameter Cast Iron
Bed Height 29"
Floor Area 40"W x 102"L
Shipping Weight 1,200 Lbs.

Standard Features
Spring-Loaded Carbide Guides with Rollers
Combination Reduction Gearbox and Ring & Pinion Blade Drive
Baldor® Motor
3hp Motor 3 Phase TEFC
2hp Single Phase ODP
Infi nitely Variable Blade Speeds
Rite-Tension® Blade Tensioning Device
Flood Type Wet Cutting System
Powered Blade Brush
110 Volts at Controls
Overload and Undervoltage Protection
Precision Ground Bed and Vise Jaws
Quick Acting Vise
Adjustable Stock Stop/Back-Gauge
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Coolant for Initial Start-Up
