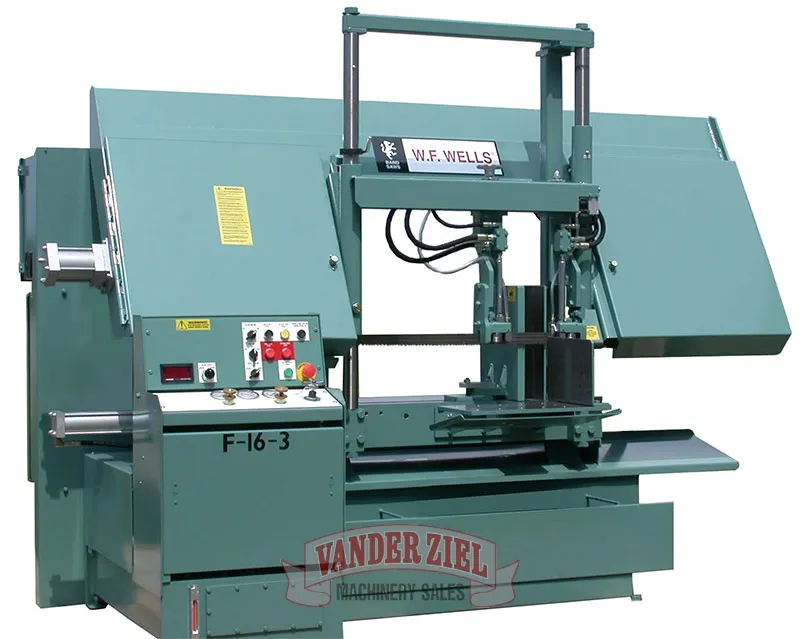

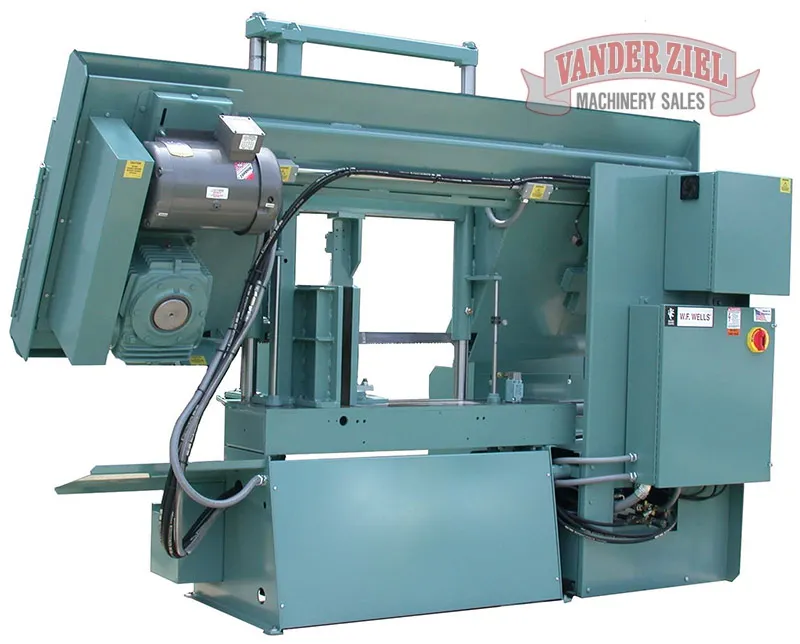

W.F. Wells 17" x 20" Semi-Automatic Horizontal Saw, Model F-16-3 - NEW

W.F. Wells 17" x 20" Semi-Automatic Horizontal Saw, Model F-16-3 - NEW

SKU#4020009

Machine Specifications

• Capacity: Rectangular at 90° 17" High x 20" Wide, Round at 90° 17" Diameter


• Weight Capacity: 5,000 lbs


• Blade Speed: 60-500 SFPM


• Blade Size: 1 1/2" X .050" X 16′ 8"


• Blade Guide: Carbide with Roller Backup


• Blade Tension: Hydraulic


• Bandwheel Size: 22"


• Vise: Full Stroke Hydraulic


• Blade Drive: 10 HP, AC Vector Drive


• Sawing Force: 0-750 lbs


• Coolant Capacity: 15 Gallons


• Hydraulic Capacity: 20 Gallons


• Hydraulic Drive: 2 HP Motor


• Work Height: 35"


• Shipping Weight: 3,200 lbs


• Electrics: Wired to NFPA 79 Machine Tool Standards


• Machine Dimensions: 101" Length x 50" Width x 88" Height
