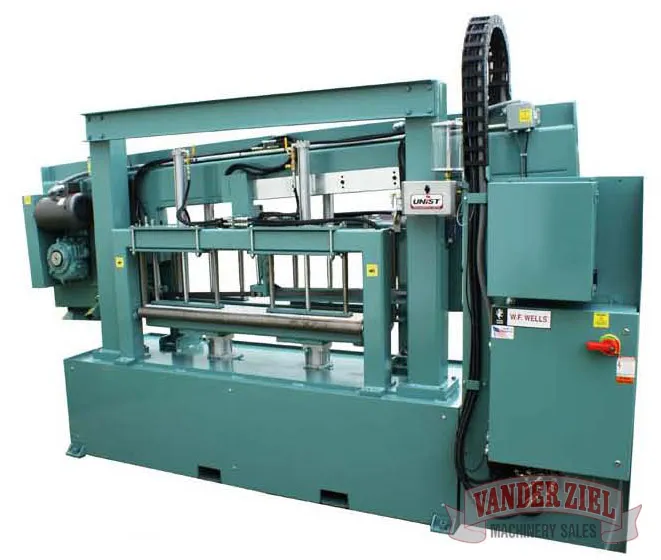

W.F. Wells 10" x 51" Semi-Automatic Horizontal Saw, Model H-1051-2GRS - NEW

W.F. Wells 10" x 51" Semi-Automatic Horizontal Saw, Model H-1051-2GRS - NEW

SKU#4020012

Machine Specifications

• Capacity: Rectangular, 10" High x 51" Wide, 3° Canted Frame


• Weight Capacity: 5,000 lbs - with Bed in Full Upper Position


• Blade Speed: 60-500 SFPM


• Blade Size: 1 1/4" X .042" X 22′ -3" - with Easy Change Tilt Feature


• Blade Guide: Rollers and Carbide Side Blocks


• Blade Tension: Full Time Hydraulic


• Bandwheel Size: 20"


• Vises: Vertical (4), Both Sides of Blade


• Front and Back Independent with Arma Plate Surface and Vertical Stationary Datum Rollers


• Blade Drive: 7 1/2 HP, AC Vector Drive


• Sawing Force: 0-500 lbs


• Coolant: Mist System, 32 oz Capacity


• Hydraulic Capacity: 20 Gallons


• Hydraulic Drive: 2 HP Motor - Full Time


• Saw Bed: 35" Work Height


• Hydraulic Saw Bed Raise/Lower Feature with Replaceable UHMW Wear Surface(s) and Horizontal Infeed and Outfeed Rollers


• Cutting Head Traverse: Linear Motion Ball Rail


• Laser Cut Line: Wired In


• Electrics: Wired to NFPA 79 Machine Tool Standards


• Machine Dimensions: 140" Wide x 48" Deep x 86" High


• Shipping Weight: 4,500 lbs


• Fork Lift Pockets in Base: Side Loaded
