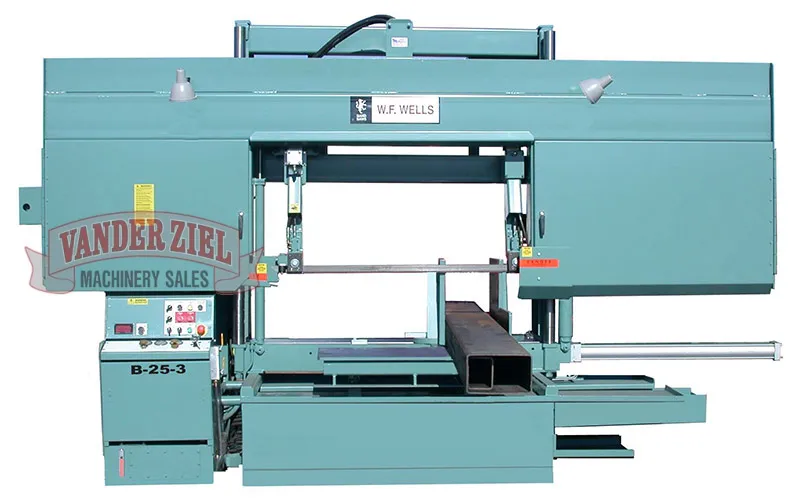

W.F. Wells 25" x 40" Semi-Automatic Horizontal Saw, Model B-25-3 - NEW

W.F. Wells 25" x 40" Semi-Automatic Horizontal Saw, Model B-25-3 - NEW

SKU#4020016

Machine Specifications

• Capacity: Rectangular at 90° 25" High X 40" Wide , Round 25.5"


• Rectangular at 45° 25" High X 24" Wide


• Weight Capacity: 15,000 lbs


• Blade Speed: 60-500 SFPM


• Blade Size: 2" X .063" X 26′-6"


• Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup


• Blade Tension: Hydraulic


• Bandwheel Size: 26"


• Vise: Hydraulic


• Blade Drive: 15 HP, AC Vector Drive


• Sawing Force: 0-1,000 lbs


• Coolant Capacity: 15 Gallons


• Hydraulic Capacity: 20 Gallons


• Hydraulic Drive: 5 HP Motor


• Work Height: 28"


• Outfeed Table: 24" X 40"


• Vise Jaw Height: 17"


• Blade Tension Indicator


• Blade Break/Stall Switch


• Hydraulic Powered Blade Brush


• Hydraulic Positioned Guide Arm


• Electronic Door Interlocks


• Shipping Weight: 7,000 lbs


• Electrics: Wired to NFPA 79 Machine Tool Standards


• Machine Dimensions: 170" Length x 55" Width x 100" Height
