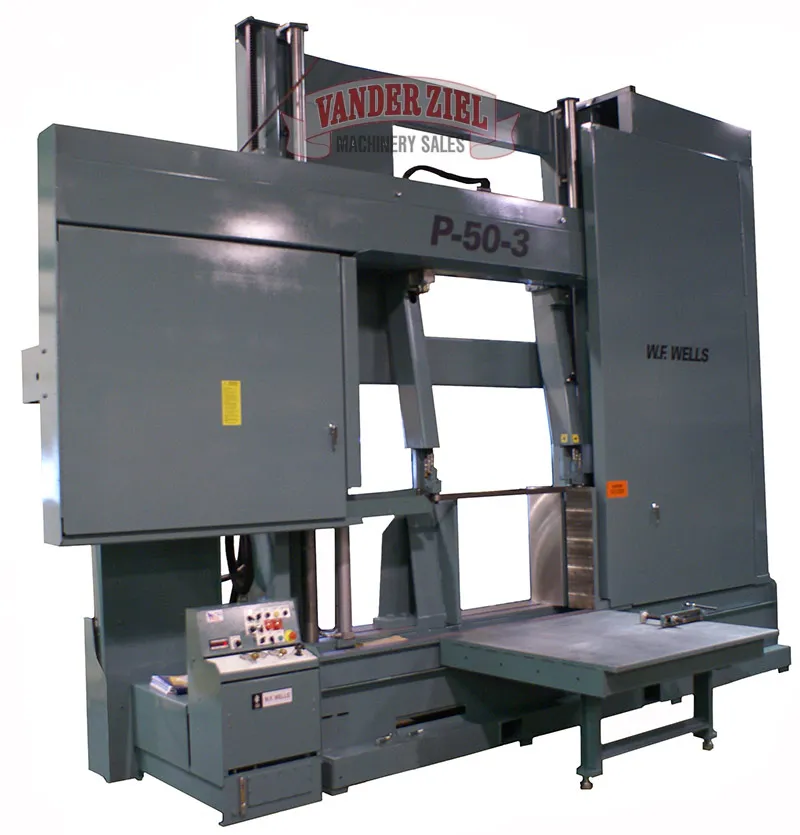

W.F. Wells 50" x 50" Semi-Automatic Horizontal Saw, Model P-50-3 - NEW

W.F. Wells 50" x 50" Semi-Automatic Horizontal Saw, Model P-50-3 - NEW

SKU#4020018

Machine Specifications

• Capacity: Rectangular at 90° 50" High x 50" Wide


• Weight Capacity: 15,000 lbs


• Blade Speed: 60-500 SFPM


• Blade Size: 2" X .063" X 37′-8"


• Blade Guide: Carbide Blocks, Spring Tensioned


• Blade Tension: Hydraulic, Console Controlled


• Blade Sawing Force: Variable 0-1000 lbs


• Saw Vise: Hydraulic Full Stroke


• Blade Drive: 20 HP, 3ph AC Vector


• Hydraulic System: 20 Gal. Capacity, 5 HP Motor


• Coolant System: 60 Gal. Capacity, 10 GPM Pump


• Work Height: 26"


• Shipping Weight: 21,500 lbs


• Electrics: Wired to NFPA 79 Machine Tool Standards


• LED Blade Speed Indicator


• Hydraulic Guide Arm Positioning


• Blade Break/Stall Switch


• Hydraulic Powered Blade Brush


• Machine Dimensions: 24′ Length x 60" Width x 13'6" Height
