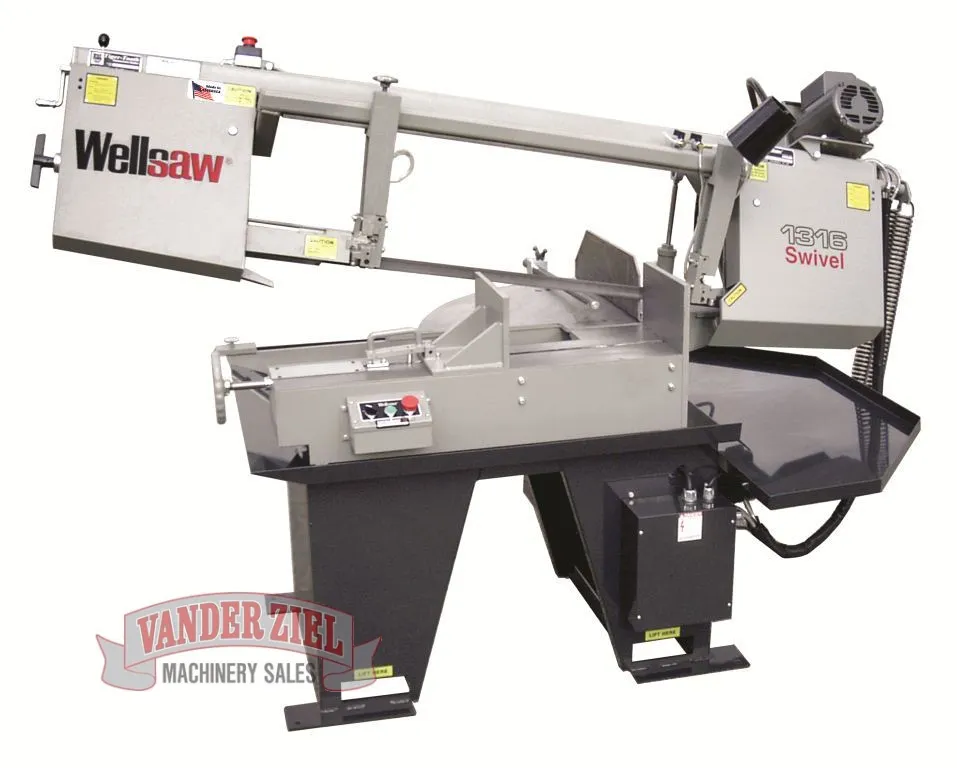

Wellsaw 13" x 18" Horizontal Swivel Saw, Model 1316S-EXT - NEW

Wellsaw 13" x 18" Horizontal Swivel Saw, Model 1316S-EXT - NEW

SKU#3920010

Specifi cations
Capacity                 Round | Rectangular
@ 0° (90°)                   13" | 13"H x 18"W
@45°                             13" | 13"H x 18"W
@60°                             13" | 13"H x 14.5"W
Blade Size 1" x .035" x 15'6" (186")
Blade Speeds Infinitely Variable
70-375 SFPM
Blade Guides Carbide Guides with Rollers
Blade Tension Manual Rite-Tension®
Electrical Options 115-208-230/60/1
208-230-460/60/3
Coolant System Tank Capacity 8 Gallons
Submersible Pump 115V/.6 Amp/3 GPM
Vise Control Quick Acting/Manual Screw
Feed Rate Control Variable Hydraulic
Band Wheels 15" Diameter Cast Iron
Stock Stop Projection 25"
Bed Height 35"
Floor Area 90"W x 76"L
Shipping Weight 1,700 Lbs.

Standard Features
Saw Head Swivels on Precision Ball Bearings
Miter to 60° - No Need to Swivel the Stock
Large Protractor for Accurate Angle Selection
5' x 18" Infeed Roller Conveyor
Spring-Loaded Carbide Guides with Rollers
Combination Reduction Gearbox and Ring & Pinion Blade Drive
Baldor® Motor
3hp Motor 3 Phase TEFC
2hp Single Phase ODP
Infi nitely Variable Blade Speeds
Variable Hydraulic Downfeed Control
Work Light with Transformer
Rite-Tension® Blade Tensioning Device
Wet Cutting System with Full Surround Pan
Powered Blade Brush
110 Volts at Controls
Magnetic Starter with Overload and Undervoltage Protection
Precision Ground Bed and Vise Jaws
Quick Acting Vise
Adjustable Stock Stop/Back Gauge
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Coolant for Initial Start-Up
