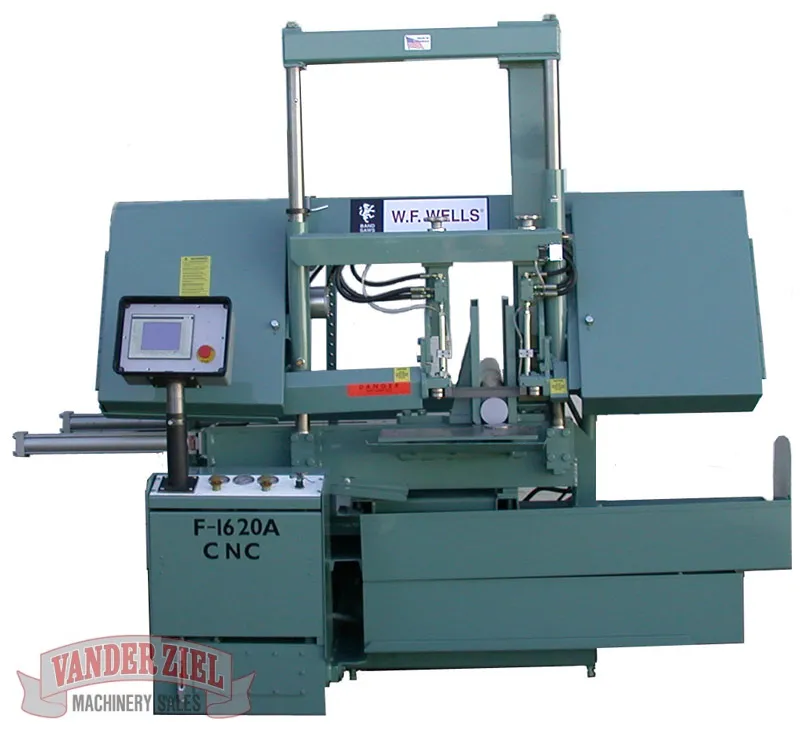

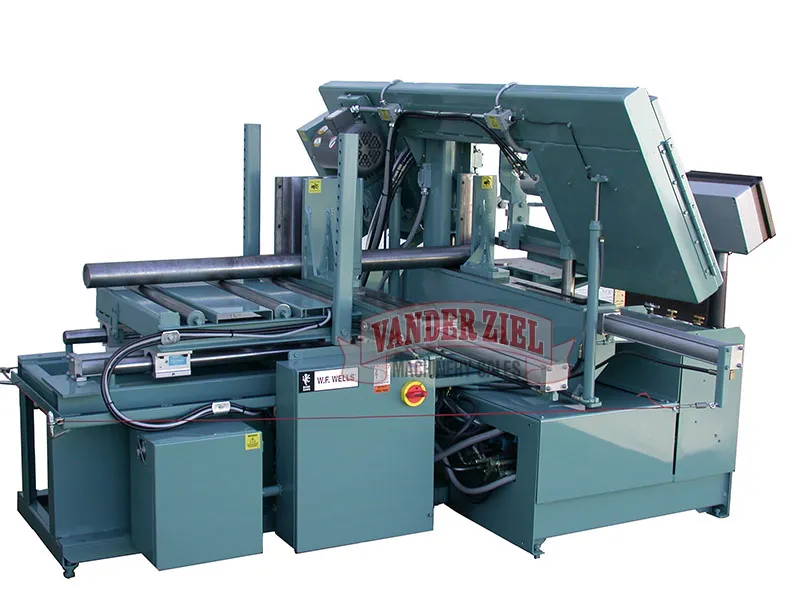

W.F. Wells 16" x 20" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model F-1620-A CNC - NEW

W.F. Wells 16" x 20" CNC Fully Automatic Horizontal Saw with Shuttle Type Barfeed, Model F-1620-A CNC - NEW

SKU#4020027

Machine Specifications

• Capacity: Rectangular at 90º 16" High x 20" Wide, Round 16" Diameter


• Weight Capacity: 5,000 lbs


• Blade Speed: 60-500 SFPM


• Blade Size: 1 1/4" X .042" X 15′


• Blade Guide: Roller Guides with Carbide Inserts


• Vise: Hydraulic, Full Stroke, 15" High


• Bandwheel Size: 20"


• Blade Tension: Hydraulic


• Blade Drive: 7 1/2 HP, AC Vector Drive


• Sawing Force: 0-750 lbs


• Coolant Capacity: 15 Gallons


• Hydraulic Capacity: 20 Gallons


• Hydraulic Drive: 2 HP Motor


• Work Height: 35"


• Barfeed Projection: 0 - 25" CNC Controlled


• Shuttle Indexes: Unlimited


• Projection Accuracy: +/-.002"


• Remnant End: 4"


• CNC Programmable Controller with Color Touch Screen


• 500+ Job Selection


• Automatic Kerf Compensation


• Blade Break/Stall Switch


• Bed and Vise Wear Strips


• Shipping Weight: 4,000 lbs


• Electrics: Wired to NFPA 79 Machine Tool Standards


• Machine Dimensions: 104" Length x 101" Width x 88" Height
