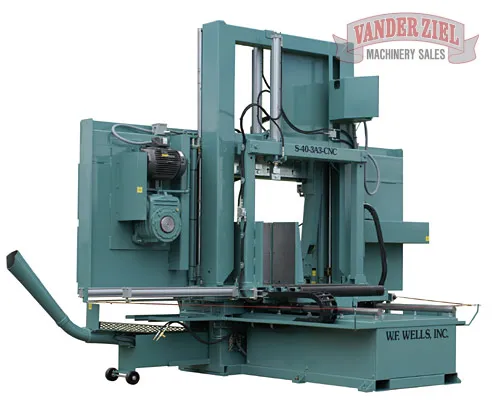

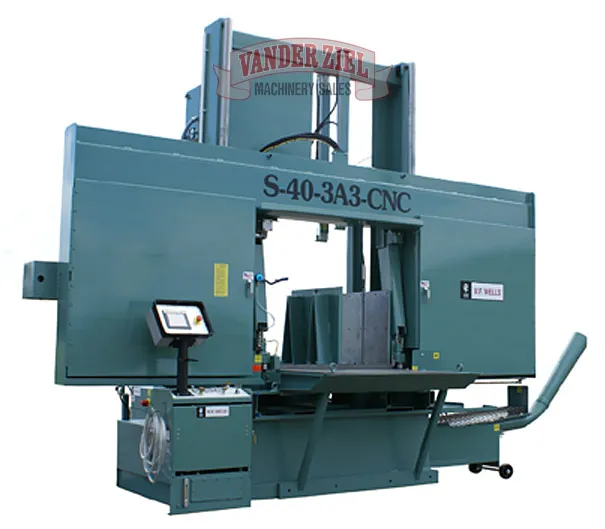

W.F. Wells 40" x 40" CNC Fully Auotmatic Horizontal Saw, Model S-40-3A3 CNC - NEW

W.F. Wells 40" x 40" CNC Fully Auotmatic Horizontal Saw, Model S-40-3A3 CNC - NEW

SKU#4020036

Machine Specifications

• Capacity: 40" High x 40" Wide


• Weight Capacity: 14,000 lbs


• Blade Speed: 60 - 500 SFPM


• Blade Size: 2" X .063" X 29′


• Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup


• Blade Tension: Hydraulic


• Bandwheel Size: 42"


• Vise: Hydraulic


• Blade Drive: 15 HP, AC Vector Drive


• Sawing Force: 0-1000 lbs


• Coolant Capacity: 15 Gallons


• Hydraulic Capacity: 20 Gallons


• Hydraulic Drive: 5 HP Motor


• Work Height: 34"


• Outfeed Table: 12" X 41"


• Vise Jaw Height: 24"


• Barfeed Projection: 0-36" CNC Controlled


• Projection Accuracy: +/- .002"


• Shuttle Indexes: Unlimited


• Remnant End: 14"


• Electrics: Wired to NFPA 79 Machine Tool Standards


• Hydraulic Positioned Guide Arm, Powered Blade Brush, Blade Break/Stall Switch


• CNC Programmable Controlled with Color Touch Screen


• 500+ Job Selection


• Automatic Kerf Compensation


• Shipping Weight: 12,200


• Shipping Dimensions: 175'L x 102"W x 135"H
